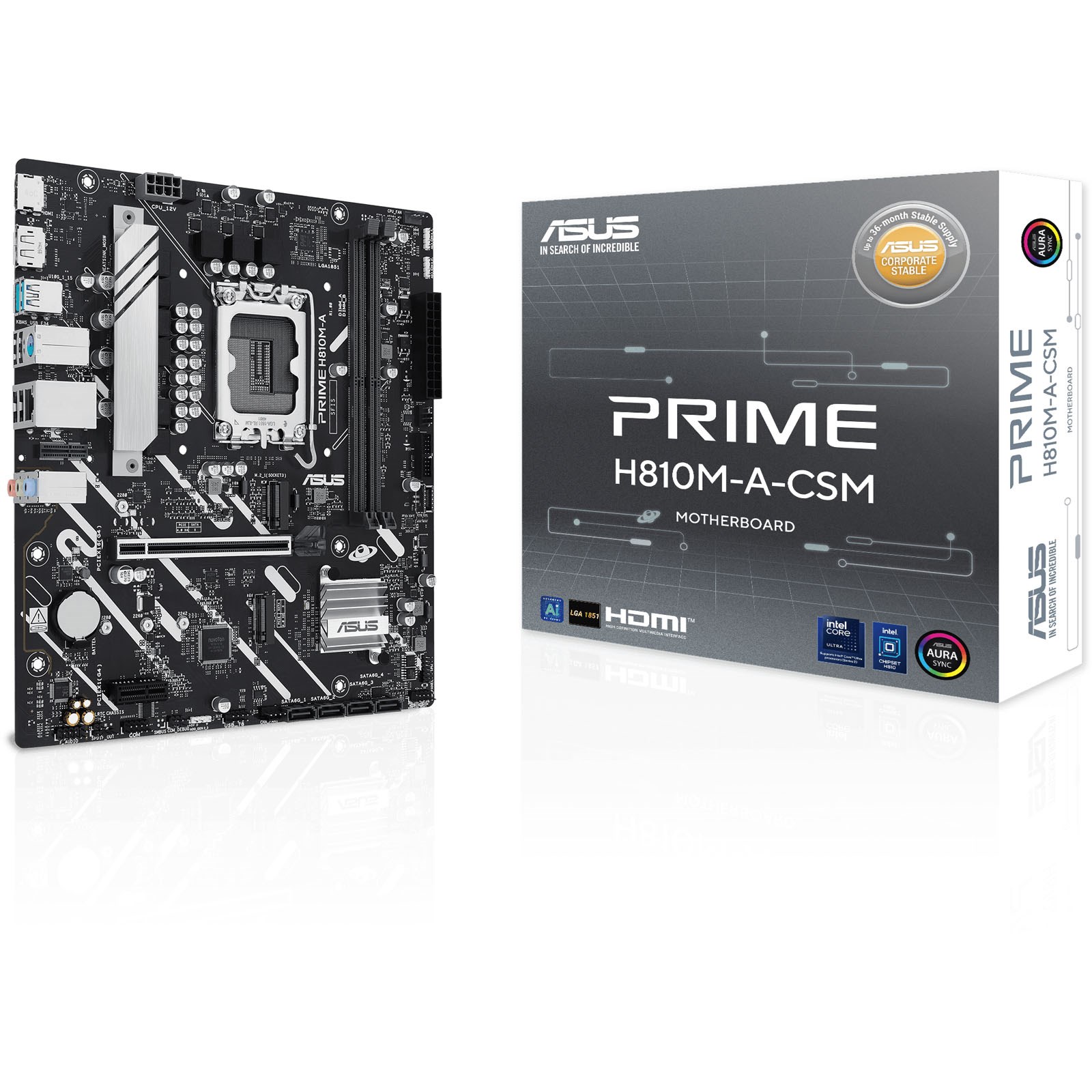

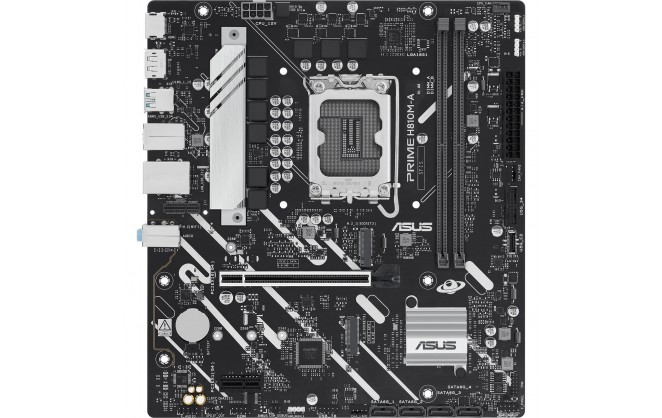

ASUS Prime H810M-A-CSM mATX Socket 1851 Motherboard

  • Part Number: 90MB1KK0-M0EAYC
  • Manufacturer: ASUS
  • Quickfind Code: 136406

  • Stock: In Stock

£103.88 ex. vat
£124.66 inc. vat


Product Features:
  • Condition: New
  • Socket Type 1851
  • Chipset H810
  • Form Factor mATX
  • Memory Type DDR5
  • CPU Type Intel
+ Read More Information

Share:

Product Description

ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME H810M-A-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Technical Specification

ASUS Prime H810M-A-CSM mATX Socket 1851 Motherboard

CPU

CPU SocketSocket 1851
CPU BrandIntel
Installed Processors (Max)0 (1)
Supported Processor ManufacturerIntel
Supported ProcessorsIntel Core Ultra Processors (Series 2)
64-bit SupportYes
SocketLGA1851

Rear Panel I/O Ports

USB Ports2 x USB 3.1
4 x USB 2.0
DisplayPorts1 x DisplayPort 1.4
HDMI Port1 x HDMI 2.1
Keyboard/Mouse Combo Port1 x PS/2
RJ-45 Ports1 x RJ-45
Audio Line In Ports1 x 3.5mm Jack
Audio Line Out Ports1 x 3.5mm Jack
Microphone In Port1 x 3.5mm Jack

Internal I/O Connectors

SATA Connectors4 x SATA
USB Connectors1 x USB-C 3.0 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors1 x Front Panel
1 x Front Audio
Cooling Fan Support1 x CPU fan header
2 x Chassis fan headers
S/PDIF Connectors1 x S/PDIF Out header
Serial Connectors1 x COM header
TPM Header1 x SPI TPM header
Power Connector Port1 x 24-pin ATX
1 x 8-pin EPS
Other Connectors1 x M.2 slot, Key M, Type 2280 (PCIe Gen4)
1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen4 x2)
3 x 3-pin ARGB headers

Memory

Memory Bus SpeedUp to 6400 MT/s
Memory TypeDDR5
Maximum RAM96 GB
Memory Slot2 x DIMM

Motherboard

NorthbridgeIntel H810
RAID SupportedNo
SATA SupportedYes

Expansion

Number of PCI Express Slots1 x PCI Express 4.0 x16 slot
1 x PCI Express 4.0 x1 slot

Graphics Device

Integrated Graphics SupportedYes

Warranty

Warranty3 Years

Sound

Integrated SoundRealtek

Network

Integrated NetworkIntel
Network Speeds SupportedUp to 1 Gbps
Wireless LANNo
BluetoothNo

System Requirements

Operating Systems SupportedMicrosoft Windows 11

System

Jumpers1 x Clear CMOS
Software Included (may be trial or restricted)Yes
DriversYes

Physical

Form FactormATX Motherboard
In The BoxMotherboard
2 x SATA 6Gb/s cables
1 x I/O shield
1 x Screw package for M.2 SSD
1 x Quick start guide
Width222 mm
Length244 mm
Weight0.534 kg

Key Features

RDIMM Memory SupportedNo
RDIMM Memory RequiredNo
Wireless NetworkNo
Motherboard Width222 mm
Motherboard Height244 mm
Main ColourBlack
Memory ChannelDual
On-board Audio Type7.1
Number of SATA Ports4 port(s)
Number of USB Ports6 port(s)
USB 3.0 SupportYes
Multi GPU SupportNo
VGA ConnectionNo
DVI ConnectionNo
HDMI ConnectionYes
DisplayPort ConnectionYes
Motherboard Form FactormATX
Motherboard (EPS) Power Connectors4+4-Pin
Motherboard ChipsetIntel H810
ThunderboltNo
Motherboard ModelASUS Prime H810M-A-CSM
USB 3.1 SupportYes
Internal USB3.0 HeaderYes
M.2 SupportYes
On-board RGB ControlASUS Aura Sync
RGB Header Type3-Pin ARGB
Addressable RGBYes
Internal USB Type-C HeaderYes
Power Requirement (auto)60 W
Max Memory Speed Supported (overclocked)6400 MT/s
CPU Power Pins (female)8
Total M.2 Slots2
Maximum NVMe M.2 ports2
SATA ports4
No. of front USB2.0 ports supported2
No. of front USB3.0 ports supported2
No. of front USB-C ports supported1
Back Connect SupportNo

Item Details

ManufacturerASUS
Manufacturer Code90MB1KK0-M0EAYC
EAN4711387844625
