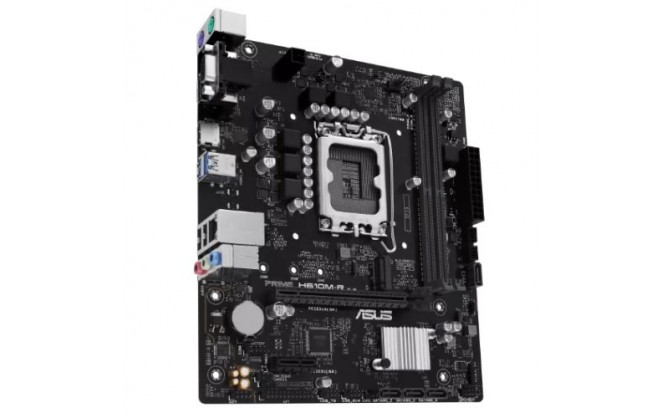

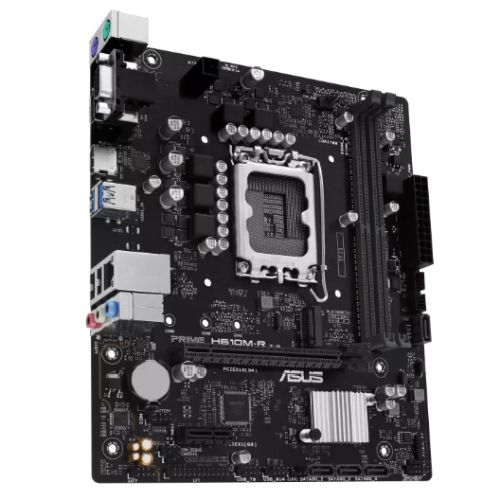

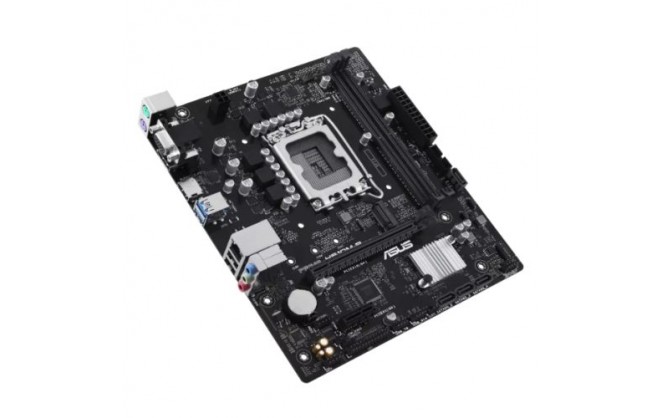

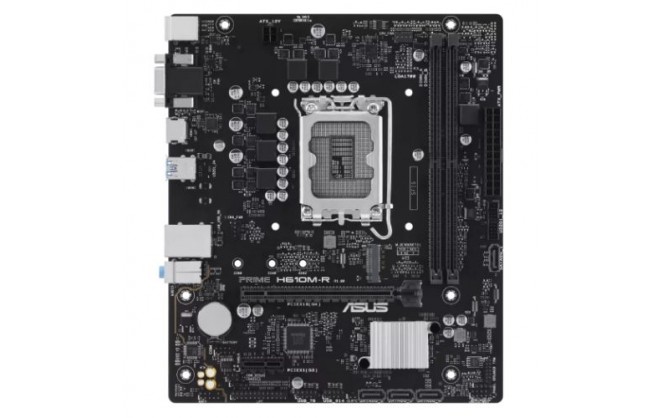

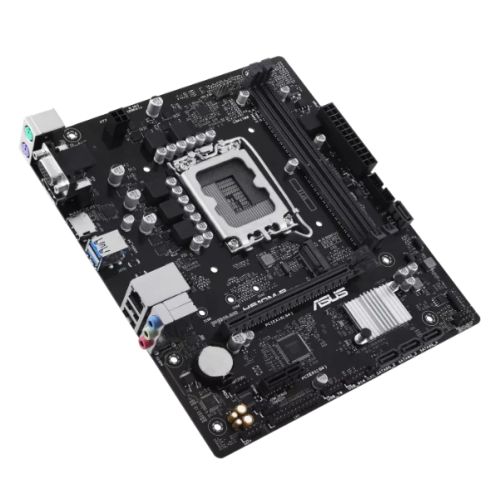

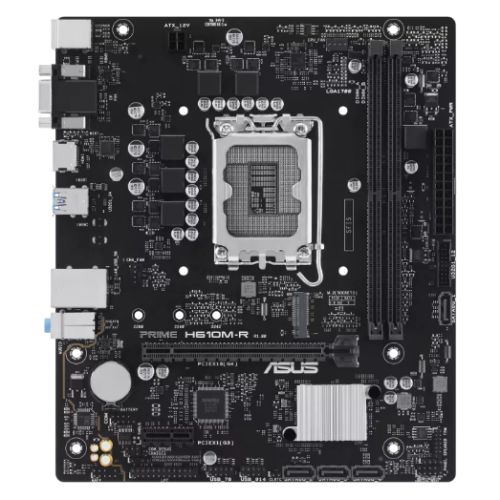

ASUS PRIME H610M-R-SI Socket 1700 mATX DDR5 Motherboard

  • Part Number: 90MB1GL0-M0ECY0
  • Manufacturer: ASUS
  • Quickfind Code: 136502

  • Stock: In Stock

£59.06 ex. vat
£70.87 inc. vat


Product Features:
  • Condition: New
  • Socket Type 1700
  • Chipset H610
  • Form Factor mATX
  • Memory Type DDR5
  • CPU Type Intel
+ Read More Information

Share:

Product Description

Intel® H610 (LGA 1700) micro-ATX motherboard with DDR5, PCIe 4.0, M.2 slot, Realtek 1 Gb Ethernet, DisplayPort, HDMI™, VGA, USB 3.2 Gen 1 ports, SATA 6 Gbps , COM header, LPT header, TPM header

  • Intel® LGA 1700 Socket: Ready for 13th & 12th Gen Intel® processors
  • Comprehensive Cooling: PCH heatsink
  • Ultrafast Connectivity: PCIe 4.0, 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1 support
  • 5X Protection III: Multiple hardware safeguards for all-round protection




Prime

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th & 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.





Flexibility

Comprehensive controls form the foundation of the ASUS Prime series. The Prime H610 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.





UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.





Cooling

Prime H610 series are engineered with an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.





Performance

Prime H610 series are built to handle the additional cores and increased bandwidth of 13th & 12th Generation Intel® processors. ASUS H610 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.





Customization

Prime H610 series add the nuanced details that improve every experience, exclusive codecs that provide pristine audio quality let you customize your system to create a uniquely personal look.
Audio

Technical Specification

ASUS PRIME H610M-R-SI Socket 1700 mATX DDR5 Motherboard

Motherboard Type
Desktop
Form Factor
Micro ATX
Socket
Intel 1700
Chipset
Intel H610
CPU Support
Click here for CPU support
RAM Technology
DDR5 (Dual Channel)
Non-ECC, Un-buffered Memory*
Supports Intel XMP

* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
RAM Slots
2 x DIMM
RAM Speeds
5600/5400/5200/5000/4800 MHz
Maximum Memory
96GB
Graphics
Integrated Graphics
Graphics specifications may vary between CPU types
Graphics Ports
1 x VGA
1 x HDMI
1 x DisplayPort
Multi-GPU Support
-
PCI/PCI Express
1 x PCIe 4.0 x16
1 x PCIe 3.0 x1
Storage
4 x SATA III
1 x M.2 (2242/2260/2280) - PCIe 3.0 x4
Wireless
-
LAN
GB LAN
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
USB Ports Supported
Rear:
2 x USB 5Gbps Type-A
4 x USB 2.0

Front:
2 x USB 5Gbps
4 x USB 2.0

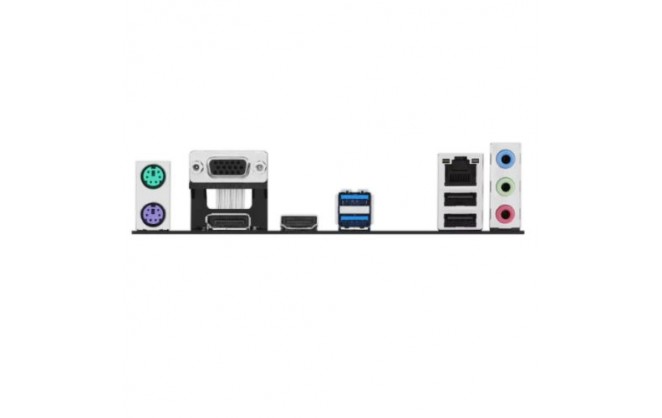

Back Panel I/O Ports
2 x USB 5Gbps Type-A
4 x USB 2.0
1 x DisplayPort
1 x VGA
1 x HDMI
1 x Realtek 1Gb Ethernet
3 x Audio jacks
1 x PS/2 Keyboard
1 x PS/2 Mouse
Internal I/O Connectors
1 x 4-pin CPU Fan
1 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 4-pin +12V
1 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen1
2 x USB 2.0
1 x Clear CMOS
1 x Chassis Intrusion
1 x COM Port
1 x Front Panel Audio

1 x LPT
1 x Speaker
1 x SPI TPM (14-1 pin)
1 x 10-1 pin System Panel
Accessories
2 x SATA 6Gb/s cables
1 x I/O Shield
1 x M.2 ANCHOR
1 x User guide
