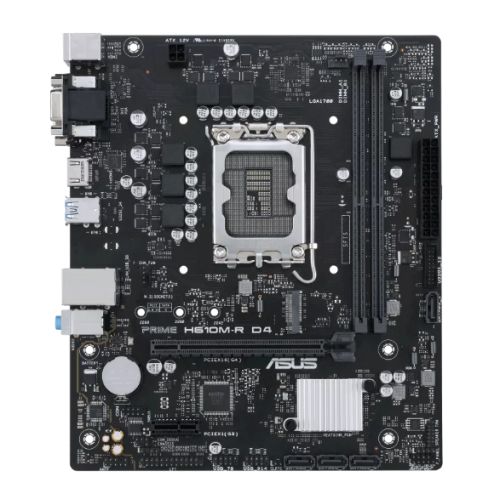

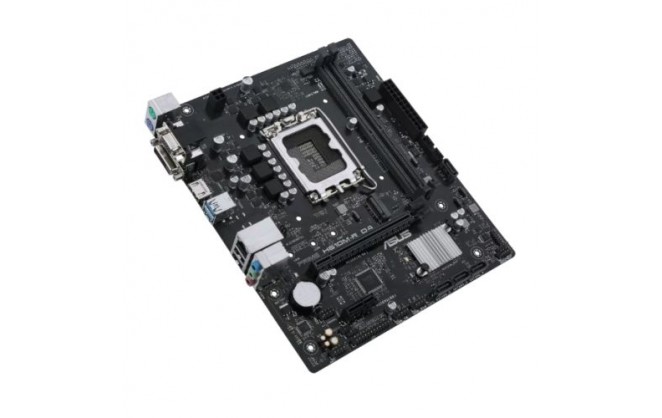

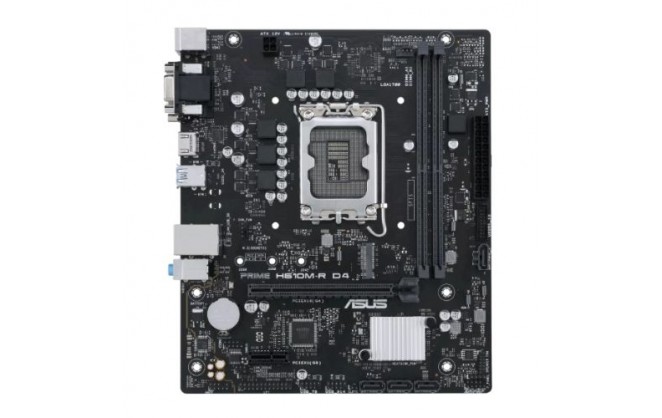

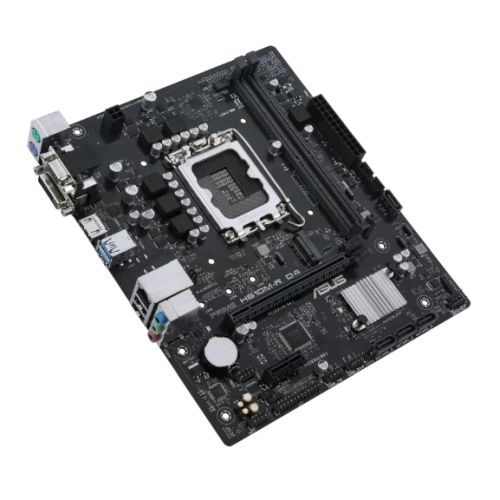

ASUS PRIME H610M-R D4-SI Socket 1700 DDR4 mATX Motherboard

  • Part Number: 90MB1B40-M0ECY0
  • Manufacturer: ASUS
  • Quickfind Code: 136503

  • Stock: In Stock

£59.48 ex. vat
£71.38 inc. vat


Product Features:
  • Condition: New
  • Socket Type 1700
  • Chipset H610
  • Form Factor mATX
  • Memory Type DDR4
  • CPU Type Intel
+ Read More Information

Share:

Product Description

Intel® H610 (LGA 1700) mic-ATX motherboard with DDR4, PCIe 4.0, M.2 slot, Realtek 1 Gb Ethernet, HDMI®,D-Sub, DVI, USB 3.2 Gen 1 ports, SATA 6 Gbps , COM header, LPT header, TPM header


  • Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors
  • Comprehensive cooling: PCH heatsink
  • Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1
  • 5X Protection III: Multiple hardware safeguards for all-round protection




Prime

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.





Flexibility

Comprehensive controls form the foundation of the ASUS Prime series. The Prime H610 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.





UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.





Cooling

Prime H610 series are engineered with heatsink and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.





Cooler by Design

Prime H610 series feature comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.





Performance

Prime H610 series are built to handle the additional cores and increased bandwidth of 12th Generation Intel processors. ASUS H610 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.





Customization

Prime H610 Series add the Nuanced details that improve every experience, from codecs the provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.

Technical Specification

ASUS PRIME H610M-R D4-SI Socket 1700 DDR4 mATX Motherboard

Motherboard Type
Desktop
Form Factor
Micro ATX
Socket
Intel 1700
Chipset
Intel H610
CPU Support
Click here for CPU support
RAM Technology
DDR4 (Dual Channel)
RAM Slots
2 x DIMM
RAM Speeds
Up to 3200MHz
Maximum Memory
64GB
Graphics
Integrated Graphics*

*Graphics specifications may vary between CPU types
Graphics Ports
1 x VGA
1 x DVI-D
1 x HDMI
Multi-GPU Support
-
PCI/PCI Express
1 x PCIe 4.0 x16
1 x PCIe 3.0 x1
Storage
4 x SATA III
1 x M.2 (2242/2260/2280) - PCIe
RAID
-
Wireless
-
LAN
GB LAN
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
USB Ports Supported
4 x USB 3.2 Gen1 Type-A (2 at back, 2 at mid-board)
6 x USB 2.0 (2 at back, 4 at mid-board)

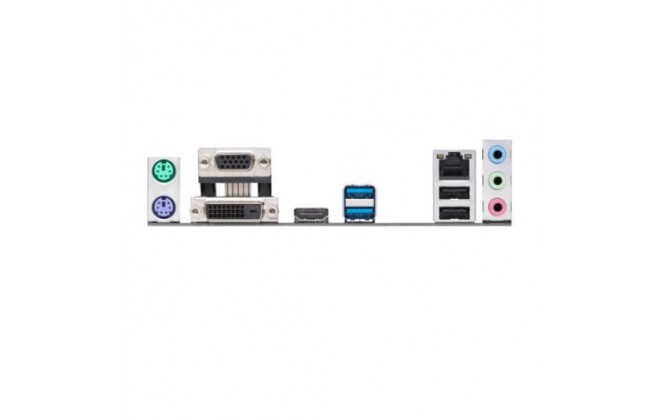

Back Panel I/O Ports
2 x USB 3.2 Gen1 Type-A
2 x USB 2.0
1 x D-Sub
1 x DVI-D
1 x HDMI
1 x Realtek 1Gb Ethernet
3 x Audio jacks
1 x PS/2 Keyboard
1 x PS/2 Mouse
Internal I/O Connectors
1 x 4-pin CPU Fan
2 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 4-pin +12V
1 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen1
2 x USB 2.0
1 x Chassis Intrusion header
1 x COM Port
1 x Front Panel Audio
1 x LPT

1 x Clear CMOS
1 x Speaker
1 x SPI TPM (14-1pin)
1 x 10-1 pin System Panel
