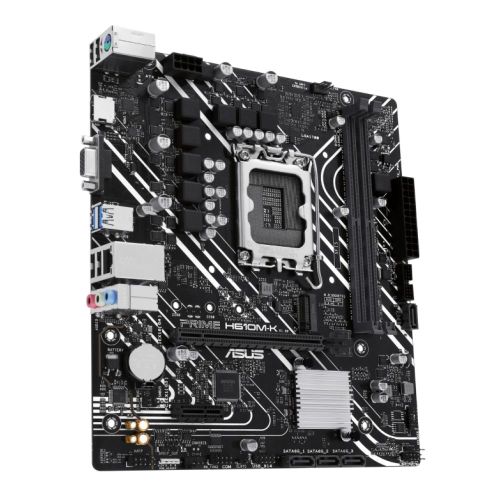

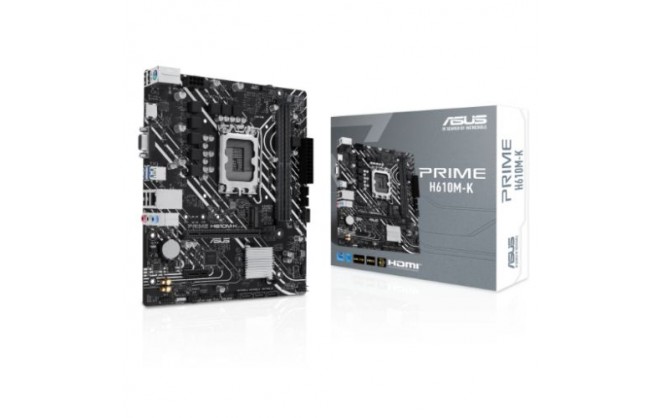

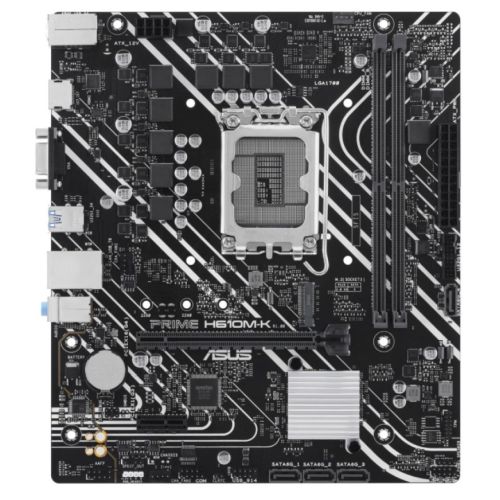

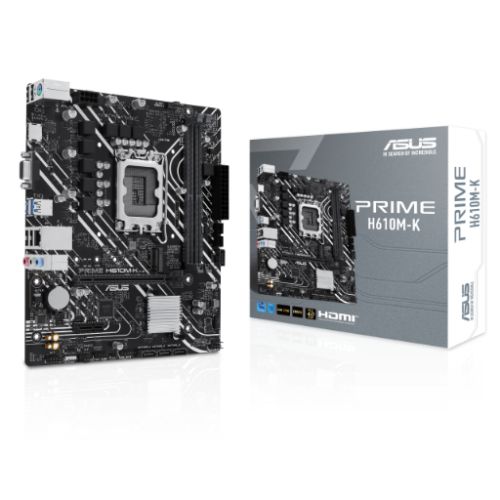

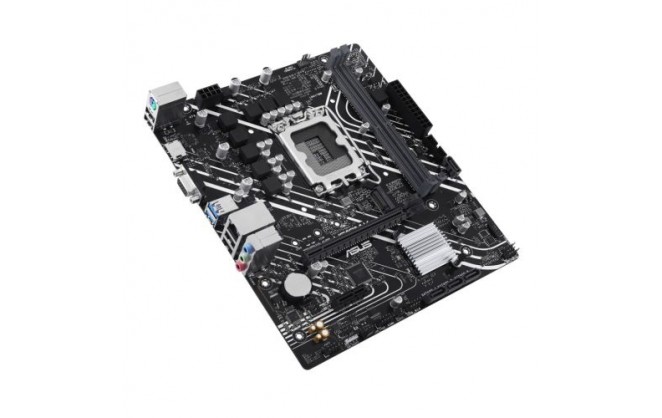

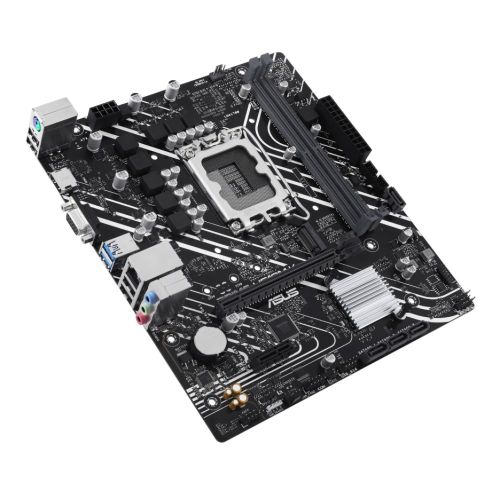

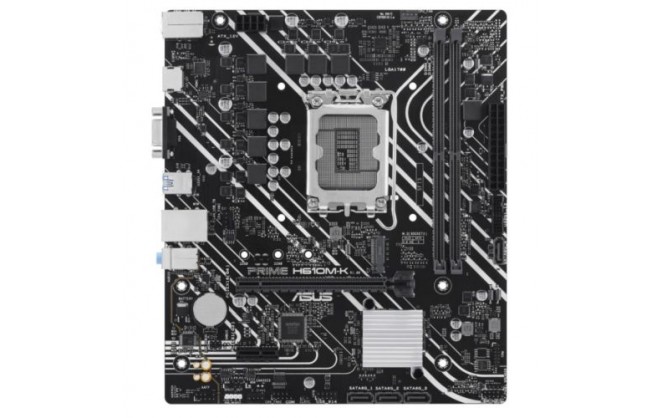

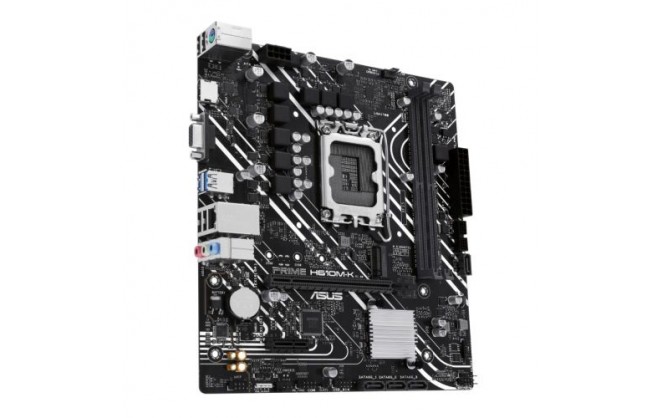

ASUS PRIME H610M-K Socket 1700 DDR5 mATX Motherboard

  • Part Number: 90MB1GA0-M0EAY0
  • Manufacturer: ASUS
  • Quickfind Code: 136512

  • Stock: In Stock

£79.89 ex. vat
£95.87 inc. vat


Product Features:
  • Condition: New
  • Socket Type 1700
  • Chipset H610
  • Form Factor mATX
  • Memory Type DDR5
  • CPU Type Intel
+ Read More Information

Share:

Product Description

Intel® H610 (LGA 1700) micro-ATX motherboard, DDR5, PCIe 4.0, M.2 slot, Realtek 1 Gb Ethernet, HDMI™, VGA, USB 3.2 Gen 1, SATA 6 Gbps, COM header, RGB header

  • Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
  • Ultrafast Connectivity: PCIe 4.0, 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1
  • Comprehensive Cooling: PCH heatsink and Fan Xpert 2+
  • 5X Protection III: Multiple hardware safeguards for all-round protection





Prime

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th & 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.





Flexibility

Comprehensive controls form the foundation of the ASUS Prime series. The Prime H610 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.





UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.





Advanced Tuning for Serious Tweakers

An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.





Cooler by Design

Prime H610 series feature comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.





Performance

Prime H610 series are built to handle the additional cores and increased bandwidth of 13th & 12th Generation Intel® processors. ASUS H610 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.





DDR5 Performance

Comprehensive memory tuning options are the cornerstone of PRIME motherboards. With the PRIME H610M-K, you can extract all of the potential out of your DDR5 modules, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked. For those who want to fly past stock DDR5 speeds, the PRIME H610M-K is primed and ready for enthusiast-grade kits courtesy of Intel® Extreme Memory Profile (XMP) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI.





M.2 slot (up to 32 Gbps)

PRIME H610M-K offers one M.2 slot that supports data-transfer speeds of up to 32 Gbps via PCIe 3.0, enabling quicker boot-up and app load times with OS or application drives.





Customisation

Prime H610 series add the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.





DIY Friendly
  • Q-LED Core - The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.
  • Fortified PCIe slot prevents damage - SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that's anchored to the motherboard by a special hook, SafeSlot Core provides 1.6x stronger retention and 1.3x greater shearing resistance than standard expansion slots.
Technical Specification

ASUS PRIME H610M-K Socket 1700 DDR5 mATX Motherboard

Motherboard Type
Desktop
Form Factor
Micro ATX
Socket
Intel 1700
Chipset
Intel H610
CPU Support
Click here for CPU support
RAM Technology
DDR5 (Dual Channel)
Non-ECC, Un-buffered Memory*
Supports Intel XMP

* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
RAM Slots
2 x DIMM
RAM Speeds
5600/5400/5200/5000/4800 MHz
Maximum Memory
96GB
Graphics
Integrated Graphics
Graphics specifications may vary between CPU types
Graphics Ports
1 x VGA
1 x HDMI
PCI/PCI Express
1 x PCIe 4.0 x16
1 x PCIe 3.0 x1
Storage
4 x SATA III
1 x M.2 (2242/2260/2280) - PCIe 3.0 x4
Wireless
-
LAN
GB LAN
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
USB Ports Supported
Rear:
2 x USB 5Gbps Type-A
4 x USB 2.0

Front:
2 x USB 5Gbps
2 x USB 2.0
Back Panel I/O Ports
2 x USB 5Gbps Type-A
4 x USB 2.0
1 x VGA
1 x HDMI
1 x Realtek 1Gb Ethernet
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo
Internal I/O Connectors
1 x 4-pin CPU Fan
2 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
1 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen1
1 x USB 2.0
1 x RGB
1 x Clear CMOS
1 x Front Panel Audio
1 x COM Port

1 x S/PDIF Out
1 x Speaker
1 x SPI TPM (14-1pin)
1 x 10-1 pin System Panel
Accessories
2 x SATA 6Gb/s cables
1 x I/O Shield
1 x M.2 Anchor
1 x User guide
