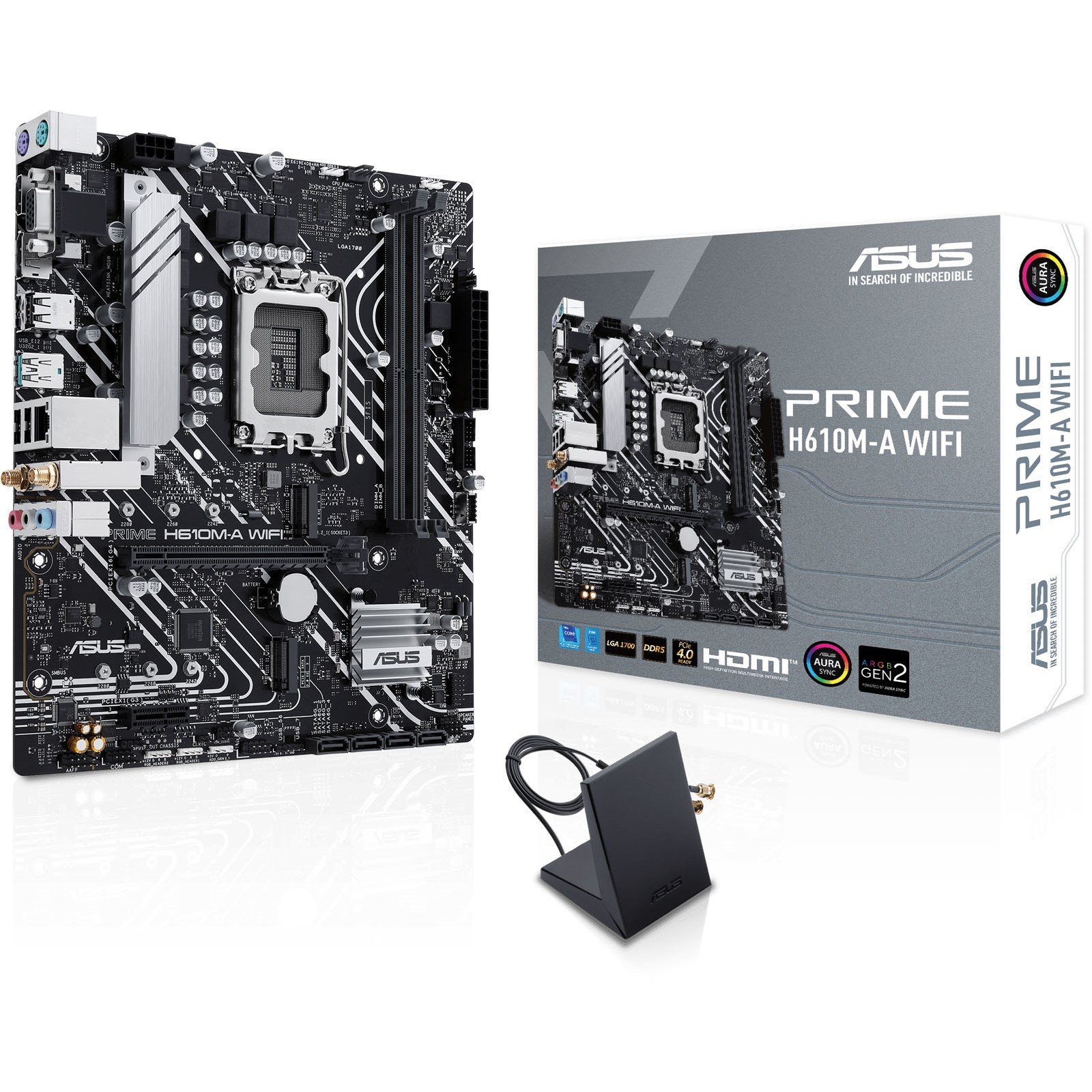

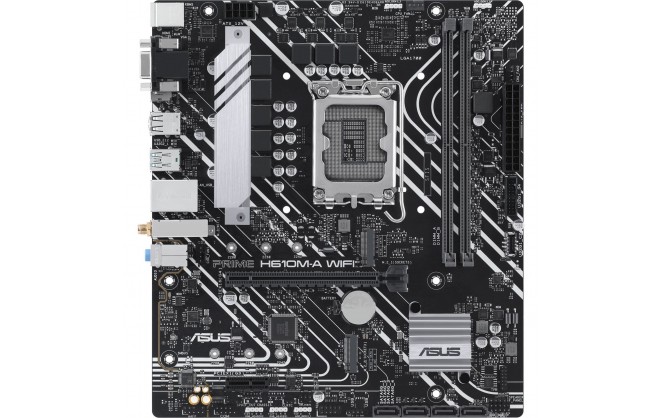

ASUS Prime H610M-A WIFI mATX Socket 1700 Motherboard

  • Part Number: 90MB1G00-M0EAY0
  • Manufacturer: ASUS
  • Quickfind Code: 136215

  • Stock: In Stock

£74.48 ex. vat
£89.38 inc. vat


Product Features:
  • Condition: New
  • Socket Type 1700
  • Chipset H610
  • Form Factor mATX
  • Memory Type DDR5
  • CPU Type Intel
+ Read More Information

Share:

Product Description

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th & 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.

Main Features

  • Intel LGA 1700 Socket: Ready for 13th and 12th Gen Intel processors
  • Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Intel 1Gb Ethernet ,WIFI 5 and USB 3.2 Gen 2 support, front USB 3.2 Gen 1 Type-C
  • Comprehensive Cooling: VRM heatsink, PCH heatsink and Fan Xpert 2+
  • Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
Technical Specification

ASUS Prime H610M-A WIFI mATX Socket 1700 Motherboard

CPU

CPU SocketSocket 1700
CPU BrandIntel
Installed Processors (Max)0 (1)
Supported Processor ManufacturerIntel
64-bit SupportYes
SocketLGA1700

Rear Panel I/O Ports

USB Ports1 x USB 3.1
4 x USB 2.0
DisplayPorts1 x DisplayPort 1.4
HDMI Port1 x HDMI 2.1
VGA Port1 x D-Sub
Keyboard Port1 x PS/2
Mouse Port1 x PS/2
RJ-45 Ports1 x RJ-45
Audio Line In Ports1 x 3.5mm Jack
Audio Line Out Ports1 x 3.5mm Jack
Microphone In Port1 x 3.5mm Jack
Antenna Connector(s)2 x SMA Antenna

Internal I/O Connectors

SATA Connectors4 x SATA III
USB Connectors1 x USB-C 3.0 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
1 x USB 2.0 half-header (supports 1 port)
1 x USB 2.0 header (supports 2 ports)
Speaker1 x Speaker header
Front Panel Connectors1 x Front Panel
1 x Front Audio
Cooling Fan Support1 x CPU fan header
2 x Chassis fan headers
S/PDIF Connectors1 x S/PDIF out header
Serial Connectors1 x COM header
TPM Header1 x SPI TPM header
Power Connector Port1 x 24-pin ATX
1 x 8-pin EPS
Other Connectors1 x M.2 slot, Key M (Type 2242/2260/2280) PCIe Gen3 x4
1 x M.2 slot, Key M (Type 2242/2260/2280) PCIe Gen3 x2
3 x 3-pin ARGB LED headers
2 x 4-pin RGB LED headers

Memory

Memory Bus SpeedUp to 5600 MHz
Memory TypeDDR5
Maximum RAM96 GB
Memory Slot2 x DIMM

Motherboard

NorthbridgeIntel H610
RAID SupportedNo
SATA SupportedYes

Expansion

Number of PCI Express Slots1 x PCI Express 4.0 x16 slot
1 x PCI Express 3.0 x1 slot

Graphics Device

Integrated Graphics SupportedYes

Sound

Integrated SoundYes
Integrated SoundRealtek

Warranty

Warranty3 Years

Network

Integrated NetworkIntel
Network Speeds SupportedUp to 1 Gbps
Wireless LANYes (Wi-Fi 5)
Wireless Network SpeedUp to 1200 Mbps
BluetoothYes
Bluetooth Version5.3

System Requirements

Operating Systems SupportedMicrosoft Windows 11

System

Software Included (may be trial or restricted)Yes
DriversYes

Physical

Form FactormATX Motherboard
In The BoxMotherboard
2 x SATA Cables
Wi-Fi Antennas
I/O Shield
Screw Package for M.2 slot
User Guide
Width244 mm
Length216 mm

Key Features

Wireless NetworkYes
Motherboard Width244 mm
Motherboard Height244 mm
mSATA SupportedNo
U.2 SupportedNo
Main ColourBlack
Memory ChannelDual
On-board Audio Type7.1
Number of SATA Ports4 port(s)
Number of USB Ports5 port(s)
USB 3.0 SupportYes
Multi GPU SupportNo
VGA ConnectionYes
DVI ConnectionNo
HDMI ConnectionYes
DisplayPort ConnectionYes
Motherboard Form FactormATX
Motherboard (EPS) Power Connectors4+4-Pin
Motherboard ChipsetIntel H610
ThunderboltNo
Motherboard ModelASUS Prime H610M-A WIFI
WiFi Speed1200 Mbps
USB 3.1 SupportNo
Internal USB3.0 HeaderYes
M.2 SupportYes
On-board RGB ControlASUS Aura Sync
RGB Header Type3-Pin ARGB
Addressable RGBYes
Internal USB Type-C HeaderYes
Power Requirement (auto)60 W
Max Memory Speed Supported (Non-overclocked)5600 MT/s
CPU Power Pins (female)8
Total M.2 Slots2
Maximum NVMe M.2 ports2
SATA ports4
No. of front USB2.0 ports supported3
No. of front USB3.0 ports supported2
No. of front USB-C ports supported1

Item Details

ManufacturerASUS
Manufacturer Code90MB1G00-M0EAY0
Alternative Part NumberPRIME H610M-A WIFI
EAN4711387301777
UPC197105301771
