Comprehensive controls form the foundation of the ASUS Prime series. The Prime H610 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.
Prime 600 Series motherboards offer comprehensive control over system fans, via the included Fan Xpert 2+ software. Auto-Tuning mode intelligently configures all parameters with a single click.
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.
An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.
EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.
Prime H610 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
VRM heatsink and thermal pad improve heat transfer from the MOSFETs and chokes for better cooling performance.
Prime H610 series feature comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.
Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.
A dedicated integrated circuit protects each fan header from overheating and overcurrent.
Each onboard header supports auto-detection of PWM or DC fans.
Prime H610 series are built to handle the additional cores and increased bandwidth of 13th & 12th Generation Intel® processors. ASUS H610 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.
Prime H610M-A WIFI D4 offers two M.2 slots that support data-transfer speeds of up to 32 Gbps via PCIe 3.0, enabling quicker boot-up and app load times with OS or application drives.
* Actual transmission speeds will be lower than the theoretical maximum speed.
Prime H610 motherboards are designed specifically for 13th & 12th Generation Intel® Core™ CPUs and offer PCIe® 4.0 connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.
Numerous USB ports support high-end rigs loaded with peripherals, including rear-panel USB Type-A ports with fast USB 3.2 Gen 2 for transmission speeds of up to 10 Gbps.
PRIME H610M-A WIFI D4 has 802.11ac Wi-Fi with 1x1 2.4/5GHz antennas for up to 433.3Mbps* transfer speeds to ensure that every connected user experiences the best wireless and online speeds!
*Actual speed varies, and depends on networking conditions.
Intel® Ethernet Connection I219-V reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfer.
Prime H610 series add the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.
Outshine the Competition
A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips and devices connected to the onboard RGB headers — and it can all be synced with an ever-growing portfolio of Aura-capable hardware.
Three addressable Gen 2 headers are capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.
Armoury Crate is a new software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate allows you to easily customize RGB lighting and effects for every compatible device in your arsenal. The software also provides control of settings for an ever-growing number of ASUS products, including keyboard and mouse preferences. Armoury Crate even features dedicated product registration and news to help you stay in touch with the ASUS community.
The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.
SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that's anchored to the motherboard by a special hook, SafeSlot Core provides 1.6x stronger retention and 1.3x greater shearing resistance than standard expansion slots.

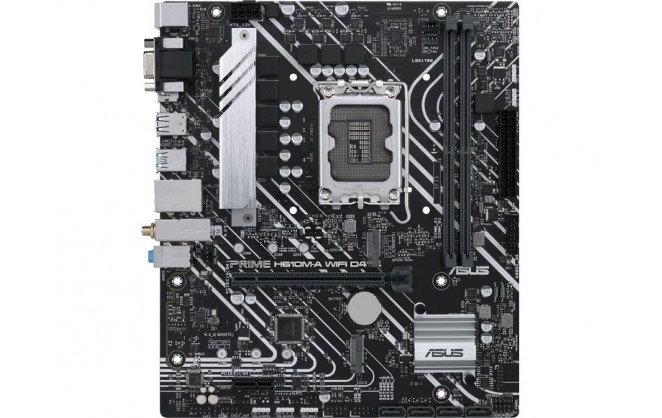

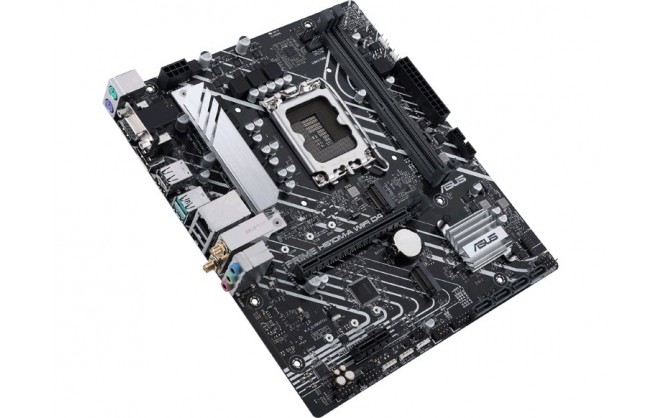

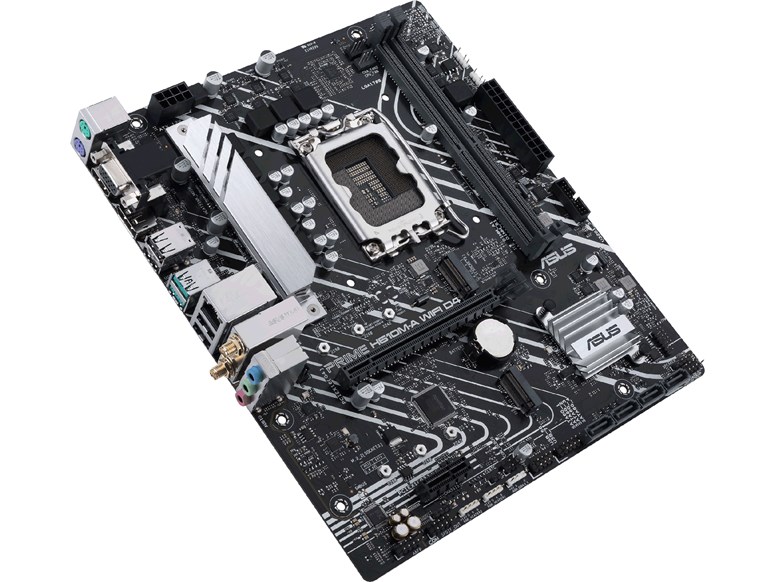

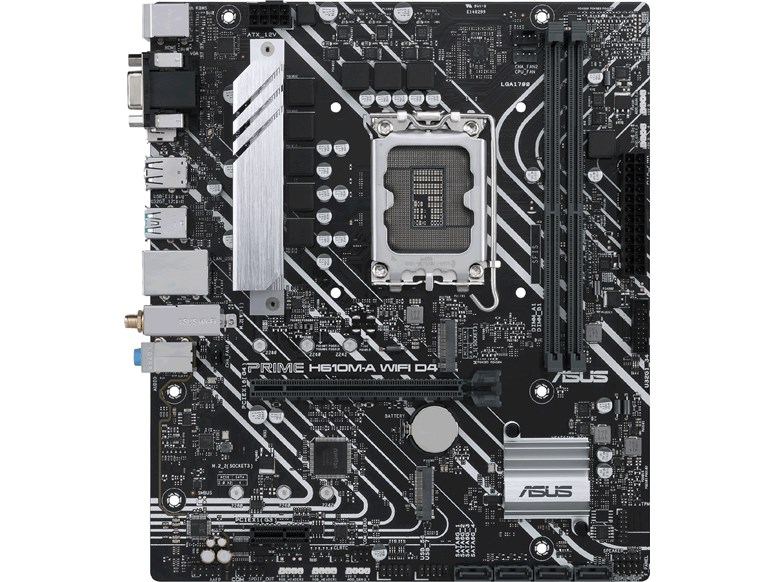

ASUS Prime H610M-A WIFI D4 mATX Motherboard Intel LGA 1700 Socket
CPU
| CPU Socket | Socket 1700 |
| CPU Brand | Intel |
| Installed Processors (Max) | 0 (1) |
| Supported Processor Manufacturer | Intel |
| Supported Processors | 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors |
| 64-bit Support | Yes |
| Socket | LGA1700 |

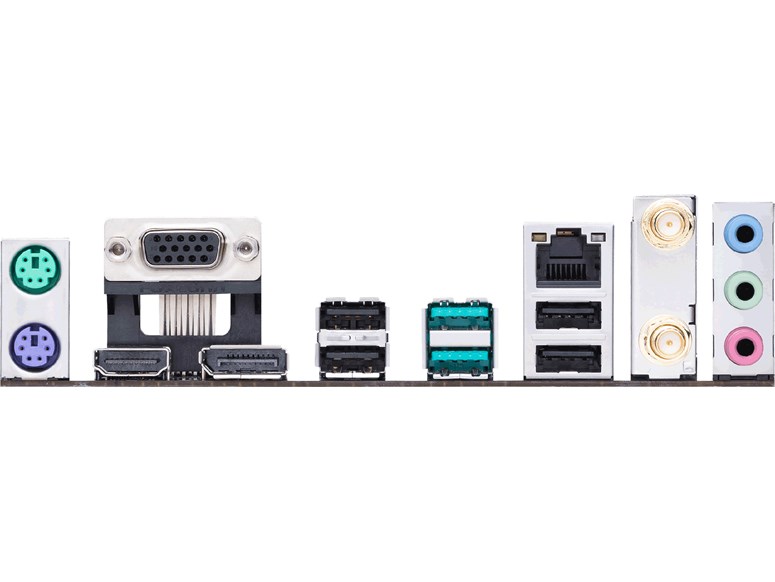

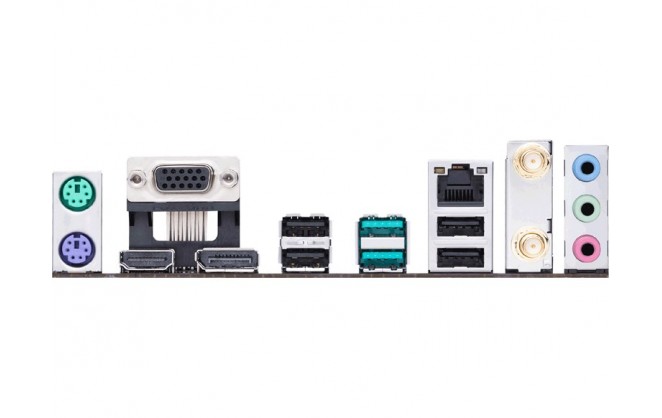

Rear Panel I/O Ports
| USB Ports | 2 x USB 3.1 4 x USB 2.0 |
| DisplayPorts | 1 x DisplayPort 1.4 |
| HDMI Port | 1 x HDMI 2.1 |
| VGA Port | 1 x D-Sub |
| Keyboard Port | 1 x PS/2 |
| Mouse Port | 1 x PS/2 |
| RJ-45 Ports | 1 x RJ-45 |
| Audio Line In Ports | 1 x 3.5mm Jack |
| Audio Line Out Ports | 1 x 3.5mm Jack |
| Microphone In Port | 1 x 3.5mm Jack |
| Antenna Connector(s) | 2 x SMA Antenna |
Internal I/O Connectors
| SATA Connectors | 4 x SATA III |
| USB Connectors | 1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 3 ports) |
| Speaker | 1 x Speaker header |
| Front Panel Connectors | 1 x Front Panel 1 x Front Audio |
| Cooling Fan Support | 1 x CPU fan header 2 x Chassis fan headers |
| S/PDIF Connectors | 1 x S/PDIF Out |
| Serial Connectors | 1 x COM header |
| TPM Header | 1 x SPI TPM header |
| Power Connector Port | 1 x 24-pin ATX 1 x 8-pin EPS |
| Other Connectors | 2 x M.2 slots, Key M, Type 2242/2260/2280 (PCIe Gen3) 3 x 3-pin ARGB LED headers 2 x 4-pin RGB LED headers |
Memory
| Memory Bus Speed | Up to 3200 MHz |
| Memory Type | DDR4 |
| Maximum RAM | 64 GB |
| Memory Slot | 2 x DIMM |
Motherboard
| Northbridge | H610 |
| RAID Supported | No |
| SATA Supported | Yes |
Expansion
| Number of PCI Express Slots | 1 x PCI Express 4.0 x16 slot 1 x PCI Express 3.0 x1 slot |
Graphics Device
| Integrated Graphics Supported | Yes |
Sound
| Integrated Sound | Realtek |
Warranty
| Warranty | 3 Years |
Network
| Integrated Network | Intel |
| Network Speeds Supported | Up to 1 Gbps |
| Wireless LAN | Yes (Wi-Fi 5) |
| Wireless Network Speed | Up to 433 Mbps |
| Bluetooth | Yes |
| Bluetooth Version | 5.0 |
System Requirements
| Operating Systems Supported | Microsoft Windows 11 64-bit |
System
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Jumpers | 1 x Clear CMOS |
| Software Included (may be trial or restricted) | Yes |
| Drivers | Yes |
Physical
| Form Factor | MicroATX Motherboard |

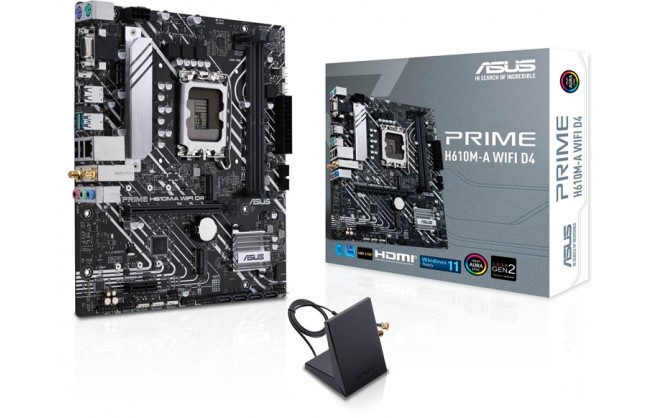

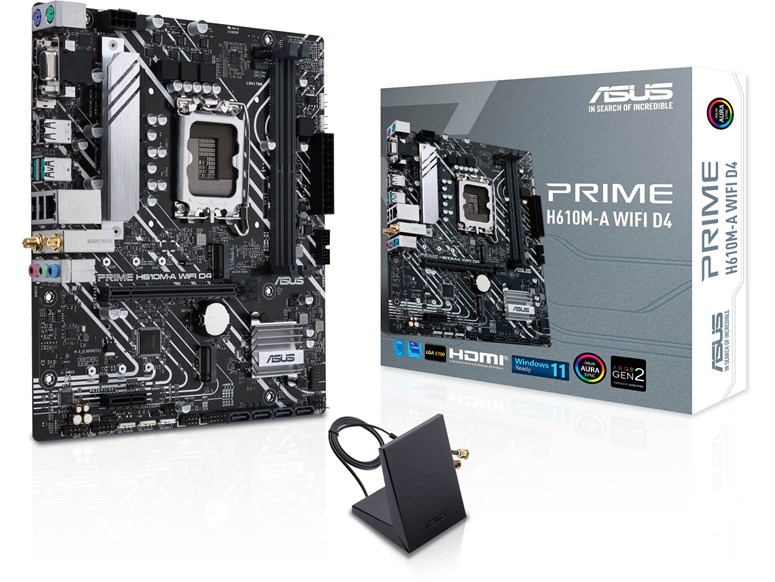

| In The Box | Motherboard 2 x SATA Cables ASUS Wi-Fi Moving Antennas I/O Shield M.2 SSD Screw Package Support DVD User Guide |
| Width | 244 mm |
| Length | 211 mm |
Key Features
| Firewire | |
| IDE/EIDE Supported | |
| SCSI/SAS Supported | |
| Wireless Network | Yes |
| Chipset Manufacturer | Intel |
| Number of PCI Slots | slot(s) |
| Number of PCI-X Slots | slot(s) |
| Main Colour | |
| Socket(s) | |
| Memory Channel | Dual |
| On-board Audio Type | 7.1 |
| Number of SATA Ports | 4 port(s) |
| Number of USB Ports | 6 port(s) |
| SATA III Support | Yes |
| USB 3.0 Support | Yes |
| Multi GPU Support | No |
| VGA Connection | Yes |
| DVI Connection | No |
| HDMI Connection | Yes |
| DisplayPort Connection | Yes |
| Motherboard Form Factor | mATX |
| Wake on LAN | |
| Motherboard Power Connectors | 8-Pin |
| Motherboard Chipset | Intel H610 |
| Thunderbolt | No |
| Motherboard Model | ASUS Prime H610M-A WIFI D4 |
| WiFi Speed | 433 Mbps |
| USB 3.1 Support | Yes |
| Internal USB3.0 Header | Yes |
| Cooler Height | mm |
| M.2 Support | Yes |
| On-board RGB Control | ASUS Aura Sync |
| Memory Speed | 3200 MHz |
| Skip Audio Test | |
| RGB Header Type | 3-Pin ARGB |
| Addressable RGB | Yes |
| Internal USB Type-C Header | No |
| Radiator Length | mm |
| Microsoft Processor List | |
| Power Requirement (auto) | 60 W |
| Cooler count | |
| Max Memory Speed Supported (Non-overclocked) | 3200 MHz |
| Max Memory Speed Supported (overclocked) | MHz |
| CPU Power Pins (female) | 8 |
| PCI Express Power Pins (female) | |
| Total M.2 Slots | 2 |
| Maximum NVMe M.2 ports | 2 |
| PCI-e slots | 2 |
| SATA ports | 4 |
| No. of front USB2.0 ports supported | 3 |
| No. of front USB3.0 ports supported | 2 |
Graphics
| Graphics Chipset |
Item Details
| Manufacturer | ASUS |
| Manufacturer Code | 90MB1C80-M0EAY0 |
| EAN | 4711081758211 |
| UPC | 195553758215 |
| Condition | New |
