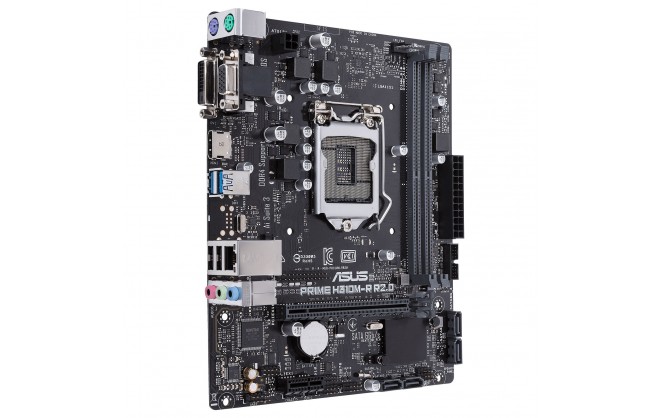

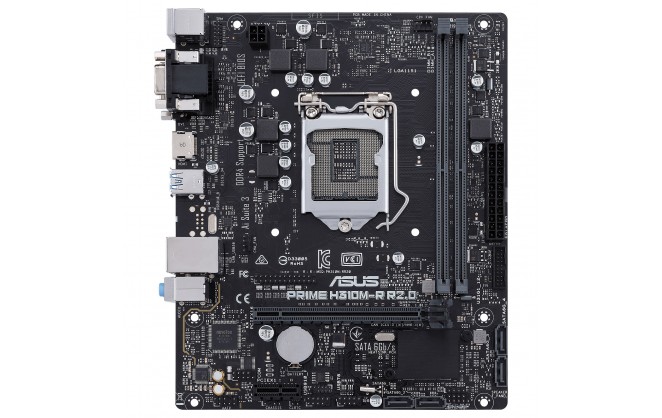

ASUS PRIME H310M-R R2.0 Socket 1151 mATX Motherboard

  • Part Number: PRIMEH310M-RR2_3
  • Manufacturer: ASUS
  • Quickfind Code: 135905
  • Stock: In Stock

£59.99 ex. vat
£71.99 inc. vat

Product Features:
  • Condition: New
  • Form Factor mATX
  • CPU Type Intel
  • Memory Type DDR4
  • Socket Type 1151
  • Chipset H310
+ Read More Information

Share:

Product Description

ASUS PRIME H310M-R R2.0: Affordable and functional

TheASUS PRIME H310M-E R2.0 is a latest generation motherboard ready to host the 8th generation Intel Core processors(Intel Coffee Lake). Based on the Intel H310 Express Chipset, it will ensure optimal performance for a high-end configuration with a powerful processor. It supports 8th generation Intel Core "Coffee Lake" processors, PCI-Express 3.0 16x graphics cards, SATA 6 Gbps and M.2 disks, DDR4 RAM as well as USB 3.0 devices.



ASUS PRIME H310M-R R2.0 MOTHERBOARD:

ASUS Prime Series motherboards are designed and engineered for the consumer market with the best components and exclusive features for performance. Overclocking and high efficiency allow users to get the most out of their system.

  • Intel Socket 1151 for 8th generation(Coffee Lake) and 9th generation(Coffee Lake Refresh) Intel Core processors
  • 2 DDR4 2133/2400/2666 MHz Dual-Channel memory slots (max. 32 GB)
  • 4 SATA 6Gb/s ports
  • 1 PCI-Express 3.0 16x port
  • USB 3.0 ports
  • ASUS OptiMem for improved memory performance
  • Management software Fan Xpert and intuitive UEFI BIOS
  • Audio: Realtek ALC887
  • Gigabit LAN networking: Realtek 8111H

INTEL H310 EXPRESS CHIPSET

The Intel H310 Express Chipset is packed with advanced features to help you get the most out of your Intel Coffee Lake platform. Affordable and powerful, it is designed for users looking for versatility and efficiency in all areas. Whether it's a gaming PC, workstation or advanced multimedia setup, the Intel H310 Express chipset is a great value for money.

The Intel H310 Express chipset-based platforms support DDR4 RAM, SATA 6Gb/s drives, PCI-Express 3.0 16x graphics cards, USB 3.0 and USB 3.1 peripherals, and SATA Express, M.2, and U.2 (depending on model).

Technical Specification

ASUS PRIME H310M-R R2.0 Socket 1151 mATX Motherboard

CPU

Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list

Chipset

Intel® H310

Memory

2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* The maximum memory frequency supported varies by processor
** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.

Graphic

Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/DVI-D/D-Sub ports
- Supports HDMI 1.4b with max. resolution 4096  x 2160  @ 24  Hz / 2560  x 1600  @ 60  Hz
- Supports DVI-D with max. resolution 1920  x 1200  @ 60 Hz
- Supports D-sub with max. resolution 1920  x 1200  @ 60  Hz
Maximum shared memory of 1024  MB (for iGPU exclusively)
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Expansion Slots

1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
2 x PCIe 2.0 x1

Storage

Intel® H310 Chipset :
1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)*1
4 x SATA 6Gb/s port(s), gray,

LAN

Realtek® RTL8111H, 1 x Gigabit LAN

Audio

Realtek® ALC887 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Front Panel Jack-retasking
Audio Feature :
- LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.

USB Ports

Intel® H310 Chipset :
4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board)
Intel® H310 Chipset :
6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)

Special Features

ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: Premium components provide better power efficiency
ASUS OptiMem?
- Optimem (Improved DDR4 stability)
ASUS EPU :
- EPU
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- PC Cleaner
- File Transfer
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
- ASUS Q-DIMM
M.2 Onboard(The latest transfer technologies with up to 10Gb/s data transfer speeds)

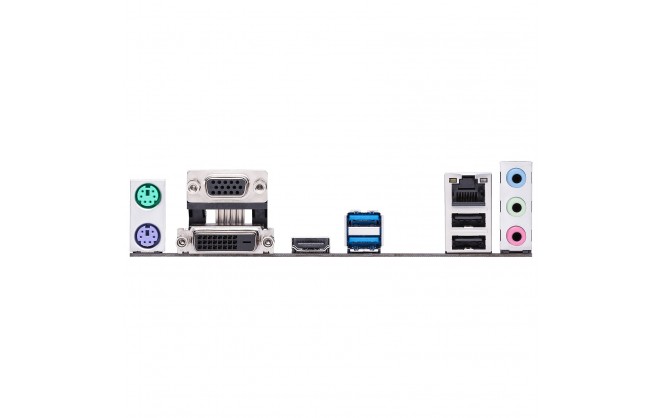

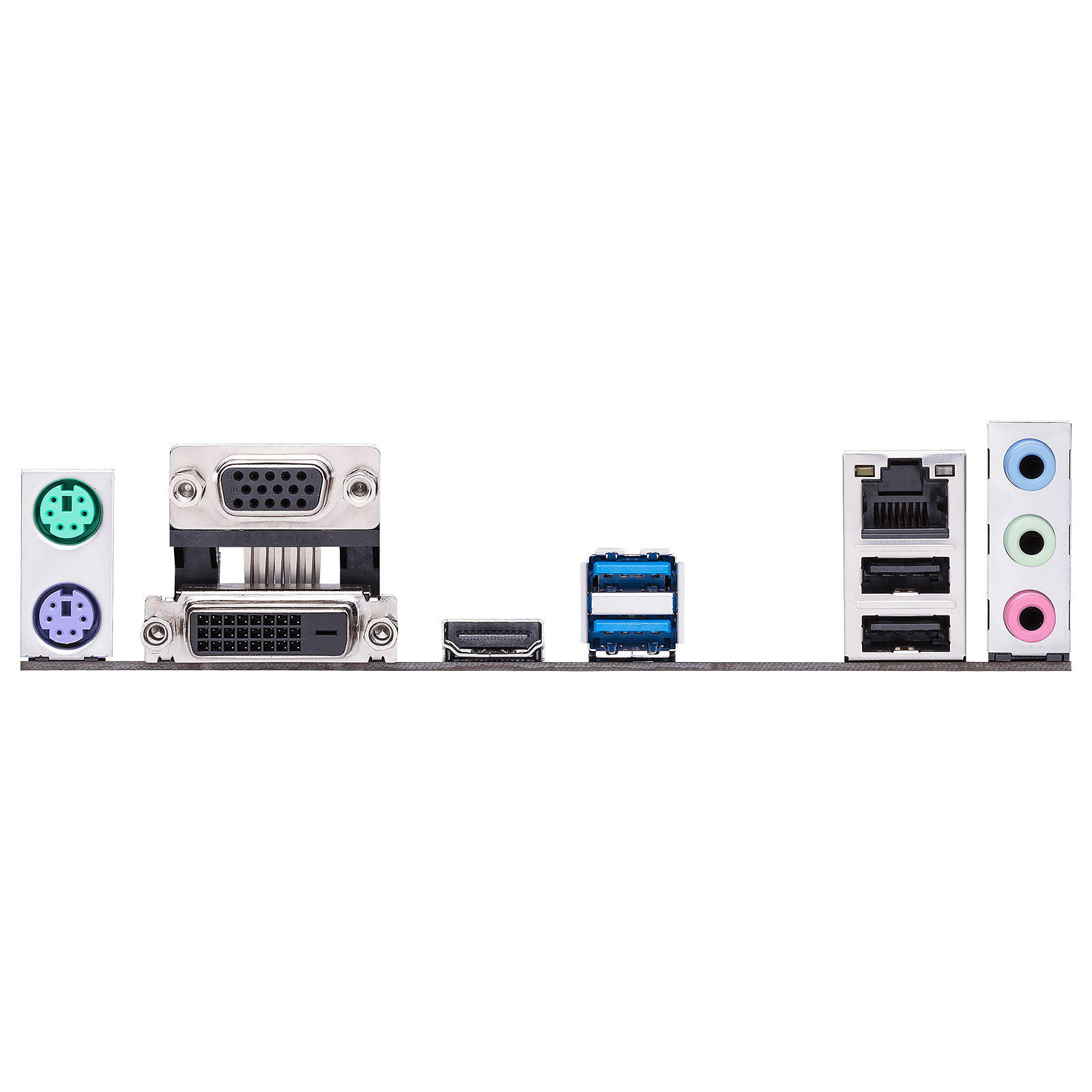

Back I/O Ports

1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 1 (blue) Type-A up to 5Gbps
2 x USB 2.0
3 x Audio jack(s)

Internal I/O Ports

1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x Speaker connector

Accessories

User´s manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Anchor
1 x Supporting DVD

BIOS

128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, MultilanguageBIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 MyFavorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (SerialPresence Detect) memory information

Manageability

WOL by PME, PXE

Operating System

Windows® 10 64-bit

Form Factor

mATX Form Factor
8.9  inch x 7.3  inch ( 22.6  cm x 18.5  cm )
