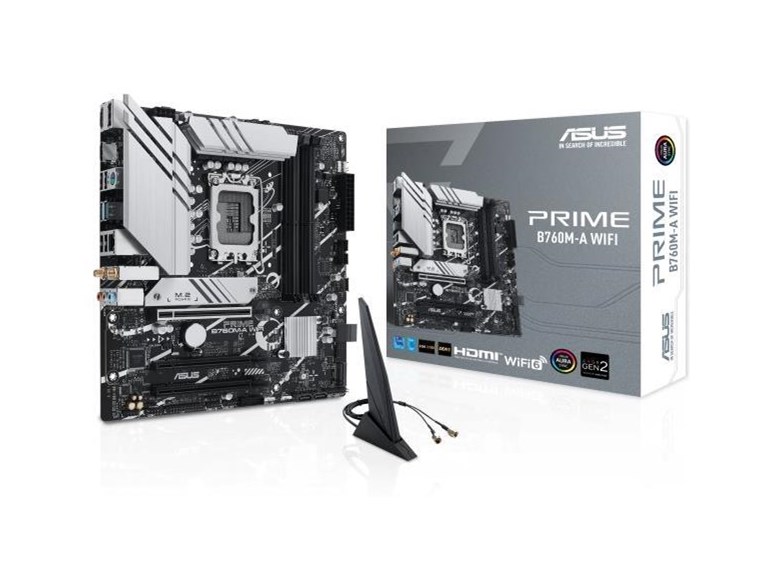

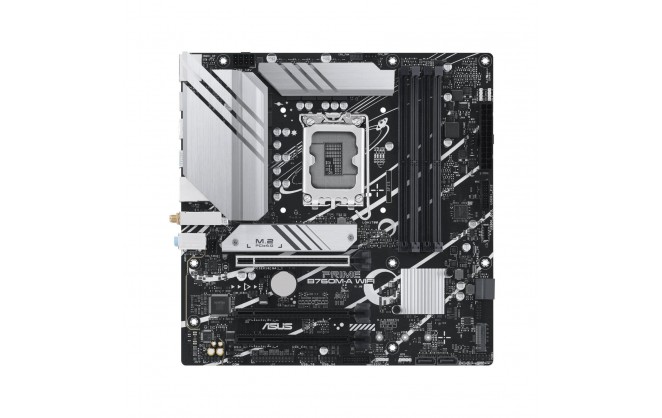

ASUS Prime B760M-A WIFI mATX Socket 1700 Motherboard

Part Number: 90MB1EL0-M1EAY0
Manufacturer: ASUS
Quickfind Code: 136219

Stock: In Stock

£119.66 ex. vat
£143.59 inc. vat

Product Features:

Condition: New
Socket Type 1700
Chipset B760
Form Factor mATX
Memory Type DDR5
CPU Type Intel

+ Read More Information

Product Description

Intel^® B760 (LGA 1700) mATX mortheboard with PCIe 4.0, DDR5, two M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, Dual HDMI™, SATA 6 Gbps, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C^®, Aura Sync

Intel^® LGA 1700 Socket: Ready for 13^th and 12^th Gen Intel^® processors
Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C^®
Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware

Technical Specification

ASUS Prime B760M-A WIFI mATX Socket 1700 Motherboard

Wireless Communications

Bluetooth

Yes

Key Features

Socket	LGA1700
Installed Processors (Max)	0 (1)
Integrated Graphics Supported	Yes
Maximum RAM	128 GB
RAID Supported	Yes
Wireless Network	Yes
Motherboard Width	244 mm
Motherboard Height	244 mm
mSATA Supported	No
U.2 Supported	No
Number of PCI Express Slots	3 slot(s)
Main Colour	White
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	4 port(s)
Number of USB Ports	6 port(s)
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	Yes
Memory Type	DDR5
Motherboard Form Factor	mATX
Motherboard (EPS) Power Connectors	8-Pin
Motherboard Chipset	Intel B760
Thunderbolt	No
Motherboard Model	ASUS Prime B760M-A WIFI
WiFi Speed	2400 Mbps
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	ASUS Aura Sync
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Power Requirement (auto)	60 W
Max Memory Speed Supported (Non-overclocked)	5600 MT/s
Max Memory Speed Supported (overclocked)	7200 MT/s
CPU Power Pins (female)	8
Total M.2 Slots	2
Maximum NVMe M.2 ports	2
SATA ports	4
No. of front USB2.0 ports supported	5
No. of front USB3.0 ports supported	4
No. of front USB-C ports supported	1
