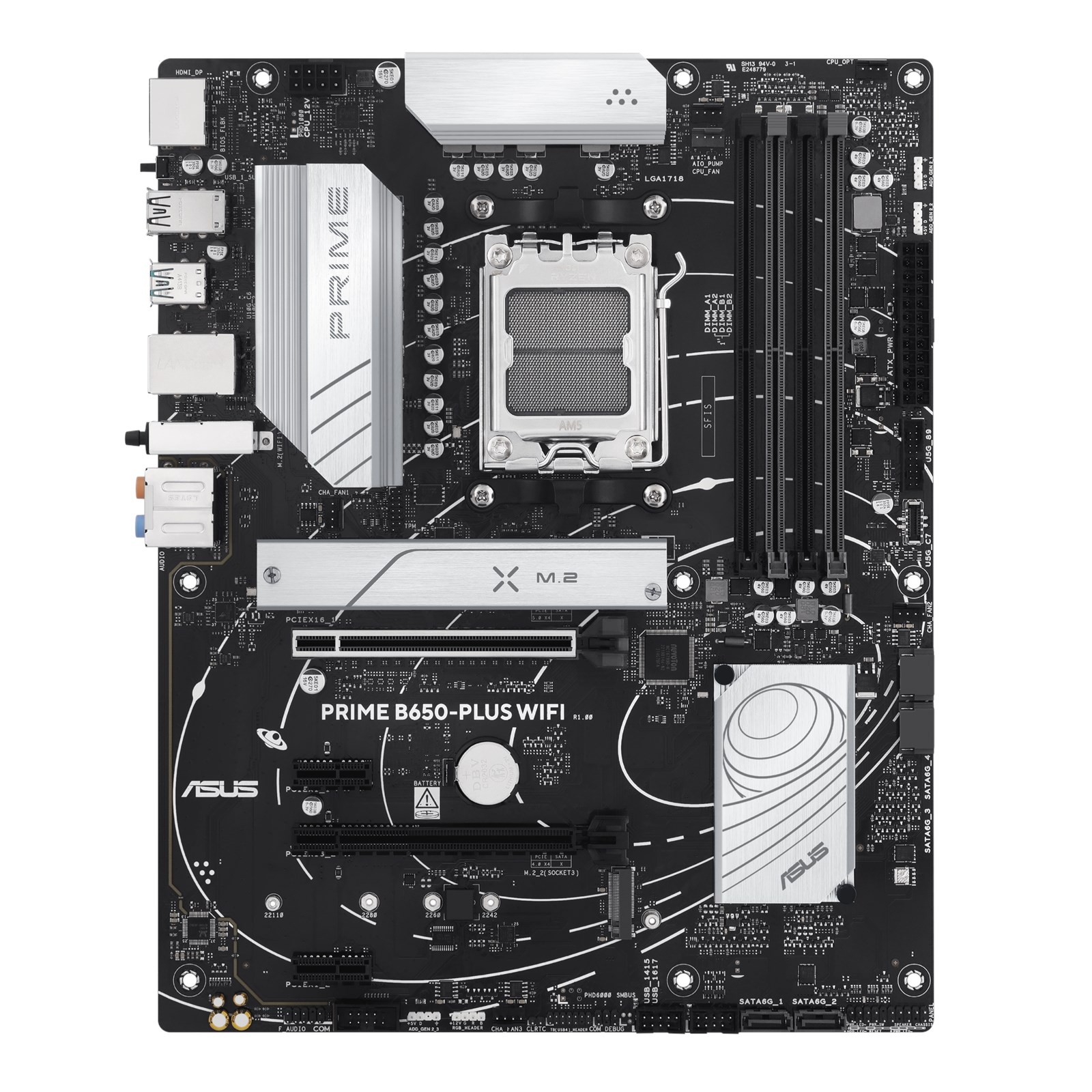

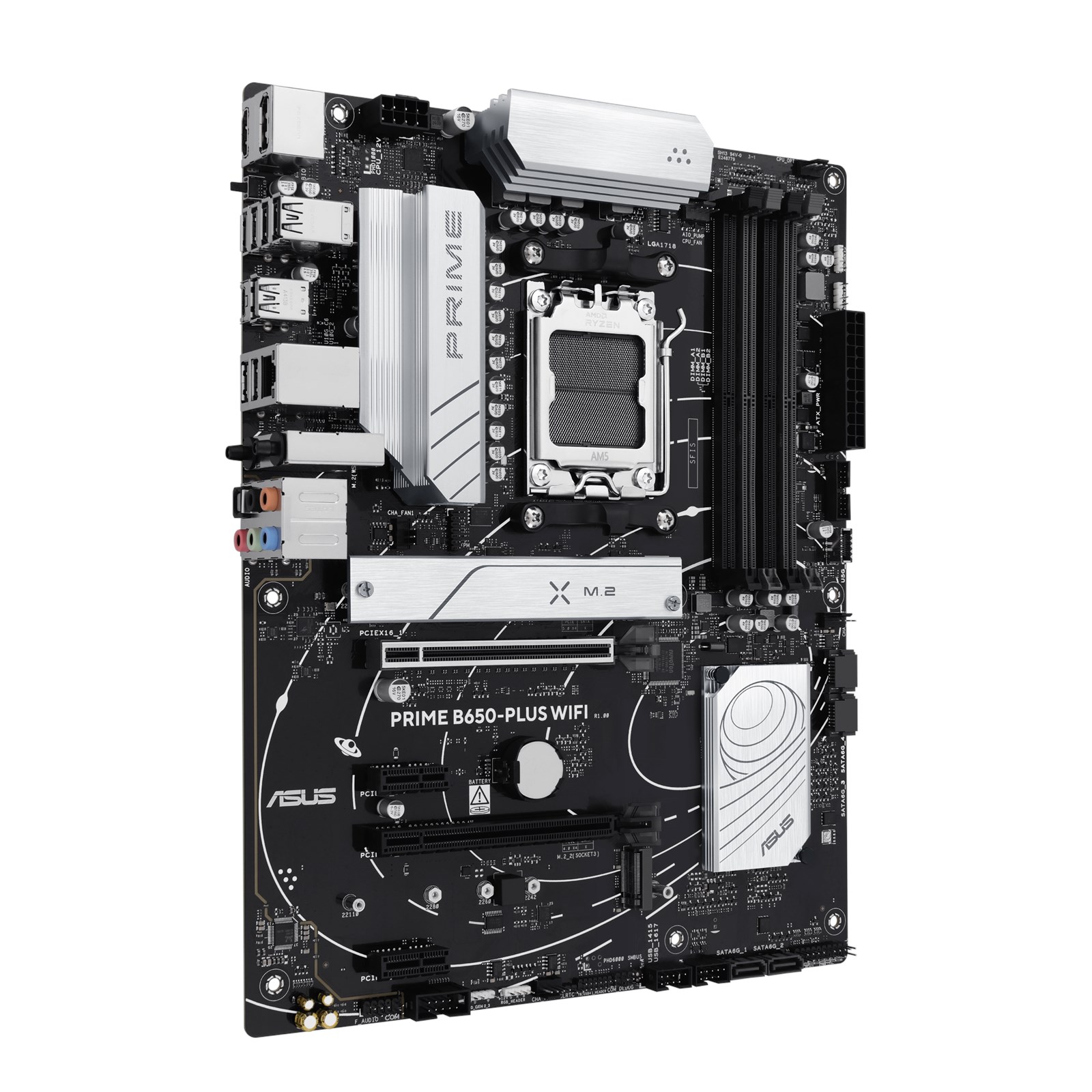

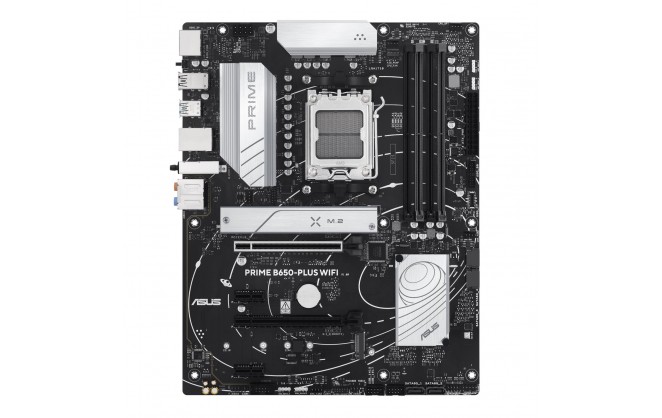

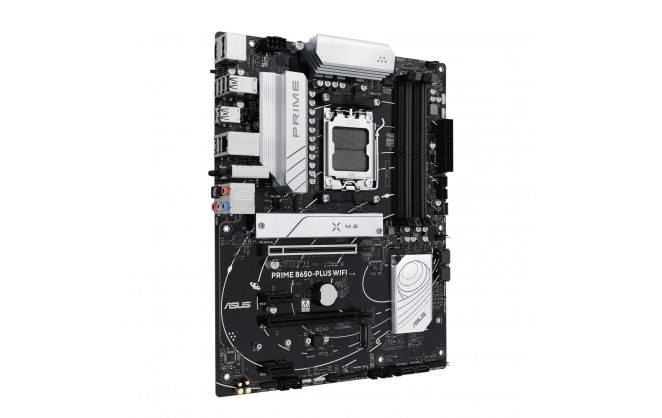

ASUS PRIME B650-PLUS WIFI ATX Socket AM5 Motherboard

  • Part Number: PRIME B650-PLUS WIFI
  • Manufacturer: ASUS
  • Quickfind Code: 136491

  • Stock: In Stock

£109.89 ex. vat
£131.87 inc. vat


Product Features:
  • Condition: New
  • Socket Type AM5
  • Chipset B650
  • Form Factor ATX
  • Memory Type DDR5
  • CPU Type AMD
+ Read More Information

Share:

Product Description

ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 9000 & 8000 & 7000 Series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B650-PLUS WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand.

Main Features

  • AMD AM5 Socket: Ready for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
  • Ultrafast Connectivity: WIFI 6E, M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 10Gbps Type-C, front USB 5Gbps Type-C, Thunderbolt 4 header support
  • ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
  • Comprehensive Cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
  • Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
Technical Specification

ASUS PRIME B650-PLUS WIFI ATX Socket AM5 Motherboard

CPU

CPU SocketSocket AM5
CPU BrandAMD
Installed Processors (Max)0 (1)
Supported Processor ManufacturerAMD
Supported ProcessorsAMD B850
64-bit SupportYes
SocketAM5

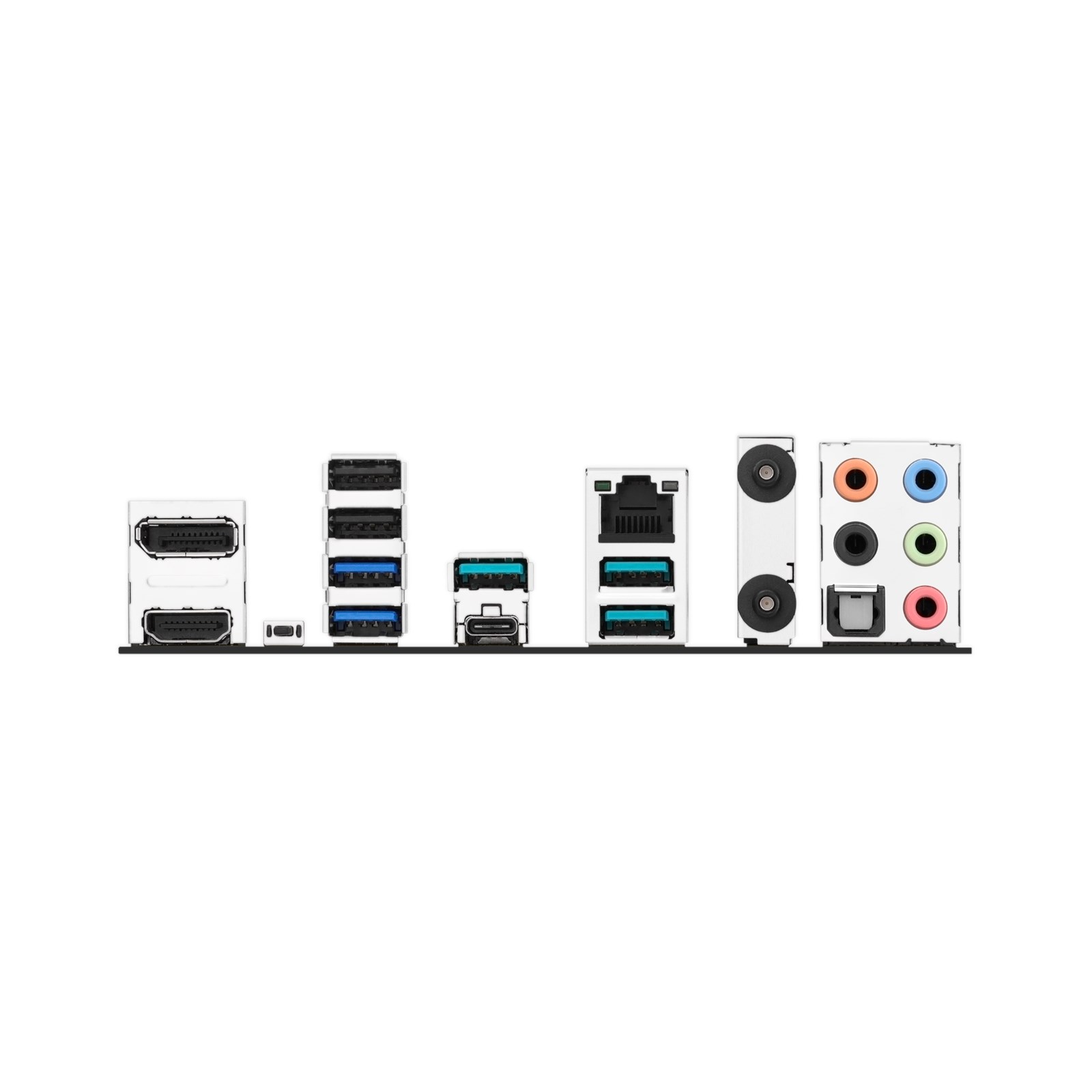

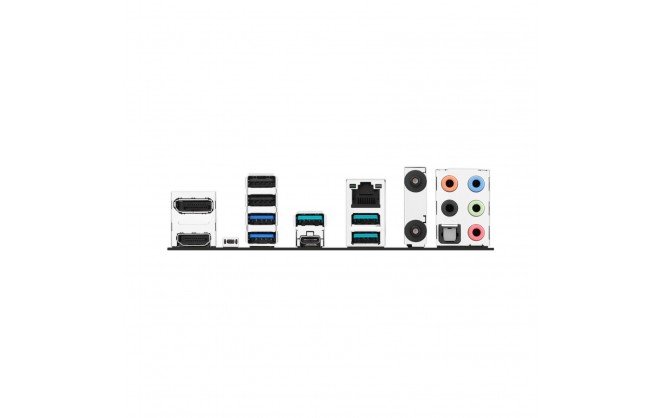

Rear Panel I/O Ports

USB Ports1 x USB-C 3.1
3 x USB 3.1
2 x USB 3.0
2 x USB 2.0
DisplayPorts1 x DisplayPort 1.4
HDMI Port1 x HDMI 2.1
RJ-45 Ports1 x RJ-45
Audio Line In Ports1 x 3.5mm Jack
Audio Line Out Ports3 x 3.5mm Jacks
Microphone In Port1 x 3.5mm Jack
S/PDIF Port1 x S/PDIF Optical Out
Antenna Connector(s)2 x SMA Antenna

Internal I/O Connectors

SATA Connectors4 x SATA
USB Connectors1 x USB-C 3.0 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 2 ports)
Front Panel Connectors1 x Front Panel
1 x Front Audio
Cooling Fan Support1 x CPU fan header
1 x CPU OPT fan header
1 x AIO pump header
3 x Chassis fan headers
Serial Connectors1 x COM header
Chassis Intrusion Connector1 x Chassis Intrusion header
TPM Header1 x SPI TPM header
Power Connector Port1 x 24-pin ATX
1 x 8-pin EPS
Other Connectors1 x M.2 slot, Key M, Type 2242/2260/2280/22110 (PCIe Gen5)
1 x M.2 slot, Key M, Type 2242/2260/2280/22110 (PCIe Gen4)
3 x 3-pin ARGB headers
1 x 4-pin RGB header

Memory

Memory Bus SpeedUp to 7600 MT/s
Memory TypeDDR5
Maximum RAM192 GB
Memory Slot4 x DIMM

Motherboard

NorthbridgeAMD B650
RAID SupportedYes
RAID FormatRAID 0, 1, 10
SATA SupportedYes

Expansion

Number of PCI Express Slots2 x PCI Express 4.0 x16 slots (@ x16/x4)
2 x PCI Express 4.0 x1 slots

Graphics Device

Integrated Graphics SupportedYes

Warranty

Warranty3 Years

Sound

Integrated SoundRealtek

Network

Integrated NetworkRealtek
Network Speeds SupportedUp to 2.5 Gbps
Wireless LANYes (Wi-Fi 6E)
BluetoothYes
Bluetooth Version5.3

System Requirements

Operating Systems SupportedMicrosoft Windows 11

System

Jumpers1 x Clear CMOS
Software Included (may be trial or restricted)Yes
DriversYes

Physical

Form FactorATX Motherboard

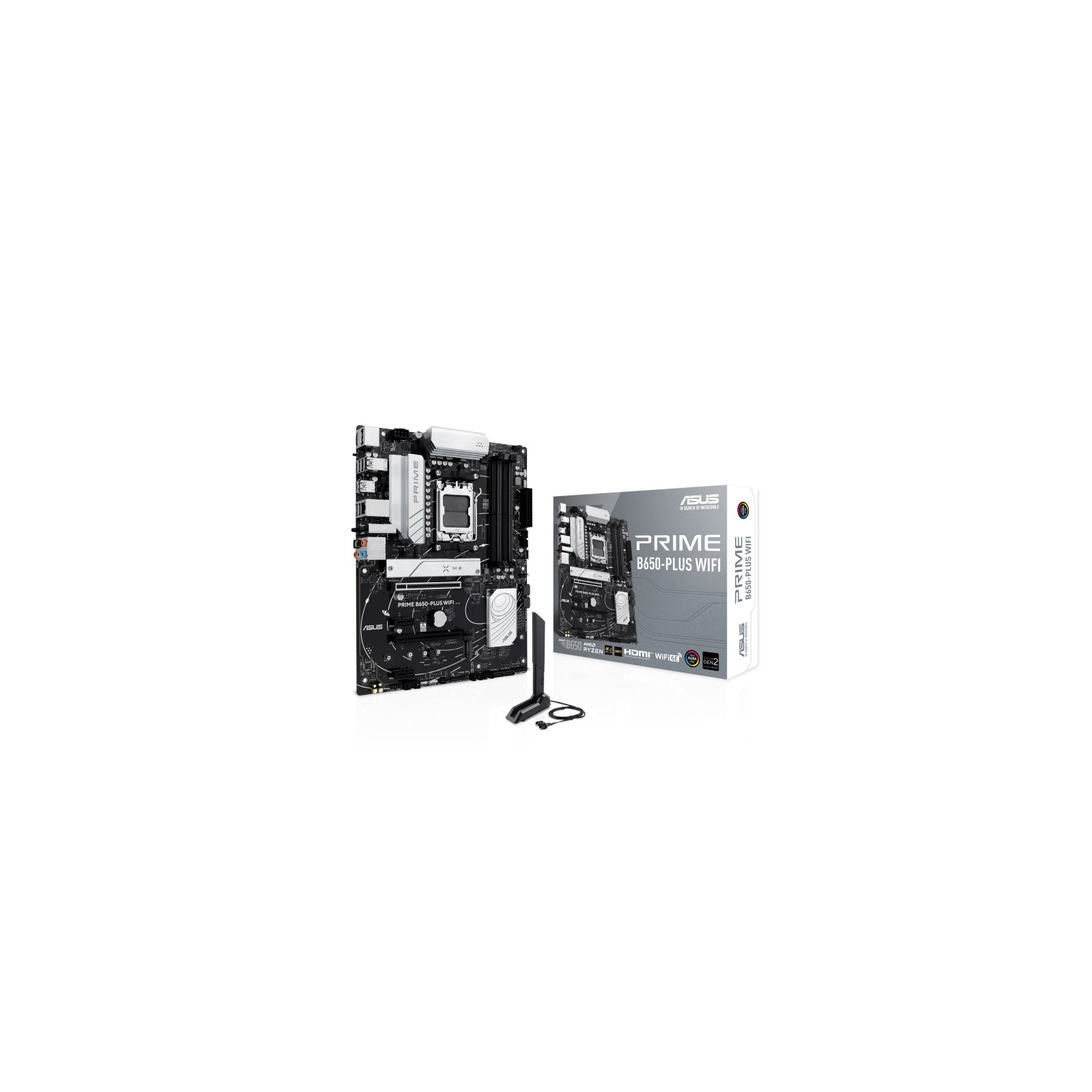

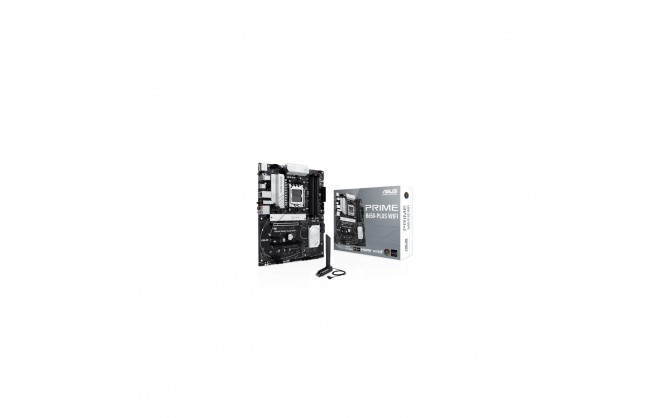

In The BoxMotherboard
2 x SATA 6Gb/s cables
1 x I/O Shield
1 x Wi-Fi moving antenna
1 x M.2 Rubber Package
1 x Screw package for M.2 SSD
1 x User guide
Width244 mm
Length305 mm

Key Features

RDIMM Memory SupportedNo
RDIMM Memory RequiredNo
Wireless NetworkYes
Motherboard Width244 mm
Motherboard Height305 mm
Main ColourBlack
Memory ChannelDual
On-board Audio Type7.1
Number of SATA Ports4 port(s)
Number of USB Ports8 port(s)
USB 3.0 SupportYes
Multi GPU SupportNo
VGA ConnectionNo
DVI ConnectionNo
HDMI ConnectionYes
DisplayPort ConnectionYes
Motherboard Form FactorATX
Motherboard (EPS) Power Connectors4+4-Pin
Motherboard ChipsetAMD B650
ThunderboltNo
Motherboard ModelASUS Prime B650-Plus WiFi
USB 3.1 SupportYes
Internal USB3.0 HeaderYes
M.2 SupportYes
On-board RGB ControlASUS Aura Sync
RGB Header Type3-Pin ARGB
Addressable RGBYes
Internal USB Type-C HeaderYes
Power Requirement (auto)70 W
Max Memory Speed Supported (Non-overclocked)5200 MT/s
Max Memory Speed Supported (overclocked)7600 MT/s
CPU Power Pins (female)8
Total M.2 Slots2
Maximum NVMe M.2 ports2
SATA ports4
No. of front USB2.0 ports supported4
No. of front USB3.0 ports supported2
No. of front USB-C ports supported1
Back Connect SupportNo

Item Details

ManufacturerASUS
Manufacturer Code90MB1KP0-M0EAY0
EAN4711387760895
