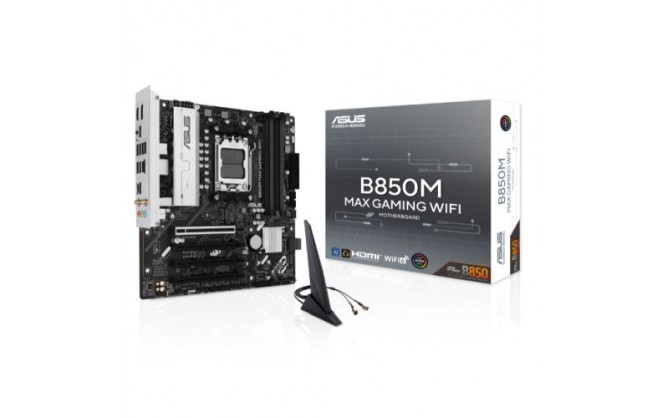

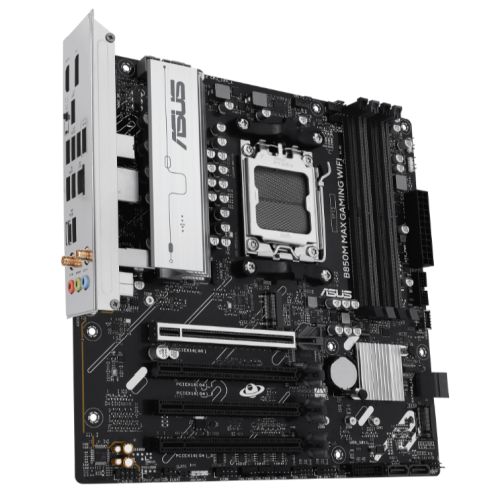

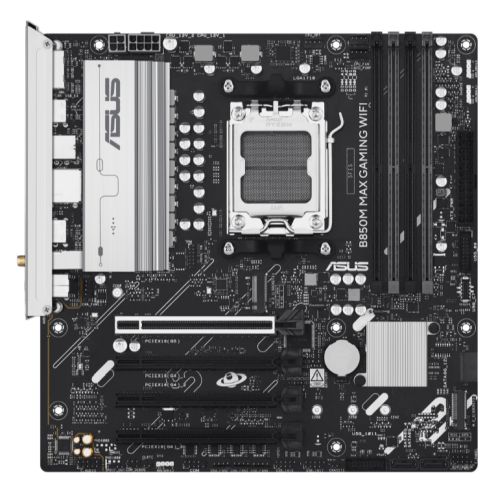

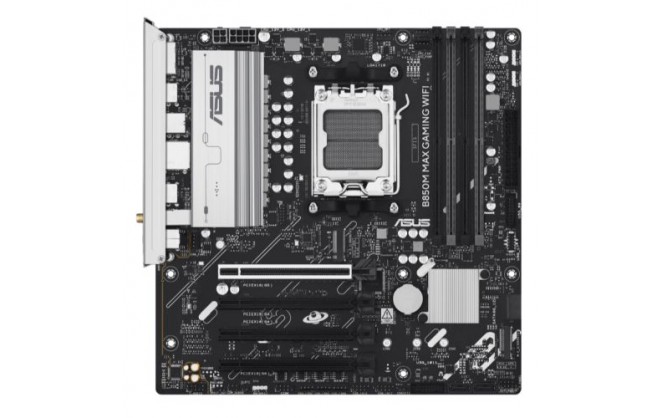

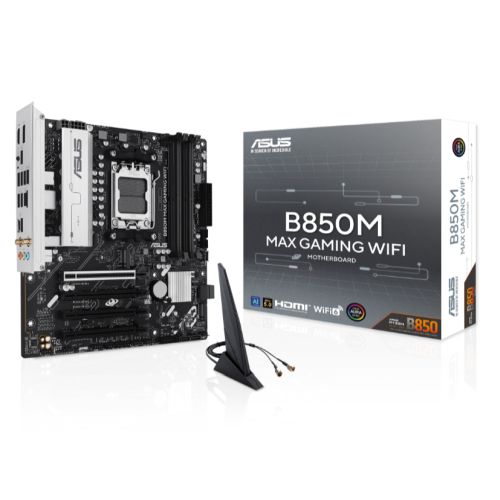

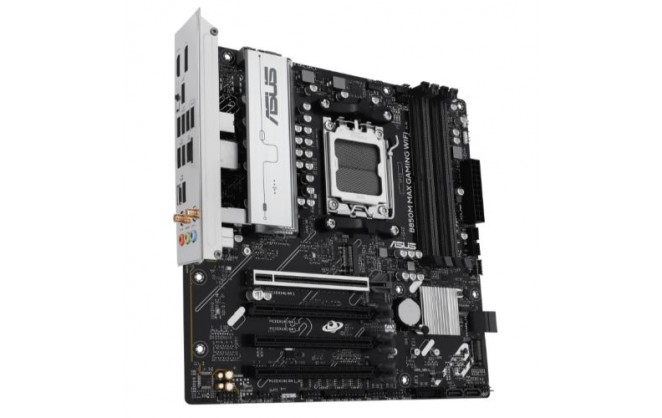

ASUS B850M MAX GAMING WIFI Socket AM5 mATX Motherboard

Part Number: 90MB1LL0-M0EAY0
Manufacturer: Asrock
Quickfind Code: 136520

Stock: In Stock

£153.59 ex. vat
£184.31 inc. vat

Product Features:

Condition: New
Socket Type AM5
Chipset B850
Form Factor mATX
Memory Type DDR5
CPU Type AMD

+ Read More Information

B850M MAX GAMING WIFI motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors.

The B850M MAX GAMING WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

AMD B850 mATX motherboard
DDR5
PCIe 5.0 Ready
Three M.2 slots
Wi-Fi 6
Realtek 1Gb Ethernet
DisplayPort
HDMI
Rear USB 10Gbps Type-C
Front USB 5Gbps Type-C
BIOS FlashBack
Aura Sync

Technical Specification

ASUS B850M MAX GAMING WIFI Socket AM5 mATX Motherboard

Motherboard Type

Desktop

Form Factor

Micro ATX

Socket

AMD AM5

Chipset

AMD B850

CPU Support

Click here for CPU support

RAM Technology

DDR5 (Dual Channel)
ECC and Non-ECC, Un-buffered Memory*
Supports AMD EXPO
ASUS Enhanced Memory Profile

*Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

RAM Slots

4 x DIMM

RAM Speeds

Up to 8000+MT/s(OC)

Maximum Memory

256GB

Graphics

Integrated Graphics
Graphics specifications may vary between CPU types

Graphics Ports

1 x HDMI
1 x DisplayPOrt

PCI/PCI Express

Ryzen 9000 & 7000 CPUs:
1 x PCIe 5.0 x16 (supports x16 mode)
3 x PCIe 4.0 x16 (support x1 mode)

Ryzen 8000 CPUs:
1 x PCIe 4.0 x16 (supports x8/x4 mode)
3 x PCIe 4.0 x16 (support x1 mode)

Storage

4 x SATA III
3 x M.2

Ryzen 9000 & 7000 CPUs:
M.2_1 (2280) - PCIe 5.0 x4

Ryzen 8000 CPUs:
M.2_1 (2280) - PCIe 4.0 x4

X870E Chipset:
M.2_2 (2242/2260/2280) - PCIe 4.0 x4
M.2_3 (2242/2260/2280) - PCIe 4.0 x2

RAID

AMD RAIDXpert2 Technology:
Ryzen 9000 Series CPUs: RAID 0/1/5/10
Ryzen 8000 Series CPUs: RAID 0/1
Ryzen 7000 Series CPUs: RAID 0/1/10

Wireless

Wi-Fi 6
1x1 Wi-Fi 6 (802.11ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.4

LAN

GB LAN

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported

Rear:
1 x USB 10Gbps Type-C
1 x USB 10Gbps Type-A
2 x USB 5Gbps Type-A
5 x USB 2.0

Front:
1 x USB 5Gbps Type-C
4 x USB 5Gbps
4 x USB 2.0

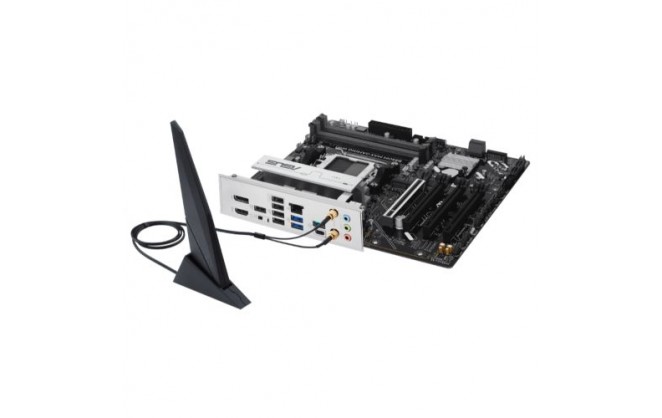

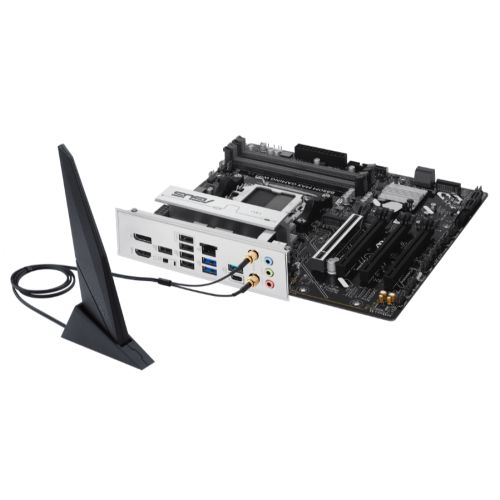

Back Panel I/O Ports

1 x USB 10Gbps Type-C
1 x USB 10Gbps Type-A
2 x USB 5Gbps Type-A
5 x USB 2.0
1 x DisplayPort
1 x HDMI
1 x Wi-Fi module
1 x Realtek 1Gb Ethernet
3 x Audio jacks
1 x BIOS FlashBack button

Internal I/O Connectors

1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
4 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V CPU
1 x 4-pin +12V CPU
3 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 5Gbps Type-C
2 x USB 5Gbps

2 x USB 2.0
3 x Addressable RGB Gen2
1 x Clear CMOS
1 x Chassis Intrusion
1 x COM Port
1 x Front Panel Audio
1 x S/PDIF Out
1 x SPI TPM (14-1 pin)
1 x 10-1 pin System Panel

Accessories

2 x SATA 6Gb/s cables
1 x ASUS Wi-Fi moving antenna
2 x Screw packages for M.2 SSD
1 x Quick start guide
