ASUS B850 MAX GAMING WIFI White Socket AM5 ATX Motherboard

Part Number: 90MB1M10-M0EAY0
Manufacturer: ASUS
Quickfind Code: 136517

Stock: In Stock

£129.59 ex. vat
£155.51 inc. vat

Product Features:

Condition: New
Socket Type AM5
Chipset B850
Form Factor ATX
Memory Type DDR5
CPU Type AMD

+ Read More Information

B850 MAX GAMING WIFI W motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors.

The B850 MAX GAMING WIFI W motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

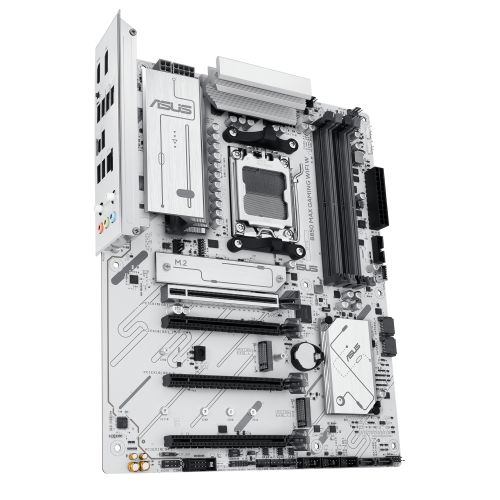

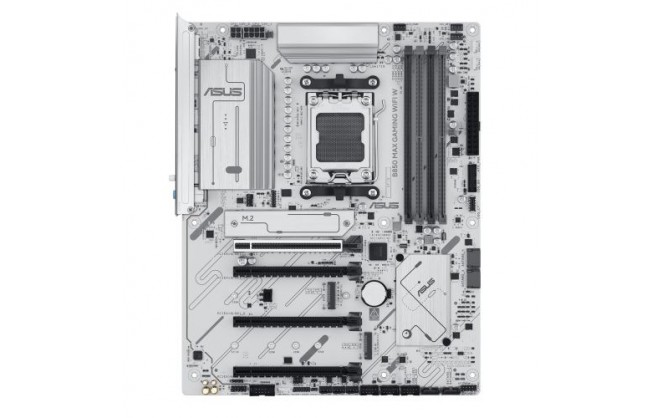

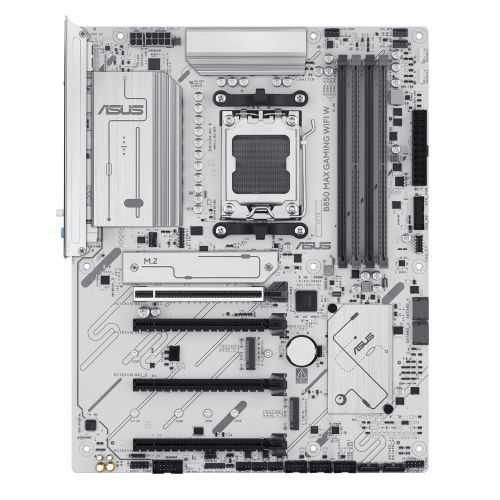

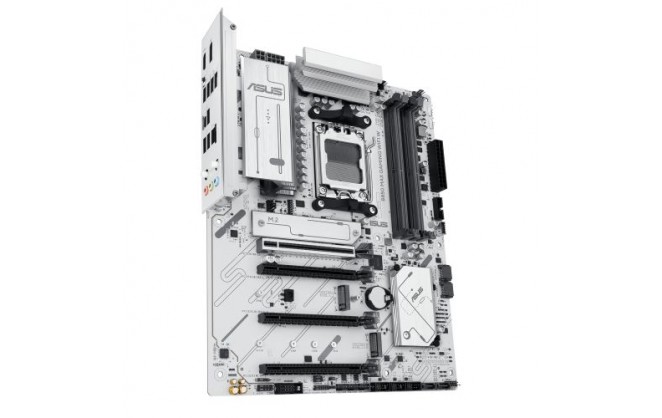

AMD B850 ATX motherboard with white PCB design
DDR5
PCIe 5.0 Ready
Three M.2 slots
Wi-Fi 6E
Realtek 2.5Gb Ethernet
DisplayPort
HDMI
Rear USB 10Gbps Type-A & Type-C support
BIOS FlashBack
Aura Sync

Technical Specification

ASUS B850 MAX GAMING WIFI White Socket AM5 ATX Motherboard

Motherboard Type

Desktop

Form Factor

ATX

Socket

AMD AM5

Chipset

AMD B850

CPU Support

Click here for CPU support

RAM Technology

DDR5 (Dual Channel)
ECC and Non-ECC, Un-buffered Memory*
Supports AMD EXPO
ASUS Enhanced Memory Profile

*Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

RAM Slots

4 x DIMM

RAM Speeds

Up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 CPUs

Maximum Memory

256GB

Graphics

Integrated Graphics
Graphics specifications may vary between CPU types

Graphics Ports

1 x HDMI
1 x DisplayPOrt

PCI/PCI Express

Ryzen 9000 & 7000 CPUs:
1 x PCIe 5.0 x16 (supports x16 mode)

Ryzen 8000 CPUs:
1 x PCIe 4.0 x16 (supports x8/x4 mode)

AMD B850 Chipset:
1 x PCIe 4.0 x16 (support x4 mode)
2 x PCIe 3.0 x16 (supports x1 mode)

Storage

4 x SATA III
3 x M.2

Ryzen 9000 & 7000 CPUs:
M.2_1 (2280) - PCIe 5.0 x4
M.2_2 (22280) - PCIe 4.0 x4

Ryzen 8000 CPUs:
M.2_1 (2280) - PCIe 4.0 x4
M.2_2 (2280) - PCIe 4.0 x4/x2

X870E Chipset:
M.2_3 (2242/2260/2280/2211) - PCIe 4.0 x2

RAID

Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10

Wireless

Wi-Fi 6E
2x2 Wi-Fi 6E (802.11ax)
Supports 2.4/5/6GHz frequency band
Bluetooth v5.3

LAN

2.5GB LAN

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported

Rear:
1 x USB 10Gbps Type-C
3 x USB 10Gbps Type-A
2 x USB 5Gbps Type-A
2 x USB 2.0

Front:
1 x USB 5Gbps Type-C
2 x USB 5Gbps
6 x USB 2.0

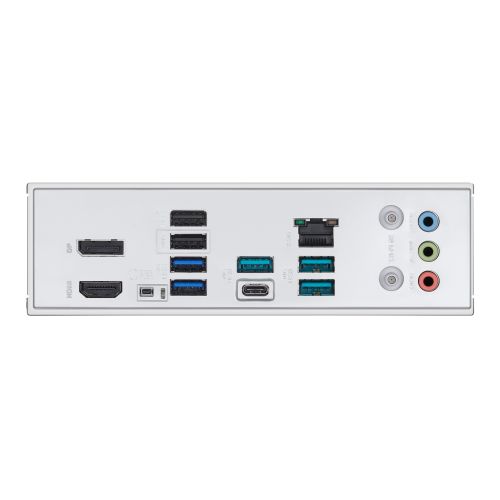

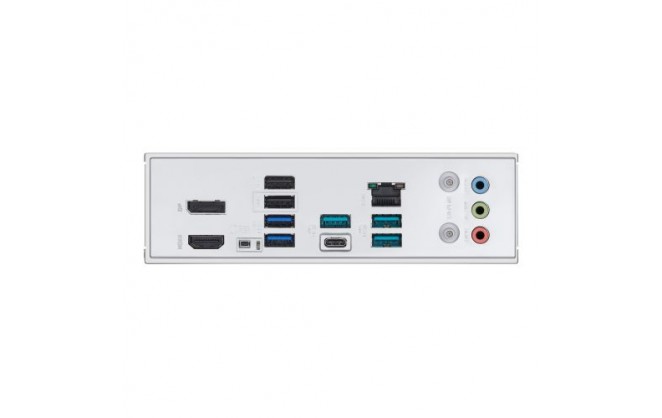

Back Panel I/O Ports

1 x USB 10Gbps Type-C
3 x USB 10Gbps Type-A
2 x USB 5Gbps Type-A
2 x USB 2.0
1 x DisplayPort
1 x HDMI
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet
3 x Audio jacks
1 x BIOS FlashBack button

Internal I/O Connectors

1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
4 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V CPU
1 x 4-pin +12V CPU
3 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 5Gbps Type-C
1 x USB 5Gbps

3 x USB 2.0
3 x Addressable RGB Gen2
1 x Clear CMOS
1 x Chassis Intrusion
1 x COM Port
1 x Front Panel Audio
1 x S/PDIF Out
1 x SPI TPM (14-1 pin)
1 x 10-1 pin System Panel
1 x Thunderbolt (USB4)

Accessories

2 x SATA 6Gb/s cables

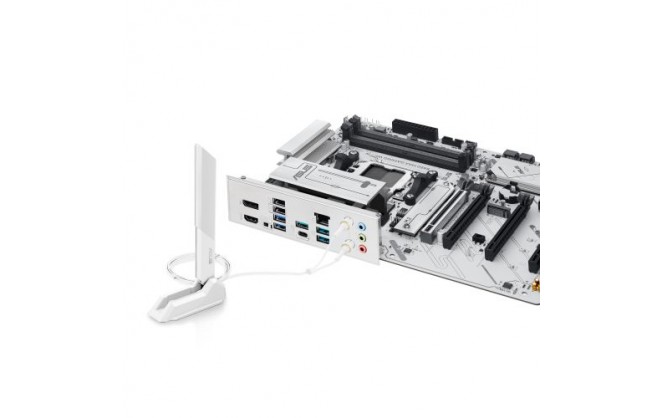

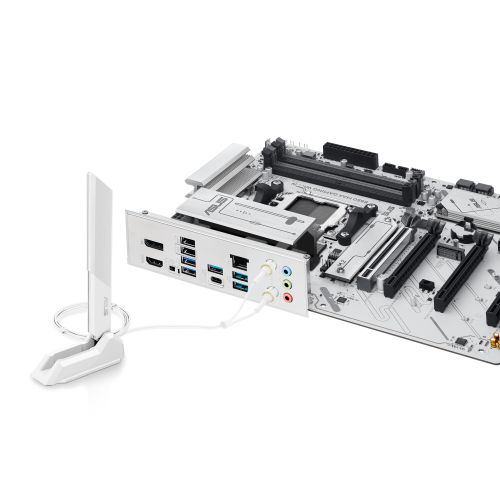

1 x ASUS WiFi Q-Antenna
1 x M.2 rubber packages
3 x Screw packages for M.2 SSD
1 x Quick start guide
