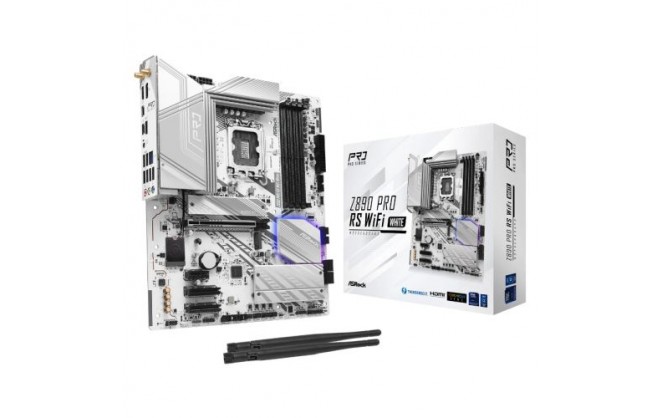

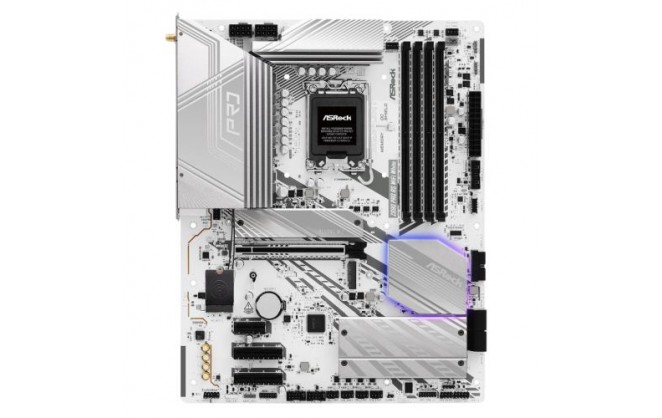

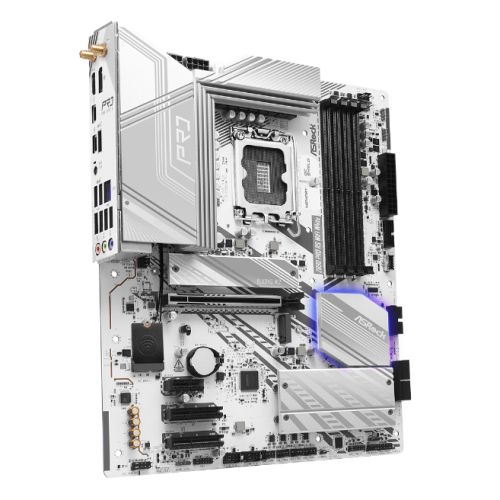

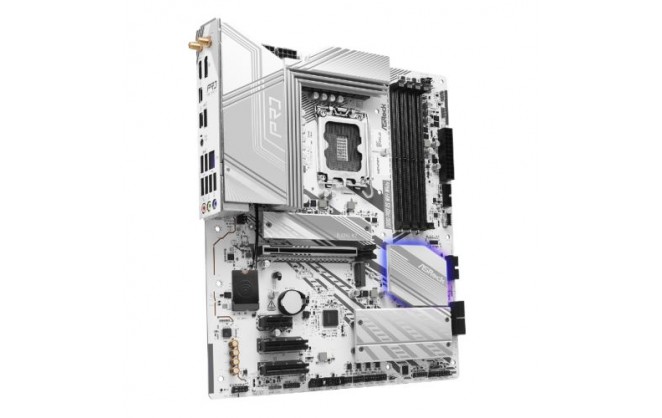

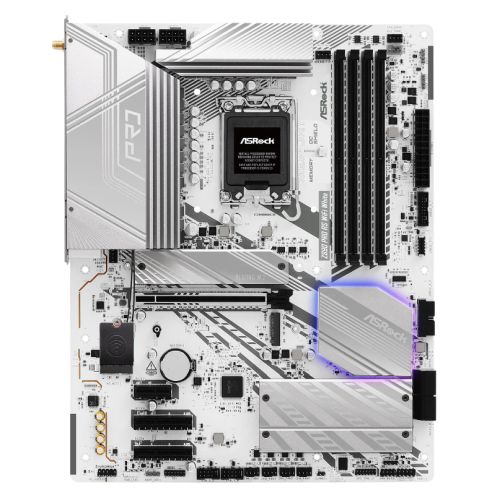

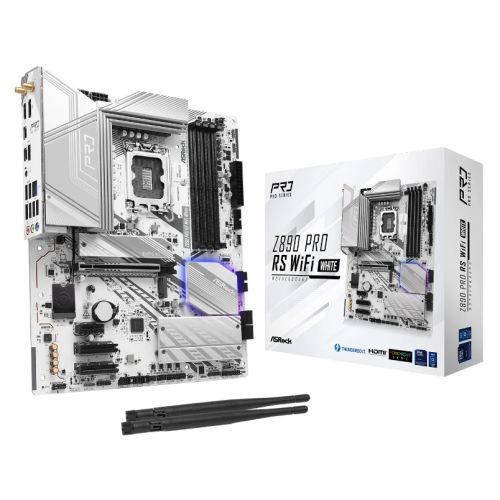

Asrock Z890 PRO RS WIFI WHITE Socket 1851 ATX Motherboard

Part Number: Z890 PRO RS WIFI WHITE
Manufacturer: Asrock
Quickfind Code: 136515

Stock: In Stock

£181.59 ex. vat
£217.91 inc. vat

Product Features:

Condition: New
Socket Type 1851
Chipset Z890
Form Factor ATX
Memory Type DDR5
CPU Type Intel

+ Read More Information

Z890 PRO RS WIFI WHITE

Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.

Supports Intel® Core™ Ultra Processors (Series 2)(LGA1851)
16+1+1+1+1 Power Phase, Dr.MOS for VCore+GT
4 x DDR5 DIMMs
Supports Dual Channel, up to 8666+ (OC)
1 PCIe 5.0 x16, 2 PCIe 4.0 x4, 1 PCIe 4.0 x1
Graphics Output Options: 1 HDMI, 1 DisplayPort,
2 Thunderbolt™ 4 Type-C
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
4 SATA3
1 Blazing M.2 (PCIe Gen5 x4)
2 Hyper M.2 (PCIe Gen4 x4)
1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
2 Thunderbolt™ 4 Type-C (Rear)
1 USB 3.2 Gen2x2 Type-C (Front),
1 USB 3.2 Gen2 Type-A (Rear),
6 USB 3.2 Gen1 (2 Rear, 4 Front),
8 USB 2.0 (4 Rear, 4 Front)
Realtek 2.5G LAN
802.11axe Wi-Fi 6E + Bluetooth
Supports BIOS Flashback, Memory OC Shield, M.2 Bottom Heatsink

Technical Specification

Asrock Z890 PRO RS WIFI WHITE Socket 1851 ATX Motherboard

Motherboard Type

Desktop

Form Factor

ATX

Socket

Intel 1851

Chipset

Intel Z890

CPU Support

Support Intel Core Ultra Processors (Series 2)
Click here for CPU support

RAM Technology

DDR5 (Dual Channel)
Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)
Supports Intel XMP

RAM Slots

4 x DIMM

RAM Speeds

Up to 8666MHz+(OC)

Maximum Memory

256GB

Graphics

Integrated Graphics
Graphics specifications may vary between CPU types

Graphics Ports

1 x HDMI
1 x DisplayPort
2 x Thunderbolt 4

PCI/PCI Express

Intel Core Ultra CPUs (Series 2):
1 x PCIe 5.0 x16 (supports x16 mode)*

Intel Z890 Chipset:
2 x PCIe 4.0 x4 (supports x4 mode)
1 x PCIe 4.0 x1

* PCIE1 supports PCIe riser cards to extend one x16 slot to x8/x8 or x8/x4/x4 slots.

Storage

4 x SATA III
4 x M.2

Intel Core Ultra CPUs (Series 2):
M.2_1 (2280) - PCIe 5.0 x4
M.2_2 (2280) - PCIe 4.0 x4

Intel Z890 Chipset:
M.2_3 (2280) - PCIe 4.0 x4
M.2_4 (2230/2242/2260/2280) PCIe 4.0 x4 & SATA

RAID

Supports RAID 0, 1, 5 and 10 for SATA storage devices
Supports RAID 0, 1, 5 and 10 for M.2 NVMe storage devices

Wireless

802.11axe Wi-Fi 6E Module
Supports IEEE 802.11a/b/g/n/ac/ax/axe
Supports Dual-Band 2x2 with extended 6GHz band support
2 antennas to support 2 (Transmit) x 2 (Receive) diversity tech
Supports Bluetooth 5.3
Supports MU-MIMO

LAN

2.5GB LAN

Audio

7.1 CH HD Audio (Realtek ALC897 Audio Codec)

USB Ports Supported

Rear:
2 x Thunderbolt 4 (USB Type-C) (up to 15W PD 3.0)
1 x USB 10Gbps Type-A
2 x USB 5Gbps Type-A
4 x USB 2.0

Front:
1 x USB 20Gbps Type-C
4 x USB 5Gbps
4 x USB 2.0

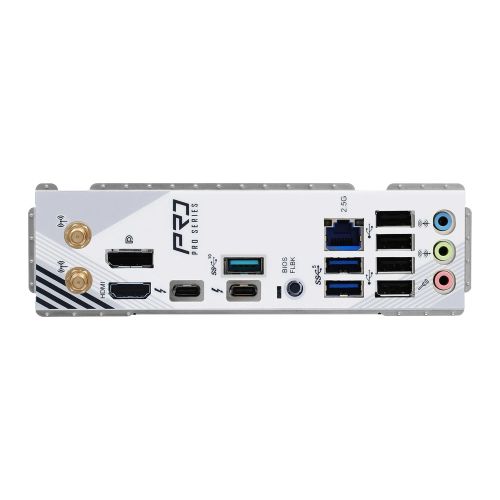

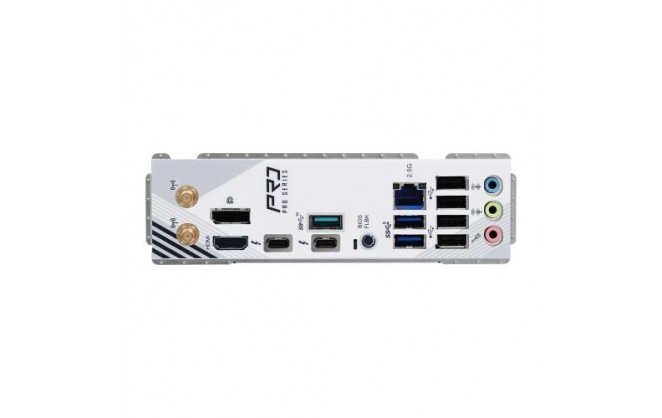

Back Panel I/O Ports

2 x Antenna Ports
1 x HDMI
1 x DisplayPort 1.4
2 x Thunderbolt 4 Type-C (40 Gb/s)
1 x USB 3.2 Gen2 Type-A
2 x USB 3.2 Gen1
4 x USB 2.0
1 x RJ-45 LAN
1 x BIOS Flashback Button
HD Audio Jacks

Internal I/O Connectors

1 x SPI TPM
1 x Power LED and Speaker
1 x RGB LED
3 x Addressable LED
2 x CPU Fan
5 x Chassis Fan
1 x AIO Pump Fan
1 x 24 pin ATX
2 x 8 pin 12V
1 x Front Panel Audio
2 x USB 2.0

2 x USB 3.2 Gen1
1 x Front Panel Type-C USB 3.2 Gen2x2

Accessories

2 x SATA Data Cables
2 x ASRock WiFi 2.4/5/6 GHz Antennas
1 x Screw for M.2 Socket
1 x Standoff for M.2 Socket
