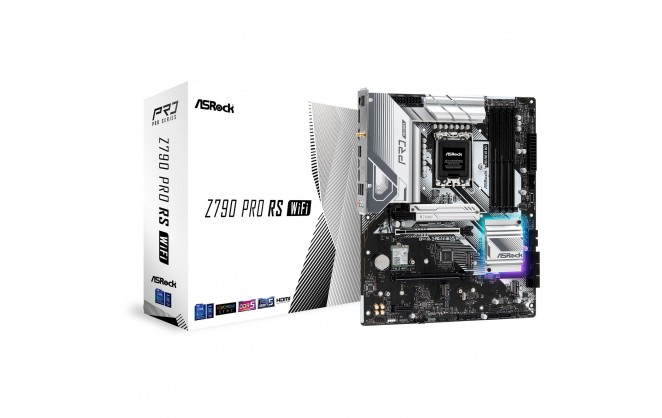

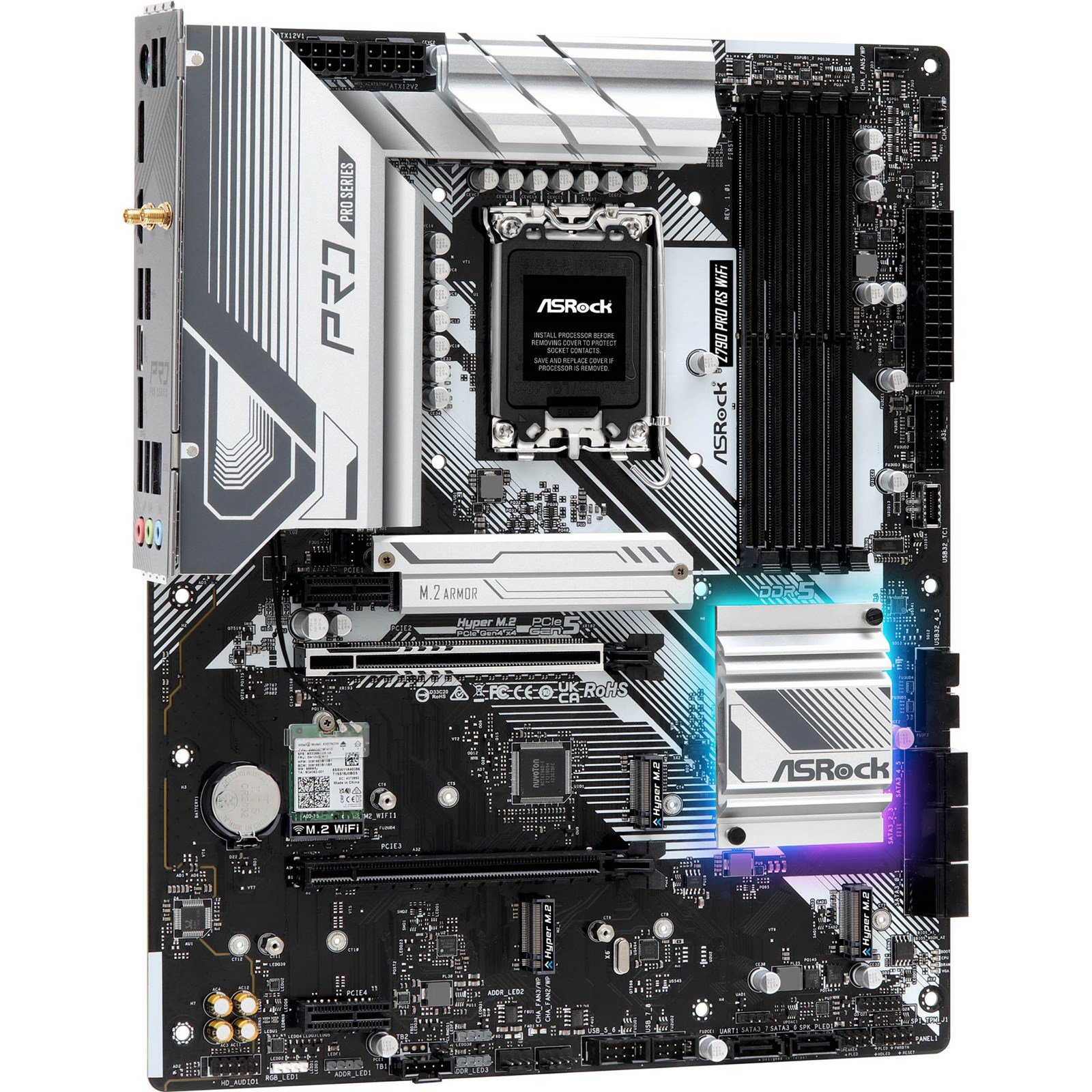

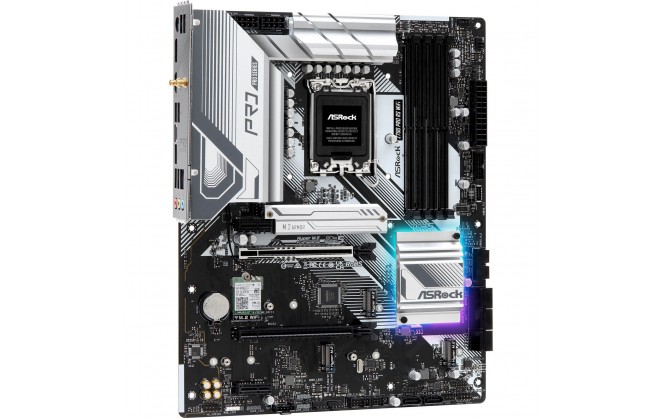

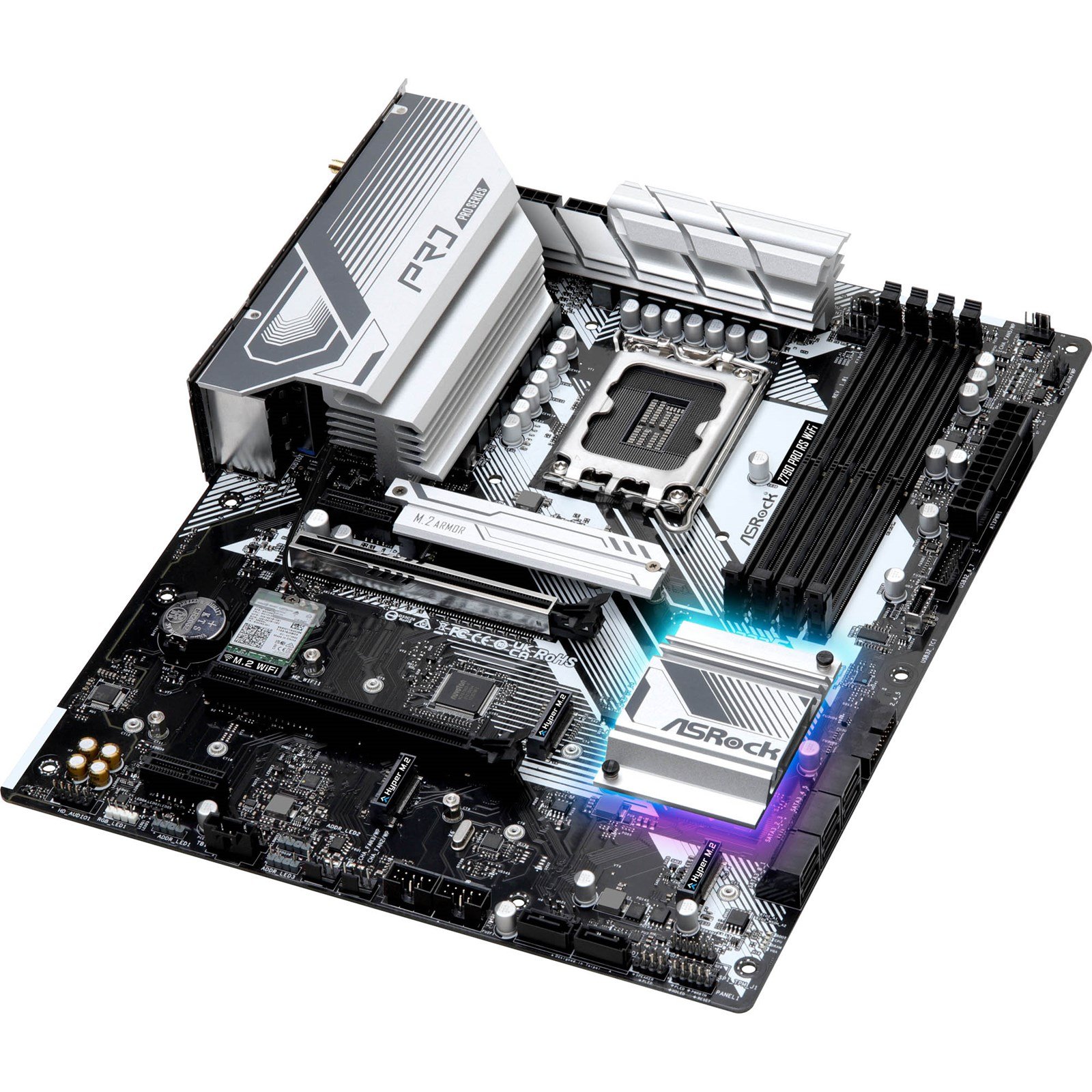

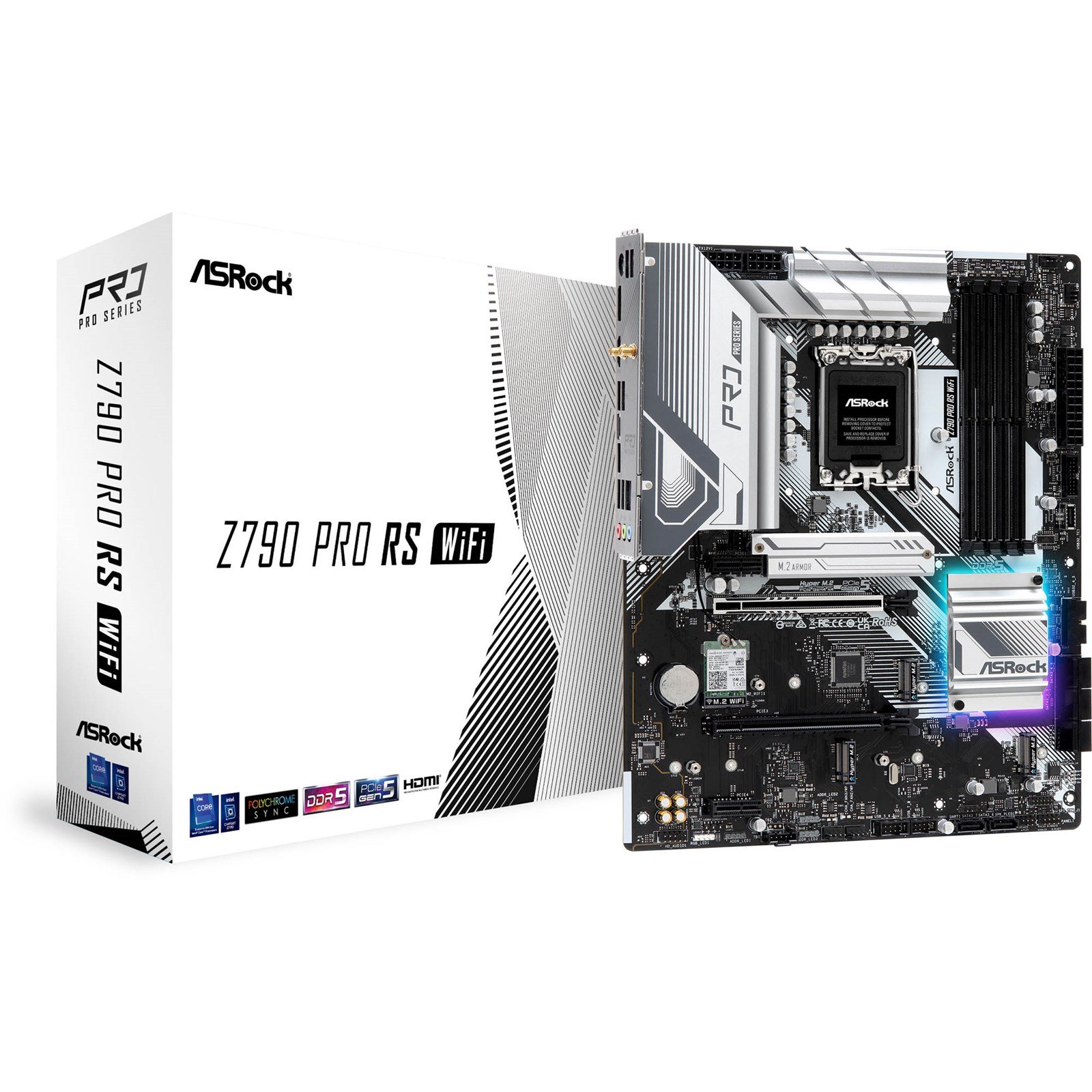

ASRock Z790 Pro RS WiFi ATX Socket 1700 Motherboard

Part Number: 90-MXBL50-A0UAYZ
Manufacturer: Asrock
Quickfind Code: 136222

Stock: In Stock

£169.84 ex. vat
£203.81 inc. vat

Product Features:

Condition: New
Socket Type 1700
Chipset Z790
Form Factor ATX
Memory Type DDR5
CPU Type Intel

+ Read More Information

Product Description

Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.

Its unique path takes aim at mainstream DIYers that drives an undeniable performance and trustable computing experience without a pricey upgrade.

RaceSport edition, your all-rounder motherboard that fulfills every task and light-loading gaming – with style and speed!

Main Features

Supports 13th Gen & 12th Gen Intel Core Processors
14+1+1 Phase Power Design, Dr.MOS for VCore+GT
4 x DDR5 DIMMs, supports up to 7200+(OC)
1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 2 PCIe 3.0 x1
Graphics Output Options: 1 HDMI, 1 DisplayPort, eDP
7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
4 Hyper M.2 (PCIe Gen4x4), 8 SATA3
1 USB 3.2 Gen2x2 Type-C (Front), 1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 6 USB 3.2 Gen1 (2 Rear, 4 Front), 8 USB 2.0 (4 Rear, 4 Front)
Realtek 2.5G LAN
802.11ax Wi-Fi 6E + Bluetooth

Technical Specification

ASRock Z790 Pro RS WiFi ATX Socket 1700 Motherboard

CPU

CPU Socket	Socket 1700
CPU Brand	Intel
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	Intel
Supported Processors	13th Gen & 12th Gen Intel Core Processors
64-bit Support	Yes
Socket	LGA1700

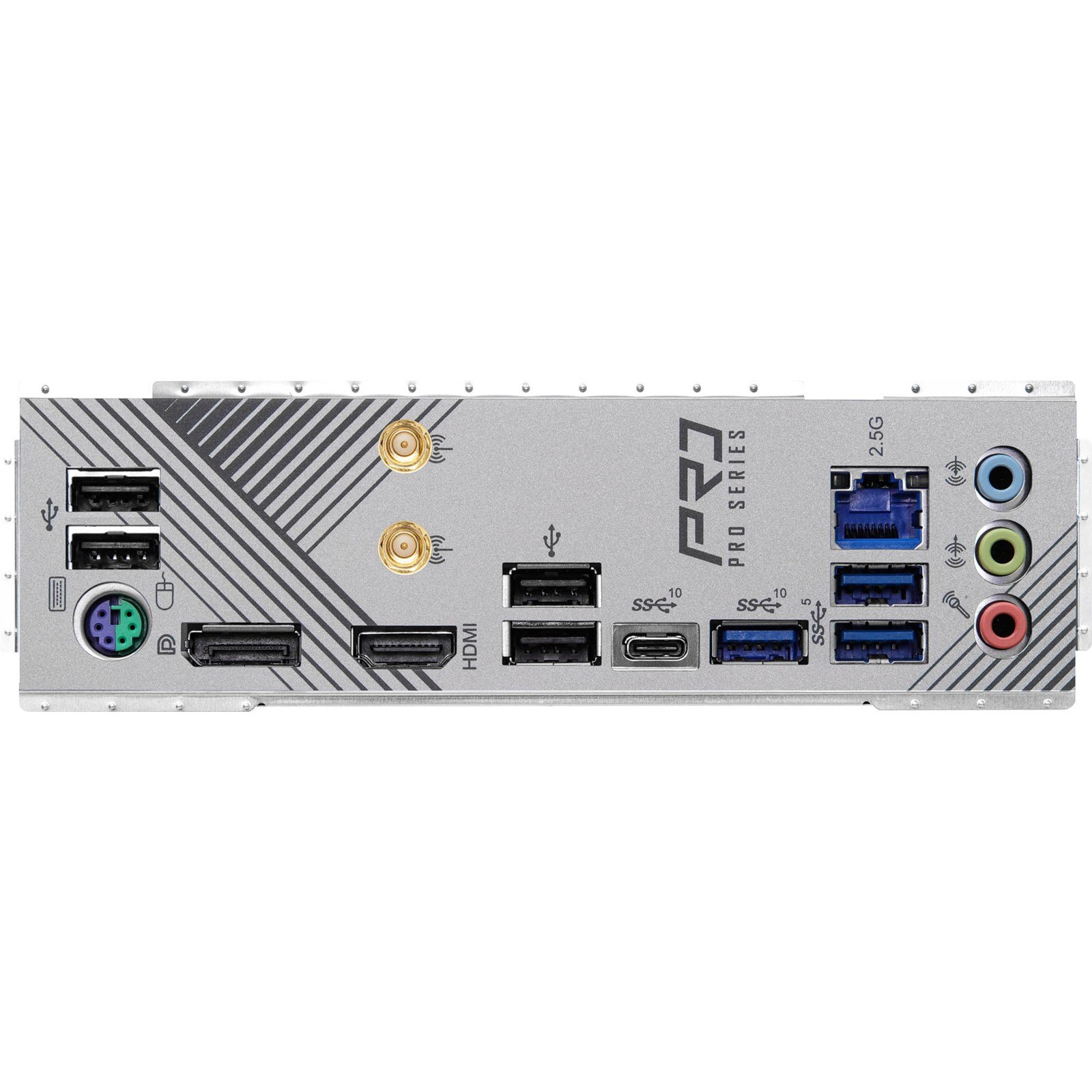

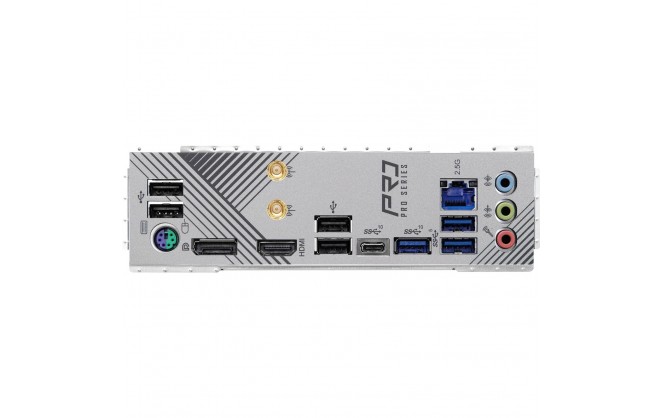

Rear Panel I/O Ports

USB Ports	1 x USB-C 3.1 1 x USB 3.1 2 x USB 3.0 4 x USB 2.0
DisplayPorts	1 x DisplayPort 1.4
HDMI Port	1 x HDMI 2.1
Keyboard/Mouse Combo Port	1 x PS/2
RJ-45 Ports	1 x RJ-45
Audio Line In Ports	1 x 3.5mm Jack
Audio Line Out Ports	1 x 3.5mm Jack
Microphone In Port	1 x 3.5mm Jack
Antenna Connector(s)	2 x SMA Antenna

Internal I/O Connectors

SATA Connectors	8 x SATA III
USB Connectors	1 x USB-C 3.2 header (supports 1 port) 2 x USB 3.0 headers (supports 4 ports) 2 x USB 2.0 headers (supports 4 ports)
Speaker	1 x Speaker header
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 1 x CPU/Water Pump fan header 5 x Chassis/Water Pump fan headers
Thunderbolt Port(s)	1 x Thunderbolt AiC header (Supports ASRock Thunderbolt 4 AIC Card)
TPM Header	1 x SPI TPM header
Other Connectors	1 x 24-pin ATX 2 x 8-pin EPS

Memory

Memory Bus Speed	Up to 7200+ MHz
Memory Type	DDR5
Maximum RAM	128 GB
Memory Slot	4 x DIMM

Motherboard

Northbridge	Z790
RAID Supported	Yes
RAID Format	RAID 0, 1, 5, 10
SATA Supported	Yes

Expansion

Number of PCI Express Slots

1 x PCI Express 5.0 x16 slot
1 x PCI Express 4.0 x16 slot (@ x4)
2 x PCI Express 3.0 x1 slots

Graphics Device

Integrated Graphics Supported

Yes

Warranty

3 Years

Sound

Integrated Sound

Realtek ALC897

Network

Integrated Network	Dragon RTL8125BG
Network Speeds Supported	Up to 2.5 Gbps
Wireless LAN	Yes (Wi-Fi 6E)
Wireless Network Speed	Up to 2.4 Gbps
Bluetooth	Yes
Bluetooth Version	5.2

System Requirements

Operating Systems Supported

Microsoft Windows 11 64-bit

System

BIOS	128Mb AMI UEFI Legal BIOS with GUI support
Software Included (may be trial or restricted)	Yes
Drivers	Yes
SLi/Crossfire Features	Supports AMD CrossFire

Physical

Form Factor	ATX Motherboard
In The Box	Motherboard 1 x User Manual 2 x SATA Data Cables 2 x ASRock WiFi 2.4/5/6 GHz Antennas 4 x Screws for M.2 Sockets 1 x Standoff for M.2 Socket
Width	244 mm
Length	305 mm

Key Features

RDIMM Memory Supported	No
RDIMM Memory Required	No
Wireless Network	Yes
Motherboard Width	244 mm
Motherboard Height	305 mm
mSATA Supported	No
U.2 Supported	No
Chipset Manufacturer	Intel
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	8 port(s)
Number of USB Ports	8 port(s)
SATA III Support	Yes
USB 3.0 Support	Yes
Multi GPU Support	ATi CrossFire
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	Yes
Motherboard Form Factor	ATX
Motherboard (EPS) Power Connectors	2 x 8-Pin
Motherboard Chipset	Intel Z790
Thunderbolt	No
Motherboard Model	ASRock Z790 Pro RS WiFi
WiFi Speed	2400 Mbps
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	ASRock RGB LED
Memory Speed	7200 MT/s
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Power Requirement (auto)	70 W
Max Memory Speed Supported (Non-overclocked)	4800 MT/s
Max Memory Speed Supported (overclocked)	7200 MT/s
CPU Power Pins (female)	16
Total M.2 Slots	4
Maximum NVMe M.2 ports	4
PCI-e slots	4
SATA ports	8
No. of front USB2.0 ports supported	4
No. of front USB3.0 ports supported	4
No. of front USB-C ports supported	1
