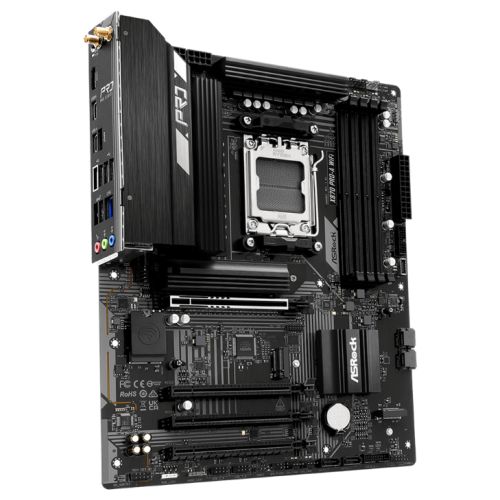

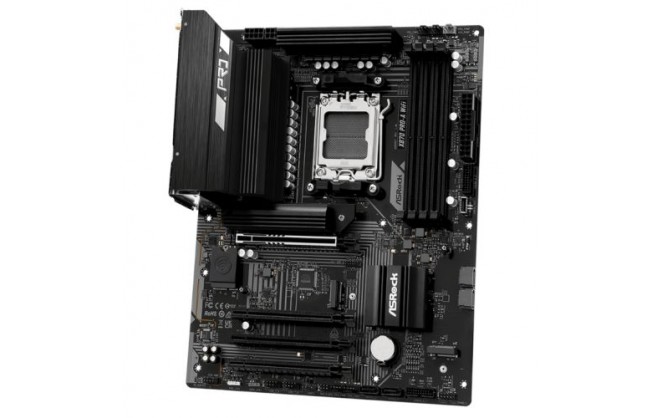

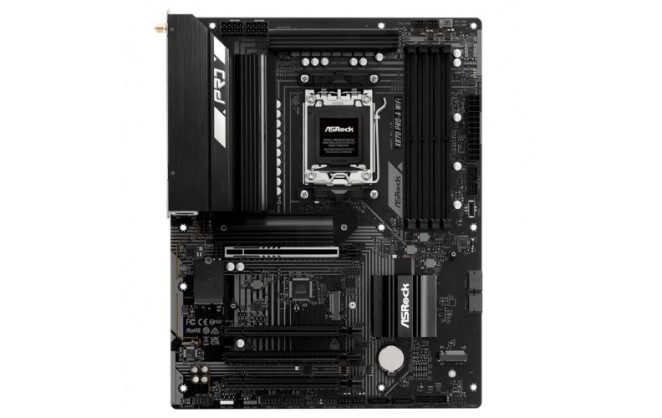

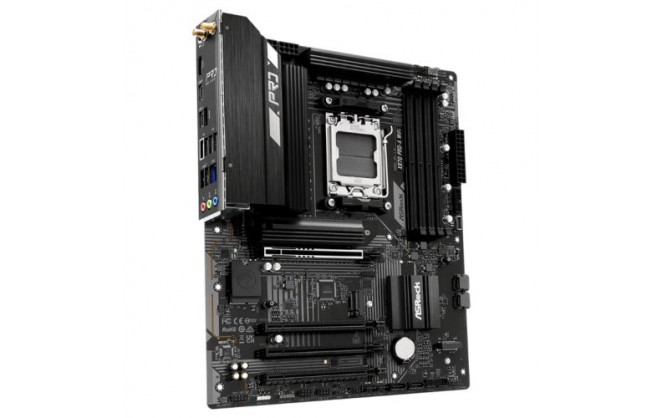

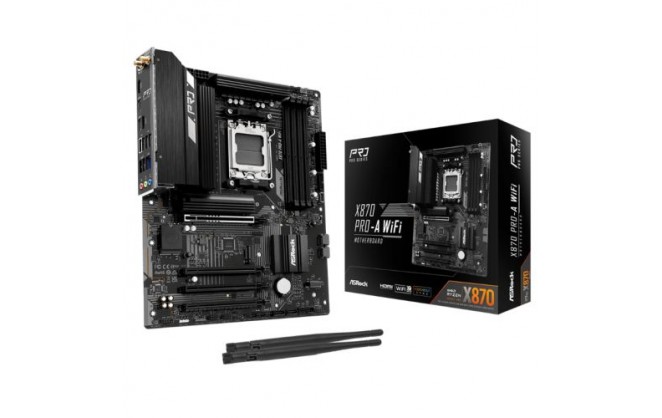

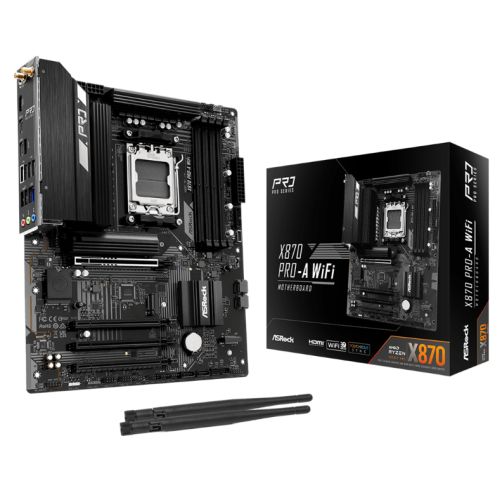

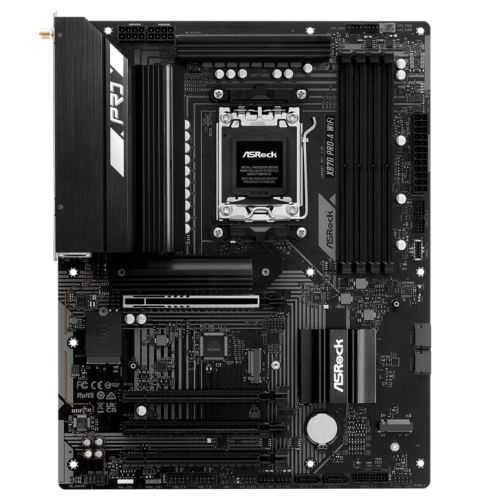

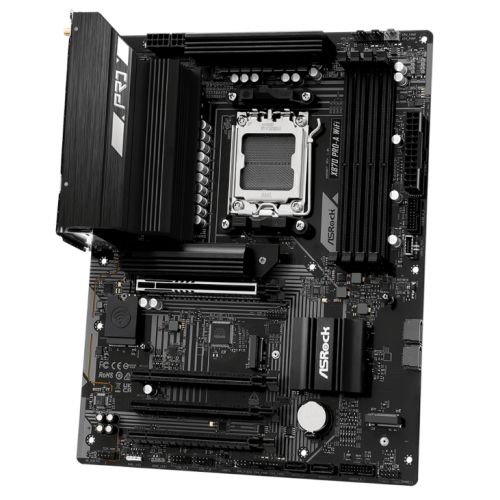

Asrock X870 PRO-A WIFI Socket AM5 ATX Motherboard

Part Number: X870 PRO-A WIFI
Manufacturer: Asrock
Quickfind Code: 136519

Stock: In Stock

£156.15 ex. vat
£187.38 inc. vat

Product Features:

Condition: New
Socket Type AM5
Chipset X870
Form Factor ATX
Memory Type DDR5
CPU Type AMD

+ Read More Information

Pro-A series is designed for enhanced stability, durability, and efficiency, it offers reliable performance, user-friendly features and a streamlined aesthetic, making it ideal for daily computing needs.

Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
16+2+1 Power Phase, 80A Dr.MOS for VCore+SOC+MISC
4 x DDR5 DIMMs
Supports Dual Channel, up to 8000+ (OC)
1 PCIe 5.0 x16, 3 PCIe 4.0 x16
Graphics Output Options: 1 HDMI, 2 USB4 Type-C
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
1 Blazing M.2 (PCIe Gen5x4)
1 Hyper M.2 (PCIe Gen4x4)
1 M.2 (PCIe Gen3x2 & SATA3)
4 SATA3
2 USB4 Type-C (Rear)
2 USB 3.2 Gen2 (Rear)
1 USB 3.2 Gen1 Type-C (Front)
5 USB 3.2 Gen1 (1 Rear, 4 Front)
8 USB 2.0 (4 Rear, 4 Front)
Realtek 2.5GbE LAN
802.11be Wi-Fi 7 + Bluetooth
Supports M.2 Bottom Heatsink

Technical Specification

Asrock X870 PRO-A WIFI Socket AM5 ATX Motherboard

Motherboard Type

Desktop

Form Factor

ATX

Socket

AMD AM5

Chipset

AMD X870

CPU Support

Click here for CPU support

RAM Technology

DDR5 (Dual Channel)
ECC and Non-ECC, Un-buffered Memory
Supports XMP and EXPO memory modules

RAM Slots

4 x DIMM

RAM Speeds

Up to 8000+(OC)

Maximum Memory

256GB

Graphics

Integrated Graphics
Graphics specifications may vary between CPU types

Graphics Ports

1 x HDMI
2 x USB4 (40Gbps) support USB Type-C display outputs

Multi-GPU Support

Supports AMD CrossFire

PCI/PCI Express

CPU:
1 x PCIe 5.0 x16 (PCIE1), supports x16 mode*
1 x PCIe 4.0 x16 (PCIE3), supports x4 mode*

Chipset:
1 x PCIe 4.0 x16 (PCIE2), supports x1 mode*
1 x PCIe 4.0 x16 (PCIE4), supports x1 mode*

*PCIE1 will run at Gen5x16 with 9000/7000 CPUs, Gen4x8 with 8000 CPUs and Gen4x4 with 8000 CPUs.
PCIE3 will run at Gen4x2 with 9000, 7000 and 8000 CPUs and disable with 8000 CPUs.

Storage

4 x SATA III
3 x M.2

M.2_1 (2280) - PCIe 5.0 x4*
M.2_2 (2280) - SATA & PCIe 3.0 x2*
M.2_3 (2280) - PCIe 4.0 x4*

*M2_1 is the first priority for M.2 installation.
*M2_1 will run at Gen5x4 with 9000 and 7000 series CPUs and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series CPUs.
*If SATA3_3 or SATA3_4 is occupied, M2_2 will be disabled.

RAID

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

Wireless

802.11be 2x2 Wi-Fi 7 Module
Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
Supports 2.4GHz/5GHz/6GHz frequency band
Supports 160MHz channel bandwidth with 6GHz frequency band
1 antenna to support 2 (Transmit) x 2 (Receive) diversity tech
Supports Bluetooth 5.4
Supports MU-MIMO

LAN

2.5GB LAN

Audio

7.1 CH HD Audio (Realtek ALC897 Audio Codec)

USB Ports Supported

Rear:
2 x USB4 (40Gbps) Type-C (up to 15W PD 3.0)
2 x USB 10Gbps Type-A
1 x USB 5Gbps Type-A
6 x USB 2.0

Front:
1 x USB 5Gbps Type-C
4 x USB 5Gbps Type-A
4 x USB 2.0

Back Panel I/O Ports

2 x Antenna
1 x HDMI
2 x USB4 Type-C (40 Gb/s)
2 x USB 3.2 Gen2 Type-A (10 Gb/s)
1 x USB 3.2 Gen1 Type-A
4 x USB 2.0
1 x RJ-45 LAN
1 x BIOS Flashback Button
HD Audio Jacks

Internal I/O Connectors

1 x SPI TPM
1 x Power LED and Speaker
1 x RGB LED
3 x Addressable LED
2 x CPU Fan
3 x Chassis Fan
1 x AIO Pump Fan
1 x 24 pin ATX
2 x 8 pin 12V
1 x Front Panel Audio
2 x USB 2.0
2 x USB 3.2 Gen1

1 x Front Panel Type-C USB 3.2 Gen1

Accessories

2 x SATA Data Cables
2 x ASRock WiFi 2.4/5/6 GHz Antennas
1 x ARGB Splitter Cable
