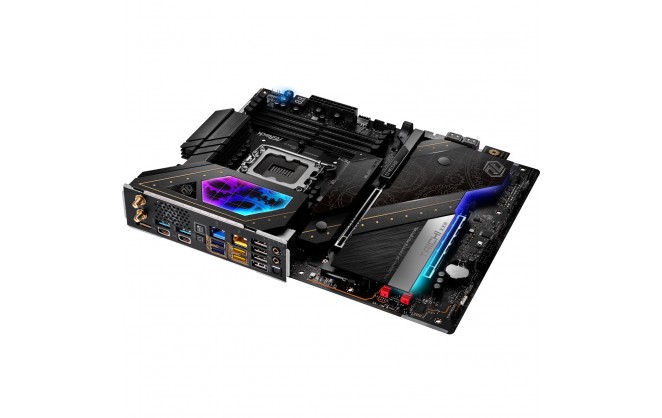

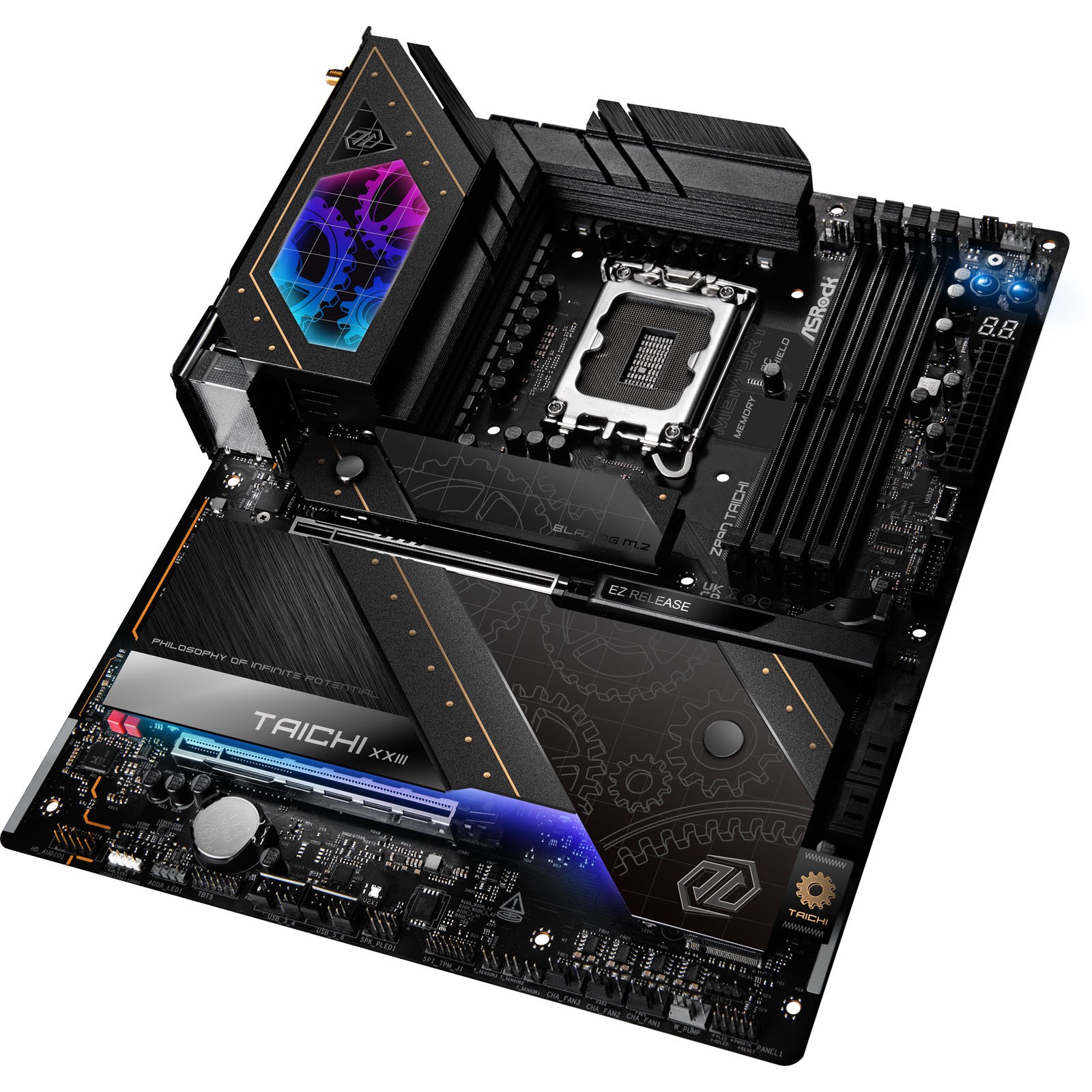

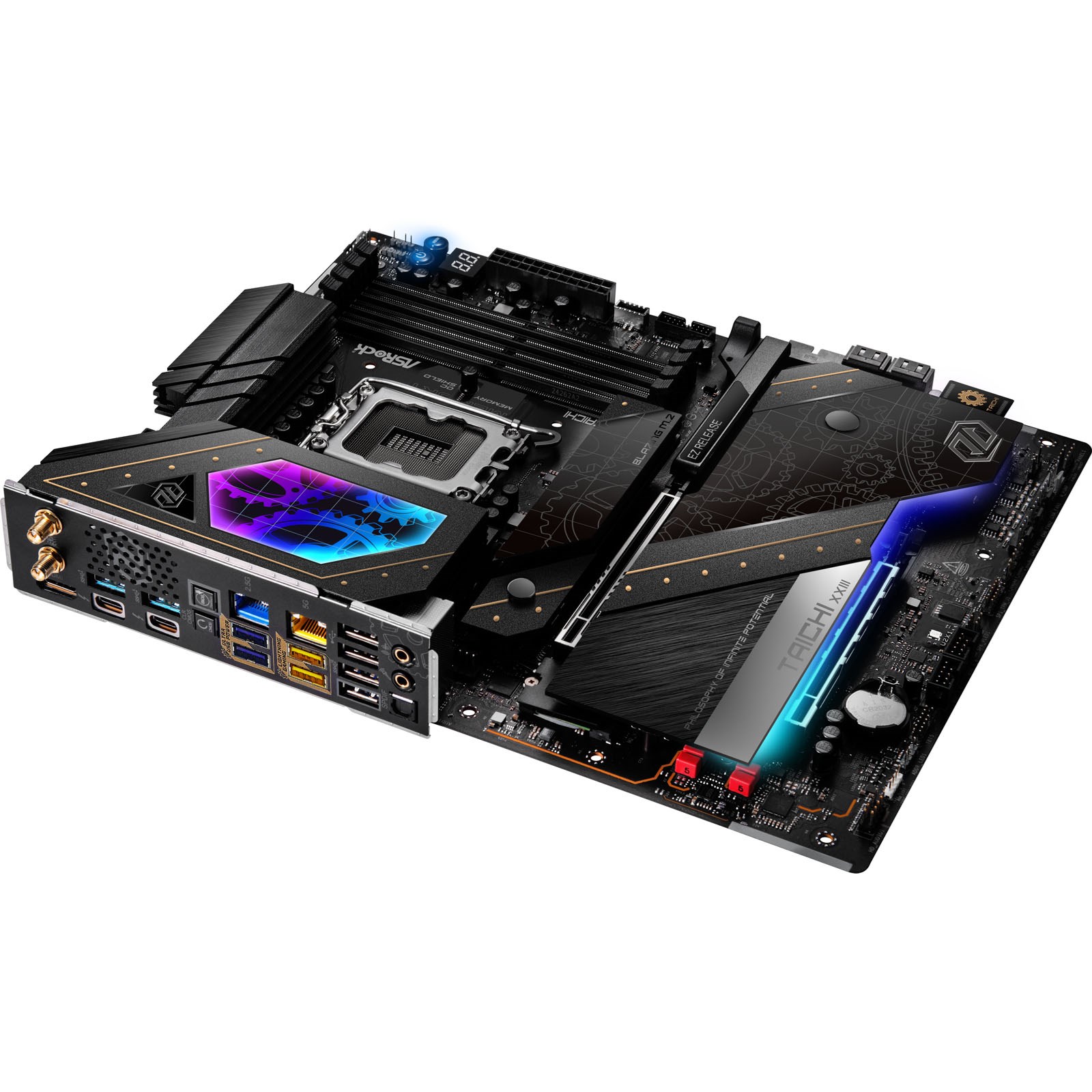

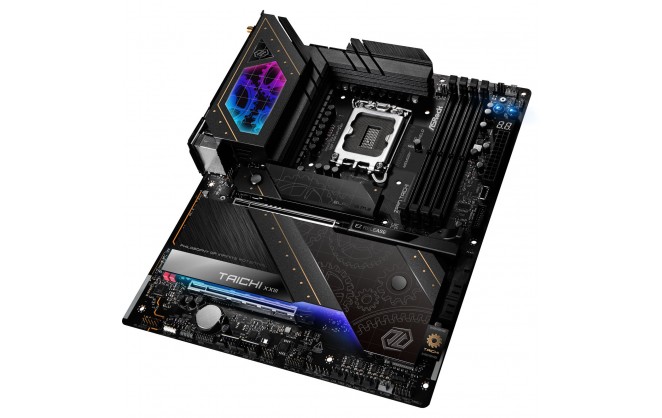

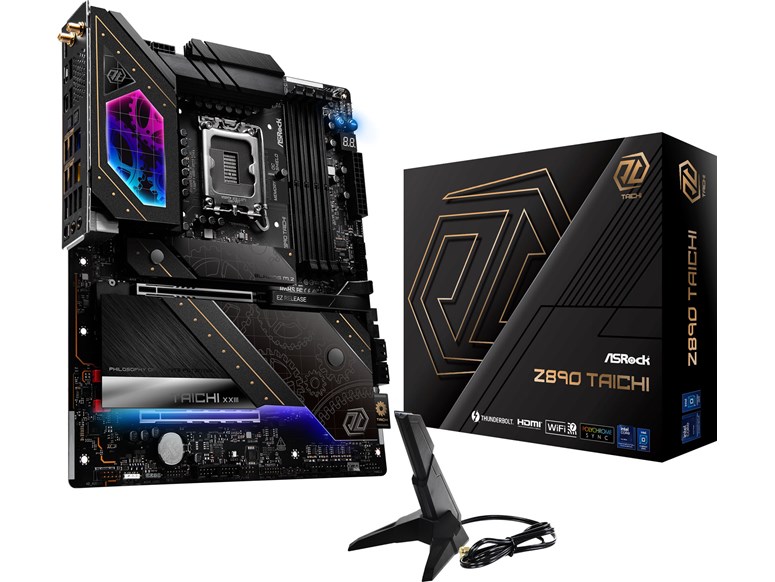

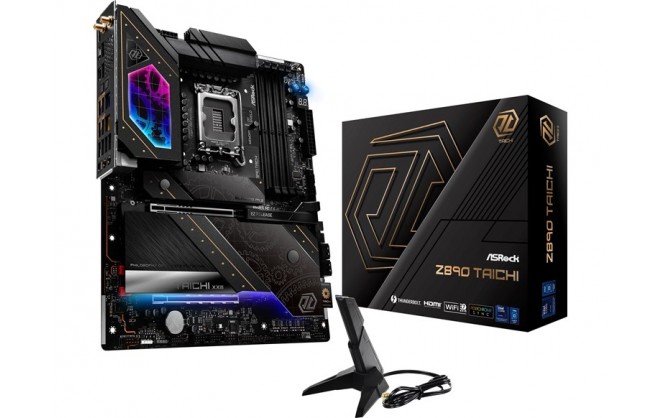

ASRock Taichi Z890 Socket 1851 ATX Motherboard

  • Part Number: 90-MXBPR0-A0UAYZ
  • Manufacturer: Asrock
  • Quickfind Code: 136365
  • Stock: In Stock

£372.89 ex. vat
£447.47 inc. vat

Product Features:
  • Condition: New
  • Socket Type 1851
  • Chipset Z890
  • Form Factor ATX
  • Memory Type DDR5
  • CPU Type Intel
+ Read More Information

Share:

Product Description

Key Features:

  • ATX Form Factor
  • Intel Z890 Chipset
  • Socket 1851
  • DDR5 (Max: 256GB / 4 slots)
  • 6 x M.2 & 10 x USB & 4 x SATA
  • HDMI
Technical Specification

ASRock Taichi Z890 Socket 1851 ATX Motherboard

CPU

CPU SocketSocket 1851
CPU BrandIntel
Installed Processors (Max)0 (1)
Supported Processor ManufacturerIntel
Supported ProcessorsIntel Core Ultra Processors (Series 2)
64-bit SupportYes
SocketLGA1851

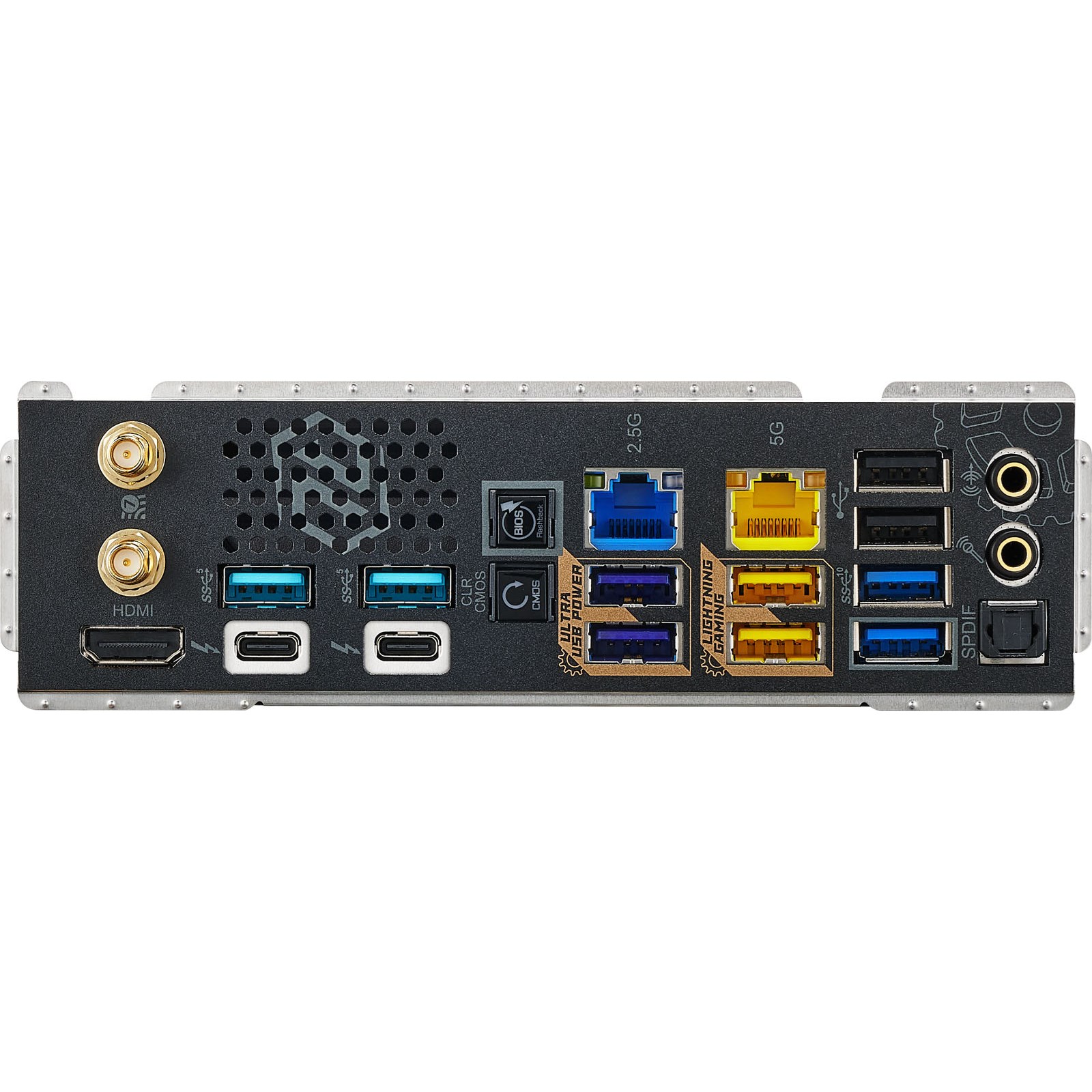

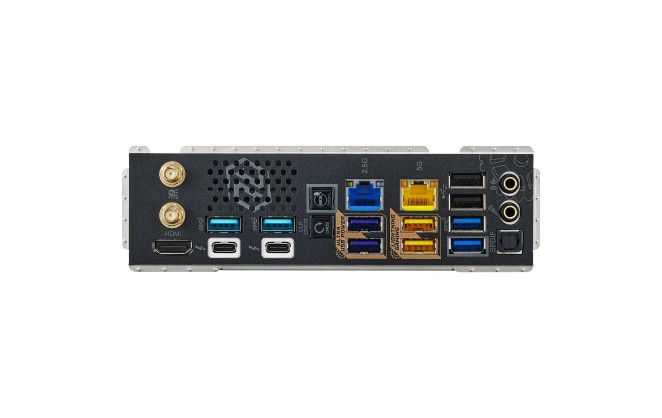

Rear Panel I/O Ports

USB Ports2 x Thunderbolt 4
4 x USB 3.1
4 x USB 3.0
2 x USB 2.0
DisplayPortsYes via Thunderbolt 4
HDMI Port1 x HDMI 2.1
RJ-45 Ports2 x RJ-45
Audio Line Out Ports1 x 3.5mm Jack
Microphone In Port1 x 3.5mm Jack
S/PDIF Port1 x S/PDIF Optical Out
Antenna Connector(s)2 x SMA Antenna

Internal I/O Connectors

SATA Connectors4 x SATA III
USB Connectors1 x USB-C 3.2 header (supports 1 port)
2 x USB 3.0 headers (supports 4 ports)
2 x USB 2.0 headers (supports 4 ports)
Speaker1 x Speaker headr
Front Panel Connectors1 x Front Panel
1 x Front Audio
Cooling Fan Support2 x CPU fan headers
4 x Chassis fan headers
1 x AIO pump header
1 x Water pump headers
TPM Header1 x SPI TPM header
Power Connector Port1 x 24-pin ATX
2 x 8-pin EPS
Other Connectors1 x M.2 slot, Key M, Type 2280 (PCIe Gen5)
4 x M.2 slots, Key M, Type 2260/2280 (PCIe Gen4)
1 x M.2 slot, Key M, Type 2230/2242/2260/2280 (PCIe Gen4 or SATA)
3 x 3-pin ARGB headers
3 x Thermistor headers

Memory

Memory Bus SpeedUp to 9200 MT/s
Memory TypeDDR5
Maximum RAM256 GB
Memory Slot4 x DIMM

Motherboard

NorthbridgeIntel Z890
RAID SupportedYes
RAID FormatRAID 0, 1, 5, 10
SATA SupportedYes

Expansion

Number of PCI Express Slots1 x PCI Express 5.0 x16 slot
1 x PCI Express 4.0 x16 slot (@ x4)

Graphics Device

Integrated Graphics SupportedYes

Warranty

Warranty3 Years

Sound

Integrated SoundRealtek ALC4082

Network

Integrated NetworkRealtek RTL8126-VB
Dragon RTL8125BG
Network Speeds SupportedUp to 5 Gbps (Realtek)
Up to 2.5 Gbps (Dragon)
Wireless LANYes - Wi-Fi 7
BluetoothYes
Bluetooth Version5.4

System Requirements

Operating Systems SupportedWindows 11

System

BIOS256Mb AMI UEFI Legal BIOS with GUI support
Software Included (may be trial or restricted)Yes
DriversYes

Physical

Form FactorATX Motherboard
In The BoxMotherboard
4 x SATA Cables
M.2 Expansion Card
WiFi Antenna
ARGB Splitter Cable
3 x Thermistor Cables
1 x M.2 Screw
1 x M.2 Standoff
Width244 mm
Length305 mm

Key Features

Wireless NetworkYes
Motherboard Width244 mm
Motherboard Height305 mm
Main ColourBlack
Memory ChannelDual
On-board Audio Type7.1
Number of SATA Ports4 port(s)
Number of USB Ports10 port(s)
USB 3.0 SupportYes
Multi GPU SupportNo
VGA ConnectionNo
DVI ConnectionNo
HDMI ConnectionYes
DisplayPort ConnectionNo
Motherboard Form FactorATX
Drive Interface TypePCIe 5.0 x4 NVMe
Motherboard (EPS) Power Connectors2 x 8-Pin
Motherboard ChipsetIntel Z890
ThunderboltYes
Motherboard ModelASRock Z890 Taichi
USB 3.1 SupportYes
Internal USB3.0 HeaderYes
M.2 SupportYes
On-board RGB ControlASRock RGB LED
RGB Header Type3-Pin ARGB
Addressable RGBYes
Internal USB Type-C HeaderYes
Power Requirement (auto)70 W
Max Memory Speed Supported (Non-overclocked)5600 MT/s
Max Memory Speed Supported (overclocked)9200 MT/s
CPU Power Pins (female)16
Total M.2 Slots6
Maximum NVMe M.2 ports6
Maximum SATA M.2 ports1
SATA ports4
No. of front USB2.0 ports supported4
No. of front USB3.0 ports supported4
No. of front USB-C ports supported1
Back Connect SupportNo

Item Details

ManufacturerASRock
Manufacturer Code90-MXBPR0-A0UAYZ
EAN4710483949685
