£49.58 ex. vat
£59.50 inc. vat
Share:
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
This motherboard features an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects .
*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s.
USB 3.2 Gen1 Type-C delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the rear panel of computer case.
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.
*Supported only with processors with integrated graphics.
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.

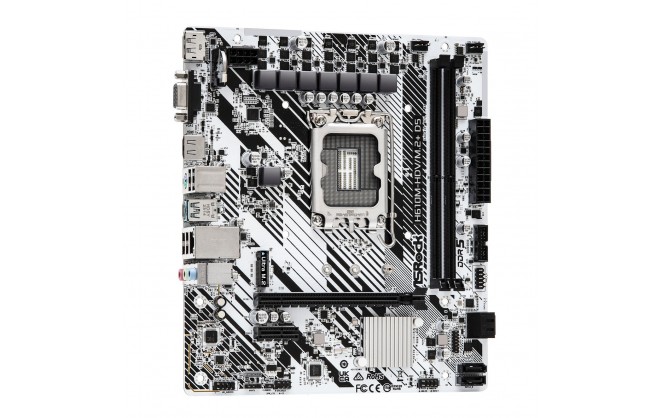

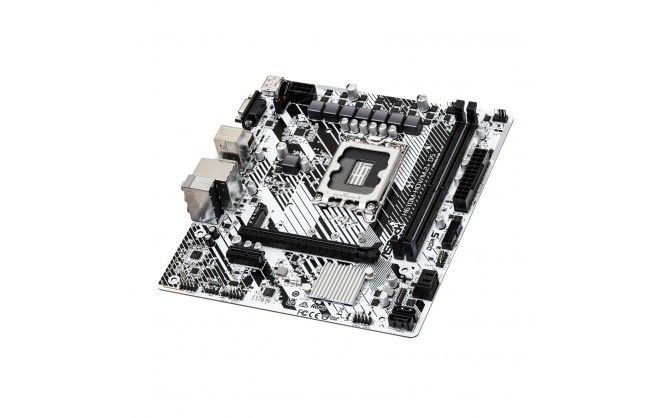

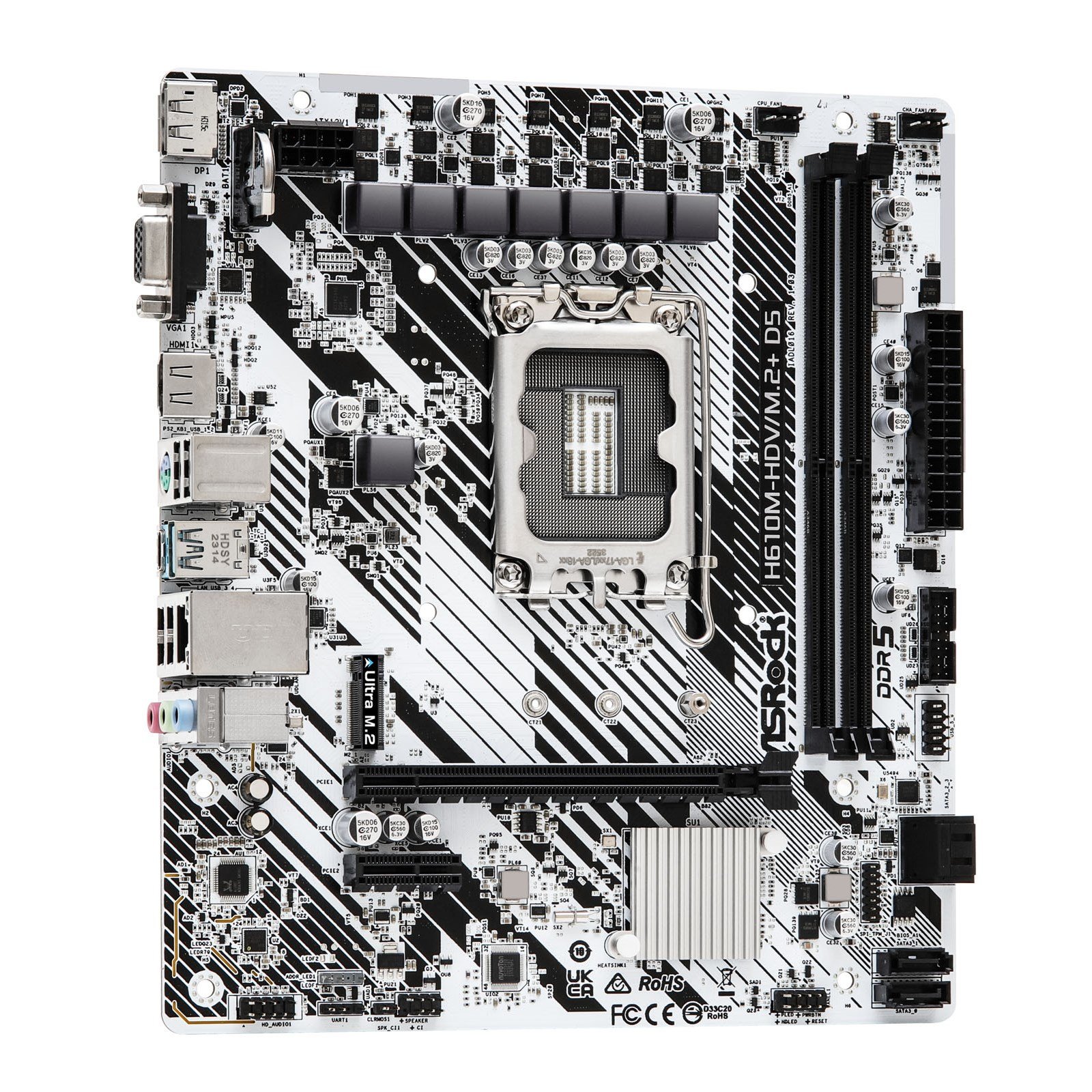

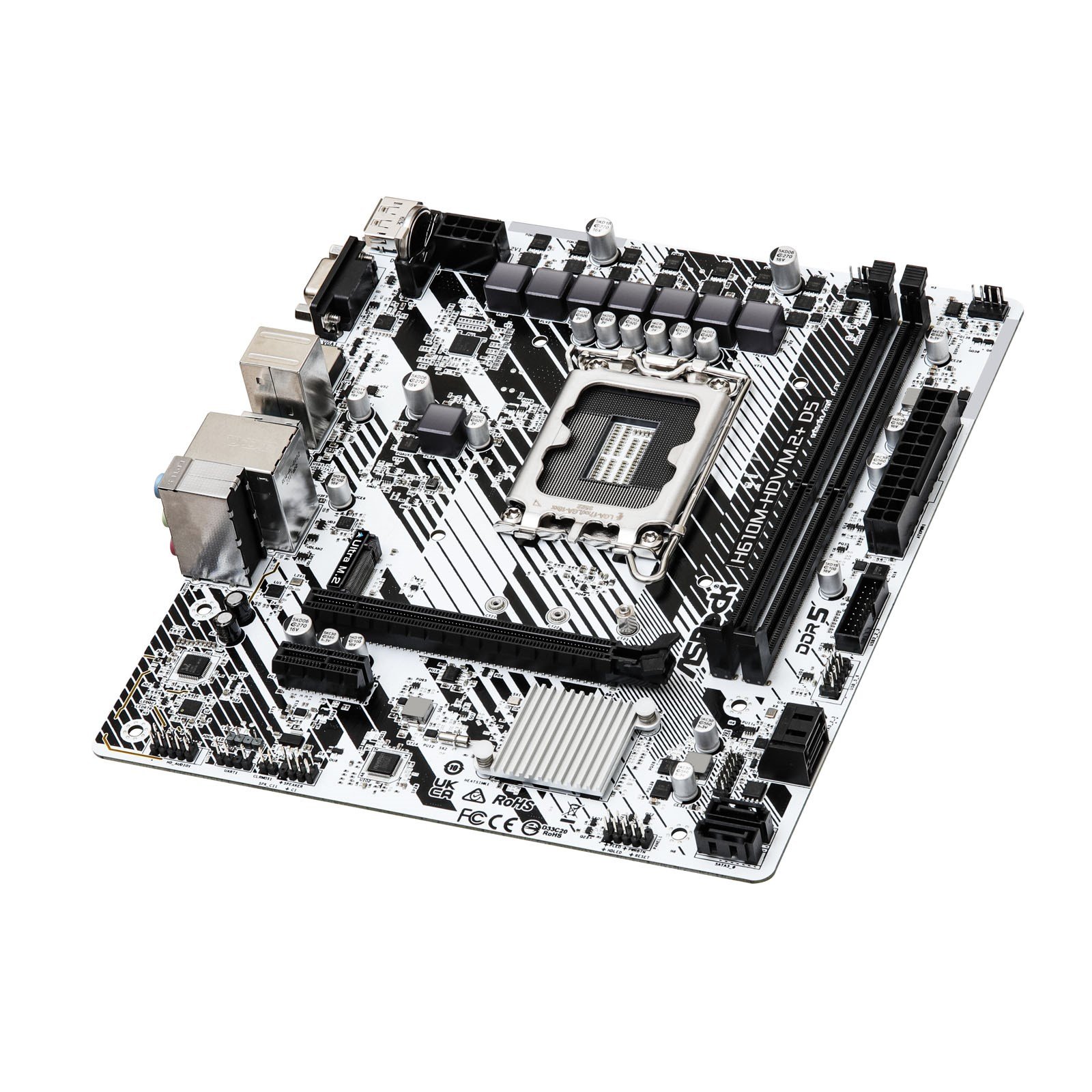

ASRock H610M-HDV/M.2+ D5 mATX Socket 1700 Motherboard
CPU
| CPU Socket | Socket 1700 |
| CPU Brand | Intel |
| Installed Processors (Max) | 0 (1) |
| Supported Processor Manufacturer | Intel |
| Supported Processors | 14th, 13th & 12th Gen Intel Core Processors |
| 64-bit Support | Yes |
| Socket | LGA1700 |

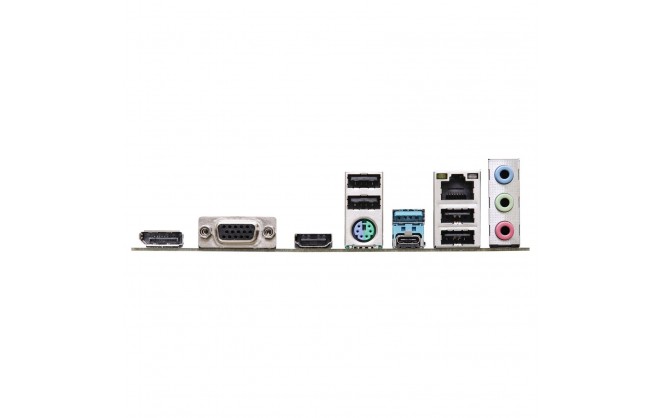

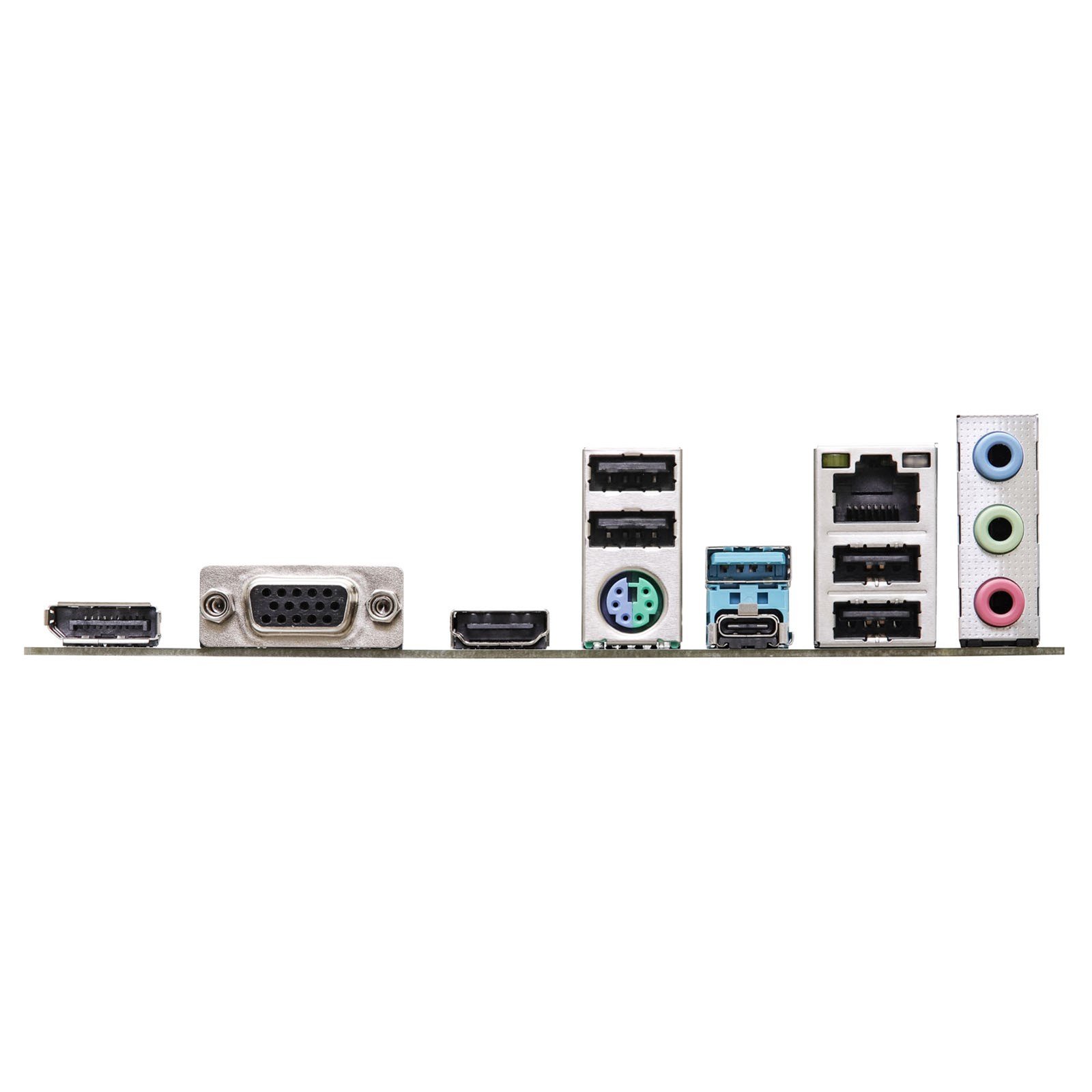

Rear Panel I/O Ports
| USB Ports | 1 x USB-C 3.0 1 x USB 3.0 4 x USB 2.0 |
| DisplayPorts | 1 x DisplayPort 1.4 |
| HDMI Port | 1 x HDMI 2.1 |
| VGA Port | 1 x D-Sub |
| Keyboard/Mouse Combo Port | 1 x PS/2 |
| RJ-45 Ports | 1 x RJ-45 |
| Audio Line In Ports | 1 x 3.5mm Jack |
| Audio Line Out Ports | 1 x 3.5mm Jack |
| Microphone In Port | 1 x 3.5mm Jack |
Internal I/O Connectors
| SATA Connectors | 4 x SATA III |
| USB Connectors | 1 x USB 3.0 header (supports 2 ports) 1 x USB 2.0 header (supports 2 ports) |
| Speaker | 1 x Speaker header |
| Front Panel Connectors | 1 x Front Panel 1 x Front Audio |
| Cooling Fan Support | 1 x CPU fan header 1 x Chassis/Water Pump fan header |
| Chassis Intrusion Connector | 1 x Chassis Intrusion header |
| TPM Header | 1 x SPI TPM header |
| Power Connector Port | 1 x 24-pin ATX 1 x 8-pin EPS |
| Other Connectors | 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen3) 1 x 3-pin ARGB LED header |
Memory
| Memory Bus Speed | Up to 5600 MHz |
| Memory Type | DDR5 |
| Maximum RAM | 96 GB |
| Memory Slot | 2 x DIMM |
Motherboard
| Northbridge | Intel H610 |
| RAID Supported | No |
| SATA Supported | Yes |
Expansion
| Number of PCI Express Slots | 1 x PCI Express 4.0 x16 slot 1 x PCI Express 3.0 x1 slot |
Graphics Device
| Integrated Graphics Supported | Yes |
Warranty
| Warranty | 3 Years |
Sound
| Integrated Sound | Realtek ALC897 |
Network
| Integrated Network | Realtek 8111H |
| Network Speeds Supported | Up to 1 Gbps |
| Wireless LAN | No |
| Bluetooth | No |
System Requirements
| Operating Systems Supported | Microsoft Windows 11 |
System
| Software Included (may be trial or restricted) | Yes |
| Drivers | Yes |
Physical
| Form Factor | mATX Motherboard |

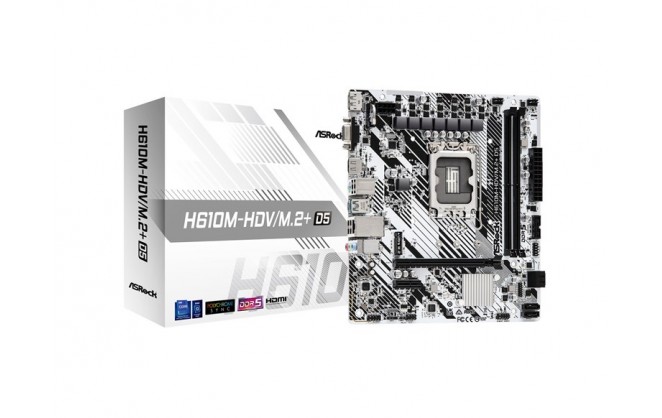

| In The Box | Motherboard User Manual I/O Shield 2 x SATA Cables M.2 Screw |
| Width | 193 mm |
| Length | 220 mm |
Key Features
| RDIMM Memory Supported | No |
| RDIMM Memory Required | No |
| Wireless Network | No |
| Motherboard Width | 193 mm |
| Motherboard Height | 220 mm |
| mSATA Supported | No |
| U.2 Supported | No |
| Main Colour | White |
| Memory Channel | Dual |
| On-board Audio Type | 7.1 |
| Number of SATA Ports | 4 port(s) |
| Number of USB Ports | 6 port(s) |
| USB 3.0 Support | Yes |
| Multi GPU Support | No |
| VGA Connection | Yes |
| DVI Connection | No |
| HDMI Connection | Yes |
| DisplayPort Connection | Yes |
| Motherboard Form Factor | mATX |
| Motherboard (EPS) Power Connectors | 4+4-Pin |
| Motherboard Chipset | Intel H610 |
| Thunderbolt | No |
| Motherboard Model | ASRock H610M-HDV/M.2+ D5 |
| USB 3.1 Support | No |
| Internal USB3.0 Header | Yes |
| M.2 Support | Yes |
| On-board RGB Control | ASRock RGB LED |
| RGB Header Type | 3-Pin ARGB |
| Addressable RGB | Yes |
| Internal USB Type-C Header | No |
| Power Requirement (auto) | 60 W |
| Max Memory Speed Supported (Non-overclocked) | 5600 MT/s |
| CPU Power Pins (female) | 8 |
| Total M.2 Slots | 1 |
| Maximum NVMe M.2 ports | 1 |
| SATA ports | 4 |
| No. of front USB2.0 ports supported | 2 |
| No. of front USB3.0 ports supported | 2 |
Item Details
| Manufacturer | ASRock |
| Manufacturer Code | 90-MXBM50-A0UAYZ |
| EAN | 4710483943478 |
