ASRock B860M Lightning WiFi mATX Socket 1851 Motherboard

£164.16 ex. vat
£196.99 inc. vat

CPU

CPU Socket	Socket 1851
CPU Brand	Intel
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	Intel
Supported Processors	Intel Core Ultra Processors (Series 2)
64-bit Support	Yes
Socket	LGA1851

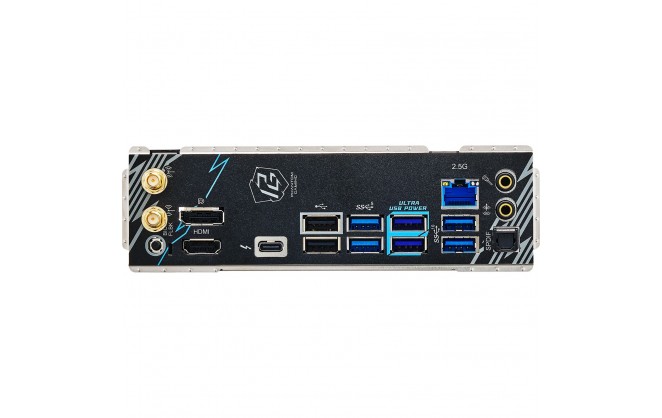

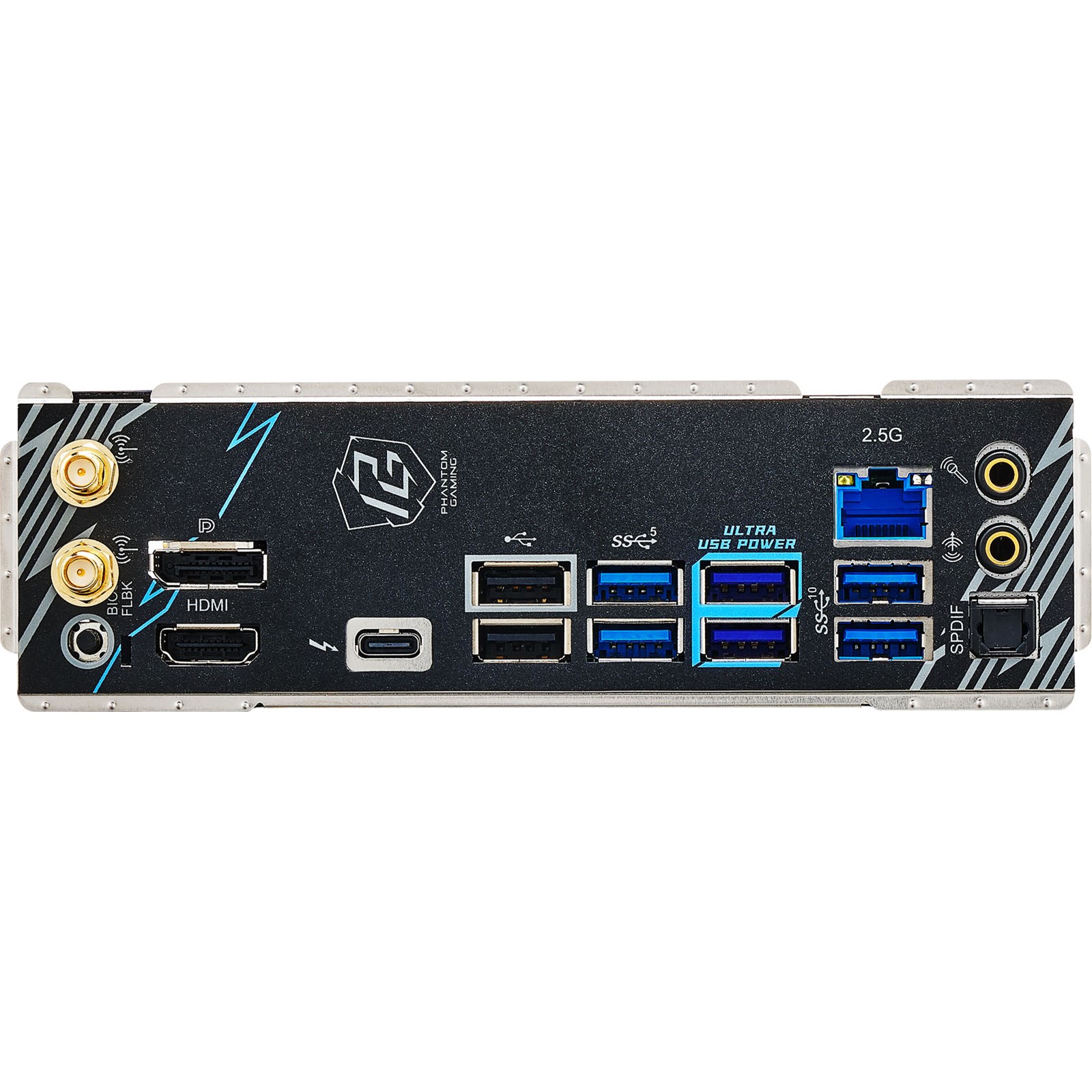

Rear Panel I/O Ports

USB Ports	1 x Thunderbolt 4 (USB-C) 2 x USB 3.1 4 x USB 3.0 2 x USB 2.0
DisplayPorts	1 x DisplayPort 1.4
HDMI Port	1 x HDMI 2.1
RJ-45 Ports	1 x RJ-45
Audio Line In Ports	1 x 3.5mm Jack
Audio Line Out Ports	1 x 3.5mm Jack
Microphone In Port	1 x 3.5mm Jack
Antenna Connector(s)	2 x SMA Antenna

Internal I/O Connectors

SATA Connectors	4 x SATA
USB Connectors	1 x USB-C 3.1 header (supports 1 port) 1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 4 ports)
Speaker	1 x Speaker header
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	2 x CPU fan headers 1 x AIO pump header 4 x Chassis fan headers
TPM Header	1 x SPI TPM header
Power Connector Port	1 x 24-pin ATX 2 x 8-pin EPS
Other Connectors	1 x M.2 slot, Key M, Type 2280 (PCIe Gen5) 3 x M.2 slots, Key M, Type 2280 (PCIe Gen4) 3 x 3-pin ARGB headers 1 x 4-pin RGB header

Memory

Motherboard

Expansion

Number of PCI Express Slots

1 x PCI Express 5.0 x16 slot

Graphics Device

Integrated Graphics Supported

Yes

Warranty

3 Years

Sound

Integrated Sound

Realtek ALC1220

Network

System Requirements

Operating Systems Supported

Microsoft Windows 11

System

Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Form Factor	mATX Motherboard
In The Box	Motherboard 2 x SATA Data Cables 2 x ASRock WiFi 2.4/5/6 GHz Antennas 1 x Thermistor Cable 1 x Screw for M.2 Socket
Width	244 mm
Length	244 mm

Key Features

RDIMM Memory Supported	No
RDIMM Memory Required	No
Wireless Network	Yes
Motherboard Width	244 mm
Motherboard Height	244 mm
Main Colour	Black
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	4 port(s)
Number of USB Ports	8 port(s)
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	Yes
Motherboard Form Factor	mATX
Motherboard (EPS) Power Connectors	2 x 8-Pin
Motherboard Chipset	Intel B860
Thunderbolt	Yes
Motherboard Model	ASRock B860M Lightning WiFi
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	ASRock RGB LED
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Power Requirement (auto)	60 W
Max Memory Speed Supported (overclocked)	8666 MT/s
CPU Power Pins (female)	16
Total M.2 Slots	4
Maximum NVMe M.2 ports	4
SATA ports	4
No. of front USB2.0 ports supported	4
No. of front USB3.0 ports supported	2
No. of front USB-C ports supported	1
Back Connect Support	No
