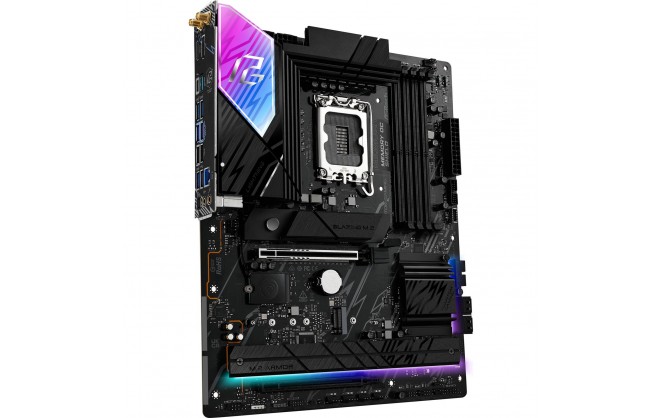

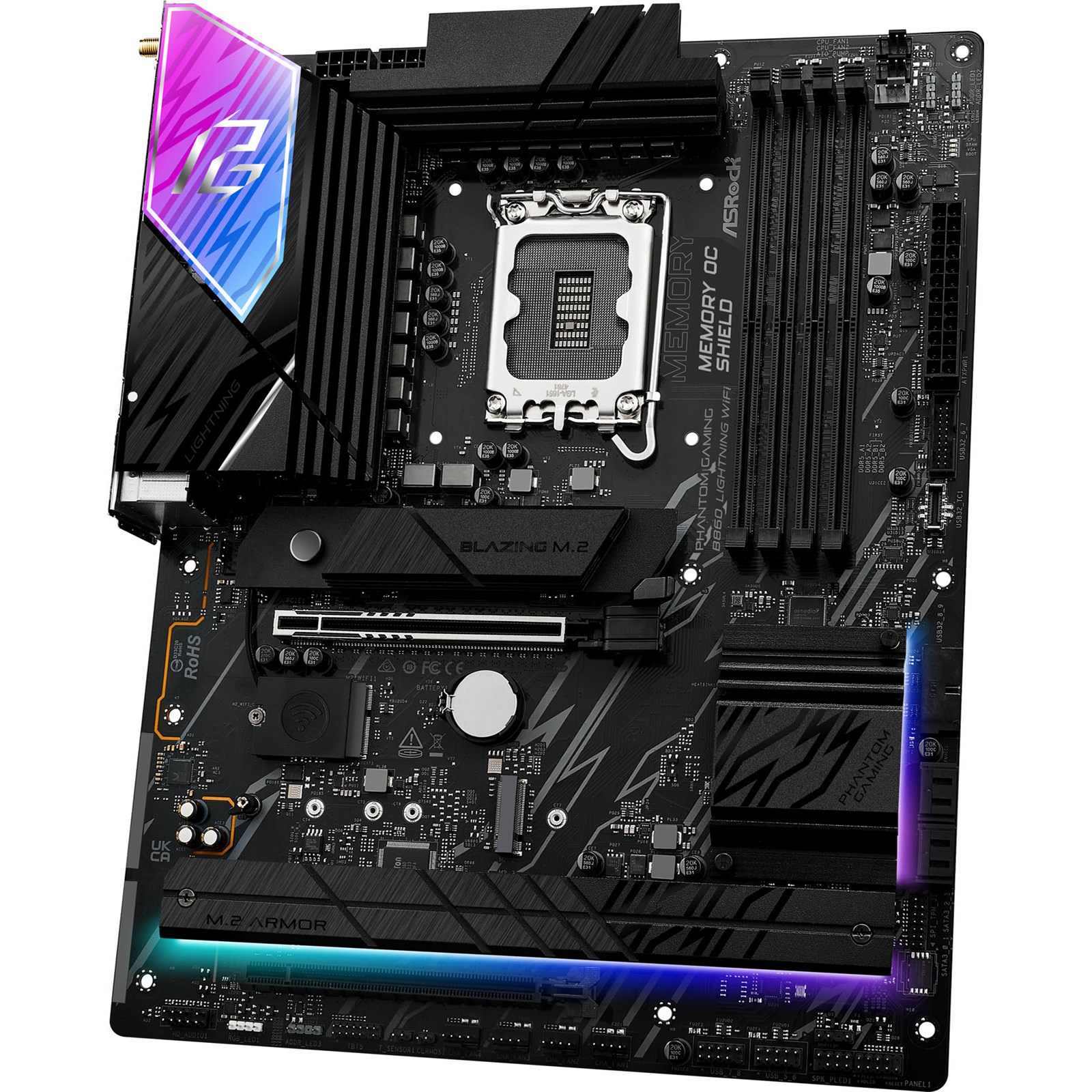

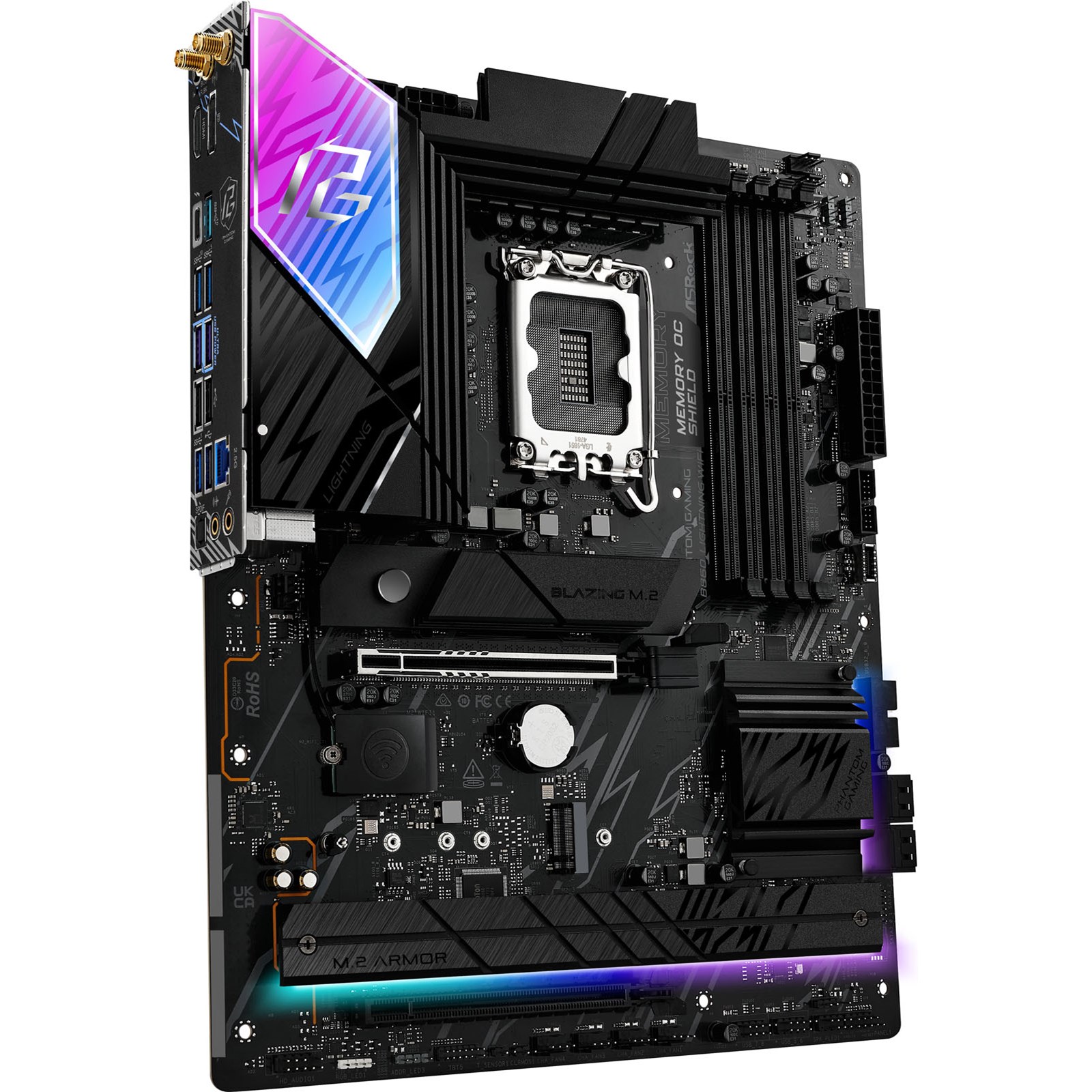

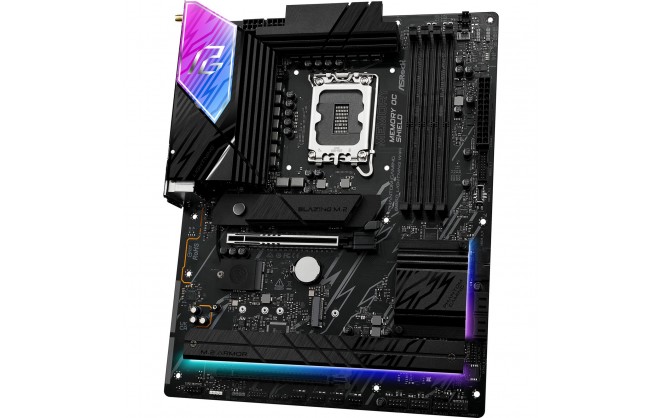

ASRock B860 Lightning WiFi Socket 1851 ATX Motherboard

Part Number: 90-MXBR2-A0UAYZ
Manufacturer: Asrock
Quickfind Code: 136371

Stock: In Stock

£129.56 ex. vat
£155.47 inc. vat

Product Features:

Condition: New
Socket Type 1851
Chipset B860
Form Factor ATX
Memory Type DDR5
CPU Type Intel

+ Read More Information

Key Features:

ATX Form Factor
Intel B860 Chipset
Socket 1851
DDR5 (Max: 256GB / 4 slots)
4 x M.2 & 9 x USB & 4 x SATA
HDMI and Display Port

Lightning series stands as a symbol of both speed and power. The design employs linear and angular elements, evoking the imagery of lightning – a spectacle of raw energy and breathtaking speed.

Technical Specification

ASRock B860 Lightning WiFi Socket 1851 ATX Motherboard

CPU

CPU Socket	Socket 1851
CPU Brand	Intel
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	Intel
Supported Processors	Intel Core Ultra Processors (Series 2)
64-bit Support	Yes
Socket	LGA1851

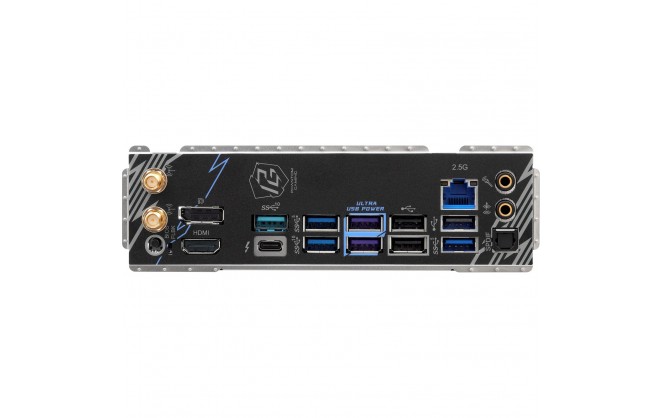

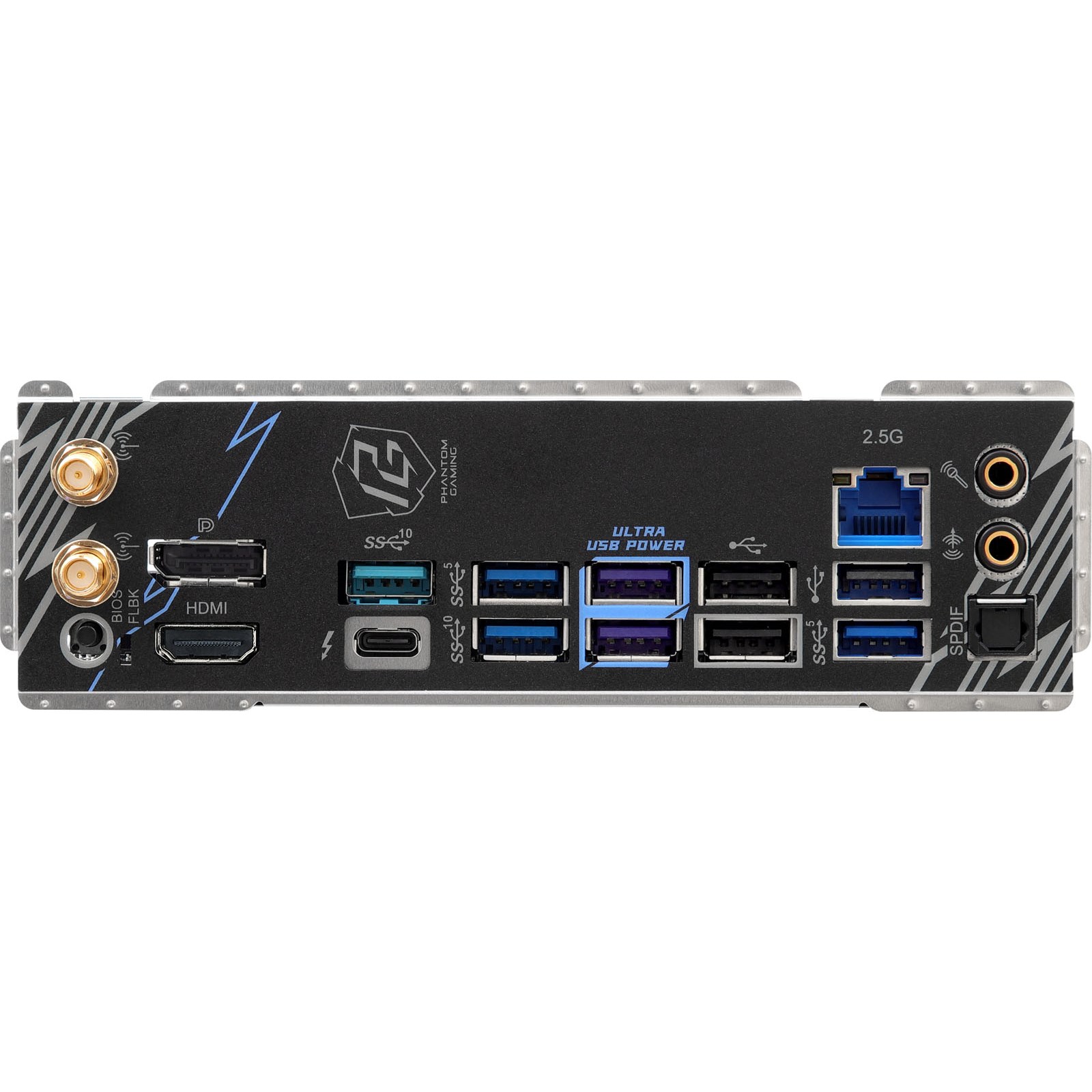

Rear Panel I/O Ports

USB Ports	1 x Thunderbolt 4 (USB-C 4) 2 x USB 3.1 4 x USB 3.0 3 x USB 2.0
DisplayPorts	1 x DisplayPort 1.4
HDMI Port	1 x HDMI 2.1
RJ-45 Ports	1 x RJ-45
Audio Line Out Ports	1 x 3.5mm Jack
Microphone In Port	1 x 3.5mm Jack
S/PDIF Port	1 x S/PDIF Optical Out
Antenna Connector(s)	2 x SMA Antenna

Internal I/O Connectors

SATA Connectors	4 x SATA
USB Connectors	1 x USB-C 3.2 header (supports 1 port) 2 x USB 3.0 headers (supports 4 ports) 2 x USB 2.0 headers (supports 4 ports)
Speaker	1 x Speaker header
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	2 x CPU fan headers 1 x AIO pump header 5 x Chassis fan headers
TPM Header	1 x SPI TPM header
Power Connector Port	1 x 24-pin ATX 2 x 8-pin EPS
Other Connectors	1 x M.2 slot, Key M, Type 2280 (PCIe Gen5) 1 x M.2 slot, Key M, Type 2230/2242/2260/2280 1 x M.2 slot, Key M, Type 2280 (PCIe Gen4) 1 x M.2 slot, Key M, Type 2280 (PCIe Gen4 x2) 3 x 3-pin ARGB headers 1 x 4-pin RGB header 1 x Thermistor Cable header

Memory

Memory Bus Speed	Up to 8933 MT/s
Memory Type	DDR5
Maximum RAM	256 GB
Memory Slot	4 x DIMM

Motherboard

Northbridge	Intel B860
RAID Supported	Yes
RAID Format	RAID 0, 1, 5, 10
SATA Supported	Yes

Expansion

Number of PCI Express Slots

1 x PCI Express 5.0 x16 slot
1 x PCI Express 4.0 x16 slot (@ x2)

Graphics Device

Integrated Graphics Supported

Yes

Warranty

3 Years

Sound

Integrated Sound

Realtek ALC1220

Network

Integrated Network	Killer E3100G
Network Speeds Supported	Up to 2.5 Gbps
Wireless LAN	Yes - Wi-Fi 6E
Bluetooth	Yes
Bluetooth Version	5.3

System Requirements

Operating Systems Supported

Microsoft Windows 11

System

Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Form Factor	ATX Motherboard

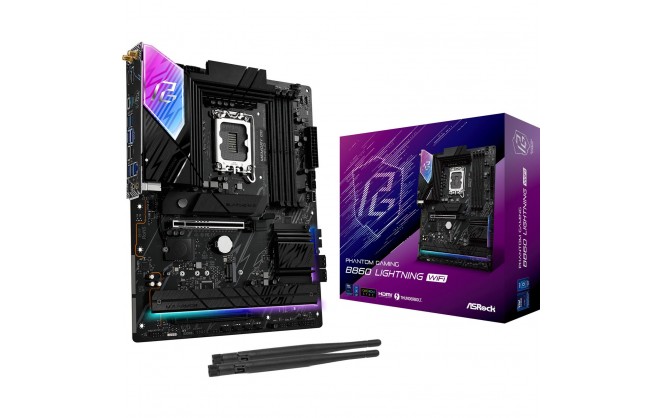

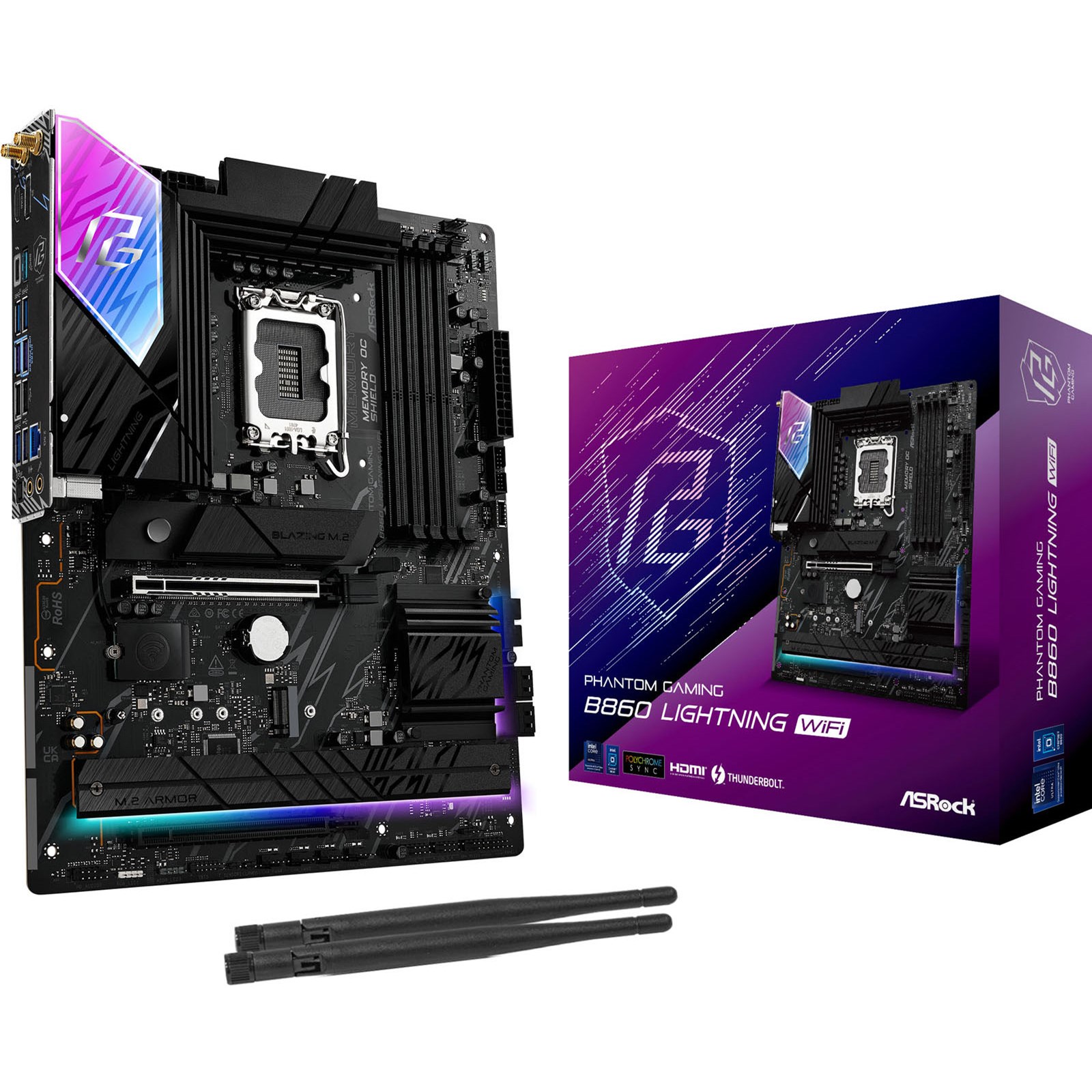

In The Box	Motherboard 2 x SATA Data Cables 2 x ASRock WiFi 2.4/5/6 GHz Antennas 1 x ARGB Splitter Cable 1 x Thermistor Cable
Width	244 mm
Length	305 mm

Key Features

RDIMM Memory Supported	No
RDIMM Memory Required	No
Wireless Network	Yes
Motherboard Width	244 mm
Motherboard Height	305 mm
Main Colour	Black
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	4 port(s)
Number of USB Ports	9 port(s)
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	Yes
Motherboard Form Factor	ATX
Motherboard (EPS) Power Connectors	2 x 8-Pin
Motherboard Chipset	Intel B860
Thunderbolt	Yes
Motherboard Model	ASRock B860 Lightning WiFi
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	ASRock RGB LED
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Power Requirement (auto)	70 W
Max Memory Speed Supported (overclocked)	8933 MT/s
CPU Power Pins (female)	16
Total M.2 Slots	4
Maximum NVMe M.2 ports	4
SATA ports	4
No. of front USB2.0 ports supported	4
No. of front USB3.0 ports supported	4
No. of front USB-C ports supported	1
Back Connect Support	No
