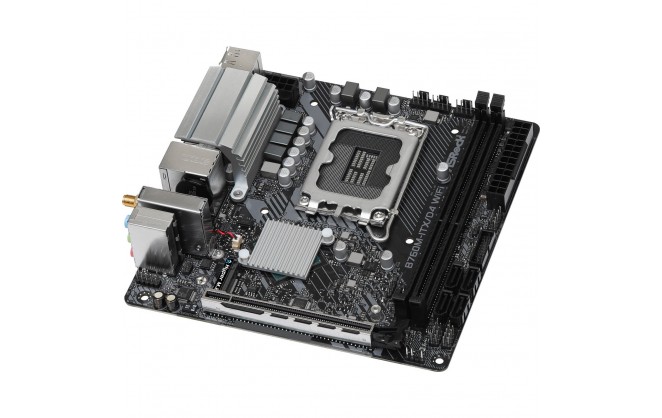

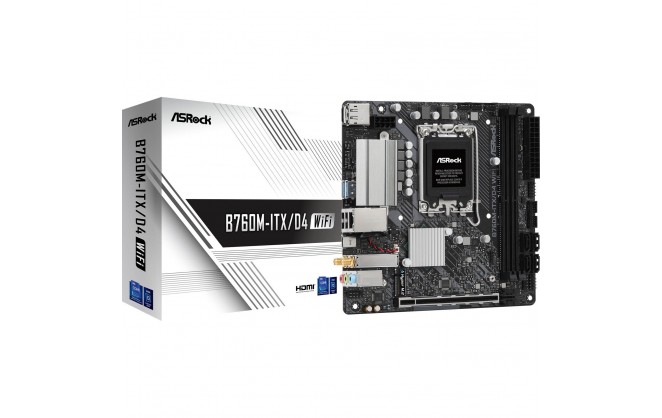

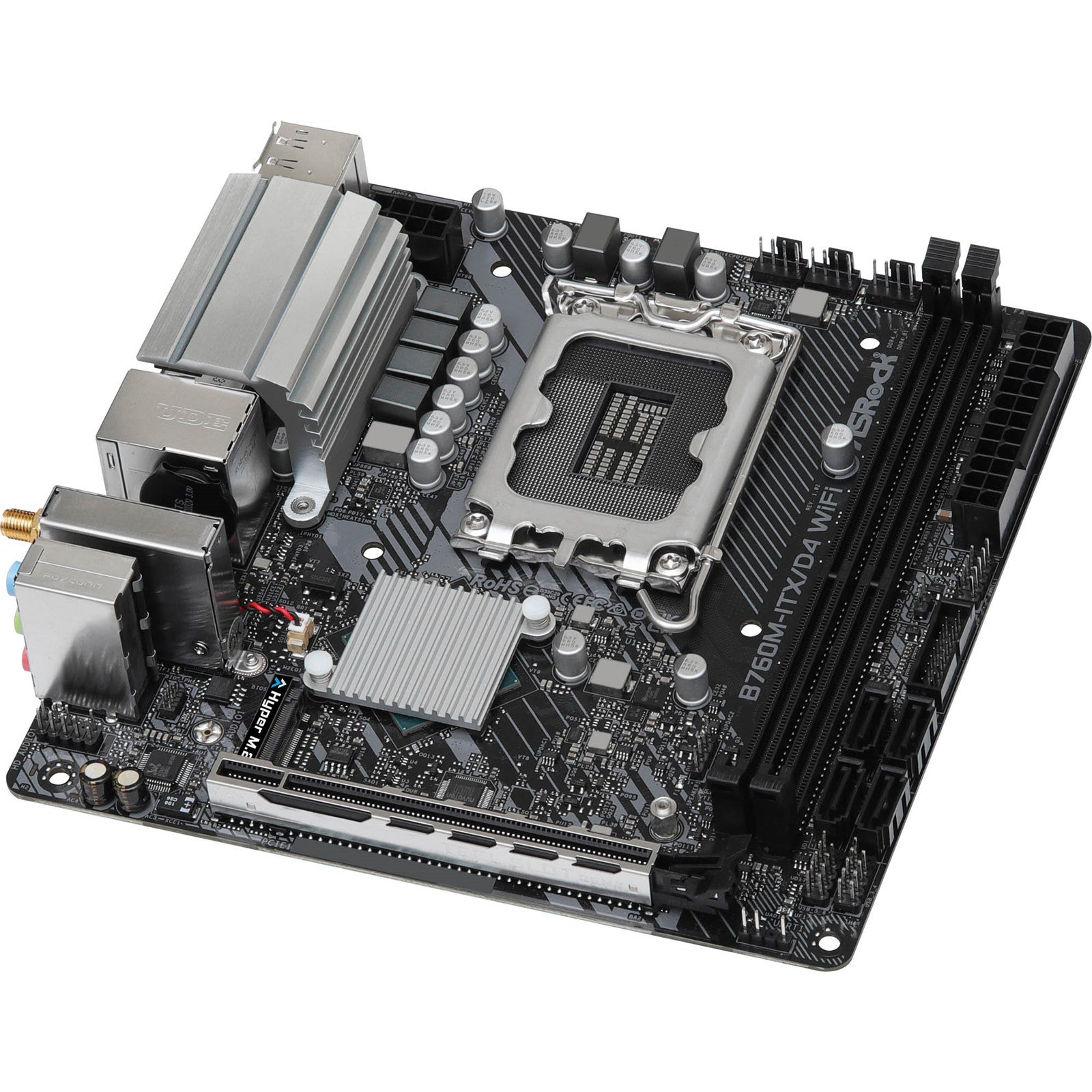

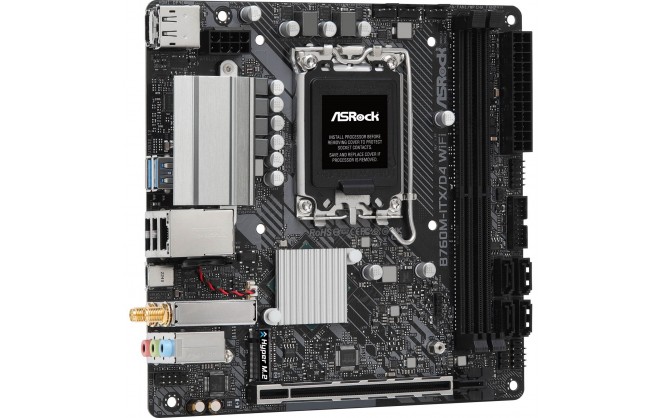

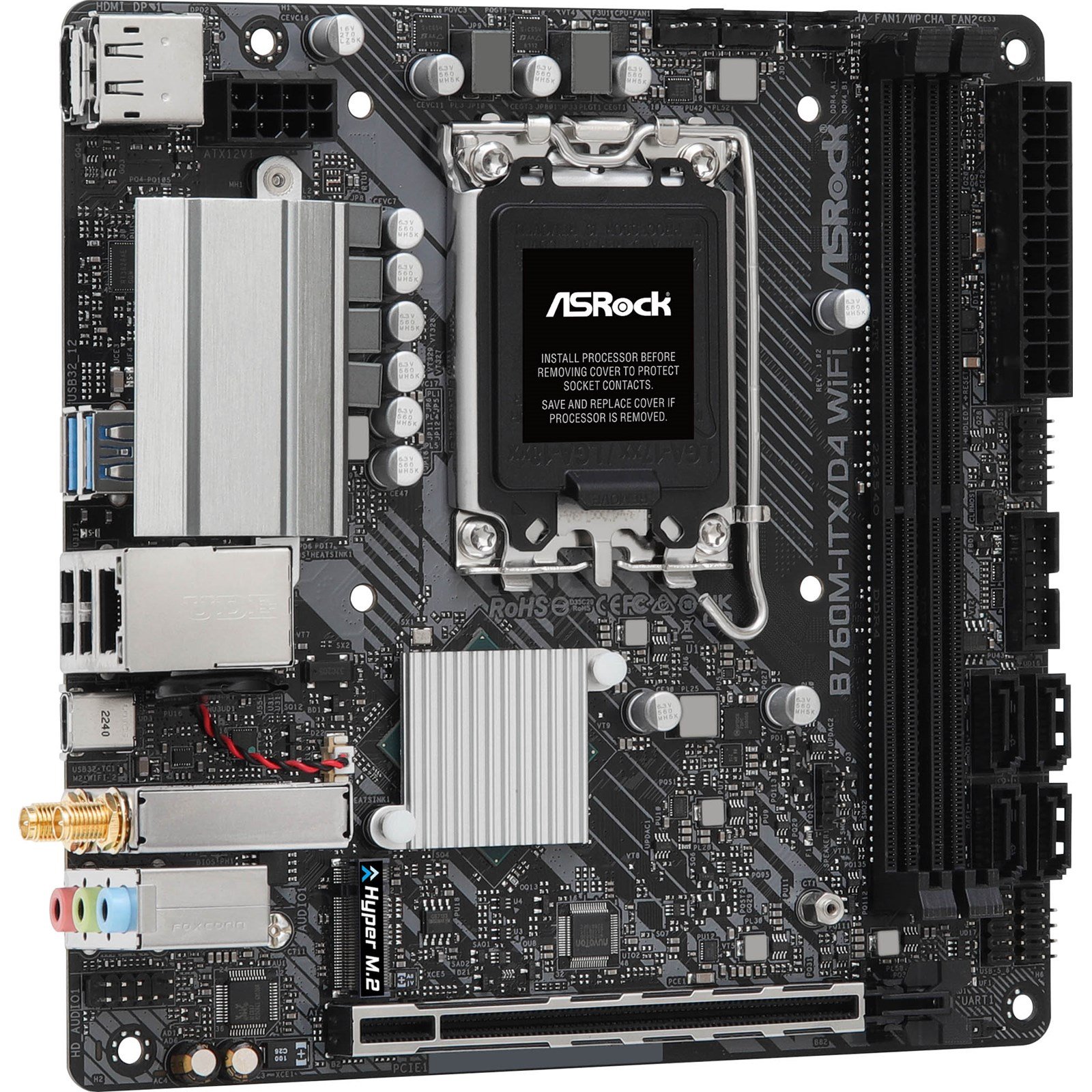

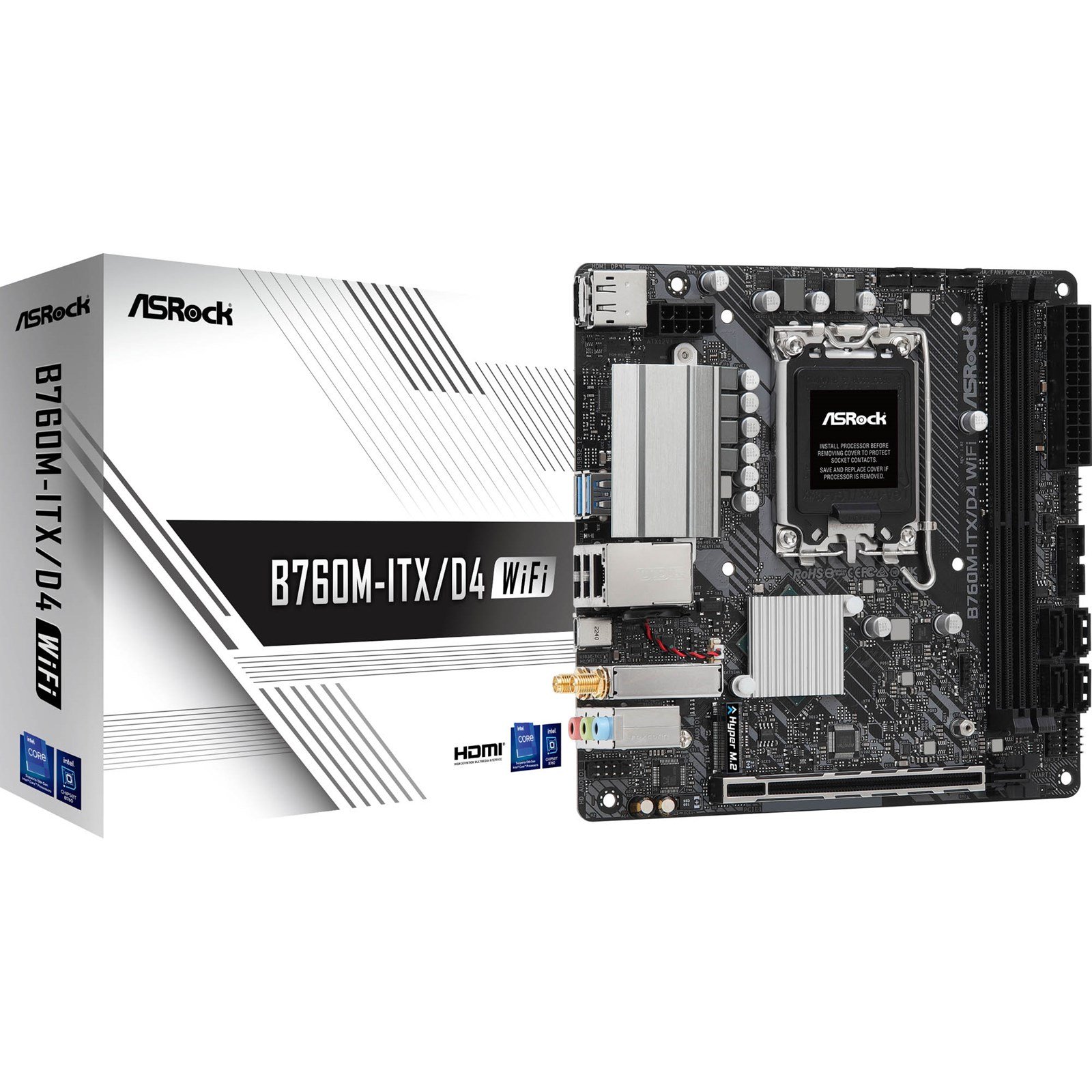

ASRock B760M-ITX/D4 WiFi ITX Socket 1700 Motherboard

£169.99 ex. vat
£203.99 inc. vat

Supports 13th Gen & 12th Gen Intel Core Processors (LGA1700)
5+1+1 Power Phase, Dr.MOS for VCore+GT
Supports DDR4 5333MHz (OC)
1 PCIe 4.0 x16
Graphics Output Options: HDMI, DisplayPort
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
4 SATA3, 1 Hyper M.2 (PCIe Gen4x4)

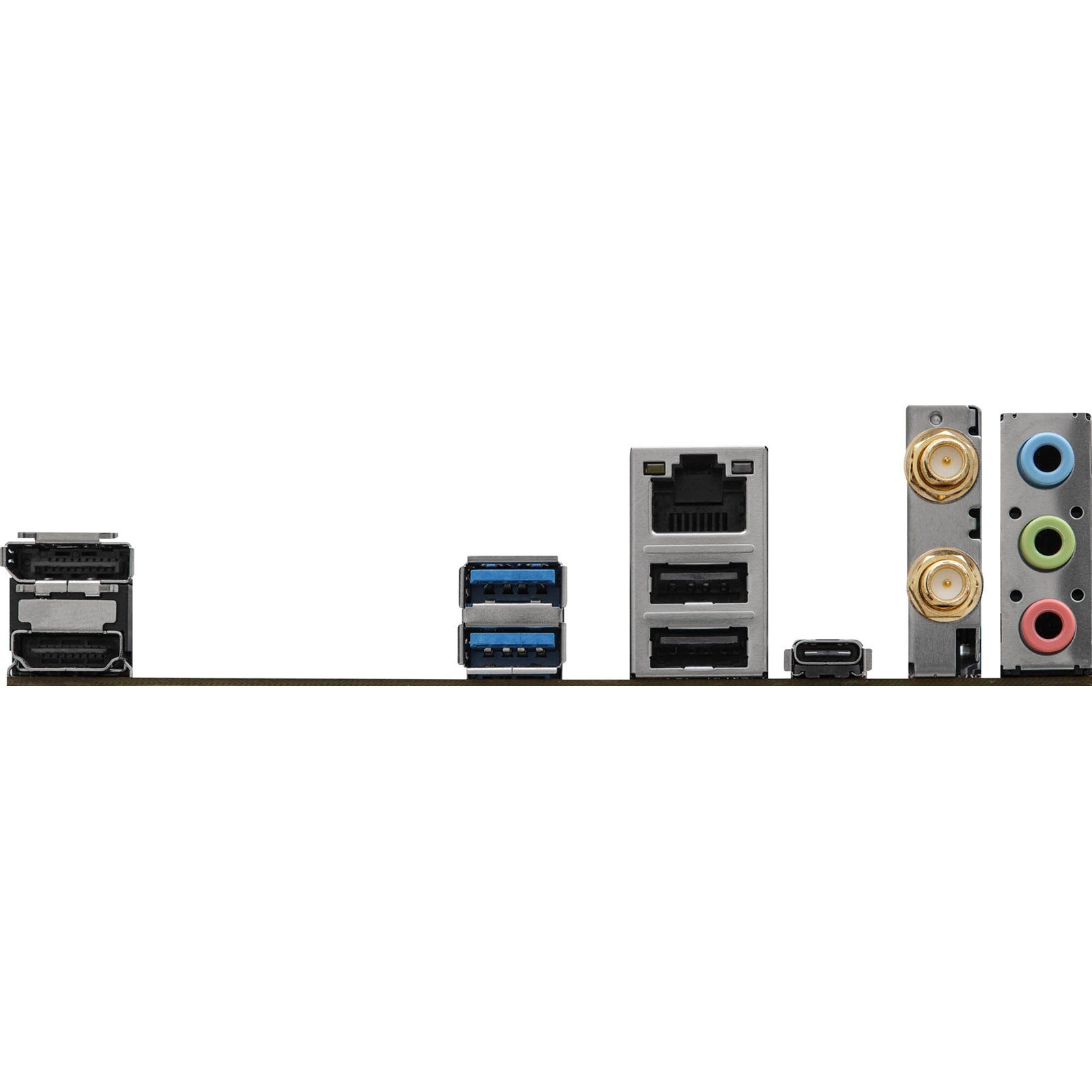

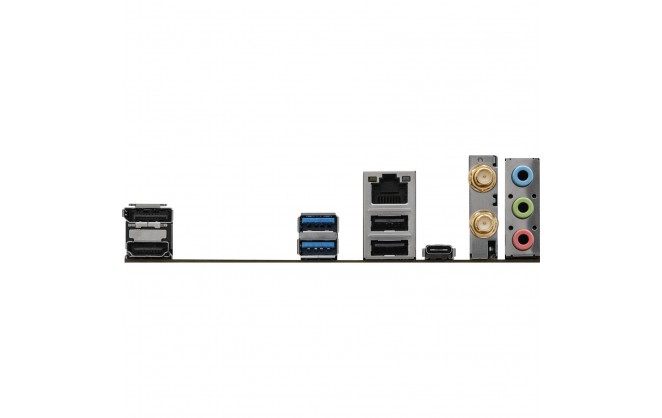

1 USB 3.2 Gen2x2 Type-C (Rear), 4 USB 3.2 Gen1 (2 Rear, 2 Front), 6 USB 2.0 (2 Rear, 4 Front)
Realtek 1G LAN, 802.11ax (WiFi 6E) + Bluetooth
Supports ASRock Auto Driver Installer

Wireless Communications

Bluetooth

Yes

Key Features

Socket	LGA1700
Installed Processors (Max)	0 (1)
Integrated Graphics Supported	Yes
Maximum RAM	64 GB
RAID Supported	No
Wireless Network	Yes
Motherboard Width	170 mm
Motherboard Height	170 mm
Number of PCI Express Slots	1 slot(s)
Main Colour	Black
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	4 port(s)
Number of USB Ports	5 port(s)
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	Yes
Memory Type	DDR4
Motherboard Form Factor	ITX
Motherboard (EPS) Power Connectors	8-Pin
Motherboard Chipset	Intel B760
Thunderbolt	No
Motherboard Model	ASRock B760M-ITX/D4 WiFi
WiFi Speed	2400 Mbps
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	None
RGB Header Type	None
Addressable RGB	No
Internal USB Type-C Header	No
Power Requirement (auto)	30 W
Max Memory Speed Supported (Non-overclocked)	3200 MT/s
Max Memory Speed Supported (overclocked)	5333 MT/s
CPU Power Pins (female)	8
Total M.2 Slots	1
Maximum NVMe M.2 ports	1
SATA ports	4
No. of front USB2.0 ports supported	4
No. of front USB3.0 ports supported	2

CPU

CPU Socket	Socket 1700
CPU Brand	Intel

Warranty

1 Year
