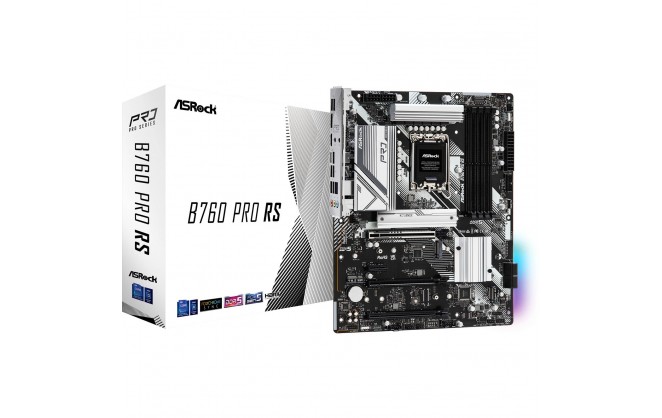

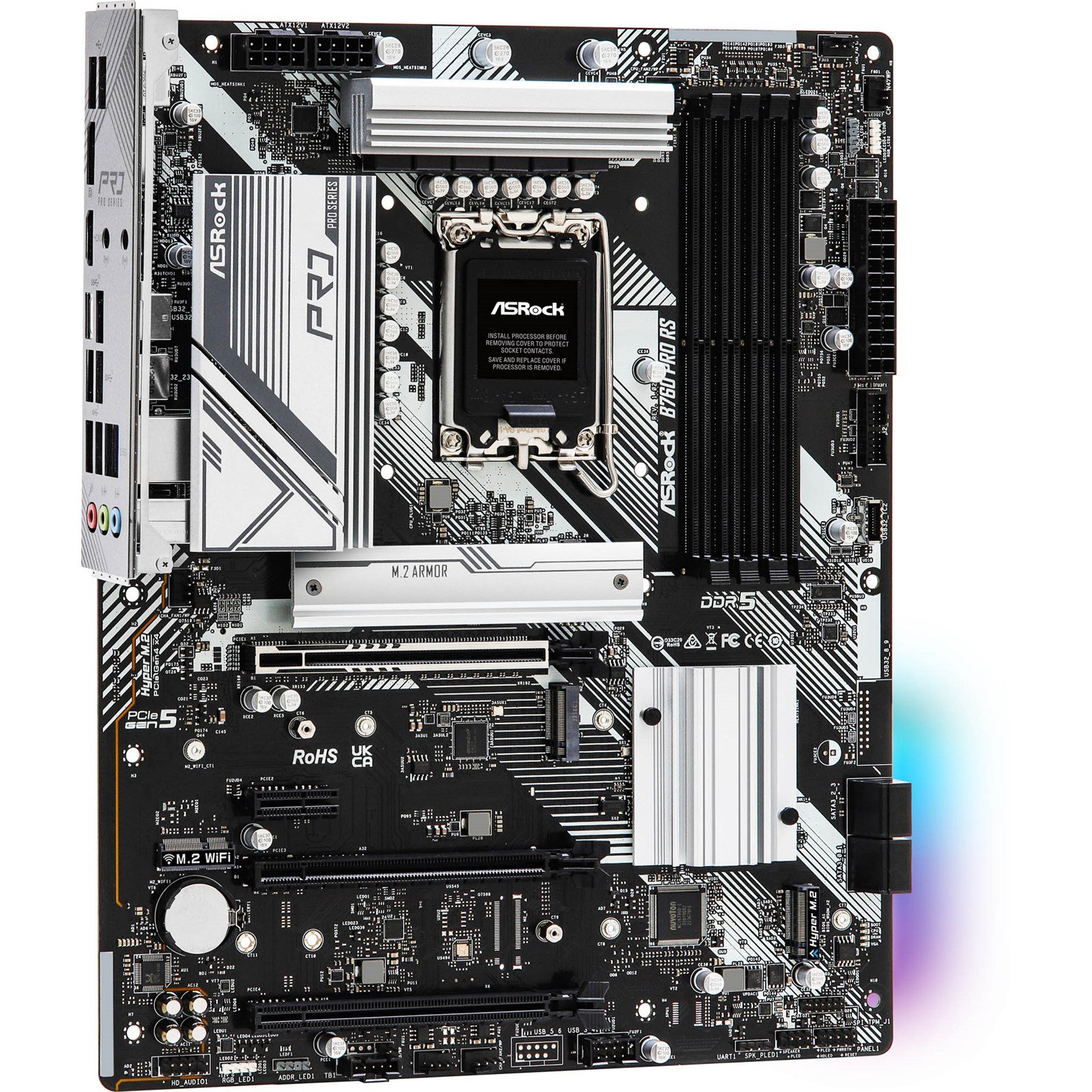

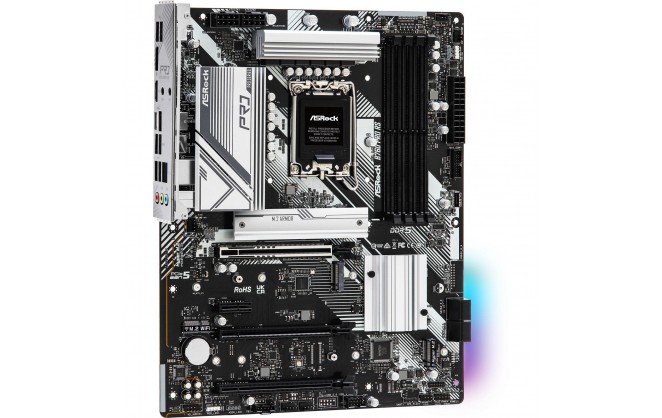

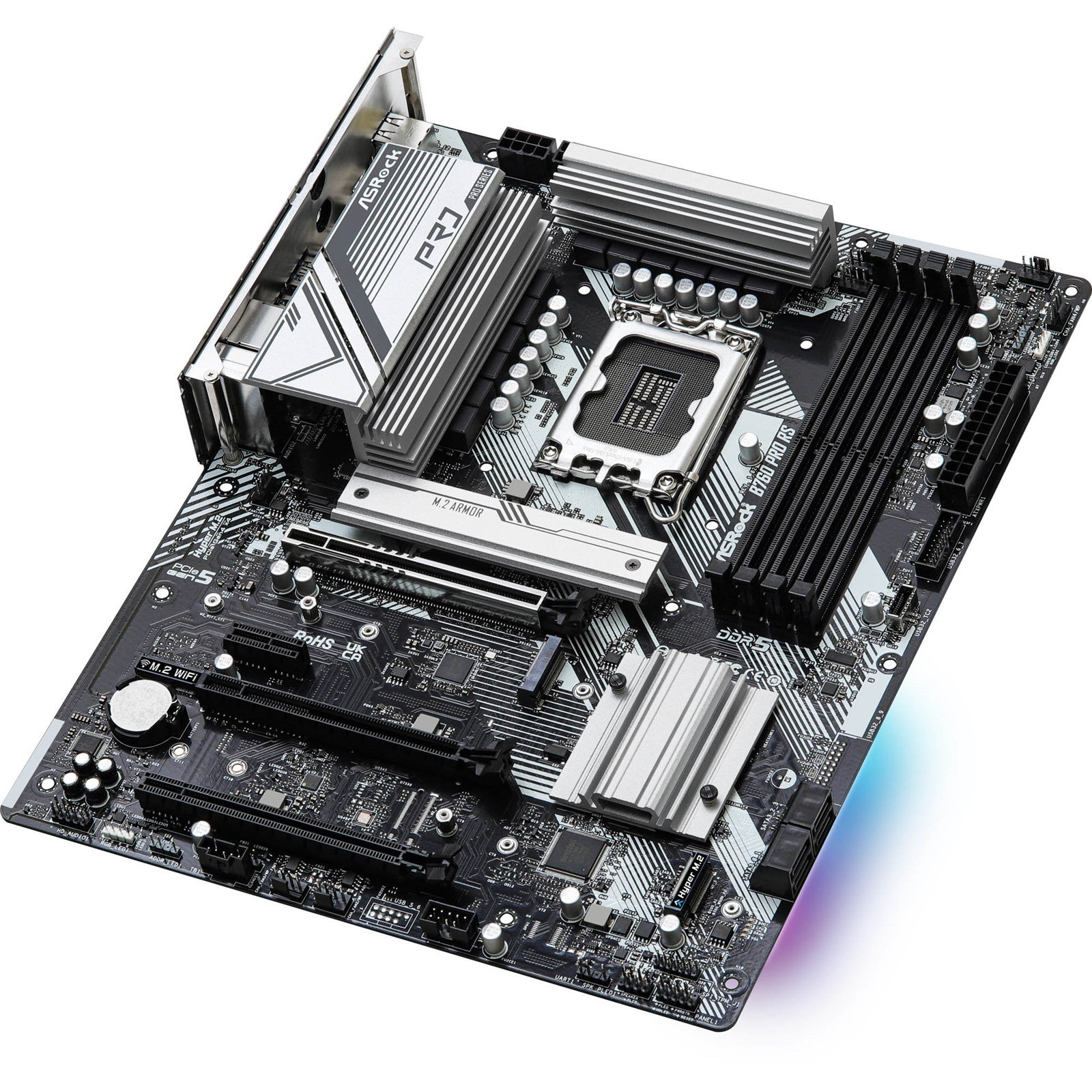

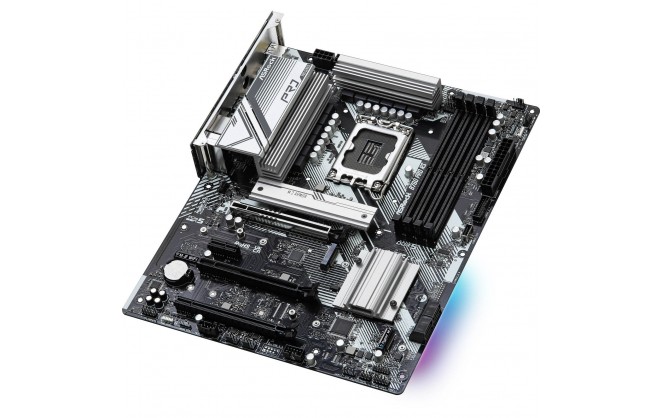

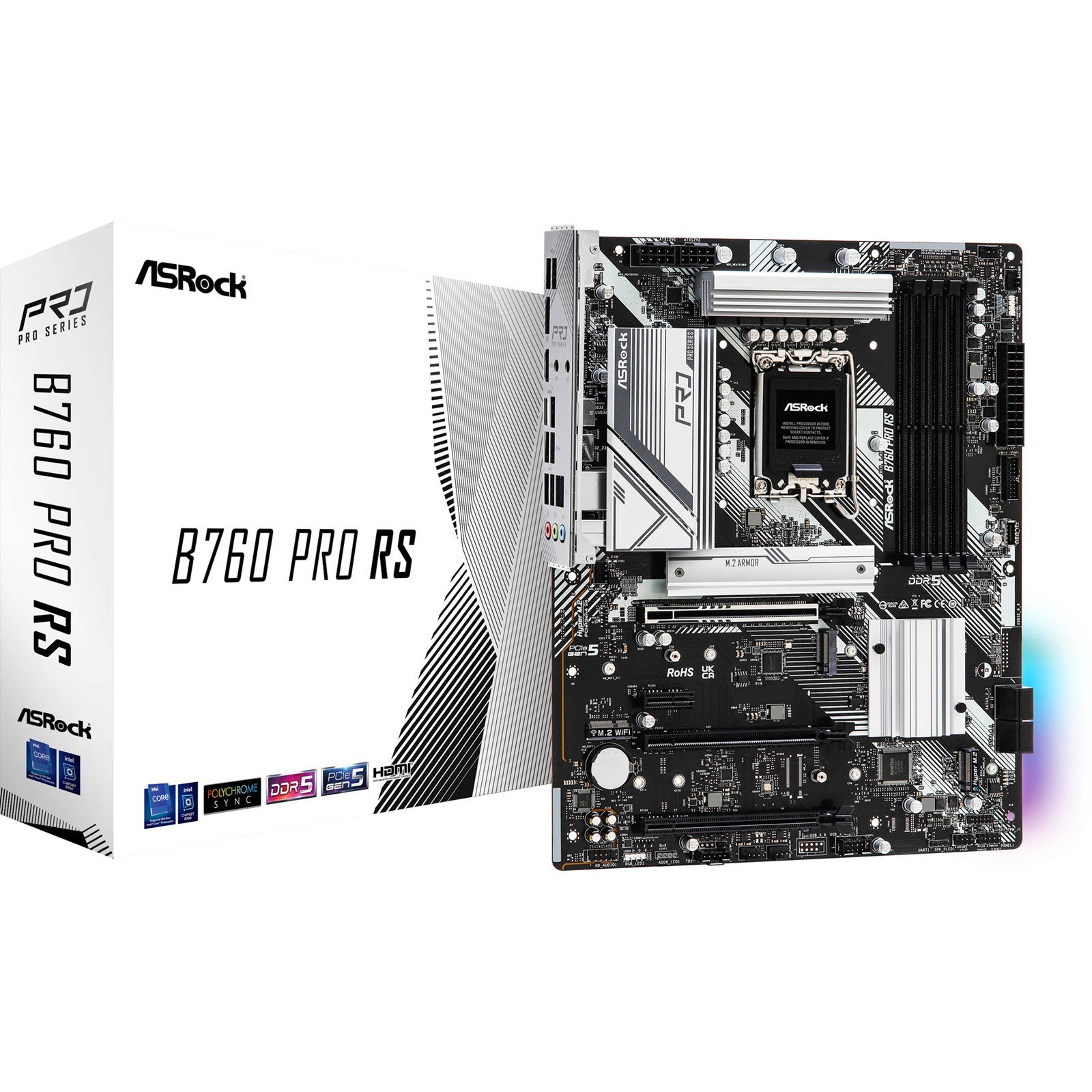

ASRock B760 Pro RS ATX Socket 1700 Motherboard

  • Part Number: 90-MXBKS0-A0UAYZ
  • Manufacturer: Asrock
  • Quickfind Code: 136242
  • Stock: In Stock

£86.89 ex. vat
£104.27 inc. vat

Product Features:
  • Condition: New
  • Socket Type 1700
  • Chipset B760
  • Form Factor ATX
  • Memory Type DDR5
  • CPU Type Intel
+ Read More Information

Share:

Product Description

Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.

Its unique path takes aim at mainstream DIYers that drives an undeniable performance and trustable computing experience without a pricey upgrade.

RaceSport edition, your all-rounder motherboard that fulfills every task and light-loading gaming – with style and speed!

Main Features

  • Supports 13th Gen & 12th Gen Intel Core Processors (LGA1700)
  • 10+1+1 Power Phase, Dr.MOS for VCore+GT
  • Supports DDR5 7200MHz (OC)
  • 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key E for WiFi
  • Graphics Output Options: HDMI, DisplayPort, eDP
  • Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
  • 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4), 1 M.2 (PCIe Gen4x2)
  • 2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front), 1 USB 3.2 Gen2 Type-A (Rear), 6 USB 3.2 Gen1 (4 Rear, 2 Front), 4 USB 2.0 (2 Rear, 2 Front)
  • Dragon 2.5G LAN
  • Supports ASRock Auto Driver Installer
Technical Specification

ASRock B760 Pro RS ATX Socket 1700 Motherboard

CPU

CPU SocketSocket 1700
CPU BrandIntel
Installed Processors (Max)0 (1)
Supported Processor ManufacturerIntel
Supported Processors13th Gen & 12th Gen Intel Core Processors
64-bit SupportYes
SocketLGA1700

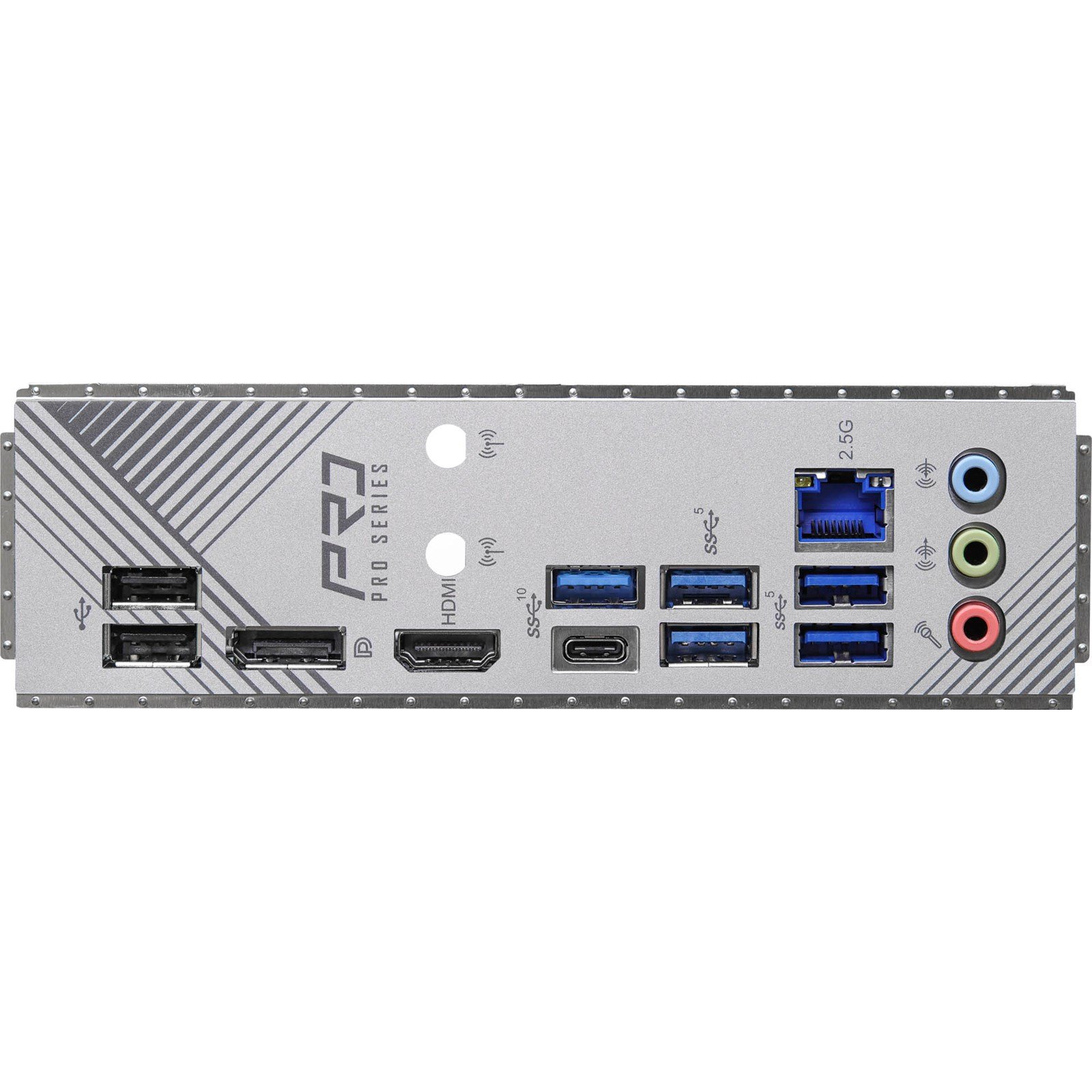

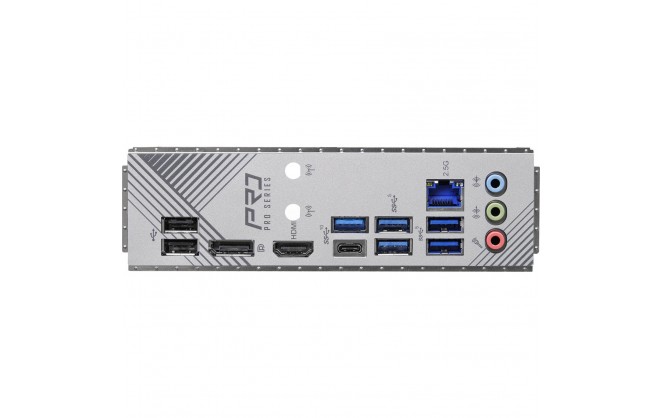

Rear Panel I/O Ports

USB Ports1 x USB-C 3.1
1 x USB 3.1
4 x USB 3.0
2 x USB 2.0
DisplayPorts1 x DisplayPort 1.4
HDMI Port1 x HDMI 2.1
RJ-45 Ports1 x RJ-45
Audio Line In Ports1 x 3.5mm Jack
Audio Line Out Ports1 x 3.5mm Jack
Microphone In Port1 x 3.5mm Jack

Internal I/O Connectors

SATA Connectors4 x SATA III
USB Connectors1 x USB-C 3.1 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
1 x USB 2.0 header (supports 2 ports)
Speaker1 x Speaker header
Front Panel Connectors1 x Front Panel
1 x Front Audio
Cooling Fan Support1 x CPU fan header
1 x CPU/Water Pump fan header
5 x Chassis/Water Pump fan headers
Thunderbolt Port(s)1 x Thunderbolt AiC header
Chassis Intrusion Connector1 x Chassis Intrusion header
TPM Header1 x SPI TPM header
Power Connector Port1 x 24-pin ATX
2 x 8-pin EPS
Other Connectors2 x M.2 slots, Key M, Type 2260/2280 (PCIe Gen4x4)
1 x M.2 slot, Key M, Type 2260/2280 (PCIe Gen4x2)
2 x 3-pin ARGB LED headers
2 x 4-pin RGB LED headers

Memory

Memory Bus SpeedUp to 7200+ MHz
Memory TypeDDR5
Maximum RAM128 GB
Memory Slot4 x DIMM

Motherboard

NorthbridgeB760
RAID SupportedYes
RAID FormatRAID 0, 1, 5, 10
SATA SupportedYes

Expansion

Number of PCI Express Slots1 x PCI Express 5.0 x16 slot
1 x PCI Express 4.0 x16 slot (@ x4)
1 x PCI Express 3.0 x16 slot (@ x1)
1 x PCI Express 3.0 x1 slot

Graphics Device

Integrated Graphics SupportedYes

Warranty

Warranty3 Years

Sound

Integrated SoundRealtek ALC897

Network

Integrated NetworkDragon RTL8125BG
Network Speeds SupportedUp to 2.5 Gbps
Wireless LANNo
BluetoothNo

System Requirements

Operating Systems SupportedMicrosoft Windows 11 64-bit

System

BIOS128Mb AMI UEFI Legal BIOS with GUI support
Software Included (may be trial or restricted)Yes
DriversYes
SLi/Crossfire FeaturesSupports AMD CrossFire

Physical

Form FactorATX Motherboard
In The BoxMotherboard
1 x User Manual
2 x SATA Data Cables
4 x Screws for M.2 Sockets
1 x Standoff for M.2 Socket
Width244 mm
Length305 mm

Key Features

Firewire
IDE/EIDE Supported
SCSI/SAS Supported
Wireless NetworkNo
Motherboard Width244 mm
Motherboard Height305 mm
mSATA SupportedNo
U.2 SupportedNo
Chipset ManufacturerIntel
Number of PCI Slotsslot(s)
Number of PCI-X Slotsslot(s)
Main Colour
Socket(s)
Memory ChannelDual
On-board Audio Type7.1
Number of SATA Ports4 port(s)
Number of USB Ports8 port(s)
SATA III SupportYes
USB 3.0 SupportYes
Multi GPU SupportATi CrossFire
VGA ConnectionNo
DVI ConnectionNo
HDMI ConnectionYes
DisplayPort ConnectionYes
Motherboard Form FactorATX
Wake on LAN
Motherboard (EPS) Power Connectors2 x 8-Pin
Motherboard ChipsetIntel B760
ThunderboltNo
Motherboard ModelASRock B760 Pro RS
WiFi SpeedMbps
USB 3.1 SupportYes
Internal USB3.0 HeaderYes
Cooler Heightmm
M.2 SupportYes
On-board RGB ControlASRock RGB LED
Memory Speed7200 MT/s
Skip Audio Test
RGB Header Type3-Pin ARGB
Addressable RGBYes
Internal USB Type-C HeaderYes
Radiator Sizemm
Microsoft Processor List
Power Requirement (auto)70 W
Cooler count
Max Memory Speed Supported (Non-overclocked)4800 MT/s
Max Memory Speed Supported (overclocked)7200 MT/s
CPU Power Pins (female)16
PCI Express Power Pins (female)3
Total M.2 Slots3
Maximum NVMe M.2 ports3
PCI-e slots4
SATA ports4
No. of front USB2.0 ports supported2
No. of front USB3.0 ports supported2
No. of front USB-C ports supported1

Graphics

Graphics Chipset

Item Details

ManufacturerASRock
Manufacturer Code90-MXBKS0-A0UAYZ
Alternative Part NumberB760 PRO RS
EAN4710483942044
