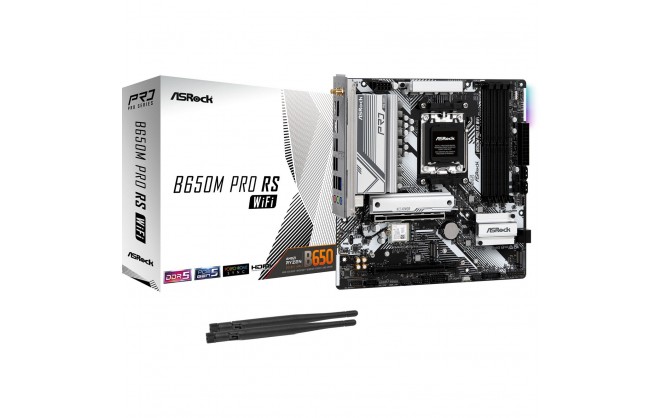

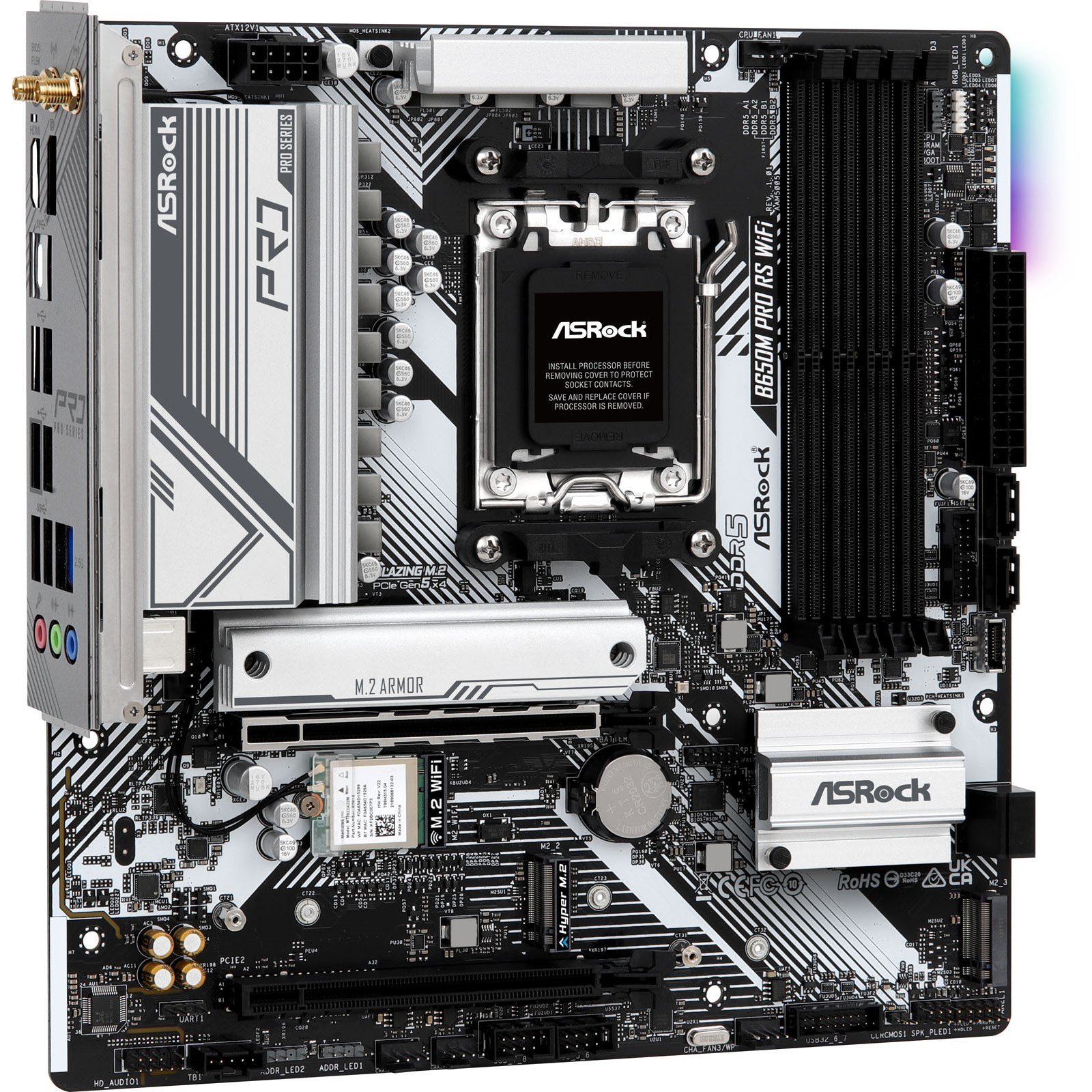

ASRock B650M Pro RS WiFi mATX Socket AM5 Motherboard

Part Number: 90-MXBLZ0-A0UAYZ
Manufacturer: Asrock
Quickfind Code: 136170

Stock: In Stock

£124.99 ex. vat
£149.99 inc. vat

Product Features:

Condition: New
Socket Type AM5
Chipset B650
Form Factor mATX
Memory Type DDR5
CPU Type AMD

+ Read More Information

Product Description

Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.

Its unique path takes aim at mainstream DIYers that drives an undeniable performance and trustable computing experience without a pricey upgrade.

RaceSport edition, your all-rounder motherboard that fulfills every task and light-loading gaming – with style and speed!

Main Features

Supports AMD Socket AM5 Ryzen 8000 and 7000 Series Processors
8+2+1 Power Phase, Dr.MOS
Supports DDR5 7200+ MHz (OC)
1 PCIe 4.0 x16, 1 PCIe 3.0 x16
Graphics Output Options: HDMI, DisplayPort
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
4 SATA3, 1 Blazing M.2 (PCIe Gen5 x4), 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen4 x2)
1 USB 3.2 Gen2 Type A+C (Rear), 1 USB 3.2 Gen1 Type-C (Front), 6 USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
Dragon 2.5G LAN
802.11ax Wi-Fi 6E + Bluetooth

Technical Specification

ASRock B650M Pro RS WiFi mATX Socket AM5 Motherboard

CPU

CPU Socket	Socket AM5
CPU Brand	AMD
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	AMD
Supported Processors	Ryzen 8000 and 7000 Series Processors
64-bit Support	Yes
Socket	AM5

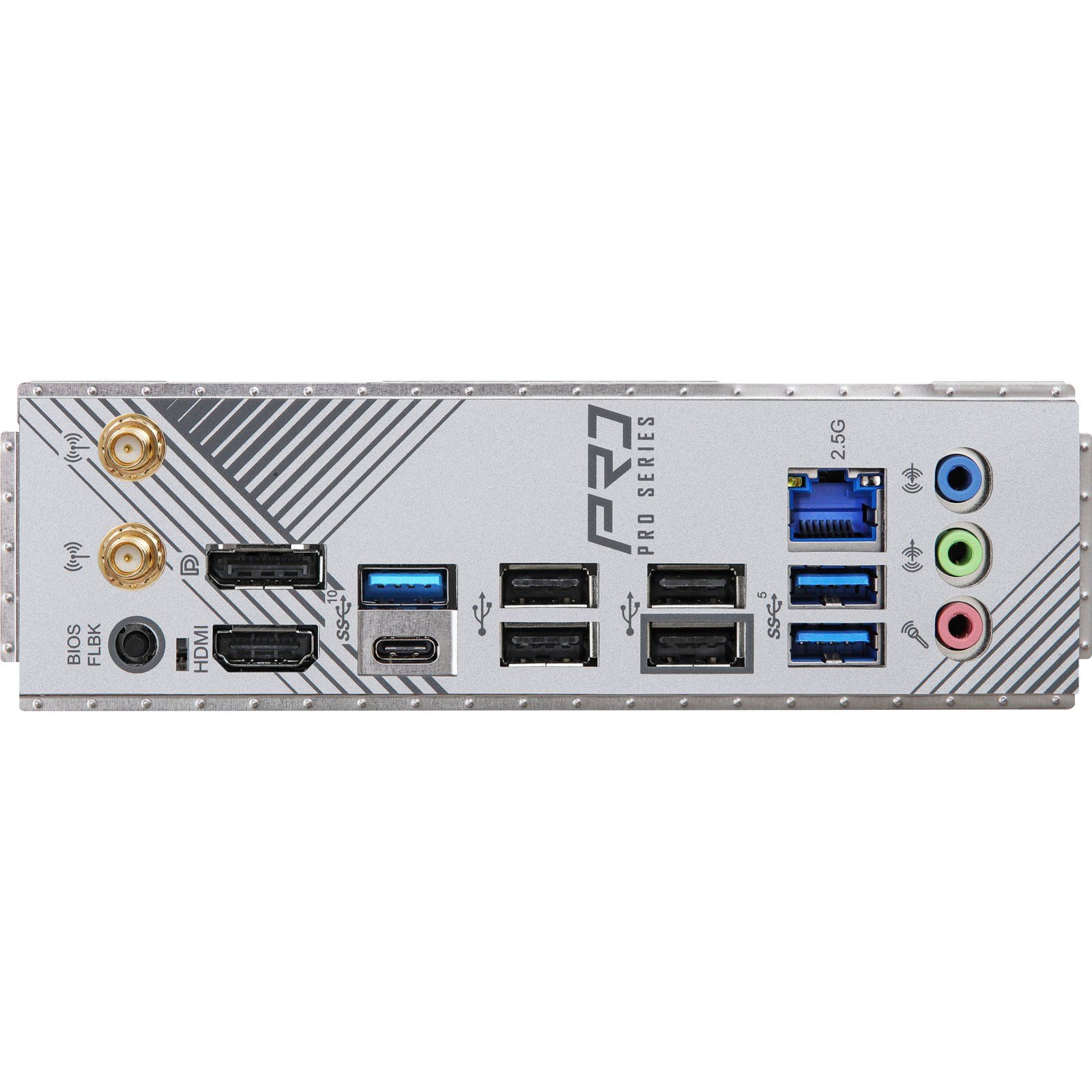

Rear Panel I/O Ports

USB Ports	1 x USB-C 3.1 1 x USB 3.1 2 x USB 3.0 4 x USB 2.0
DisplayPorts	1 x DisplayPort 1.4
HDMI Port	1 x HDMI 2.1
RJ-45 Ports	1 x RJ-45
Audio Line In Ports	1 x 3.5mm Jack
Audio Line Out Ports	1 x 3.5mm Jack
Microphone In Port	1 x 3.5mm Jack
Antenna Connector(s)	2 x SMA Antenna

Internal I/O Connectors

SATA Connectors	4 x SATA III
USB Connectors	1 x USB-C 3.0 header (supports 1 port) 2 x USB 3.0 headers (supports 4 ports) 2 x USB 2.0 headers (supports 4 ports)
Speaker	1 x Speaker header
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 1 x CPU/Water Pump fan header 3 x Chassis/Water Pump fan headers
TPM Header	1 x SPI TPM header
Power Connector Port	1 x 24-pin ATX 1 x 8-pin EPS
Other Connectors	1 x M.2 slot, Key M, Type 2260/2280 (PCIe Gen5) 2 x M.2 slots, Key M, Type 2260/2280 (PCIe Gen4) 3 x 3-pin ARGB LED headers 1 x 4-pin RGB LED header

Memory

Memory Bus Speed	Up to 7200 MHz
Memory Type	DDR5
Maximum RAM	192 GB
Memory Slot	4 x DIMM

Motherboard

Northbridge	AMD B650
RAID Supported	Yes
RAID Format	RAID 0, 1, 10
SATA Supported	Yes

Expansion

Number of PCI Express Slots

1 x PCI Express 4.0 x16 slot
1 x PCI Express 3.0 x16 slot (@ x4)

Graphics Device

Integrated Graphics Supported

Yes

Warranty

3 Years

Sound

Integrated Sound

Realtek ALC897

Network

Integrated Network	Dragon RTL8125BG
Network Speeds Supported	Up to 2.5 Gbps
Wireless LAN	Yes - Wi-Fi 6E
Wireless Network Speed	Up to 2.4 Gbps
Bluetooth	Yes
Bluetooth Version	5.2

System Requirements

Operating Systems Supported

Microsoft Windows 11

System

Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Form Factor	mATX Motherboard
In The Box	Motherboard User Manual 2 x SATA Data Cables 2 x ASRock WiFi 2.4/5/6 GHz Antennas 3 x Screws for M.2 Sockets Standoff for M.2 Socket
Width	244 mm
Length	244 mm

Key Features

Wireless Network	Yes
Motherboard Width	244 mm
Motherboard Height	244 mm
mSATA Supported	No
U.2 Supported	No
Main Colour	White
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	4 port(s)
Number of USB Ports	8 port(s)
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	Yes
Motherboard Form Factor	mATX
Motherboard (EPS) Power Connectors	4+4-Pin
Motherboard Chipset	AMD B650
Thunderbolt	No
WiFi Speed	2400 Mbps
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	ASRock RGB LED
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Power Requirement (auto)	60 W
Max Memory Speed Supported (Non-overclocked)	5200 MT/s
Max Memory Speed Supported (overclocked)	7200 MT/s
CPU Power Pins (female)	8
Total M.2 Slots	3
Maximum NVMe M.2 ports	3
SATA ports	4
No. of front USB2.0 ports supported	4
No. of front USB3.0 ports supported	4
No. of front USB-C ports supported	1
