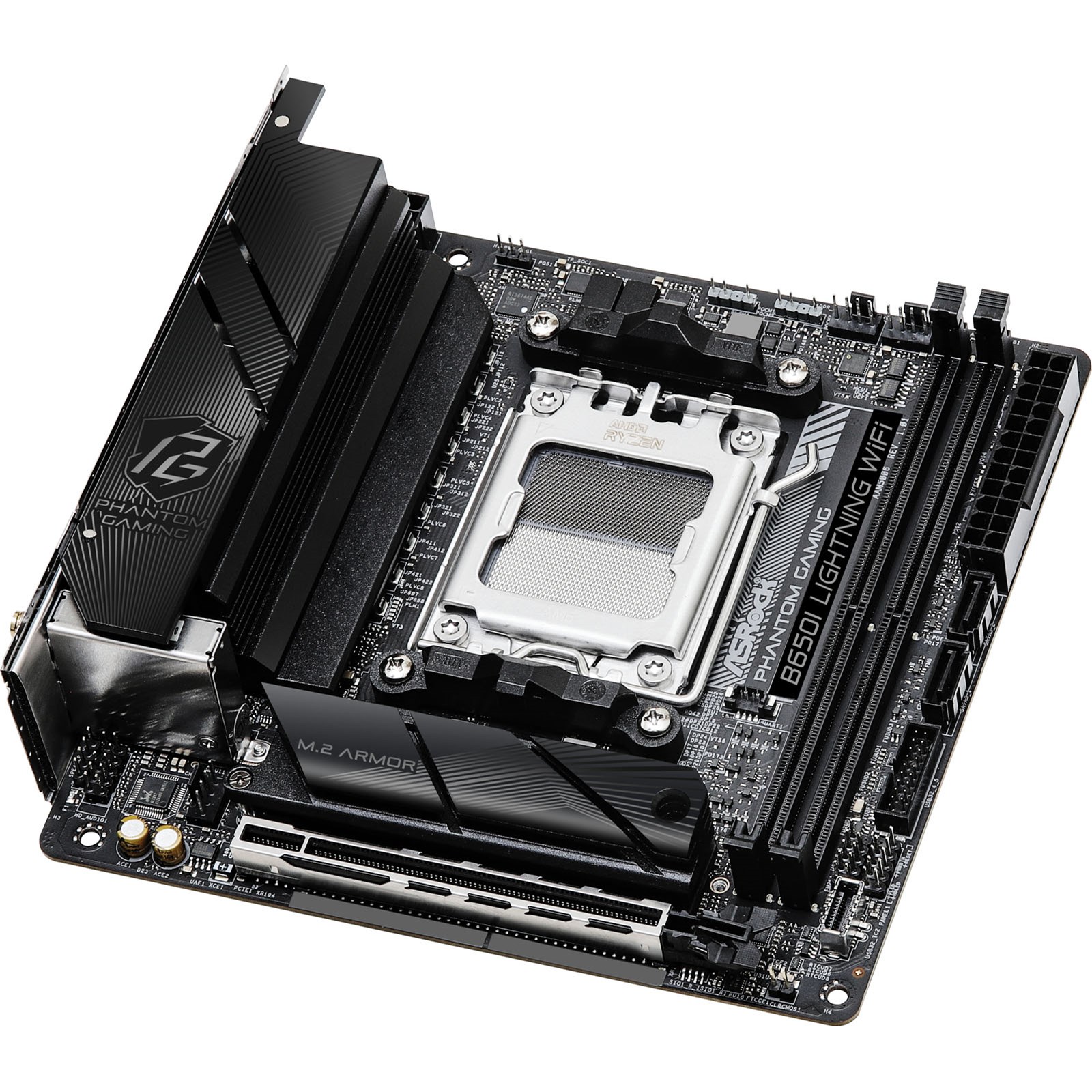

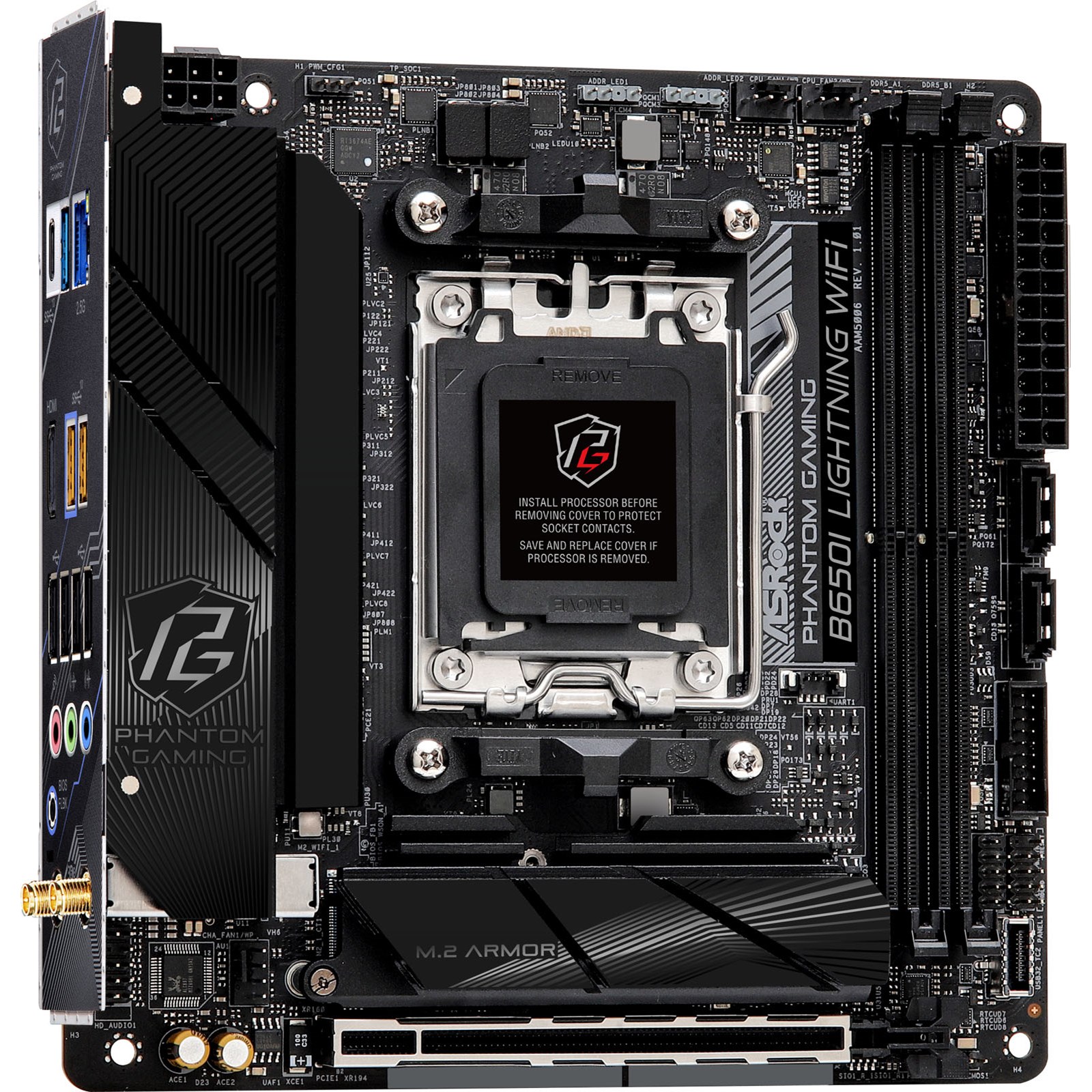

ASRock B650I Lightning WiFi Socket AM5 mITX Motherboard

£116.59 ex. vat
£139.91 inc. vat

ASRock B650I Lightning WiFi Motherboard

Supports AMD Socket AM5 Ryzen 8000 and 7000 Series Processors
8+2+1 Power Phase, Dr.MOS
Supports DDR5 7200+ (OC)
1 PCIe 4.0 x16
Graphics Output Options: HDMI
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
2 SATA3, 1 Blazing M.2 (PCIe Gen5x4), 1 Hyper M.2 (PCIe Gen4x4)
1 USB 3.2 Gen2 Type-C (Rear), 3 USB 3.2 Gen2 Type-A (Rear), 1 USB 3.2 Gen1 Type-C (Front), 2 USB 3.2 Gen1 Type-A (Front), 6 USB 2.0 (4 Rear, 2 Front)
Phantom Gaming 2.5G LAN
802.11ax WiFi 6E + Bluetooth
Supports ASRock Auto Driver Installer, BIOS Flashback

CPU

CPU Socket	Socket AM5
CPU Brand	AMD
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	AMD
Supported Processors	Ryzen 8000 and 7000 Series Processors
64-bit Support	Yes
Socket	AM5

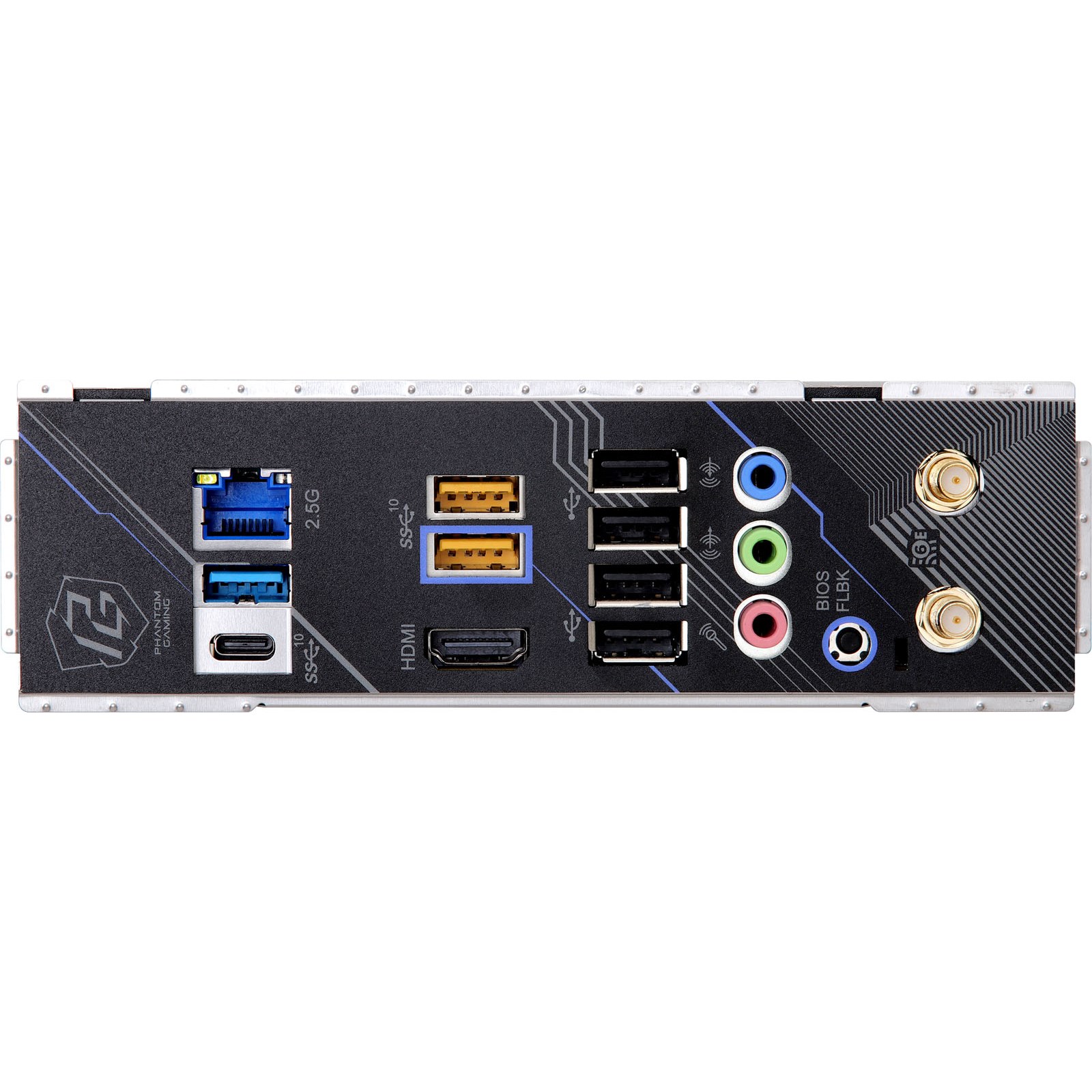

Rear Panel I/O Ports

Internal I/O Connectors

SATA Connectors	2 x SATA III
USB Connectors	1 x USB-C 3.0 header (supports 1 port) 1 x USB 3.0 header (supports 2 ports) 1 x USB 2.0 header (supports 2 ports)
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	2 x CPU/Water Pump fan headers 1 x Chassis/Water Pump fan header
Power Connector Port	1 x 24-pin ATX 1 x 8-pin EPS
Other Connectors	1 x M.2 slot, Key M, Type 2280 (PCIe Gen5) 1 x M.2 slot, Key M, Type 2280 (PCIe Gen4) 2 x 3-pin ARGB LED headers

Memory

Motherboard

Expansion

Number of PCI Express Slots

1 x PCI Express 4.0 x16 slot

Graphics Device

Integrated Graphics Supported

Yes

Sound

Integrated Sound

Realtek ALC897

Warranty

3 Years

Network

System Requirements

Operating Systems Supported

Microsoft Windows 11

System

Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Form Factor	ITX Motherboard

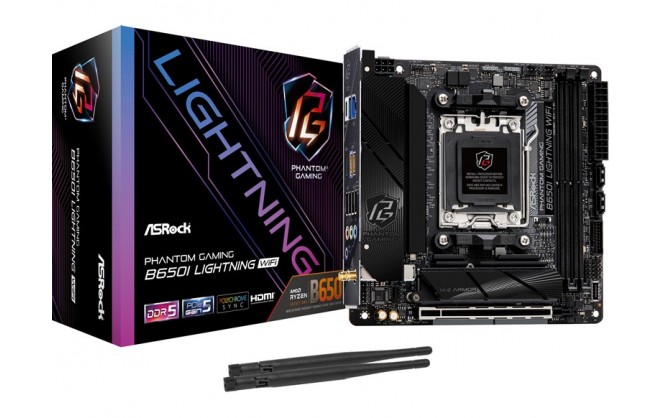

In The Box	Motherboard User Manual 2 x SATA Data Cables 2 x ASRock WiFi 2.4/5/6 GHz Antennas Screw for M.2 Socket
Width	170 mm
Length	170 mm

Key Features

CPU Power Pins (female)	8
Total M.2 Slots	2
Maximum NVMe M.2 ports	2
SATA ports	2
No. of front USB2.0 ports supported	2
No. of front USB3.0 ports supported	2
No. of front USB-C ports supported	1
Wireless Network	Yes
Motherboard Width	170 mm
Motherboard Height	170 mm
mSATA Supported	No
U.2 Supported	No
Main Colour	Black
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	2 port(s)
Number of USB Ports	8 port(s)
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	No
Motherboard Form Factor	ITX
Motherboard (EPS) Power Connectors	4+4-Pin
Motherboard Chipset	AMD B650
Thunderbolt	No
WiFi Speed	2400 Mbps
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	ASRock RGB LED
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Power Requirement (auto)	30 W
Max Memory Speed Supported (Non-overclocked)	5200 MT/s
Max Memory Speed Supported (overclocked)	7200 MT/s
