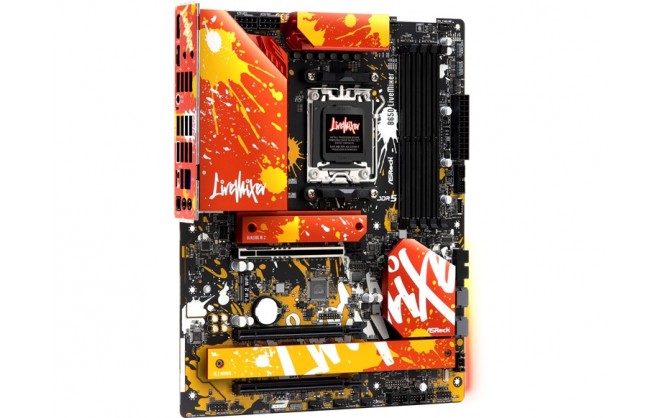

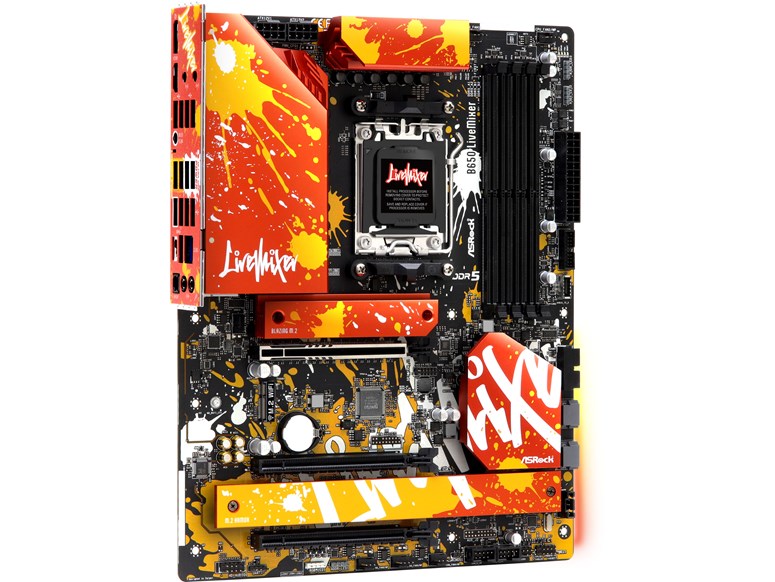

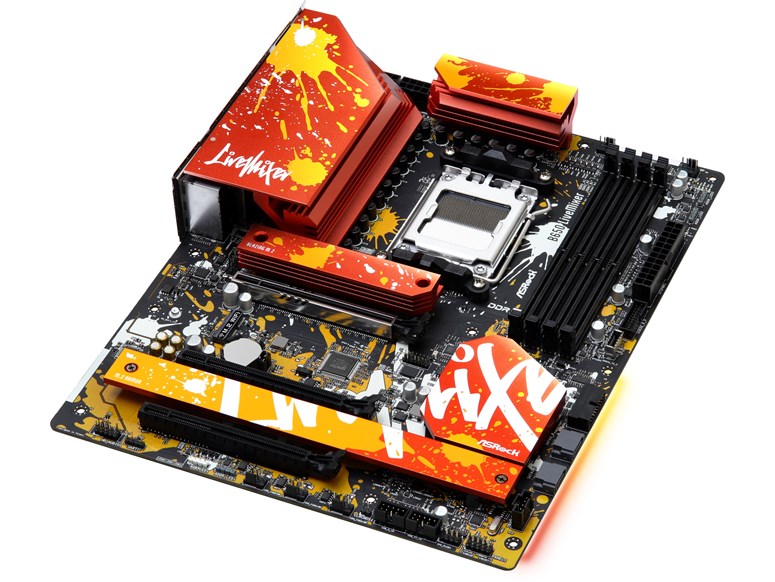

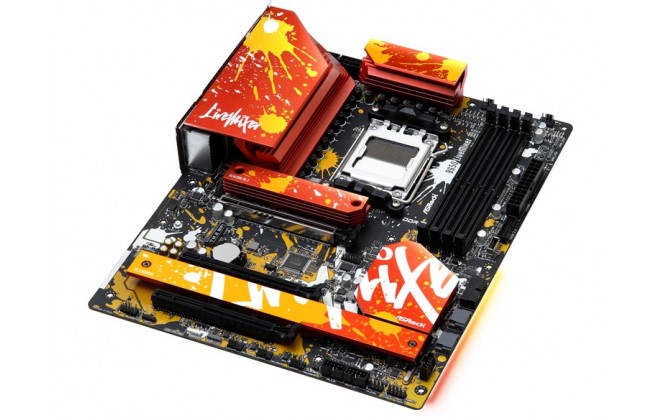

ASRock B650 LiveMixer ATX Motherboard AMD Socket AM5

£125.16 ex. vat
£150.19 inc. vat

Supports AMD Ryzen 7000 Series Processors
14+2+1 Phase Power Design, SPS
4 x DDR5 DIMMs, supports up to 6400+(OC)
3 PCIe 4.0 x16, 1 M.2 Key-E for WiFi
Graphics Output Options: 1 HDMI, 1 DisplayPort
7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
1 Blazing M.2 (PCIe Gen5x4), 2 Hyper M.2 (PCIe Gen4x4), 2 SATA3
1 USB 3.2 Gen2x2 Type-C (Front), 1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 8 USB 3.2 Gen1 (4 Rear, 4 Front), 12 USB 2.0 (8 Rear, 4 Front)
Realtek 2.5G LAN

CPU

CPU Socket	Socket AM5
CPU Brand	AMD
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	AMD
Supported Processors	AMD Socket AM5 Ryzen 7000 Series Processors
64-bit Support	Yes
Socket	AM5

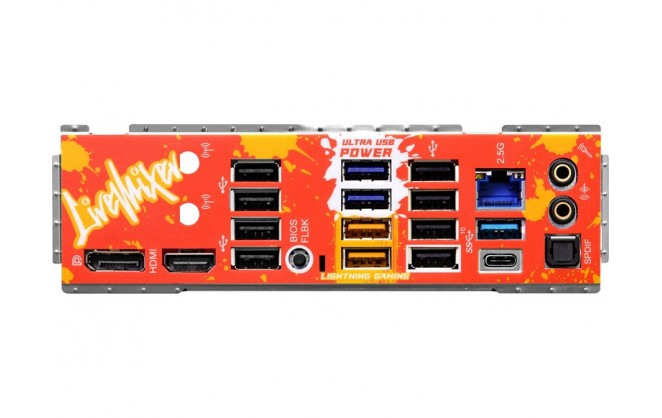

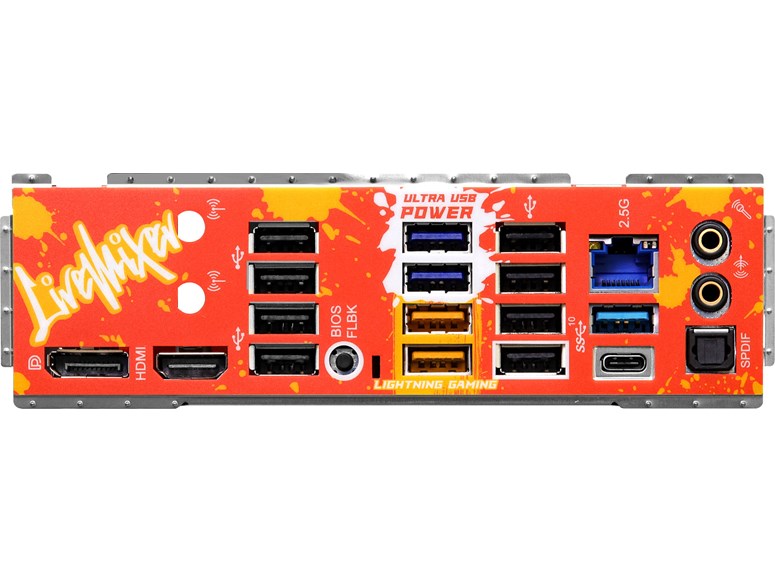

Rear Panel I/O Ports

Internal I/O Connectors

SATA Connectors	2 x SATA III
USB Connectors	1 x USB-C 3.2 header (supports 1 port) 2 x USB 3.0 headers (supports 4 ports) 2 x USB 2.0 headers (supports 4 ports)
Speaker	1 x Speaker header
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 1 x CPU/Water Pump fan header 4 x Chassis/Water Pump fan headers
Thunderbolt Port(s)	1 x Thunderbolt AiC header (Supports ASRock Thunderbolt 4 AIC Card)
TPM Header	1 x SPI TPM header
Power Connector Port	1 x 24-pin ATX 2 x 8-pin EPS
Other Connectors	1 x M.2 slot, Key M, 2260/2280 (PCIe Gen5) 2 x M.2 slots, Key M, 2260/2280 (PCIe Gen4) 3 x 3-pin ARGB LED headers 1 x 4-pin RGB LED header

Memory

Motherboard

Expansion

Number of PCI Express Slots

3 x PCI Express 4.0 x16 slots (@ x16, x4, x4)

Graphics Device

Integrated Graphics Supported

Yes

Sound

Integrated Sound

Realtek ALC897

Warranty

3 Years

Network

System Requirements

Operating Systems Supported

Microsoft Windows 11 64-bit

System

BIOS	256Mb AMI UEFI Legal BIOS with GUI support
Software Included (may be trial or restricted)	Yes
Drivers	Yes
SLi/Crossfire Features	Supports AMD CrossFire

Physical

Form Factor	ATX Motherboard

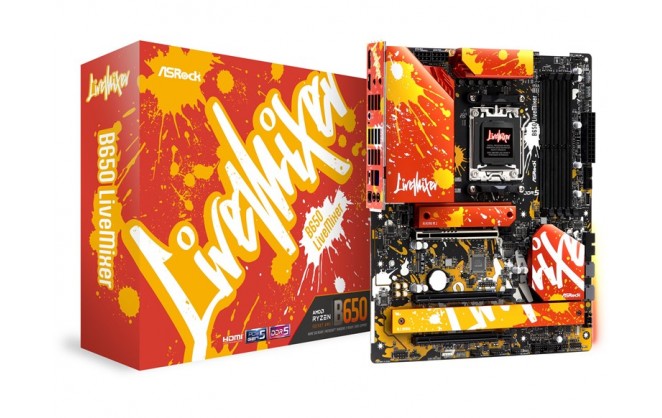

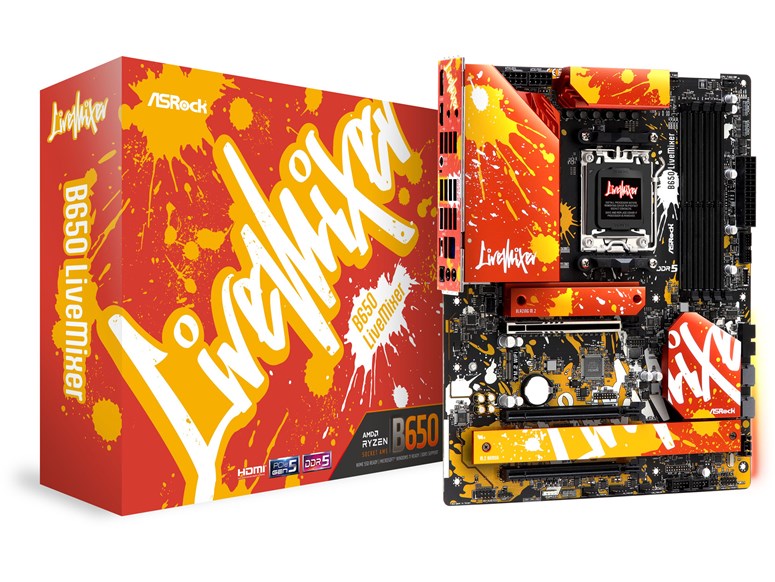

In The Box	Motherboard 1 x User Manual 2 x SATA Data Cables 4 x Screws for M.2 Sockets 1 x Standoff for M.2 Socket
Width	305 mm
Length	244 mm

Key Features

Firewire
IDE/EIDE Supported
SCSI/SAS Supported
Wireless Network	No
Chipset Manufacturer	AMD
Number of PCI Slots	slot(s)
Number of PCI-X Slots	slot(s)
Main Colour
Socket(s)
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	2 port(s)
Number of USB Ports	14 port(s)
SATA III Support	Yes
USB 3.0 Support	Yes
Multi GPU Support	ATi CrossFire
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	Yes
Motherboard Form Factor	ATX
Wake on LAN
Motherboard Power Connectors	8 + 8-Pin
Motherboard Chipset	AMD B650
Thunderbolt	No
Motherboard Model	ASRock B650 LiveMixer
WiFi Speed	Mbps
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
Cooler Height	mm
M.2 Support	Yes
On-board RGB Control	ASRock RGB LED
Memory Speed	6400 MHz
Skip Audio Test
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Radiator Length	mm
Microsoft Processor List
Power Requirement (auto)	70 W
Cooler count
Max Memory Speed Supported (Non-overclocked)	4800 MHz
Max Memory Speed Supported (overclocked)	6400 MHz
CPU Power Pins (female)	16
PCI Express Power Pins (female)
Total M.2 Slots	3
Maximum NVMe M.2 ports	3
PCI-e slots
SATA ports	2
No. of front USB2.0 ports supported	4
No. of front USB3.0 ports supported	4
No. of front USB-C ports supported	1
