The ASRock A620AM Pro-A WiFi is a Micro-ATX motherboard built for AMD’s latest AM5 processors, supporting Ryzen 7000, 8000, and even 9000 series CPUs. It uses the AMD A620A chipset and delivers a strong balance of performance and value, making it a reliable choice for gaming and productivity builds. Equipped with 4 DDR5 DIMM slots, it supports up to 256 GB of memory with EXPO/XMP profiles for speeds exceeding 8000 MT/s (OC). For storage, it provides two PCIe Gen4 M.2 slots, one PCIe Gen3 M.2, and two SATA3 ports, ensuring plenty of flexibility for fast NVMe SSDs or traditional drives. Expansion is handled by a PCIe 4.0 x16 slot for GPUs and a PCIe 3.0 x4 slot, while onboard HDMI 2.1 output supports up to 4K @ 120 Hz when paired with a compatible Ryzen APU.
Beyond raw specs, the board integrates modern connectivity, including Realtek 2.5 GbE LAN, WiFi 6E with Bluetooth 5.2, and a mix of USB 3.2 Gen1 Type-C and Type-A ports for peripherals. It also offers troubleshooting aids like Post Status LEDs and BIOS Flashback, plus RGB headers with ASRock Polychrome Sync for lighting customisation. With its 6-layer PCB, 6+2+1 phase power design, and compact Micro-ATX form factor, the A620AM Pro-A WiFi is designed to be stable, versatile, and efficient — an ideal foundation for builders who want up-to-date AM5 performance without stepping up to premium-priced chipsets.

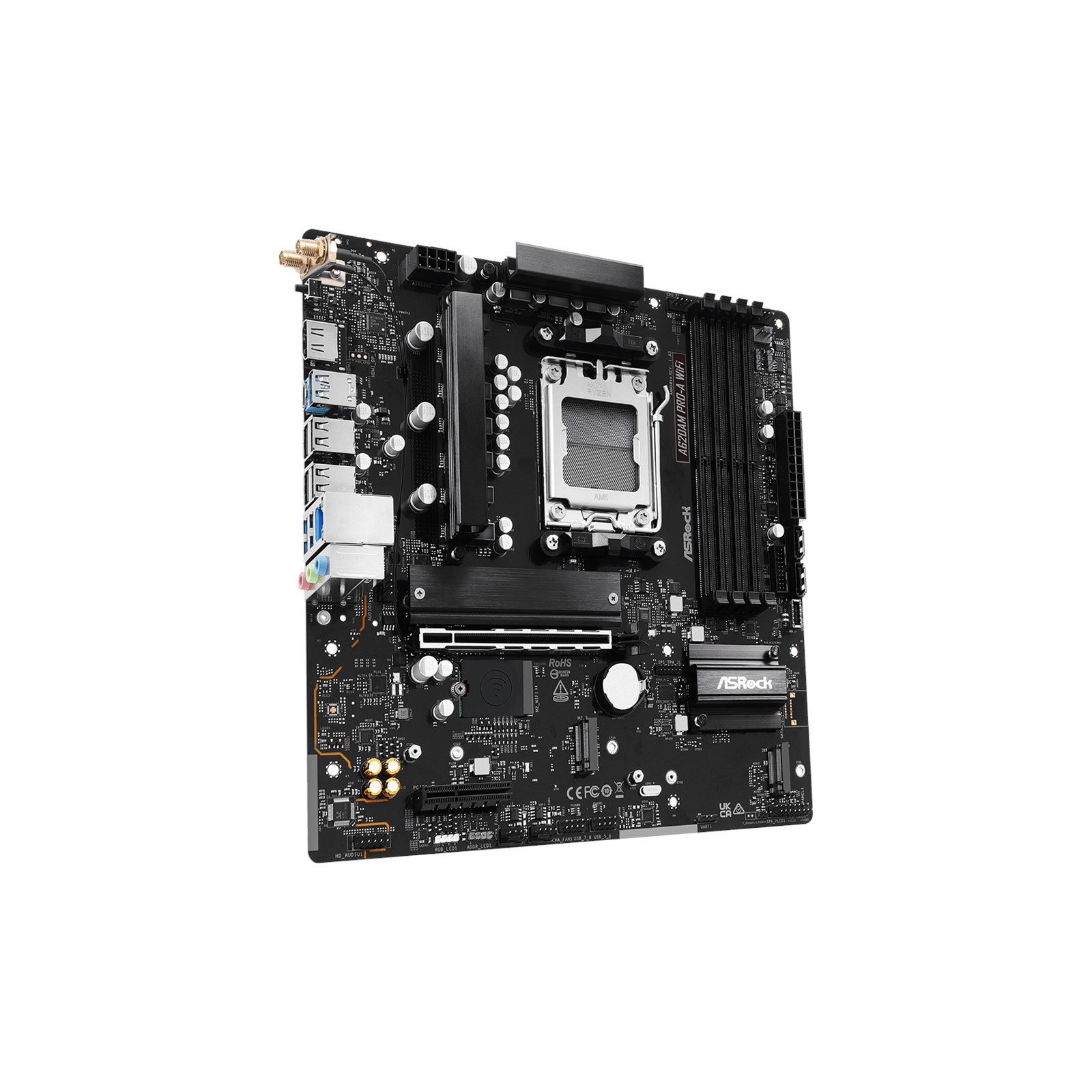

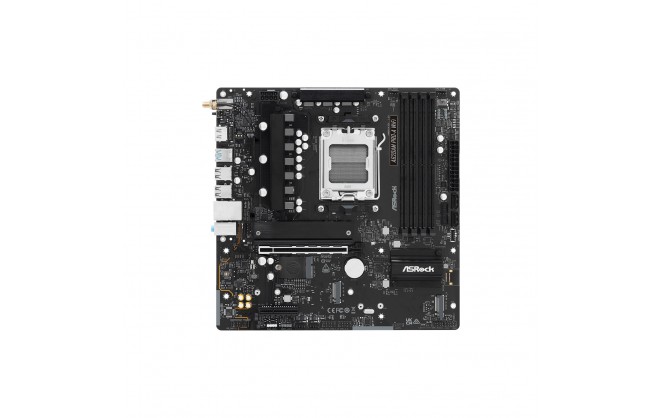

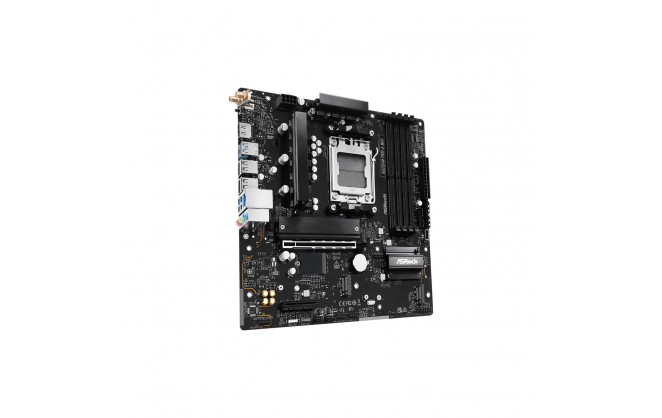

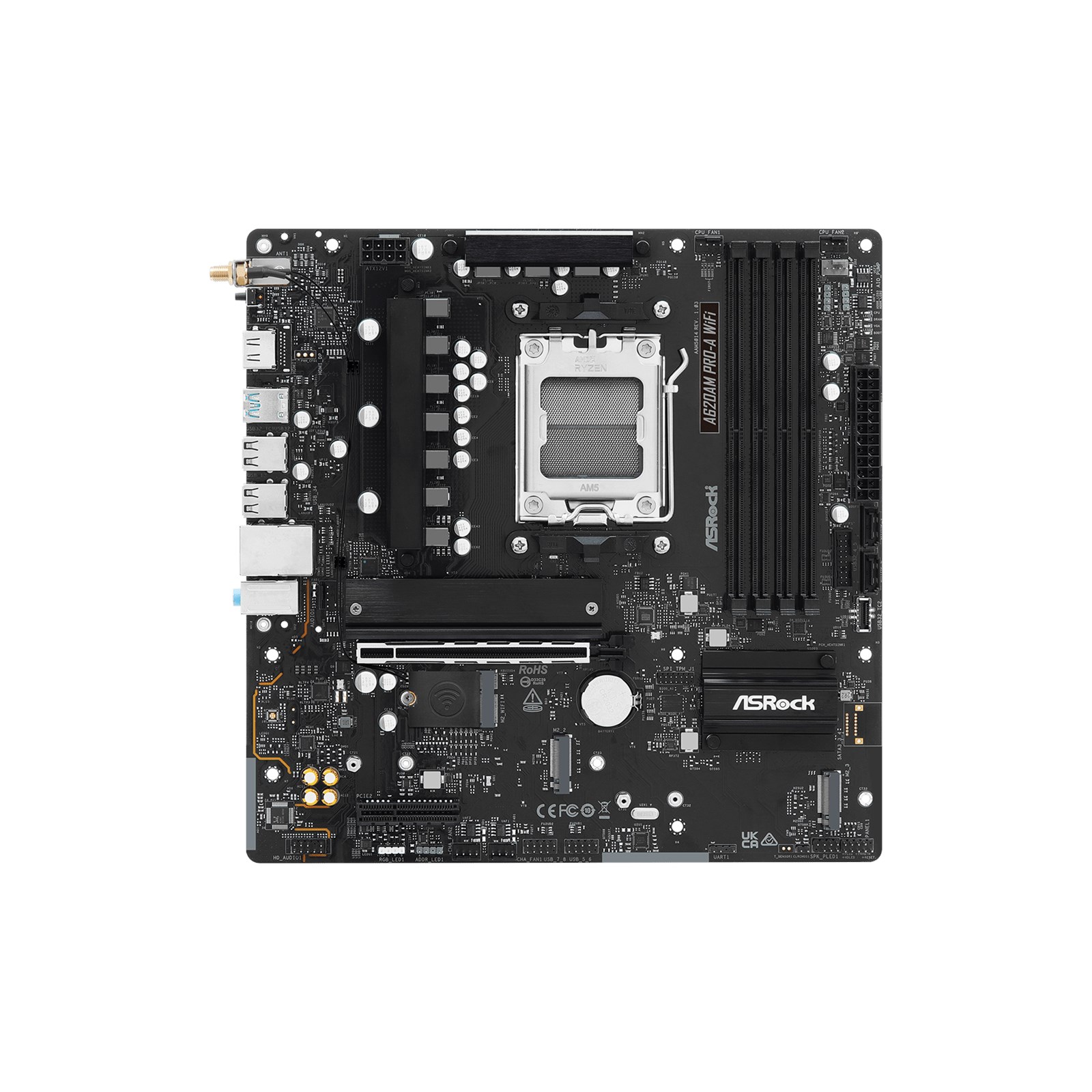

ASRock A620AM PRO-A WIFI mATX Socket AM5 Motherboard
CPU
| CPU Socket | Socket AM5 |
| CPU Brand | AMD |
| Installed Processors (Max) | 0 (1) |
| CPU Family | AMD Ryzen 9000 / 8000 / 7000 Series (AM5) |
| Processor Number | CPU dependent (supports Ryzen 7000, 8000, 9000 series) |
| CPU Speed | CPU dependent (varies by installed Ryzen processor) |
| L1 Cache | CPU dependent (varies by Ryzen CPU) |
| L2 Cache | CPU dependent (varies by Ryzen CPU) |
| L3 Cache | CPU dependent (varies by Ryzen CPU) |
| Supported Processor Manufacturer | AMD |
| Supported Processors | AMD Ryzen 9000 / 8000 / 7000 Series (with/without integrated graphics) |
| Socket | AM5 |
| Hyperthreading Architecture | Yes (Simultaneous Multithreading, SMT, CPU dependent) |
| 64-bit Support | Yes |
| Socket | AM5 |
| Maximum CPU Speed | CPU dependent (up to 5.7-5.8 GHz on supported Ryzen 9 CPUs, e.g. 7950X) |
| Maximum Bus Speed | DDR5 4800 MT/s (JEDEC), up to 8000+ MT/s (OC, EXPO/XMP) |
| Front Side Bus | N/A (modern CPUs use Infinity Fabric, not FSB) |

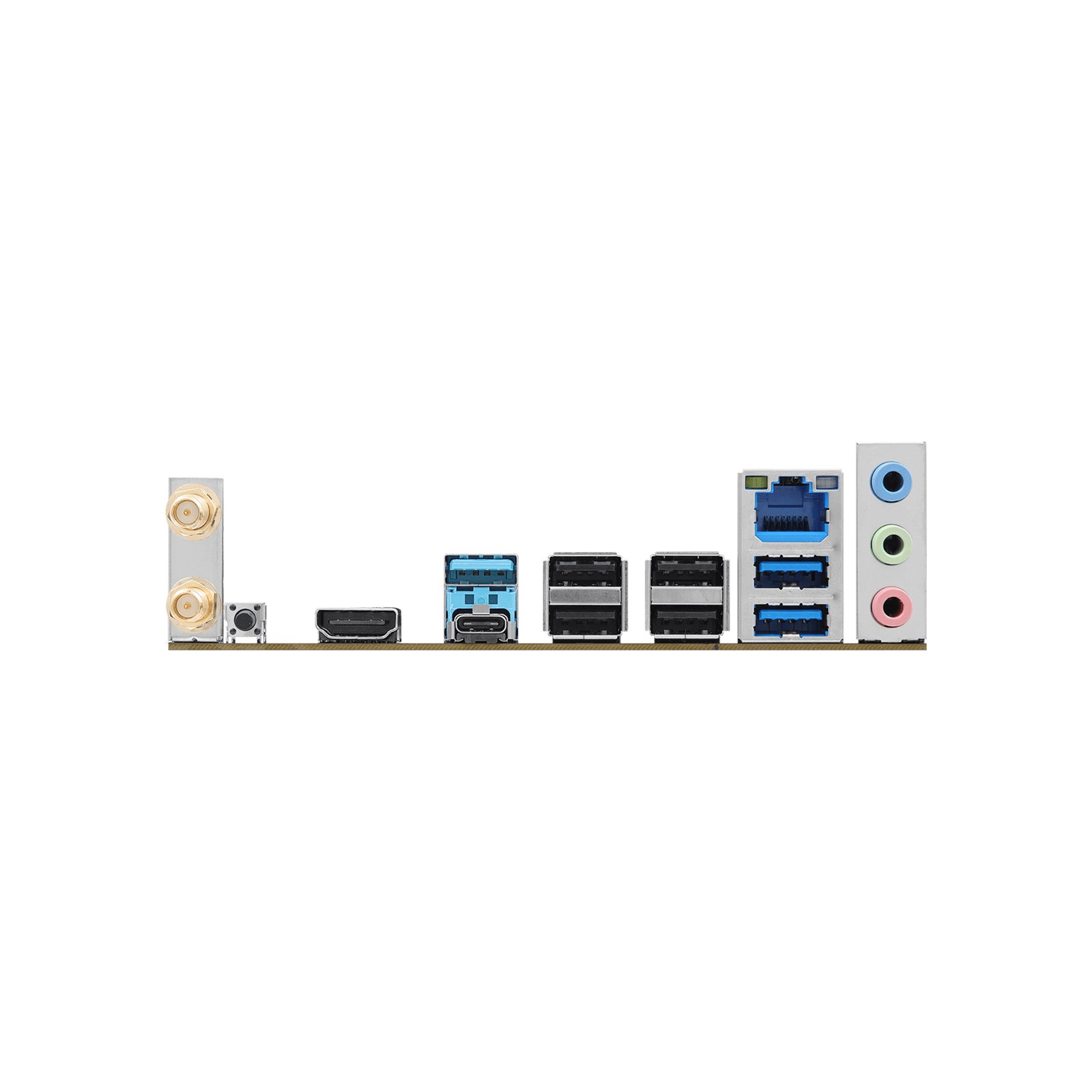

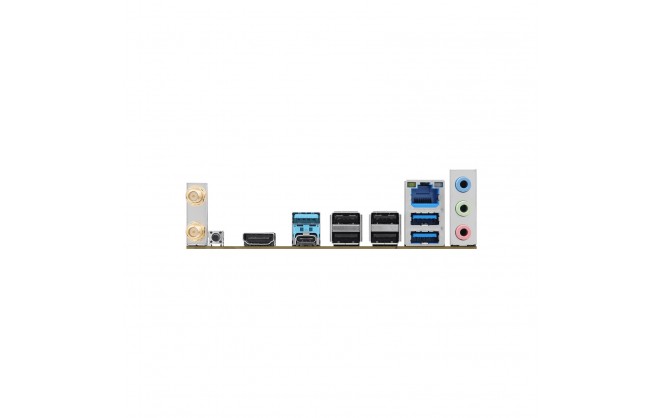

Rear Panel I/O Ports
| Audio Line Out Ports | 3 (Line In / Front Speaker / Microphone via rear panel HD Audio jacks) |
| Microphone In Port | 1 (rear panel) |
| USB Ports | Rear: 1 x USB 3.2 Gen1 Type-C, 3 x USB 3.2 Gen1 Type-A, 4 x USB 2.0 - Front: 1 x USB 3.2 Gen1 Type-C header, 2 x USB 3.2 Gen1, 4 x USB 2.0 |
| Infrared Port | None |
| DisplayPorts | None |
| HDMI Port | 1 x HDMI 2.1 (up to 4K 120 Hz, HDR, HDCP 2.3) |
| VGA Port | None |
| eSATA Ports | None |
| Antenna Connectors | 2 (rear I/O, for WiFi 6E module) |
| Parallel Ports | None |
| Keyboard/Mouse Combo Port | None (USB only) |
| Serial Ports | None |
| USB Port(s) | Rear: 1 x USB 3.2 Gen1 Type-C, 3 x USB 3.2 Gen1 Type-A, 4 x USB 2.0 - Front: 1 x USB 3.2 Gen1 Type-C, 2 x USB 3.2 Gen1, 4 x USB 2.0 |
| Keyboard Port | None (USB only) |
| Mouse Port | None (USB only) |
| Infrared Port(s) | None |
| RJ-45 Ports | 1 x 2.5 Gigabit LAN (Dragon RTL8125BG) |
| RJ-11 Ports | None |
| DisplayPort(s) | None |
| HDMI Port(s) | 1 x HDMI 2.1 (up to 4K 120 Hz, HDR, HDCP 2.3) |
| VGA Port(s) | None |
| Digital Port | HDMI 2.1 (covered above) |
| eSATA Port(s) | None |
| Serial ATA Ports | 2 x SATA3 6.0 Gb/s |
| Audio Line In Ports | 1 (rear I/O) |
| Audio Line Out Ports | 3 (Line In / Front Speaker / Microphone via HD Audio jacks) |
| Microphone In Port | 1 (rear I/O) |
| S/PDIF Port | None (can be supported via internal header add-on, not on rear I/O) |
| TV Out | None |
| Firewire Ports | None |
| MIDI/Joystick Port (Rear) | None |
| Graphics Card Port | 1 x PCIe 4.0 x16 slot |
| Antenna Connector(s) | 2 (rear I/O, WiFi 6E module) |
Physical
| Form Factor | Micro ATX (244 mm x 244 mm) |
| Colour | Black |
| Form Factor | Micro ATX (244 mm x 244 mm) |

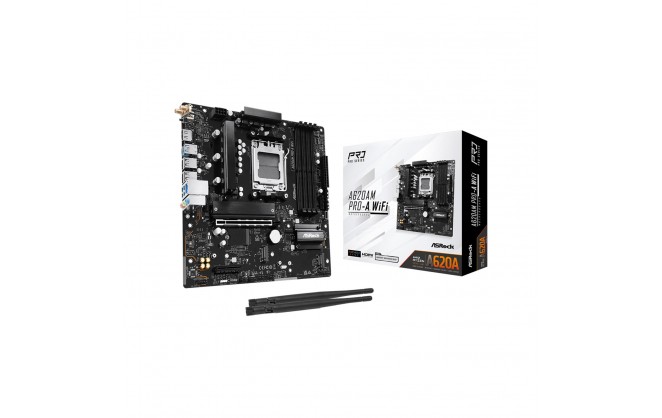

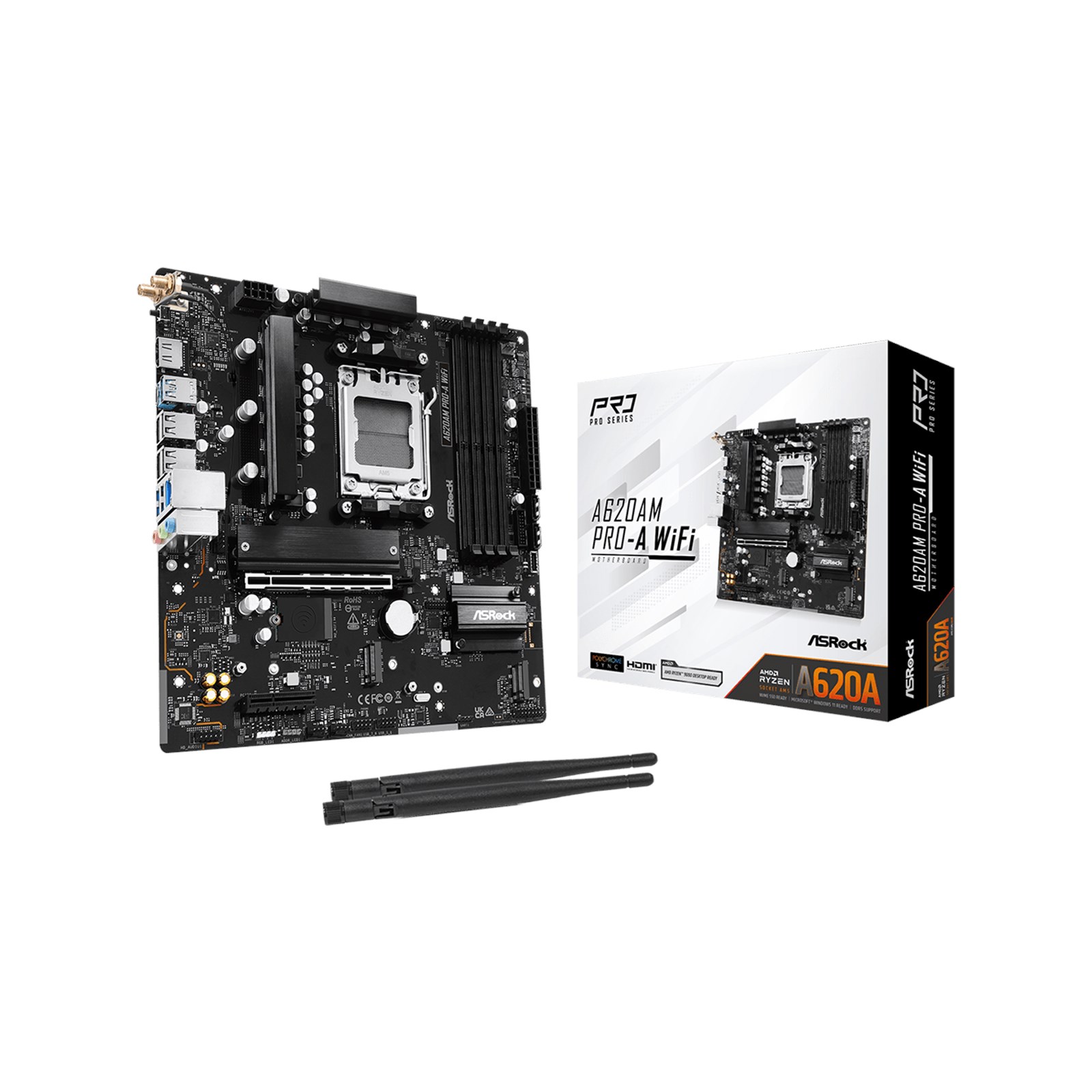

| In The Box | 1 x I/O shield, 2 x SATA cables, 2 x WiFi antennas, 3 x M.2 screws, 1 x M.2 standoff, quick installation guide |
| Width | 244 mm |
| Length | 244 mm |
| Weight | ~0.7 kg (board only, approx.) |
| Colour(s) | Black (PCB with silver/grey heatsinks) |
Internal I/O Connectors
| SATA Connectors | 2 x SATA3 6.0 Gb/s |
| USB Connectors | Rear I/O and internal headers as above (USB 3.2 Gen1 Type-C, Type-A, USB 2.0) |
| Speaker | Supported via front panel audio connector (HD Audio) |
| Floppy Channels | None |
| Front Panel Connectors | Yes (power switch, reset, power LED, HDD LED) |
| Cooling Fan Support | 2 x CPU Fan, 3 x Chassis Fan, 1 x AIO Pump (all 4-pin with speed control) |
| Auxiliary Audio Support | Yes (via HD Audio header) |
| MIDI/Joystick Connector | None |
| IDE Connectors | None |
| SATA Connector(s) | 2 x SATA3 6.0 Gb/s |
| S/PDIF Connectors | None (not onboard, can use audio header add-on) |
| USB Connector(s) | Internal: 2 x USB 2.0 headers (4 ports), 1 x USB 3.2 Gen1 header (2 ports), 1 x USB 3.2 Gen1 Type-C header |
| Thunderbolt Port(s) | None |
| Firewire Connectors | None |
| RJ-45 Connectors | None (not onboard, can use audio header add-on) |
| Parallel Connectors | None |
| Serial Connectors | None |
| Infrared Connectors | None |
| SCSI Connectors | None |
| EIDE Connectors | None |
| Chassis Intrusion Connector | 1 |
| Wireless Connector | 1 x M.2 Key E slot (for WiFi/BT module) + 2 x Antenna ports (rear) |
| Speaker(s) | Supported via front panel audio header |
| TPM Header | 1 x SPI TPM header |
| Power Connector Port | 1 x 24-pin ATX, 1 x 8-pin 12V EPS |
| Other Connectors | 1 x SPI TPM header, 1 x Front Panel Audio, RGB headers (1 x RGB, 3 x ARGB), 1 x Chassis Intrusion, multiple fan headers |
Memory
| Memory Bus Speed | DDR5 4800-8000+ MT/s (OC) |
| Memory Type | DDR5 ECC / non-ECC, unbuffered |
| Maximum RAM | 256 GB |
| Memory Type(s) | DDR5 ECC / non-ECC, unbuffered |
| Memory Bus Speed Range | 4800 MT/s - 8000+ MT/s (OC) |
| Memory Bus Speed Minimum | 4800 MT/s |
| Memory Bus Speed Maximum | 8000+ MT/s (OC, EXPO/XMP) |
| Memory Bus Speeds Supported | 4800 / 5200 / 5600 / 6000 / 6400 / 7200 / 8000+ (OC, CPU & DIMM dependent) |
| Memory Expansion Options | 4 x DDR5 DIMM slots (up to 256 GB) |
| Memory Slot | 4 |
Compliance
| Certifications | FCC, CE, ErP/EuP Ready |
| Certification(s) | FCC, CE, ErP/EuP Ready |
Electrical
| Power Requirements | Standard ATX power supply with 24-pin + 8-pin EPS 12V |
| Power Connector | 1 x 24-pin ATX, 1 x 8-pin 12V EPS |
| Power Requirement(s) | ATX power supply with 24-pin + 8-pin EPS |
| Power Connector(s) | 1 x 24-pin ATX, 1 x 8-pin 12V EPS |
| Power Management | ACPI, ErP/EuP Ready, CPU & fan power-saving modes |
Motherboard
| Chipset Manufacturer | AMD |
| Northbridge | AMD A620A |
| Southbridge | Integrated in AMD A620A chipset |
| Input/Output Controller | Integrated in chipset (I/O support for USB, SATA, PCIe, etc.) |
| RAID Supported | Yes - RAID 0/1 (SATA), RAID 0/1/10 (NVMe M.2) |
| RAID Format | SATA 6 Gb/s, PCIe NVMe |
| RAID Controllers | Integrated in chipset |
| IDE/EIDE Supported | None |
| IDE Controllers | None |
| EIDE Controllers | None |
| SCSI/SAS Supported | No |
| SCSI Channels | None |
| SCSI Controllers | None |
| SATA Supported | Yes (2 x SATA3 6.0 Gb/s) |
| SATA Controllers | Integrated in AMD A620A chipset |
| Firewire Supported | No |
| Firewire Controller | None |
Expansion
| ISA | None |
| Number of AGP Slots | 0 |
| Number of PCI Slots | 0 (no legacy PCI) |
| PCI Slot Type | PCIe only |
| Number of PCI-X Slots | 0 |
| Number of PCI Express Slots | 2 (1 x PCIe 4.0 x16, 1 x PCIe 3.0 x4) |
| PCI Express 4.0 Slot Type | 1 x PCIe 4.0 x16 (GPU slot) |
| PCI Express 3.0 Slot Type | 1 x PCIe 3.0 x4 (chipset) |
| PCI Express 2.0 Slot Type | None |
| PCI Express X16 Slots | 1 (PCIe 4.0 x16) |
| PCI Express Slot Type | PCIe 4.0 x16, PCIe 3.0 x4 (physical x16 slot form factor for GPU slot) |
| Other Expansion Slots | 1 x M.2 (Key E) for WiFi/BT module |
Storage
| Embedded Storage Capacity | None (no onboard eMMC/flash storage) |
Graphics Device
| Integrated Graphics Supported | Yes (depends on CPU with integrated AMD RDNAT graphics) |
| Graphics Chipset Manufacturer | AMD (when using Ryzen CPUs with integrated GPU) |
| Graphics Chipset Model Name | AMD Radeon Graphics (RDNA2/3, varies by CPU) |
| Graphics Chipset Model Number | CPU dependent (e.g., Ryzen 7000/8000/9000 APUs) |
| Graphics Memory | Shared system memory |
| Graphics Memory Type | DDR5 system RAM |
Sound
| Integrated Sound | Realtek ALC897, 7.1 Channel HD Audio |
| Integrated Sound | Realtek ALC897, 7.1 Channel HD Audio |
Warranty
| Warranty | Varies by region (typically 3 years from ASRock) |
Network
| Integrated Network | Realtek Dragon RTL8125BG 2.5 GbE LAN |
| Network Speeds Supported | 10/100/1000/2500 Mbps (LAN), up to 2400 Mbps WiFi 6E |
| Wireless LAN | WiFi 6E (802.11a/b/g/n/ac/ax/axe, dual-band, 2x2 MU-MIMO) |
| Wireless Network Speed | Up to 2400 Mbps |
| Bluetooth | Yes, Bluetooth 5.2 |
| Bluetooth Version | 5.2 |
| Bluetooth Range (Max) | Up to 30 m (typical) |
Modem
| Modem | None |
System Requirements
| Operating Systems Supported | Windows 10 64-bit, Windows 11 64-bit |
System
| BIOS | 256Mb AMI UEFI with GUI, supports BIOS Flashback, Instant Flash |
| Special Features | BIOS Flashback, Post Status Checker, Polychrome RGB, Auto Driver Installer |
| Jumpers | 1 x Clear CMOS jumper |
| Software Included (may be trial or restricted) | ASRock Polychrome RGB, A-Tuning, Dragon 2.5G LAN Software, Live Update & APP Shop |
| Drivers | Included on support page (chipset, LAN, WiFi, audio, etc.) |
| Overclocking Features | Memory OC (DDR5 up to 8000+ MT/s), EXPO/XMP profiles |
| SLi/Crossfire Features | Not supported (only one PCIe x16 slot) |
Environmental
| Operating Temperature | 0øC - 35øC typical |
| Operating Humidity | 10% - 85% non-condensing |
Attributes
| PCMCIA Slots | None |
Key Features
| RDIMM Memory Supported | No |
| RDIMM Memory Required | No |
| Wireless Network | Yes |
| Motherboard Width | 244 mm |
| Motherboard Height | 244 mm |
| mSATA Supported | No |
| U.2 Supported | No |
| Main Colour | Black |
| Memory Channel | Dual |
| On-board Audio Type | 7.1 |
| Number of SATA Ports | 2 port(s) |
| Number of USB Ports | 15 port(s) |
| USB 3.0 Support | Yes |
| Multi GPU Support | No |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| DisplayPort Connection | No |
| Motherboard Form Factor | mATX |
| Drive Interface Type | PCIe 4.0 x4 NVMe |
| Motherboard (EPS) Power Connectors | 8-Pin |
| Motherboard Chipset | AMD A620A |
| Thunderbolt | No |
| WiFi Speed | 2400 Mbps |
| USB 3.1 Support | No |
| Internal USB3.0 Header | Yes |
| M.2 Support | Yes |
| On-board RGB Control | ASRock RGB LED |
| Skip Audio Test | No |
| RGB Header Type | 3-Pin ARGB |
| Addressable RGB | Yes |
| Internal USB Type-C Header | Yes |
| Power Requirement (auto) | 60 W |
| Max Memory Speed Supported (Non-overclocked) | 4800 MT/s |
| Max Memory Speed Supported (overclocked) | 8000 MT/s |
| CPU Power Pins (female) | 1 |
| PCI Express Power Pins (female) | 1 |
| Total M.2 Slots | 3 |
| Maximum NVMe M.2 ports | 3 |
| SATA ports | 2 |
| No. of front USB2.0 ports supported | 4 |
| No. of front USB3.0 ports supported | 2 |
| No. of front USB-C ports supported | 1 |
| Back Connect Support | No |
Item Details
| Manufacturer | ASRock |
| Manufacturer Code | 90-MXBSY-A0UAYZ |
| EAN | 4711581490970 |
