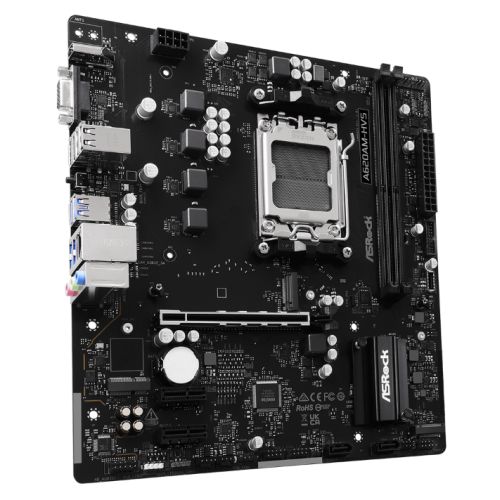

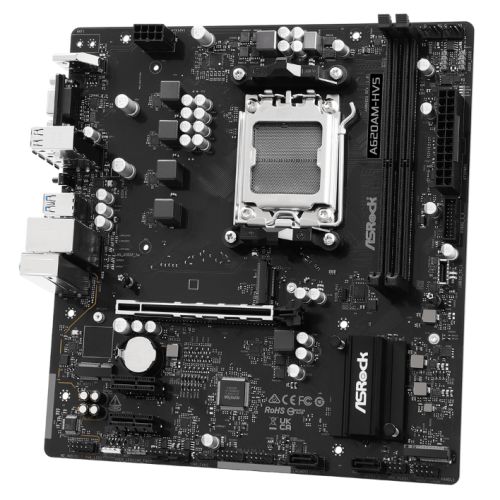

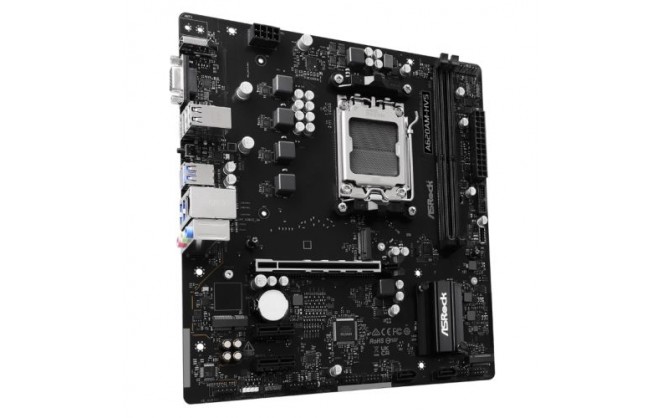

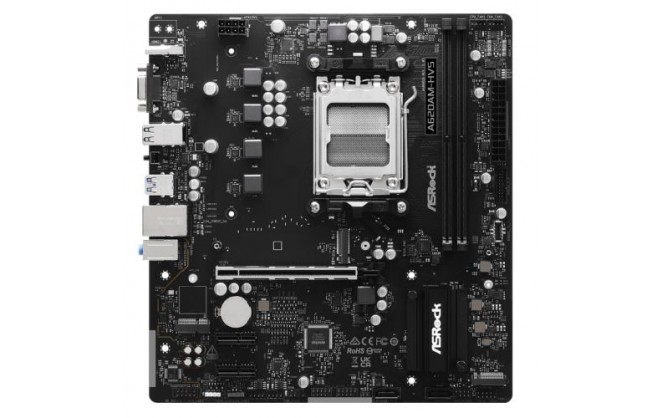

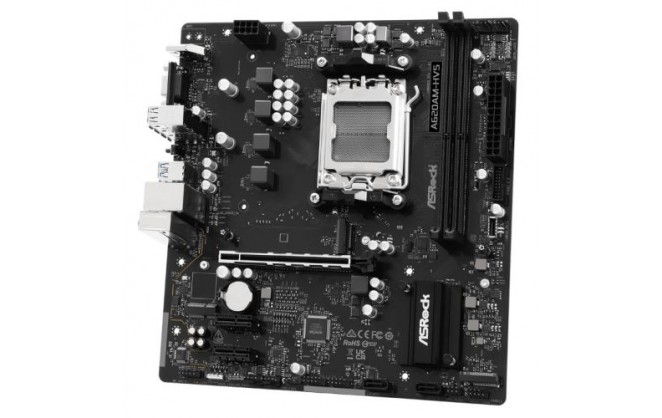

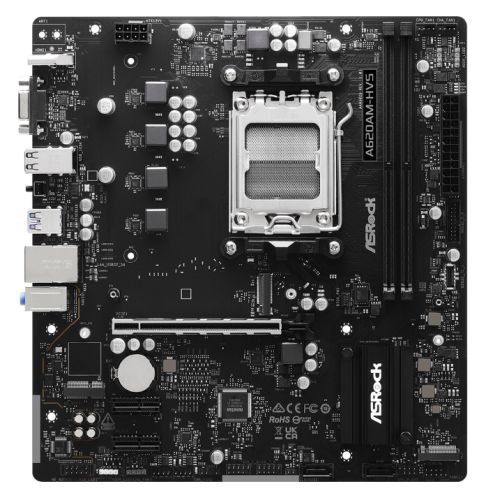

Asrock A620AM-HVS Socket AM5 mATX Motherboard

Part Number: A620AM-HVS
Manufacturer: Asrock
Quickfind Code: 136501

Stock: In Stock

£64.89 ex. vat
£77.87 inc. vat

Product Features:

Condition: New
Socket Type AM5
Chipset A620
Form Factor mATX
Memory Type DDR5
CPU Type AMD

+ Read More Information

Built to deliver reliable performance with versatile features, perfect for daily tasks.

Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
Dr.MOS Power Design, 2oz PCB
2 x DDR5 DIMMs
Supports Dual Channel, up to 6800+ (OC)
1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
Graphics Output Options: 1 HDMI, 1 D-Sub
Realtek ALC897 7.1 CH HD Audio Codec
1 Hyper M.2 (PCIe Gen4x4)
1 Ultra M.2 (PCIe Gen3x4 & SATA3)
2 SATA3
1 USB 3.2 Gen1 Type-C (Front)
6 USB 3.2 Gen1 (4 Rear, 2 Front)
8 USB 2.0 (4 Rear, 4 Front)
Realtek Gigabit LAN
Supports BIOS Flashback

2oz Copper PCB

2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.

Hyper M.2 Gen4 x4

Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Intelligent Cooling Design

PWM/DC Fan Support - ASRock fan headers automatically detect whether fans are running in DC or PWM mode, allowing users to fine-tune the fan curve and achieve quieter operation.
Fan-Tastic Tuning - ASRock Phantom Gaming Tuning Fan-Tastic Tuning function enables users to auto-detect the minimum duty of each fan with a single click. Users can also easily adjust the fan curve via the visualized UI interface, meeting their system's cooling performance and noise reduction requirements.

Front USB 3.2 Gen1 Type-C

Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

Polychrome RGB

This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

SignalRGB

SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility.

M.2 (KEY E) For WiFi

Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.

*Wi-Fi module is not included.

EZ Setting

Auto Driver Installer - No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
BIOS Flashback - Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and a power supply. No CPU, RAM or other components are required.

Post Status Checker

Displays the real-time status of CPU, DRAM, VGA, and BOOT device with colored LEDs during startup. A simple and efficient way to check system operation at a glance.

Technical Specification

Asrock A620AM-HVS Socket AM5 mATX Motherboard

Motherboard Type

Desktop

Form Factor

Micro ATX

Socket

AMD AM5

Chipset

AMD A620A

CPU Support

Click here for CPU support

RAM Technology

DDR5 (Dual Channel)
Supports ECC/non-ECC, un-buffered memory
Supports XMP and EXPO

RAM Slots

2 x DIMM

RAM Speeds

Up to 6800+(OC)

Maximum Memory

128GB

Graphics

Integrated Graphics
Graphics specifications may vary between CPU types

Graphics Ports

1 x VGA
1 x HDMI

PCI/PCI Express

1 x PCIe 4.0 x16 (PCIE1), supports x16 mode*
2 x PCIe 3.0 x1 (PCIE2 and PCIE3)

*PCIE1 will run at Gen4x16 with 9000 and 7000 series CPUs, Gen4x8 with 8000 (Phoenix 1) series CPUsand Gen4x4 with 8000 (Phoenix 2) series CPUs.

Storage

2 x SATA III
2 x M.2

M.2_1 (2280) - PCIe 4.0 x4
M.2_2 (2260/2280) - SATA & PCIe 3.0 x4

RAID

Supports RAID 0 and RAID 1 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

Wireless

LAN

GB LAN

Audio

7.1 CH HD Audio (Realtek ALC897 Audio Codec)

USB Ports Supported

Rear:
4 x USB 5Gbps Type-A
4 x USB 2.0

Front:
1 x USB 5Gbps Type-C
2 x USB 5Gbps Type-A
4 x USB 2.0

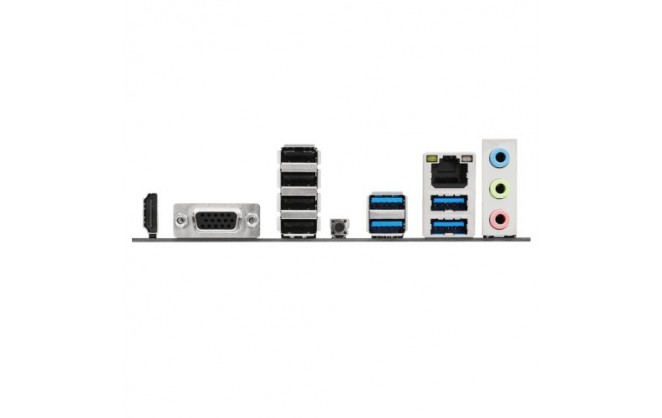

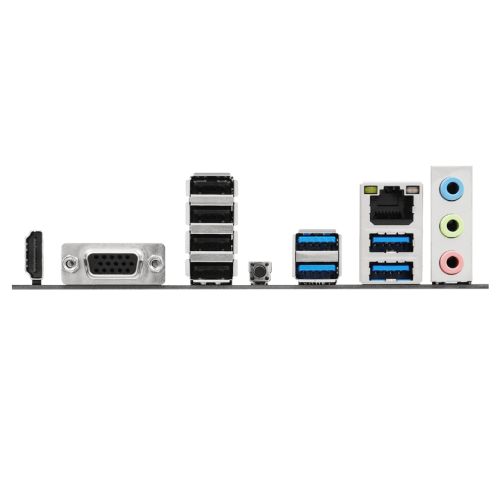

Back Panel I/O Ports

2 x Antenna Mounting Points
1 x VGA
1 x HDMI
4 x USB 3.2 Gen1 Type-A
4 x USB 2.0
1 x RJ-45 LAN
1 x BIOS Flashback Button
HD Audio Jacks

Internal I/O Connectors

1 x Power LED and Speaker
1 x RGB LED
3 x Addressable LED
1 x CPU Fan
3 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Panel Audio
2 x USB 2.0
1 x USB 3.2 Gen1
1 x Front Panel Type C USB 3.2 Gen1

Accessories

1 x I/O Shield
2 x SATA Data Cables
1 x Screw for M.2 Socket
