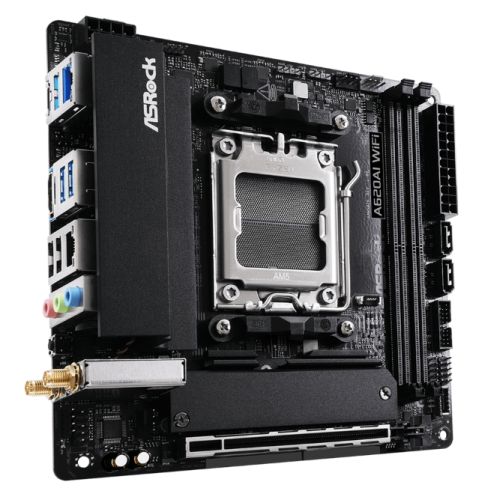

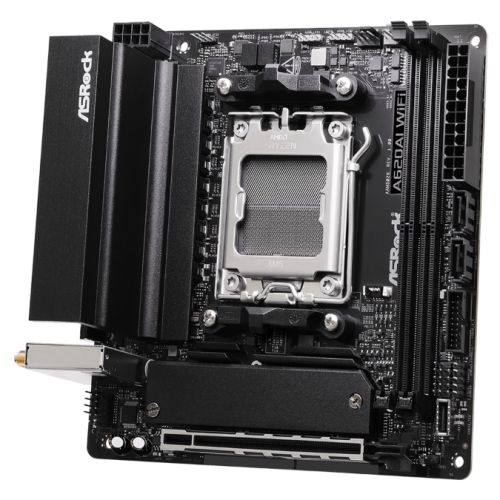

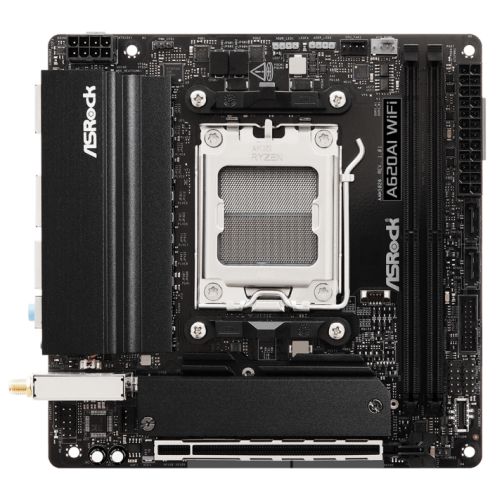

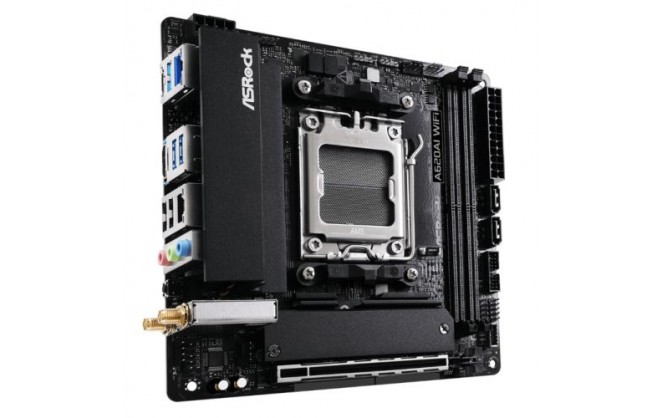

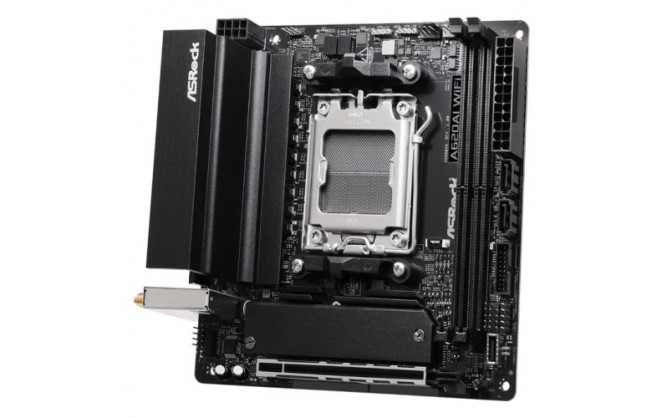

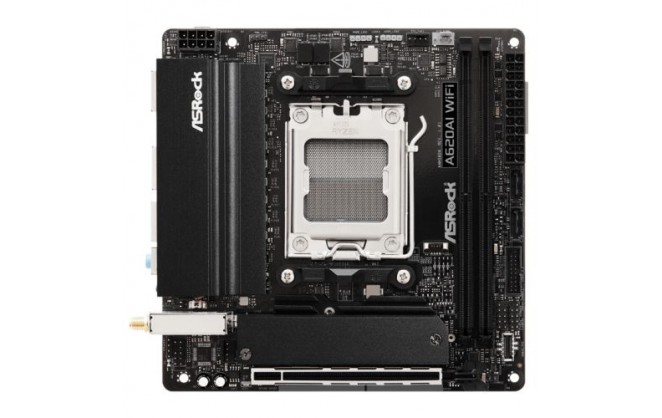

Asrock A620AI WIFI Socket AM5 mITX Motherboard

Part Number: A620AI WIFI
Manufacturer: Asrock
Quickfind Code: 136510

Stock: In Stock

£106.49 ex. vat
£127.79 inc. vat

Product Features:

Condition: New
Socket Type AM5
Chipset A620
Form Factor mITX
Memory Type DDR5
CPU Type AMD

+ Read More Information

Built to deliver reliable performance with versatile features, perfect for daily tasks.

Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
8+2+1 Phase Power Design, 80A Dr.MOS for VCore+SOC+MISC
2 x DDR5 DIMMs
Supports Dual Channel, up to 8200+ (OC)
1 PCIe 4.0 x16
Graphics Output Options: 1 HDMI
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
1 Hyper M.2 (PCIe Gen4x4)
1 Ultra M.2 (PCIe Gen3x4)
2 SATA3
1 USB 3.2 Gen2 Type-C (Rear)
2 USB 3.2 Gen2 (Rear)
1 USB 3.2 Gen1 Type-C (Front)
3 USB 3.2 Gen1 (1 Rear, 2 Front)
4 USB 2.0 (2 Rear, 2 Front)
Realtek 2.5G LAN, Gigabit LAN
802.11axe WiFi 6E + Bluetooth
Supports BIOS Flashback

Optimized VRM Design

8+2+1 Power Phase Design - Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
Dr. MOS - Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
Hi-Density Power Connector - CPU overclocking requires higher current. ASRock Hi-Density Power Connectors are designed to withstand higher currents compared to traditional CPU and ATX power connectors, providing a more stable system and reducing the risk of fire during heavy overclocking.

8 Layer PCB

The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!

DDR5 XMP & EXPO Support

Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

Hyper M.2 Gen4 x4

Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Intelligent Cooling Design

Aluminum Heatsink - The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.
PWM/DC Fan Support - ASRock fan headers automatically detect whether fans are running in DC or PWM mode, allowing users to fine-tune the fan curve and achieve quieter operation.
Fan-Tastic Tuning - ASRock Fan-Tastic Tuning function enables users to auto-detect the minimum duty of each fan with a single click. Users can also easily adjust the fan curve via the visualized UI interface, meeting their system's cooling performance and noise reduction requirements.

Wi-Fi 6E 802.11axe

WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.

Dual LAN Design

Elevate your network's performance, security, and flexibility with our Dual LAN configuration. Experience 2.5Gbps and Gigabit speeds, while benefiting from failover protection, VLAN segmentation, and more.

Front USB 3.2 Gen1 Type-C

Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

Polychrome RGB

This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

SignalRGB

SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility.

EZ Setting

Auto Driver Installer - No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
BIOS Flashback - Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and a power supply. No CPU, RAM or other components are required.

Technical Specification

Asrock A620AI WIFI Socket AM5 mITX Motherboard

Motherboard Type

Desktop

Form Factor

Mini ITX

Socket

AMD AM5

Chipset

AMD A620A

CPU Support

Click here for CPU support

RAM Technology

DDR5 (Dual Channel)
Supports ECC/non-ECC, un-buffered memory
Supports XMP and EXPO

RAM Slots

2 x DIMM

RAM Speeds

Up to 8200+(OC)

Maximum Memory

128GB

Graphics

Integrated Graphics
Graphics specifications may vary between CPU types

Graphics Ports

1 x HDMI

PCI/PCI Express

1 x PCIe 4.0 x16 (supports x16 mode)*

*will run at Gen4x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors.

Storage

2 x SATA III
2 x M.2

M.2_1 (2280) - PCIe 4.0 x4
M.2_2 (2280) - SATA & PCIe 3.0 x4

RAID

Supports RAID 0 and RAID 1 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

Wireless

802.11ax Wi-Fi 6E Module
Supports IEEE 802.11a/b/g/n/ac/axe
Supports Dual-Band 2x2 with ext 6GHz band support
2 antennas - 2 (Transmit) x 2 (Receive) diversity tech
Supports Bluetooth 5.2 + High speed class II
Supports MU-MIMO

LAN

2.5GB LAN & GB LAN

Audio

7.1 CH HD Audio (Realtek ALC897 Audio Codec)

USB Ports Supported

Rear:
1 x USB 10Gbps Type-C
1 x USB 10Gbps Type-A
1 x USB 5Gbps Type-A
2 x USB 2.0

Front:
1 x USB 5Gbps Type-C
2 x USB 5Gbps Type-A
2 x USB 2.0

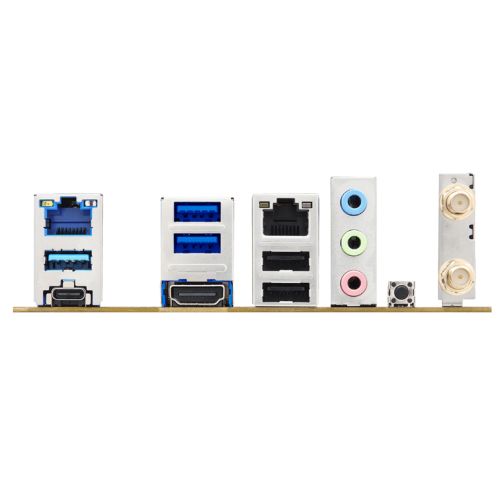

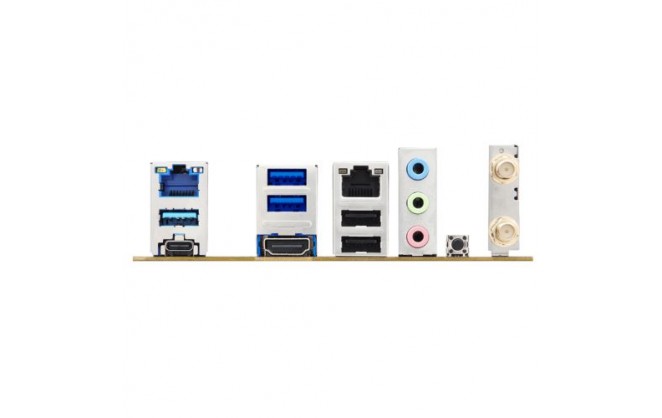

Back Panel I/O Ports

2 x Antenna
1 x HDMI
2 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen2 Type-C
1 x USB 3.2 Gen1
2 x USB 2.0
2 x RJ-45 LAN
1 x BIOS Flashback Button
HD Audio Jacks

Internal I/O Connectors

2 x Addressable LED
1 x CPU Fan
1 x Chassis Fan
1 x AIO Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Panel Audio
1 x USB 2.0
1 x USB 3.2 Gen1
1 x Front Panel Type C USB 3.2 Gen1

Accessories

1 x I/O Shield
2 x SATA Data Cables
2 x ASRock WiFi 2.4/5/6 GHz Antennas
2 x Screws for M.2 Sockets
