Features
Leveraging an all-new aerodynamic inspired design, the ZOTAC GAMING GeForce RTX 4090 Trinity OC utilizes the world's most advanced gaming GPU powered by the NVIDIA Ada Lovelace architecture. Using cutting-edge cooling technologies derived from the flagship model, the Trinity OC packs the punch to offer gamers the needed blistering FPS in the latest titles

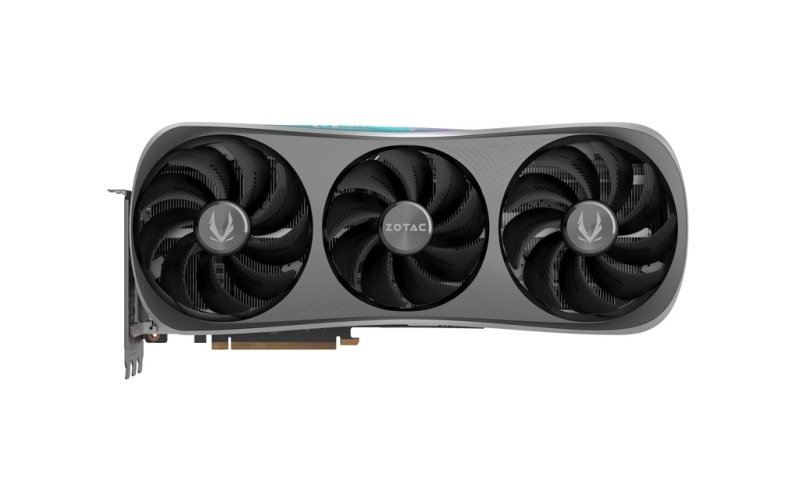

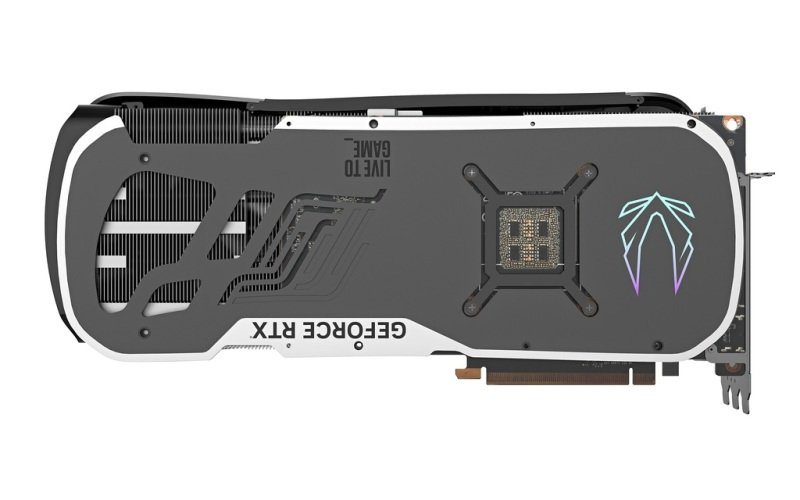

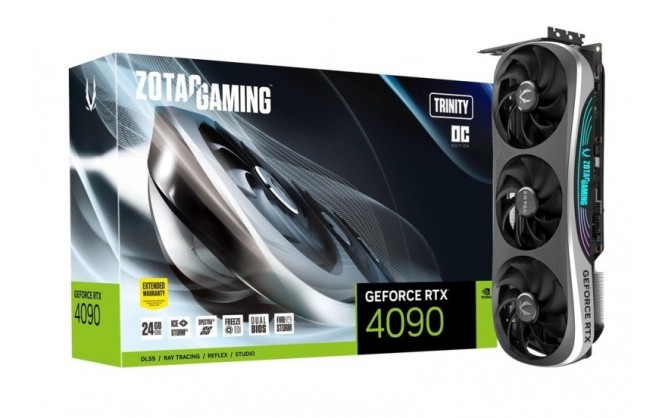

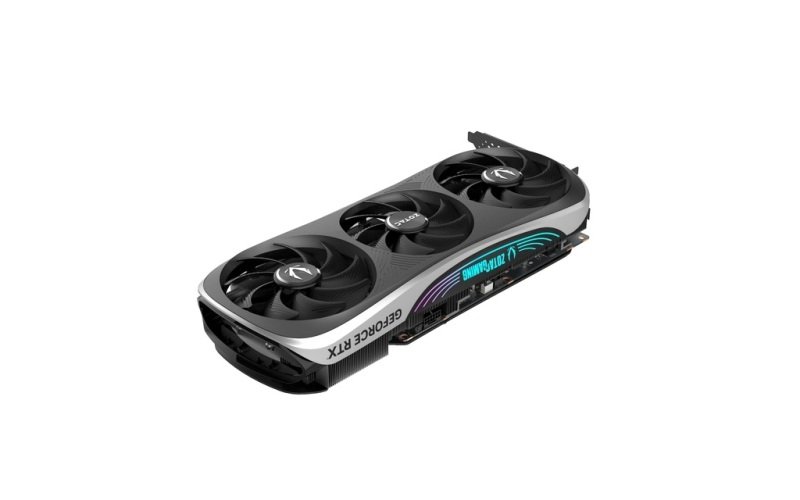

ZOTAC GeForce RTX 4090 24GB Trinity OC Graphics Card
| Key Specifications | |
|---|---|
| Chipset | GeForce RTX 4090 |
| Edition | Trinity OC |
| Manufacturing process | 4 nm |
| Microarchitecture | Ada Lovelace |
| Cores & Clocks | |
|---|---|
| Cores | 16384 |
| Core Clock | |
| Boost Clock | 2535 MHz |
| Video Memory (VRAM) | |
|---|---|
| Memory Size | 24GB |
| Memory Type | GDDR6X |
| Memory Clock | 21000 MHz |
| Memory Bus | 384 Bit |
| Cooling | |
|---|---|
| Cooling Solution | Tri Fan (3) |
| Included/Fitted Backplate | Yes |
| I/O & Connectivity | |
|---|---|
| Interface | PCIe 4.0 (x16) |
| Connectivity |
|
| Visuals | |
|---|---|
| GeForce VR Ready | Yes |
| Multi-Way Graphics Support | |
| Microsoft DirectX Support | 12 API |
| HDCP Ready | Yes |
| Max. Concurrent Displays | 4 Displays |
| Maximum Digital Resolution | 7680x4320 (8K UHD) |
| Ray-Tracing | |
|---|---|
| Real-Time Ray Tracing | Yes |
| NVIDIA RT Cores | |
| NVIDIA Tensor Cores | |
| RTX-OPS | |
| Rays Cast | |
| Power & Thermals | |
|---|---|
| Graphics Card Power Connectors | 1 x 12-pin PCIe |
| Graphics Card TDP/Power | 450W |
| Minimum Recommended PSU | 1000 W |
| Maximum GPU Temperature | 90 °C |
| Physical | |
|---|---|
| Width | 3.5 Slot |
| Low Profile Compatible | No |
| Low Profile Support | N/A |
| Dimensions | 356.1 x 165.4 x 71.4 mm |
