Features
• GPU: Boost Clock: Up to 2310MHz
• Memory: 16GB/256 bit DDR6. 16 Gbps Effective
• Stream Processors: 4608
• RDNA™ 2 Architecture
• Ray Accelerator: 72

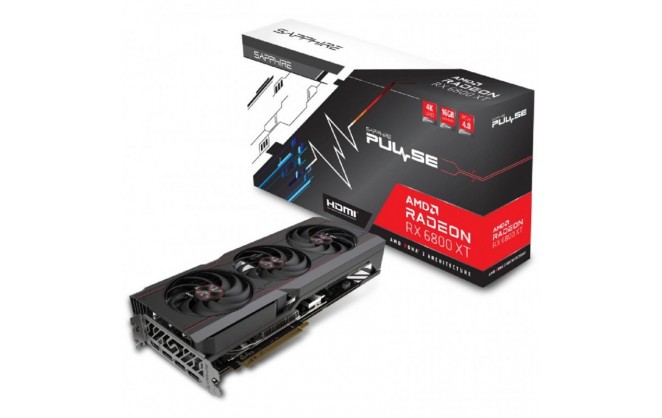

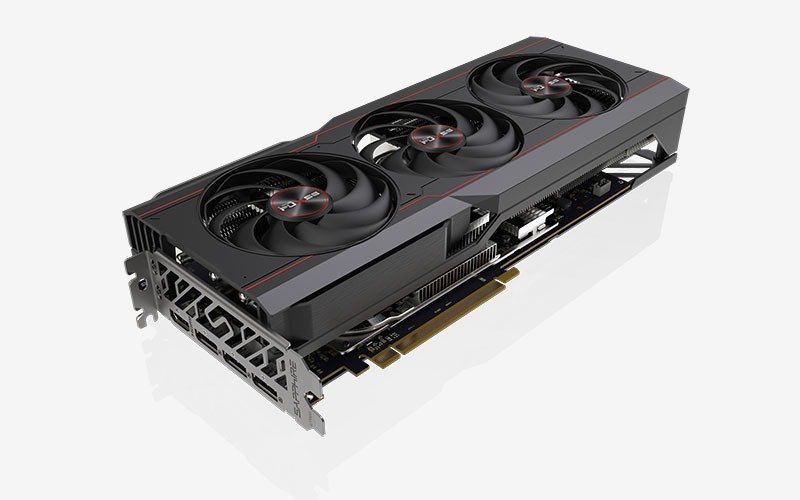

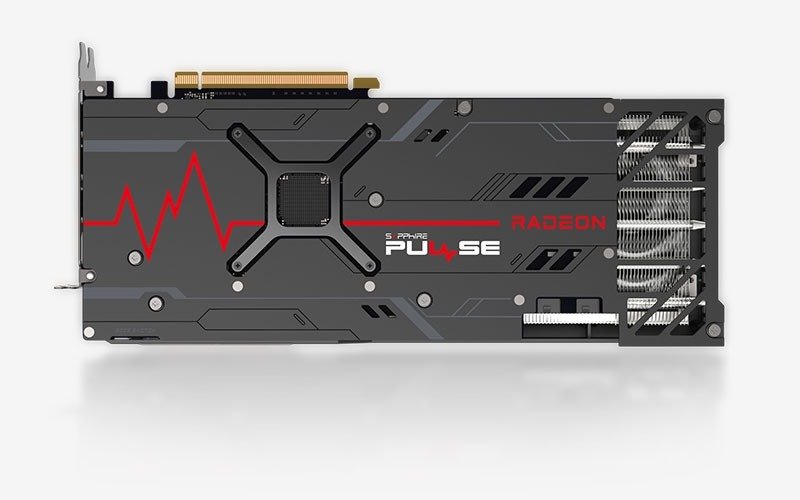

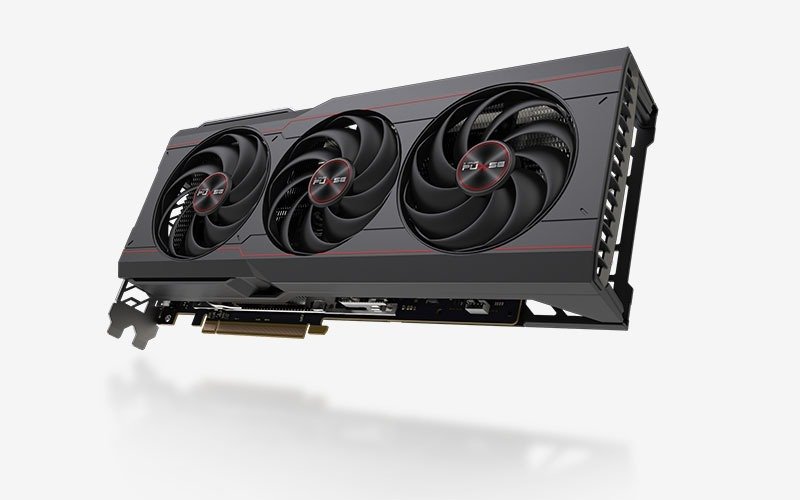

SAPPHIRE PULSE AMD Radeon™ RX 6800 XT
The SAPPHIRE PULSE AMD Radeon™ RX 6800 XT yields robust 4K gaming performance at the optimal budget. Push your limits with high refresh rate competitive gaming and streamlined designs for incredible performance and efficiency powered by AMD's visionary RDNA2 architecture. SAPPHIRE's renowned components like the dual ball bearing fans, fuse protection and dual BIOS ensure a quality and reliability. The remarkable SAPPHIRE Tri-X Cooling Technology powered by two fans on the outside and the middle fan with reverse spinning direction secures a low temperature and low noise solution. These efficient cooling solutions alongside the all-aluminum aesthetic backplate coupled with our SAPPHIRE exclusive TriXX Boost builds a mix of incredible performance and stability with the PULSE AMD Radeon™ RX 6800 XT. Take your gaming to the next level with the PULSE AMD Radeon™ RX 6800 XT as the beating heart of your PC!
AMD RDNA™ 2 Architecture
Engine Clock
• Boost Clock: Up to 2170 MHz
• Game Clock: Up to 1950 MHz
Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
Stream Processors
3840
Infinity Cache
128MB
Ray Accelerators
60
Memory Size/Bus
16GB GDDR6
Memory Clock
16 Gbps Effective
Displays
Maximum 4 Displays
Resolution
• HDMI™: 7680×4320
• DisplayPort1.4: 7680×4320
Interface
PCI-Express 4.0
Output
• 1x HDMI
• 3x DisplayPort
Sapphire Radeon RX 6800 XT PULSE 16GB Graphics Card
General | |
|---|---|
| Device Type | Graphics card |
| Bus Type | PCI Express 4.0 |
| Graphics Engine | AMD Radeon RX 6800 XT |
| Boost Clock | 2310 MHz |
| Process Technology | 7 nm |
| VR Ready | Yes |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 4 |
| Interfaces | HDMI ¦ 3 x DisplayPort |
| API Supported | DirectX 12 Ultimate |
| Features | Dual Bios, Three Fans Cooler, Unlocked Digital Power, UEFI BIOS, Sapphire Tri-X Cooling Technology, Intelligent Fan Control (IFC), FreeSync Technology, Sapphire Backplate, fuse protection, 2.7-slot Fan Cooler, Precision Fan Control, Radeon Image Sharpening, Radeon Anti-Lag, AMD FidelityFx, TriXX Boost, TriXX Supported, RDNA 2 Architecture, AMD Infinity Cache, Dual ball Bearing Fans |
Memory | |
| Size | 16 GB |
| Technology | GDDR6 SDRAM |
| Memory Speed | 16 Gbps |
System Requirements | |
| OS Required | Linux (64-bit), Microsoft Windows 7 / 8.1 / 10 (64 bit) |
| Min RAM Size | 8 GB |
| Required Power Supply | 750 W |
| Additional Requirements | 2 x 8 pin PCI Express power connector |
Miscellaneous | |
| Power Consumption Operational | 350 Watt |
| Compliant Standards | DisplayPort 1.4 |
| Width | 5.34 cm |
| Depth | 31.3 cm |
| Height | 13.48 cm |
