Red Devil Evolution, a Game Changer
With a new outlook, the Red Devil RX 6800 is paired with an entirely new advanced cooling solution to keep your graphics card running in low temperatures while providing a remarkably high-performance gaming experience. Apart from the new cooling system, Red Devil has been updated with RGB lighting on the side, shroud, and back of the card to present the perfect aesthetic design.
A Wise Choice for Gaming Enthusiasts
The PowerColor Red Devil RX 6800 features a new design with triple fans (100mm x 90mm x 100mm), a 320mm cooler with 7 heatpipes, and a large copper base improves heat transfer and dissipation from the GPU and the VRAMs to provide ultra-efficient cooling. The Red Devil RX 6800 is also equipped with a state-of-the-art PCB design utilizing a 10+2 phase VRM with DrMOS, high polymer capacitors, and two 8-pin PCI-E connectors will power the PowerColor RX 6800 Red Devil.
Two Ball Bearing - 4X greater longevity
The cooling fan utilizes two-ball bearing technology, increasing the longevity of the fans by up to 4 times.
Mute Fan Technology - 0db –Silent gaming
Mute Fan Technology intelligently turns off the fan below 60?, providing silent gaming during medium and low load while reducing power consumption.
Exclusive New Cooling-Fan Design, Advanced Cooling Solution
Compared with previous generation, PowerColor Red Devil RX 6800 Graphics Card uses an exclusive new cooling-fan design to increase airflow and air pressure by up to 60%, achieving new level of thermal performance.
Dominant Triple-Fan Cooler for Ultimate Gaming Experience
Red Devil RX6800 equips an advanced and outstanding cooler with 3X8Φ and 4X6Φ nickel plated copper heatpipes to ensure the efficiency of heat spread to the heatsink. More fin arrays on the heatsink enlarges the surface area for even more heat dissipation and performance.
Vertical Aluminum Fin Design
The vertical design and increased array of aluminum fins improves heat spread dramatically. With a massive array of fins, the copper heatpipes can collect heat and dissipate it with maximum efficiency.
Copper Base Direct Touch
A smooth copper base directly contacts to the GPU to enhance exceptional heat transfer, and improves heat dissipation from the VRAMs to keep the card in the optimum cooling condition.
Dual BIOS
With the flip of a switch, you can choose OC Mode which allows you to easily handle top-of-the-line games by pushing the limit of the power and performance, while Silent Mode provides an excellent quiet-gaming experience.
RGB
With the new exquisite look, choose your unique RGB effect through the Devil Zone RGB software. Additionally, simply plugging an ARGB LED cable in a motherboard will allow for the Red Devil RGB light to be seamlessly synced with motherboard that enables you immerse yourself in a unique aesthetic atmosphere.
Reinforced Back Plate
The metal back plate is extremely rigid to strengthen the card to prevent PCB bending, and the hollow area allows heat release promptly to enhance airflow.
Output LED
No flashlight needed when plugging in the output! LED illuminated ports will easily lead you to the outputs you are looking for.

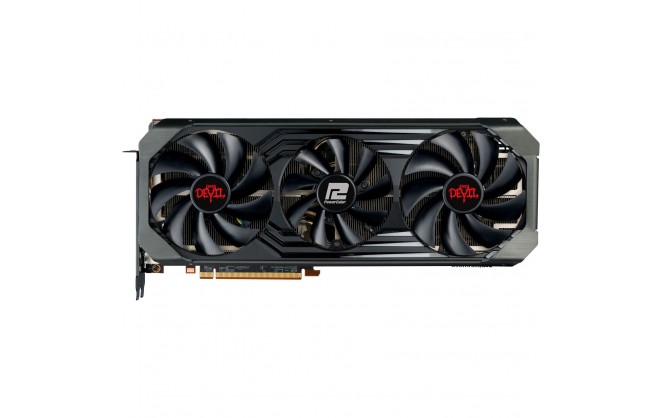

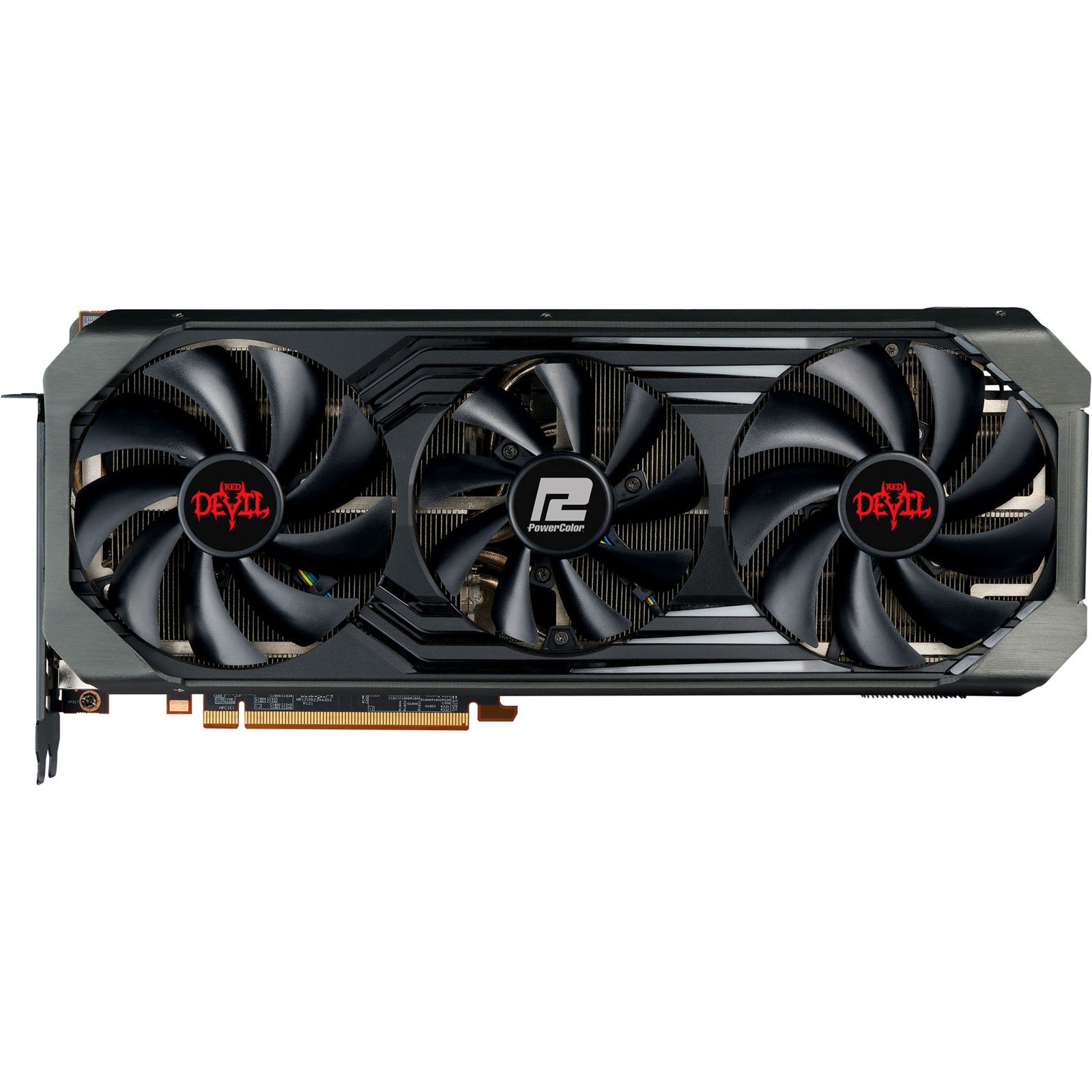

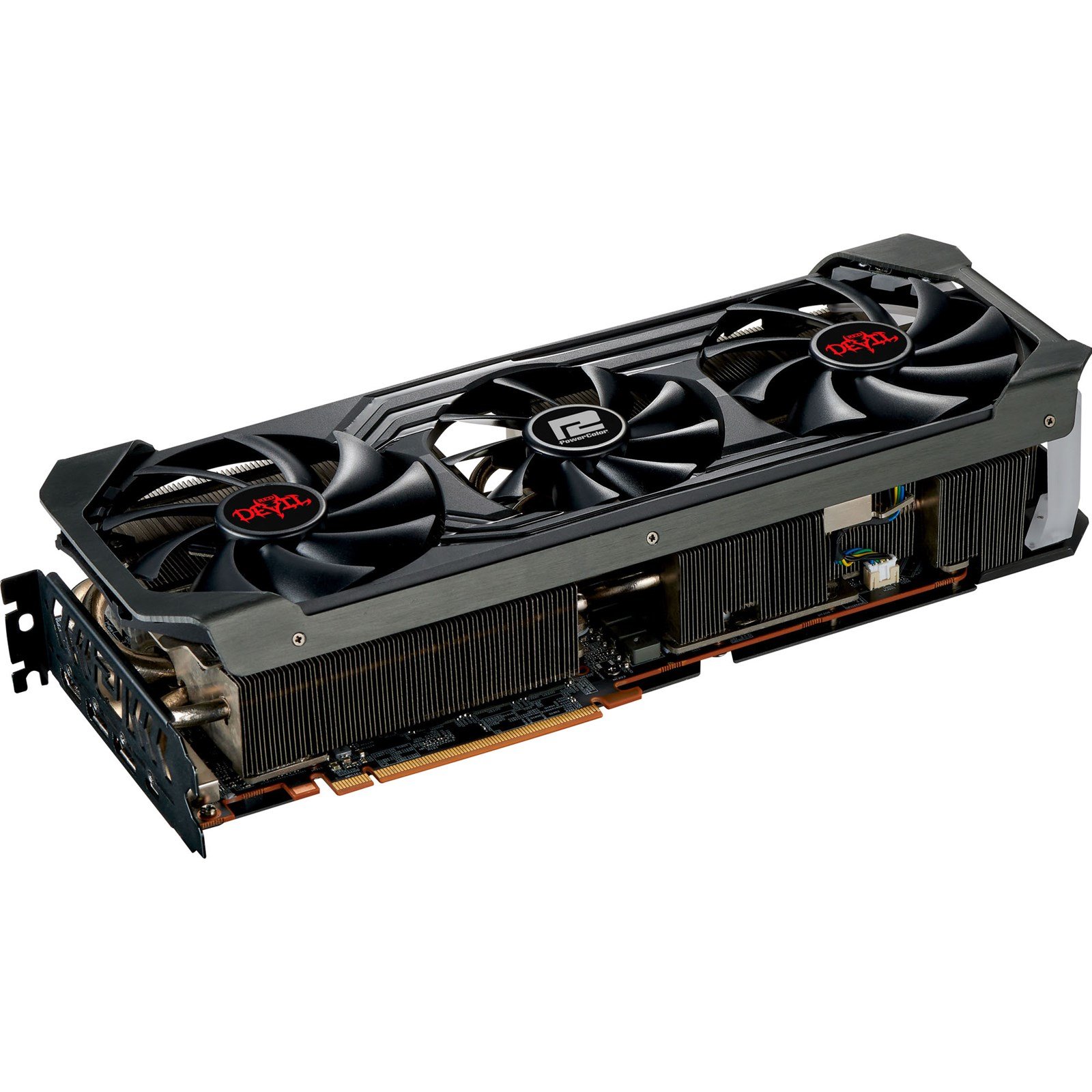

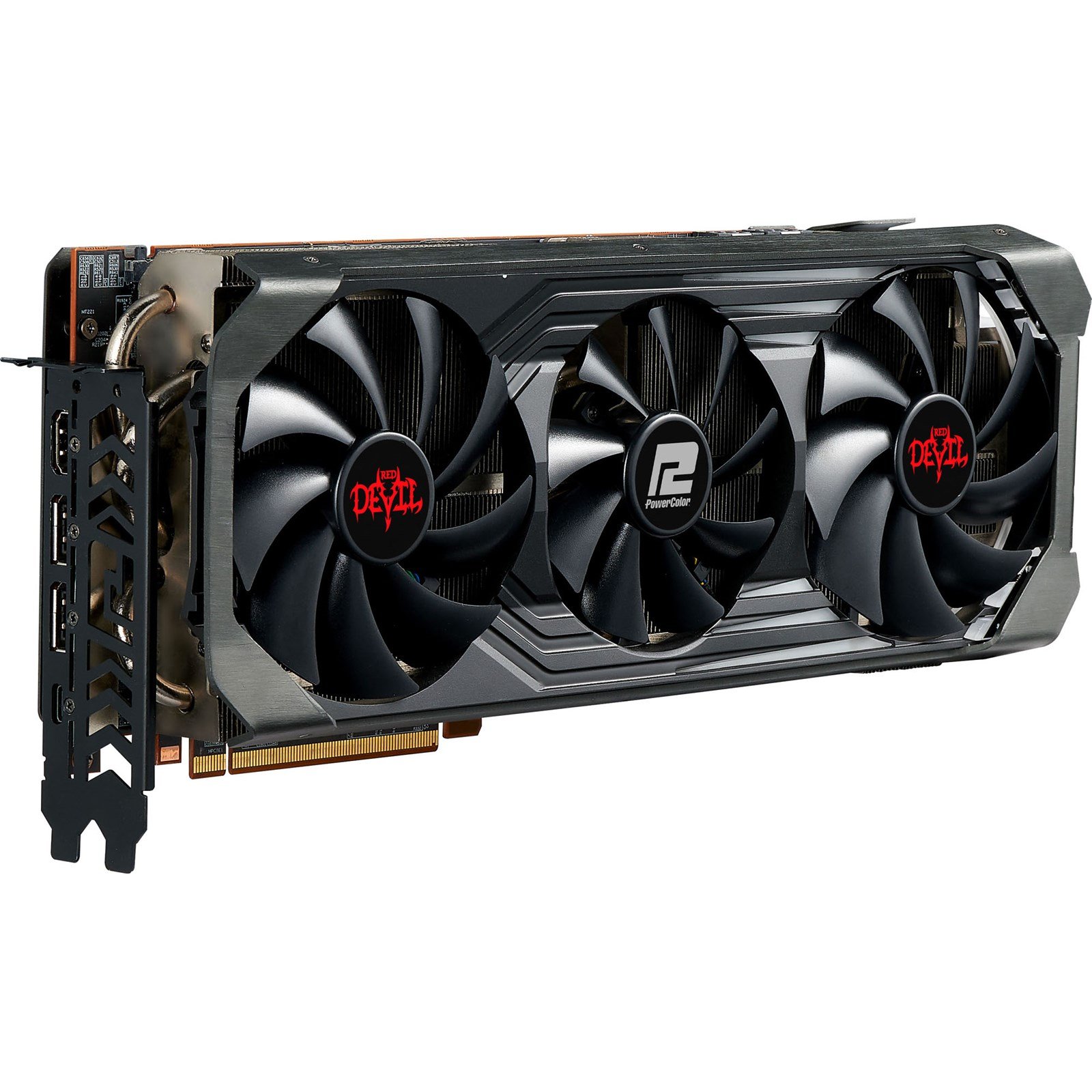

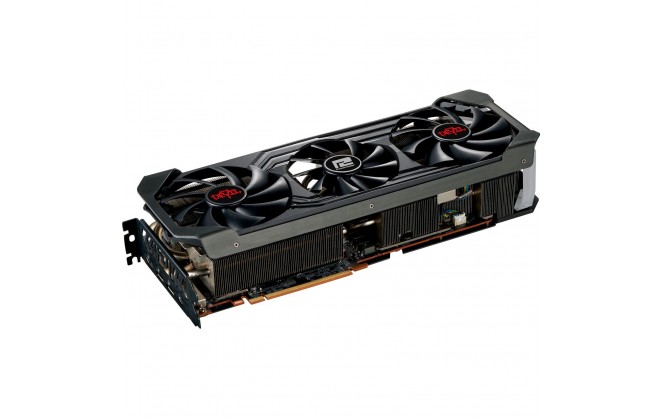

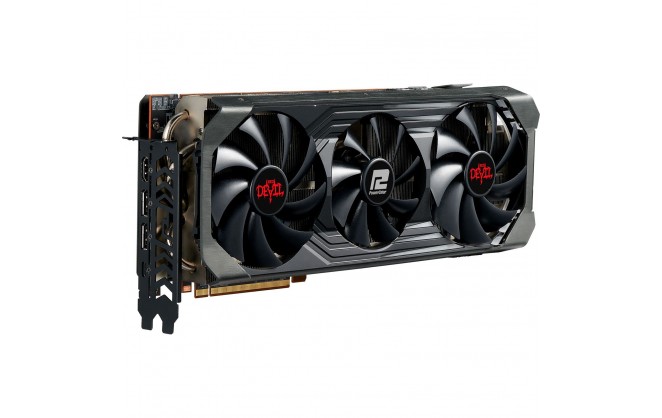

PowerColor Radeon RX 6800 Red Devil 16GB OC GPU
GPU
| Chipset Manufacturer | AMD |
| Chipset Model Name | Radeon RX |
| Chipset Model Number | 6800 |
| Chipset Additional Information | Red Devil OC |
| Chip Clock | Up to 2140 MHz |
Storage
| Memory Size | 16384 MB |
Memory
| Memory Clock | 16 Gbps |
| Memory Type | GDDR6 |
| Memory Width | 256 bit |
Interfaces/Ports
| Video Card Bus Type | PCI Express |
| Video Card Bus Version | 4.0 16 |
| HDMI Port | 1 x HDMI 2.1 |
| DisplayPort | 3 x DisplayPort 1.4 |
System Requirements
| System Requirements | 1 x PCI Express 4.0 x16 slot Minimum 750W PSU with 2 x 8-pin PCIe connectors |
Resolution
| Multiple Monitor Support (Max) | Yes (4) |
| Maximum Resolution | 7680 x 4320 pixels |
Physical
| Form Factor | Graphics Card |
| In The Box | Graphics Card Addressable RGB LED Cable Quick Installation Guide |
| Width | 62 mm (Triple Slot) |
| Depth | 320 mm |
| Height | 135 mm |
Warranty
| Warranty | 3 Years |
Key Features
| Interface Type | PCI Express 4.0 x16 |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| Graphics Usability | Gaming |
| DisplayPort Connection | Yes |
| Direct X Support | Direct X 12 |
| Cooler Type | Dynamic Fan |
| Low Profile | No |
| AMD Radeon | RX 6800 |
| PCI-E Pin Type | 8-Pin + 8-Pin |
| FreeSync | Yes |
| Cooling Technology | Dynamic Fan |
| VR Ready | AMD |
| GPU Length | 320 mm |
| Card Width | Triple Slot |
Graphics
| Graphics Chipset | Radeon RX 6800 |
Item Details
| Manufacturer | PowerColor |
| Manufacturer Code | AXRX 6800 16GBD6-3DHE/OC |
| EAN | 4713436173151 |
| Condition | New |
