The GeForce® RTX 2060 SUPER™ is powered by the award-winning NVIDIA Turing™ architecture, bringing superfast all-around performance and graphics to every gamer and creator. It’s time to gear up and get super powers.

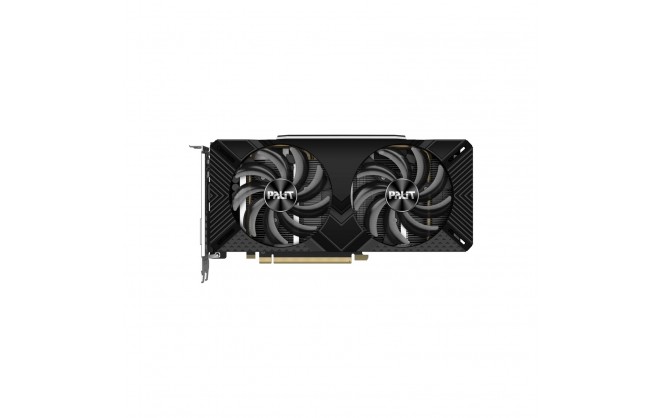

Dual Fan
A Dual Fan design offers double the cooling performance, and combined with the 9CM-9CM Smart Fans, heat is effectively drawn away from hot spots.
DrMOS
DrMOS, originally only available for high-end server CPUs, is now available in all its glory in the next generation of Palit graphics cards. DrMOS offers high current circuits, low noise operation, and effective reduction of heat generating.

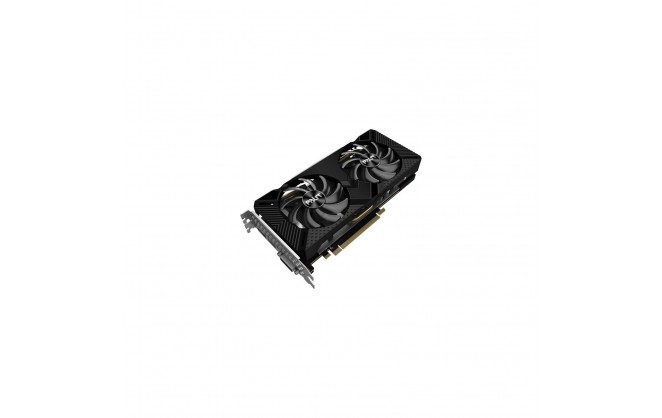

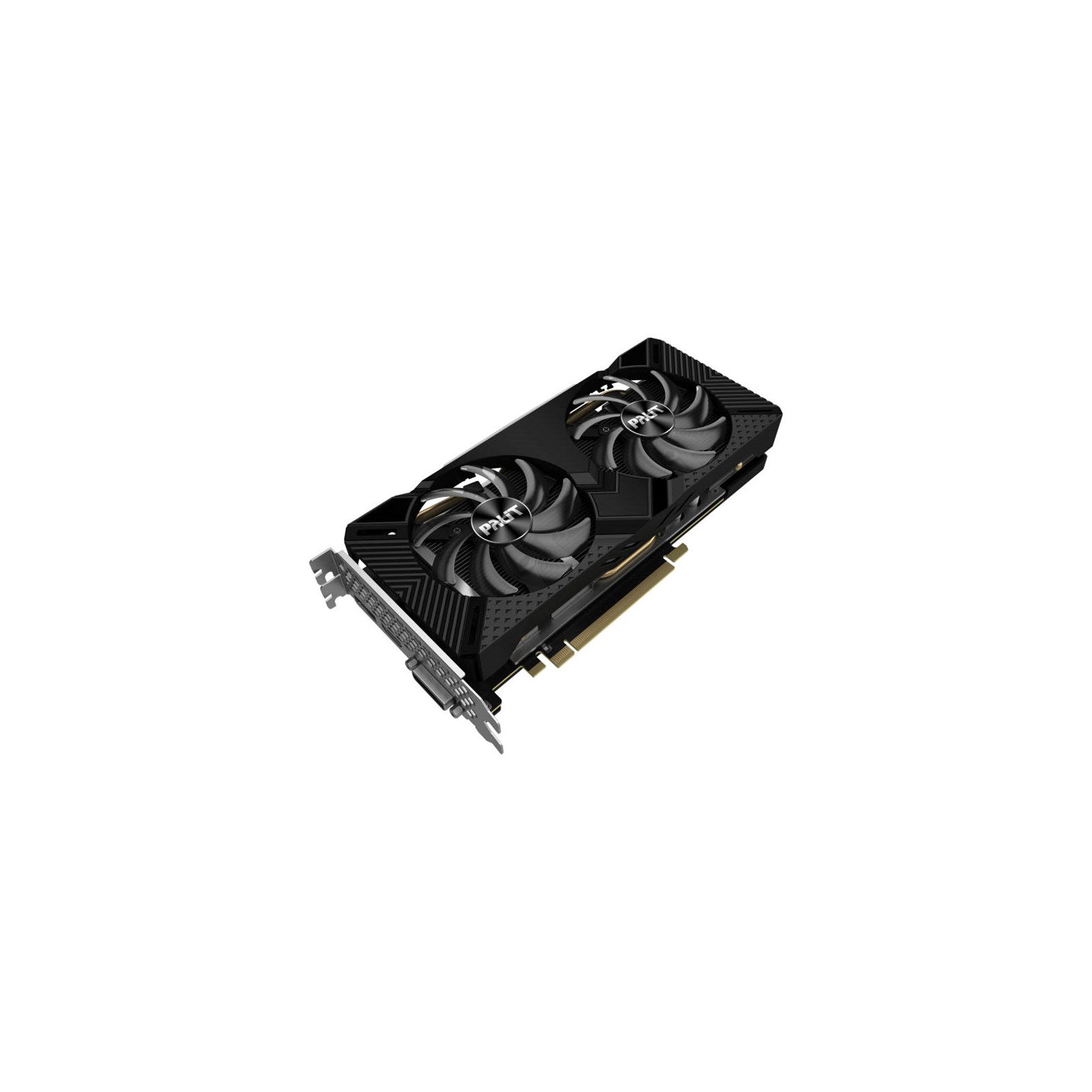

Palit GeForce RTX 2060 SUPER Dual 8GB GPU
GPU
| Chipset Manufacturer | NVIDIA |
| Chipset Model Name | GeForce RTX |
| Chipset Model Number | 2060 SUPER |
| Chipset Additional Information | DUAL |
| Base Chip Clock | 1470 MHz |
| Boost Chip Clock | 1650 MHz |
| Number of Cores | 2176 cores |
| Graphics Core | CUDA |
Memory
| Memory Size | 8192 MB |
| Memory Clock | 14 Gbps |
| Memory Type | GDDR6 |
| Memory Width | 256 bit |
| Memory Bandwidth | 448 GB/s |

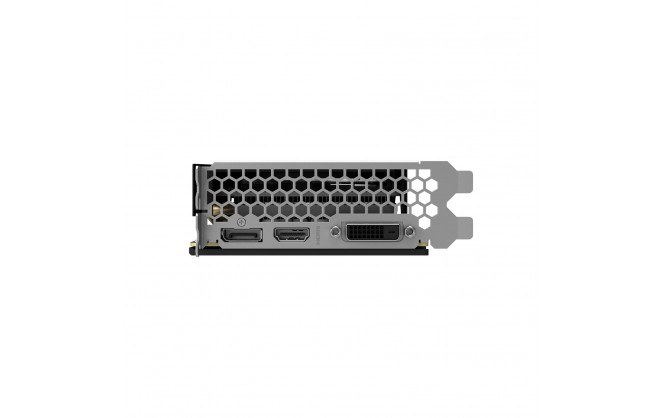

Interfaces/Ports
| Video Card Bus Type | PCI Express |
| Video Card Bus Version | 3.0 x16 |
| HDMI Port | 1 x HDMI 2.0b |
| DisplayPort | 1 x DisplayPort 1.4a |
| DVI Port | 1 x DVI-D Dual Link |
Resolution
| Multiple Monitor Support (Max) | Yes (3) |
| Maximum Resolution | 7680 x 4320 pixels |
System Requirements
| System Requirements | 1 x PCI Express 3.0 x16 slot Recommended 550W PSU with 1 x 8-pin PCIe connector |
Electrical
| Power Connector | 1 x 8-pin PCIe |
| Power Consumption | Up to 175 W |
| Recomended Power Supply | 550 W |
Physical
| Form Factor | Graphics Card |
| In The Box | Graphics Card Manual |
| Width | 40 mm (Dual Slot) |
| Depth | 235 mm |
| Height | 112 mm |
Warranty
| Warranty | 3 Years |
Key Features
| Interface Type | PCI Express 3.0 x16 |
| VGA Connection | No |
| DVI Connection | Yes |
| HDMI Connection | Yes |
| Graphics Usability | Gaming |
| DisplayPort Connection | Yes |
| Direct X Support | Direct X 12 |
| Cooler Type | Dynamic Fan |
| Low Profile | No |
| NVIDIA GeForce | RTX 2060 SUPER |
| PCI-E Pin Type | 8-Pin |
| Cooling Technology | Dynamic Fan |
| VR Ready | NVIDIA |
| GPU Length | 235 mm |
| Card Width | Dual Slot |
Graphics
| Graphics Chipset | GeForce RTX 2060 SUPER |
Graphics Device
| G-Sync | Yes |
Compatibility
| Lite Hash Rate | No |
Item Details
| Manufacturer | Palit |
| Manufacturer Code | NE6206S018P2-1160A-1 |
| EAN | 4710562242560 |
| Condition | New |
