ARM YOURSELF FOR THE FINAL BLOW
MECH brings a performance-focused design that maintains the essentials to accomplish any task at hand.
Rocking a trusted dual fan arrangement laid into a rigid industrial design lets this sharp looking graphics card fit into any build.
BACKPLATE
A clean-looking brushed-finish backplate reinforces the length of the card.
DUAL FAN DESIGN
TORX FAN 3.0
The award-winning MSI TORX Fan 3.0 design keeps the limits of thermal performance tuning. Fan blades alternate between traditional blads and dispersion blads that focus and accelerate airflow into the heatsink.
ZERO FROZR
Zero Frozr is the calm before the storm. The fans completely stop when temperatures are relatively low, eliminating all noise when active cooling is unneeded. The fans will automatically start spinning again when the heat is on during gaming.
THERMAL PADDING
Ample amounts of thermal pads allow various board components to transfer heat directly to the heatsink for better cooling.
TOUGH ENOUGH TO BACK YOU UP!
MECH has been crafted to serve you well during intense gameplay. This legendary item has extra power unlocked through the Custom PCB.
BETTER SAFE THAN SORRY
Additional fuses built into the custom PCB provide additional safeguards against electrical damage.
FORGED FROM ENHANCED MATERIALS
An enhanced PCB material design with 2oz thickened copper increases conductivity, improving heat dissipation, and high-performance reliability.
TRACES OF BRILLIANCE
TAILORED PCB DESIGN
Not all circuit boards are created equal. A custom PCB Design provides greater reliability and beefed up power circuitry for pushing the card to its limits.

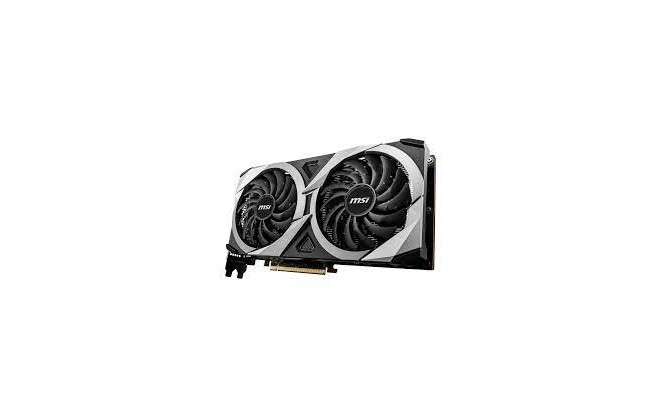

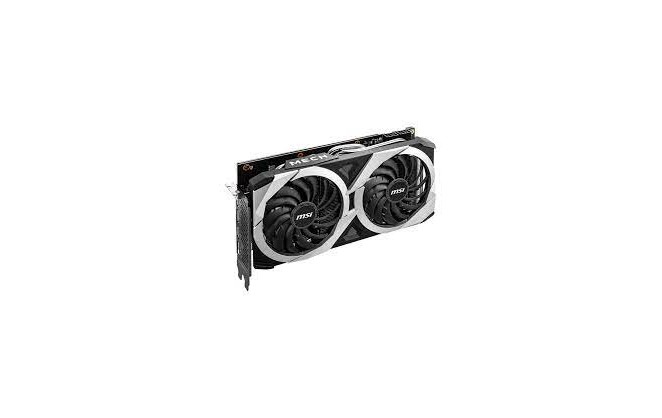

MSI Radeon RX 6700 XT MECH 2X 12GB OC GPU
GPU
| Chipset Manufacturer | AMD |
| Chipset Model Name | Radeon RX |
| Chipset Model Number | 6700 XT |
| Chipset Additional Information | MECH 2X OC |
Storage
| Memory Size | 12288 MB |
Memory
| Memory Clock | 16 Gbps |
| Memory Type | GDDR6 |
| Memory Width | 192 bit |
Interfaces/Ports
| Video Card Bus Type | PCI Express |
| Video Card Bus Version | 4.0 x16 |
| HDMI Port | 1 x HDMI 2.1 |
| DisplayPort | 3 x DisplayPort 1.4 |
System Requirements
| System Requirements | 1 x PCI Express 4.0 x16 slot Recommended 650W PSU with 2 x 8-pin PCIe connectors |
Resolution
| Multiple Monitor Support (Max) | Yes (4) |
| Maximum Resolution | 7680 x 4320 pixels |
Physical
| Form Factor | Graphics Card |
| In The Box | Graphics Card |
| Width | 51 mm (Triple Slot) |
| Depth | 247 mm |
| Height | 131 mm |
| Weight | 921 g |
Warranty
| Warranty | 3 Years |
Key Features
| Interface Type | PCI Express 4.0 x16 |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| Graphics Usability | Gaming |
| DisplayPort Connection | Yes |
| Direct X Support | Direct X 12 |
| Cooler Type | Dynamic Fan |
| Low Profile | No |
| AMD Radeon | RX 6700 XT |
| PCI-E Pin Type | 8-Pin + 8-Pin |
| FreeSync | Yes |
| Cooling Technology | Dynamic Fan |
| VR Ready | AMD |
| GPU Length | 247 mm |
| Card Width | Triple Slot |
Graphics
| Graphics Chipset | Radeon RX 6700 XT |
Item Details
| Manufacturer | MSI |
| Manufacturer Code | RX 6700 XT MECH 2X 12G OC |
| EAN | 4719072806613 |
| UPC | 824142245163 |
| Condition | New |
