Powered by NVIDIA Blackwell, GeForce RTX™ 50 Series GPUs bring game-changing capabilities to gamers and creators. Equipped with a massive level of AI horsepower, the RTX 50 Series enables new experiences and next-level graphics fidelity. Multiply performance with NVIDIA DLSS 4, generate images at unprecedented speed, and unleash your creativity with NVIDIA Studio.

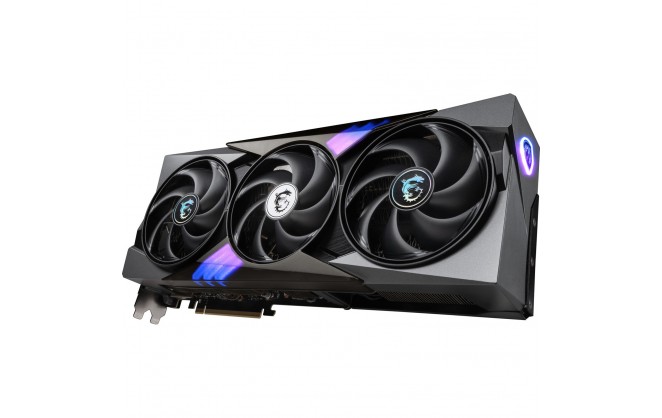

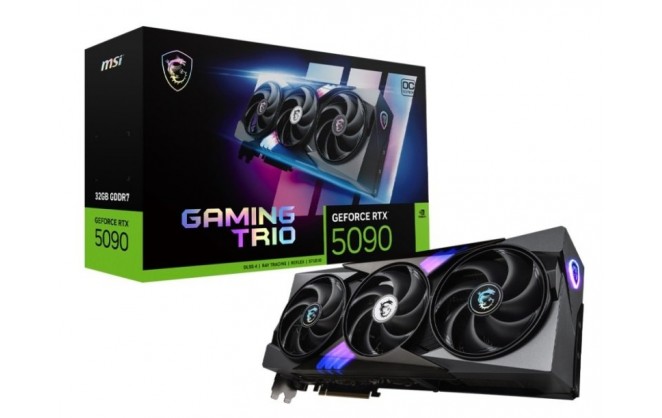

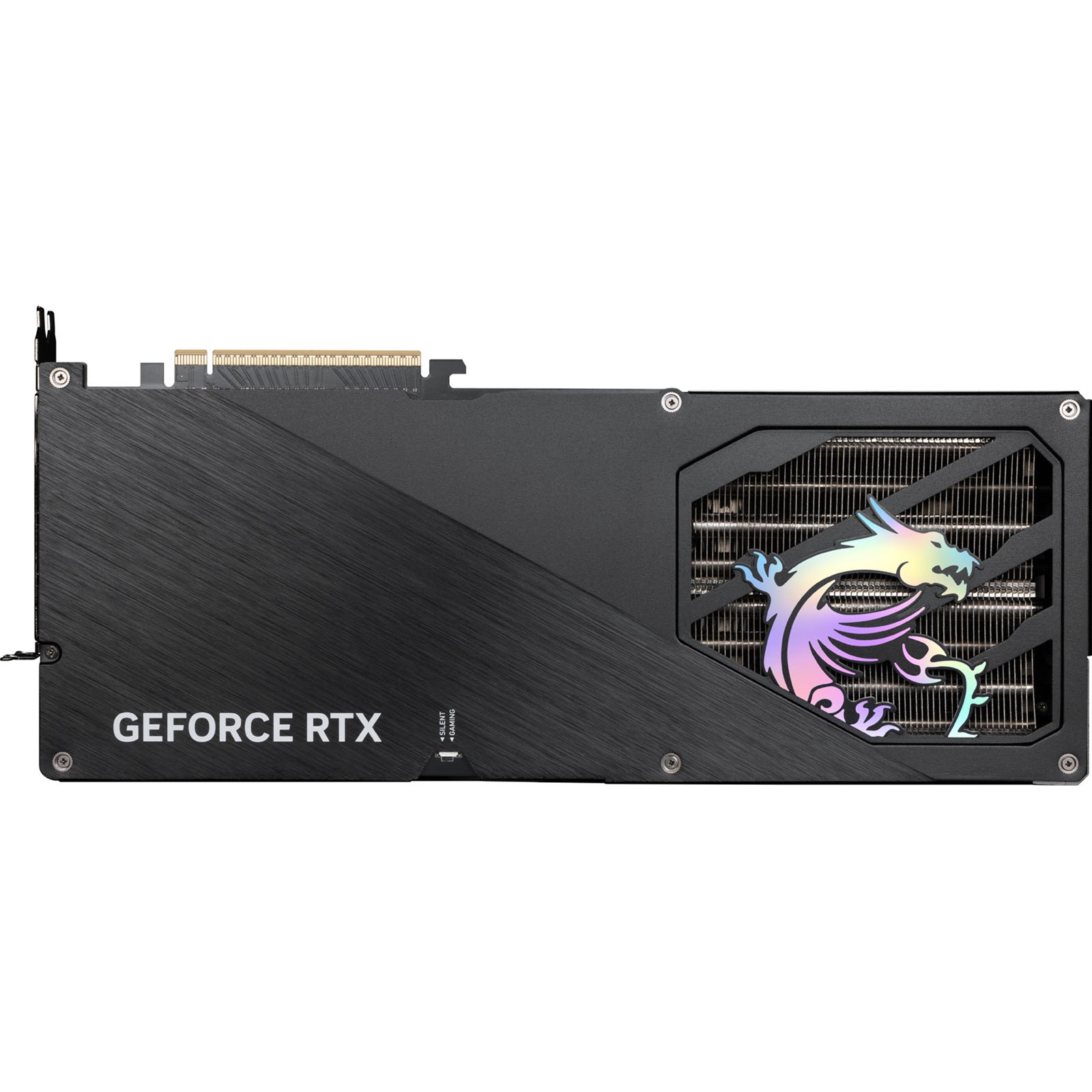

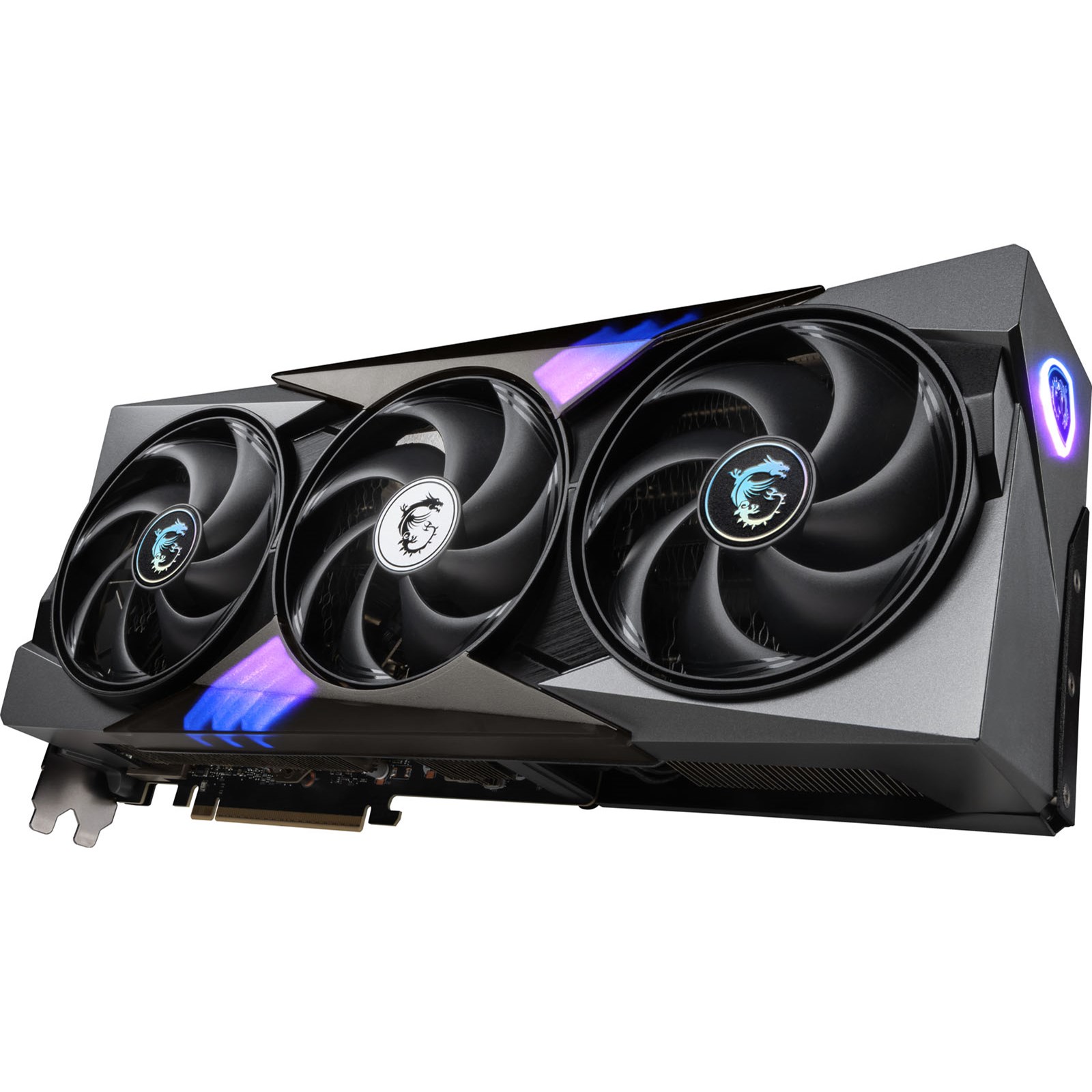

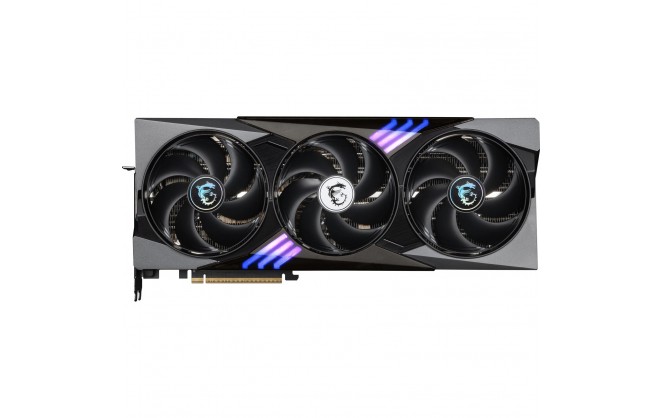

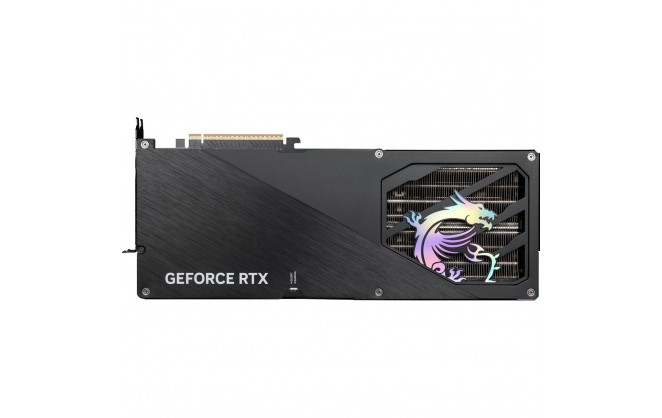

MSI GeForce RTX 5090 GAMING TRIO OC 32GB GDDR7 Graphics Card
GPU
| Chipset Manufacturer | NVIDIA |
| Chipset Model Name | GeForce RTX |
| Chipset Model Number | 5090 |
| Chipset Additional Information | GAMING TRIO OC |
| Base Chip Clock | 2017 MHz |
| Graphics Core | CUDA |
| Number of Cores | 21760 |
Memory
| Memory Size | 32768 MB |
| Memory Clock | 28 Gbps |
| Memory Type | GDDR7 |
| Memory Width | 512 bit |
| Memory Bandwidth | 1.79 TB/s |
Interfaces/Ports
| Video Card Bus Type | PCI Express |
| Video Card Bus Version | 5.0 x16 |
| HDMI Port | 1 x HDMI 2.1b |
| DisplayPort | 3 x DisplayPort 2.1a |
Resolution
| Multiple Monitor Support (Max) | Yes (4) |
| Maximum Resolution | 7680 x 4320 |
System Requirements
| System Requirements | 1 x PCI Express 5.0 x16 slot |
Electrical
| Power Connector | 1 x 12V-2x6 or 4 x 8-pin PCIe |
| Power Consumption | 575 W |
| Recomended Power Supply | 1000 W |
Physical
| Form Factor | Graphics Card |
| In The Box | Graphics Card |
| Width | 70 mm (3.5 slot) |
| Depth | 359 mm |
| Height | 149 mm |
Warranty
| Warranty | 3 Years |
Key Features
| Interface Type | PCI Express 5.0 x16 |
| Config Gaming x8 (CB/CCL) | No |
| Graphics Memory Type | GDDR7 |
| Main Colour | Black |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| Graphics Usability | Gaming |
| DisplayPort Connection | Yes |
| Direct X Support | Direct X 12 |
| Cooler Type | Dynamic Fan Inc. 0dB Mode |
| Low Profile | No |
| NVIDIA GeForce | RTX 5090 |
| PCIe Pin Type | 12+4-Pin (16-Pin) |
| Cooling Technology | Dynamic Fan Inc. 0dB Mode |
| VR Ready | NVIDIA |
| GPU Length | 359 mm |
| Card Width | 4 |
| Power Requirement (auto) | 575 W |
| GPU Power (TDP) | 575 W |
| Graphics card count | 1 |
| PCI Express Power Pins (female) | 32 |
| PCIe Physical Slot required | 16 |
| 12VHPWR 16-pin Connector | Yes |
| AI Ready | Yes |
| 12V-2x6 Rating | 600W |
Graphics
| Graphics Chipset | GeForce RTX 5090 |
Graphics Device
| G-Sync | Yes |
Item Details
| Manufacturer | MSI |
| Manufacturer Code | RTX 5090 32G GAMING TRIO OC |
| EAN | 4711377302456 |
