MSI GeForce RTX 5060 Ti VENTUS 2X PLUS OC 16GB GDDR7 Graphics Card

  • Part Number: RTX 5060 Ti 16G VENTUS 2X OC PLUS
  • Manufacturer: MSI
  • Quickfind Code: 125888

  • Stock: In Stock

£354.16 ex. vat
£424.99 inc. vat


Product Features:
  • Condition: New
  • GPU RTX 5060 Ti
  • Capacity 16GB
  • Connection PCI-E
  • Memory Type GDDR7
  • Series RTX
  • GPU Manufacturer Nvidia
+ Read More Information

Share:

Product Description

TAKE THE ESSENTIALS

VENTUS focuses on the essentials to tackle any challenge. Its efficient thermal solution is encased in a resilient enclosure with a neutral aesthetic, allowing this sleek graphics card to integrate seamlessly into any build.

DUAL-FAN THERMAL DESIGN

Two fans on a large heatsink ensure great cooling performance with a quieter experience.

Main Features

  • Powered by the NVIDIA Blackwell architecture and DLSS 4
  • SFF-Ready Enthusiast GeForce Card
  • STORMFORCE FAN: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
  • Heat Pipes designed for efficient heat transfer, the heat pipes effectively draw thermal energy away from the GPU, improving overall cooling performance.

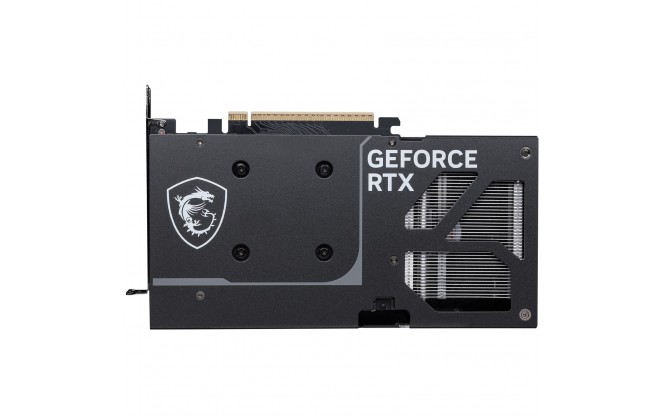

  • Metal Backplate: A sturdy metal backplate strengthens the graphics card while the airflow vent design reduces excess heat.
  • MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
  • Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.
Technical Specification

MSI GeForce RTX 5060 Ti VENTUS 2X PLUS OC 16GB GDDR7 Graphics Card

GPU

Chipset ManufacturerNVIDIA
Chipset Model NameGeForce RTX
Chipset Model Number5060 Ti
Chipset Additional InformationVENTUS 2X OC PLUS
Boost Chip Clock2602 MHz
Graphics CoreCUDA
Number of Cores4608

Memory

Memory Size16384 MB
Memory Clock28 Gbps
Memory TypeGDDR7
Memory Width128 bit
Memory Bandwidth448 GB/s

Interfaces/Ports

Video Card Bus TypePCI Express
Video Card Bus Version5.0 x8
HDMI Port1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1b

Resolution

Multiple Monitor Support (Max)Yes (4)
Maximum Resolution7680 x 4320

System Requirements

System Requirements1 x PCI Express 5.0 x16 slot

Electrical

Power Connector1 x 8-pin PCIe
Power Consumption180 W

Physical

Form FactorGraphics Card
In The BoxGraphics Card
Width41 mm (Dual Slot)
Depth227 mm
Height127 mm
Weight600 g

Warranty

Warranty3 Years

Key Features

Interface TypePCI Express 5.0 x8
Graphics Memory TypeGDDR7
Main ColourBlack
VGA ConnectionNo
DVI ConnectionNo
HDMI ConnectionYes
Graphics UsabilityGaming
DisplayPort ConnectionYes
Direct X SupportDirect X 12
Cooler TypeDynamic Fan Inc. 0dB Mode
Low ProfileNo
NVIDIA GeForceRTX 5060 Ti
PCIe Pin Type6+2-Pin
Cooling TechnologyDynamic Fan Inc. 0dB Mode
VR ReadyNVIDIA
GPU Length227 mm
Card Width2
Power Requirement (auto)180 W
GPU Power (TDP)180 W
Graphics card count1
PCI Express Power Pins (female)8
PCIe Physical Slot required16
12VHPWR 16-pin ConnectorNo
AI ReadyYes

Graphics

Graphics ChipsetGeForce RTX 5060 Ti

Graphics Device

G-SyncYes

Item Details

ManufacturerMSI
Manufacturer CodeRTX 5060 Ti 16G VENTUS 2X OC PLUS
EAN4711377334471
UPC824142418567
