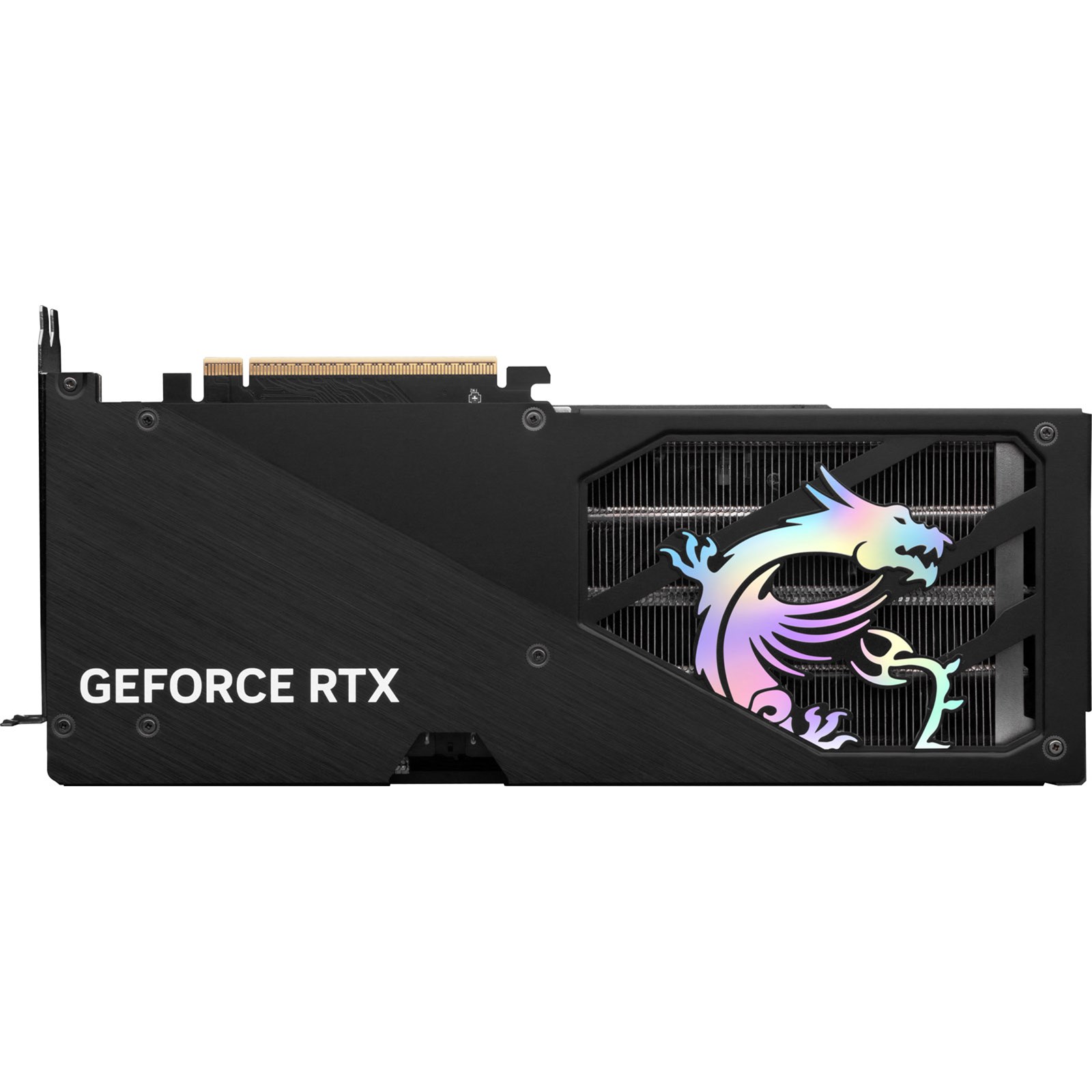

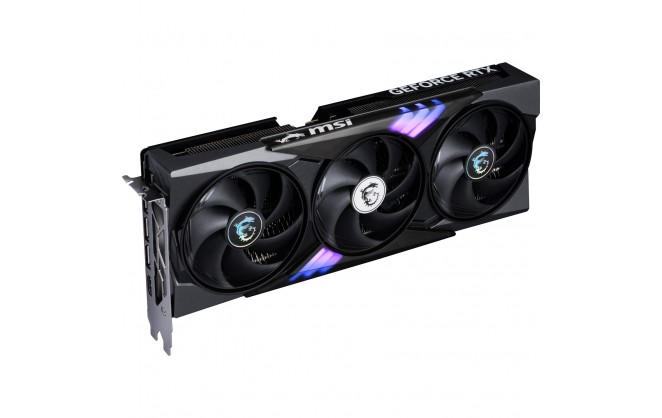

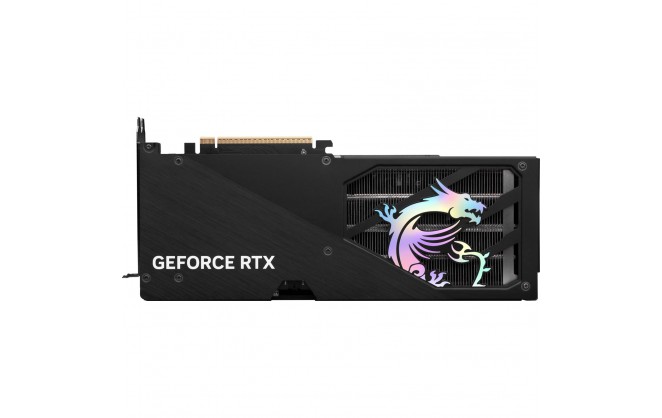

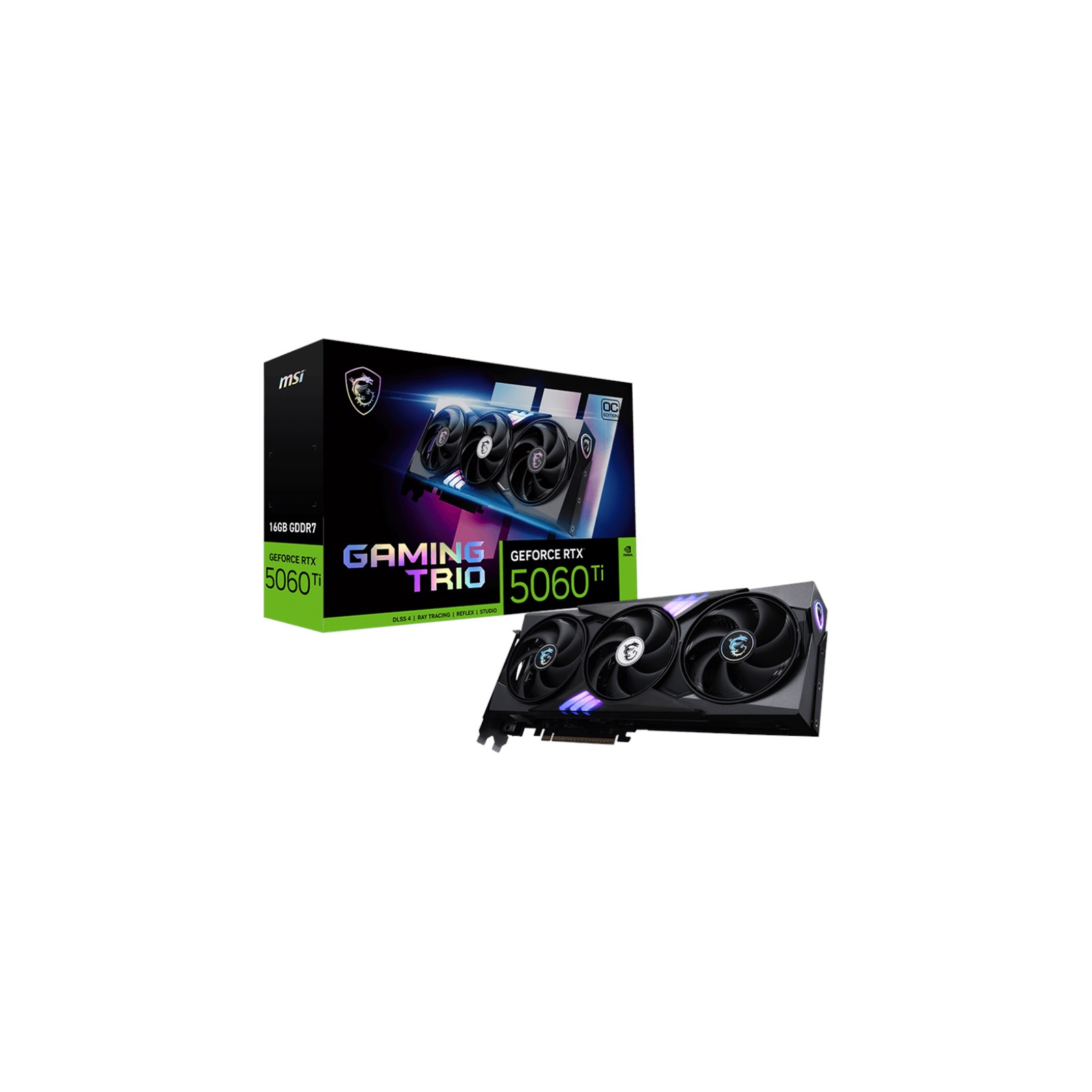

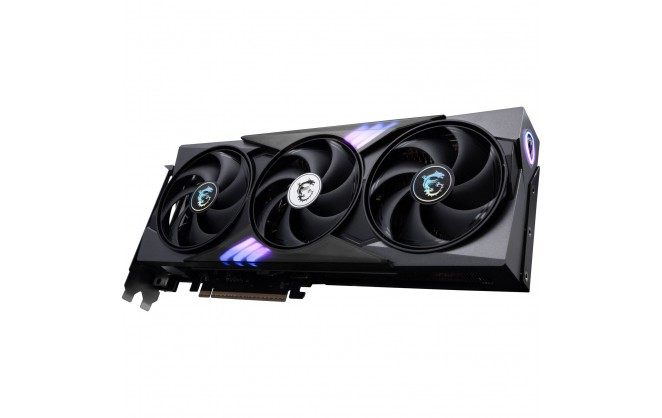

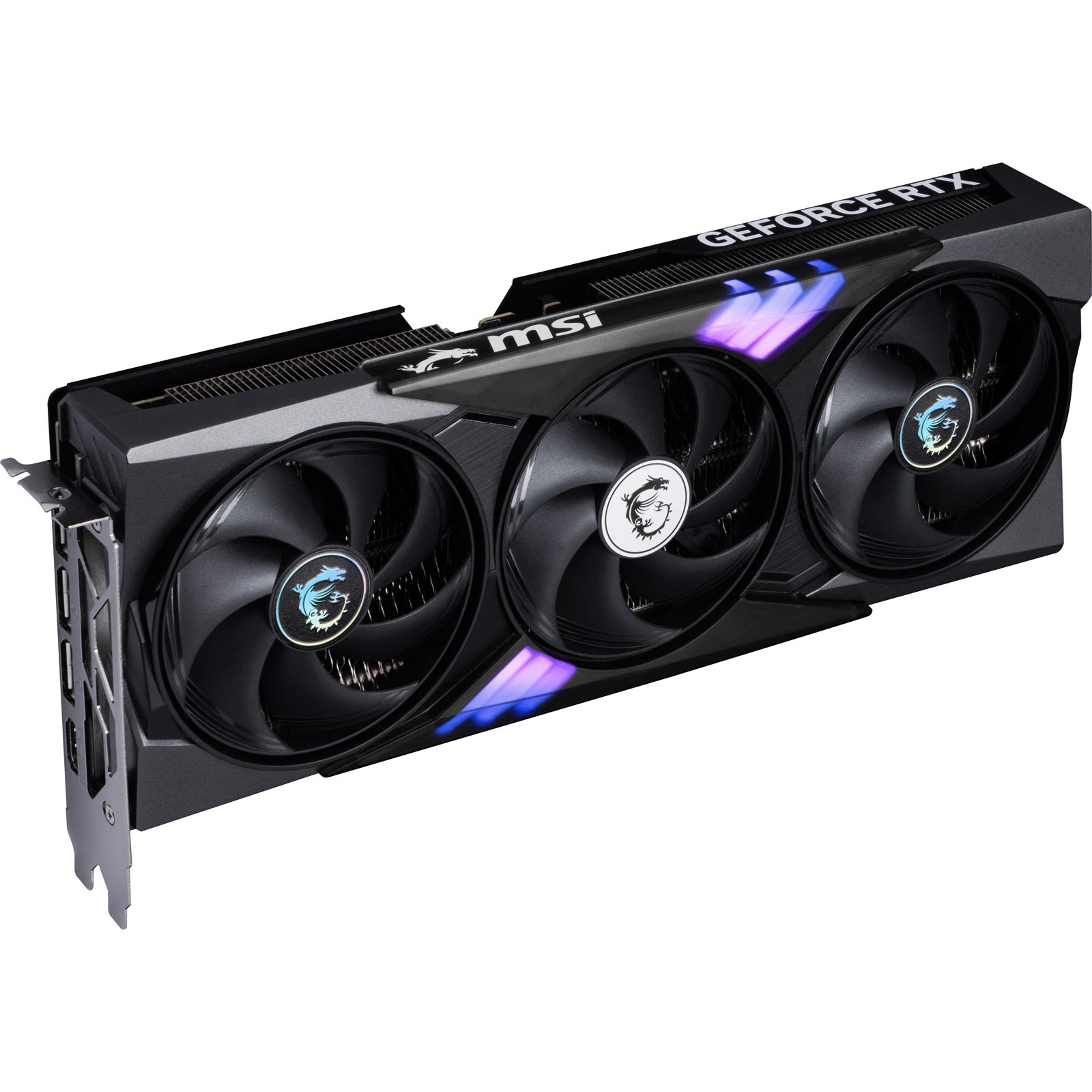

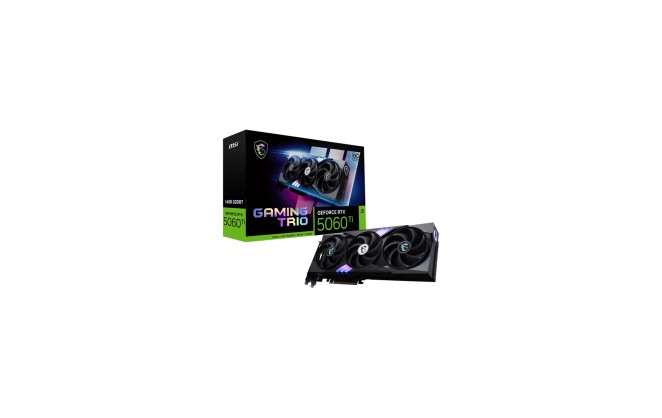

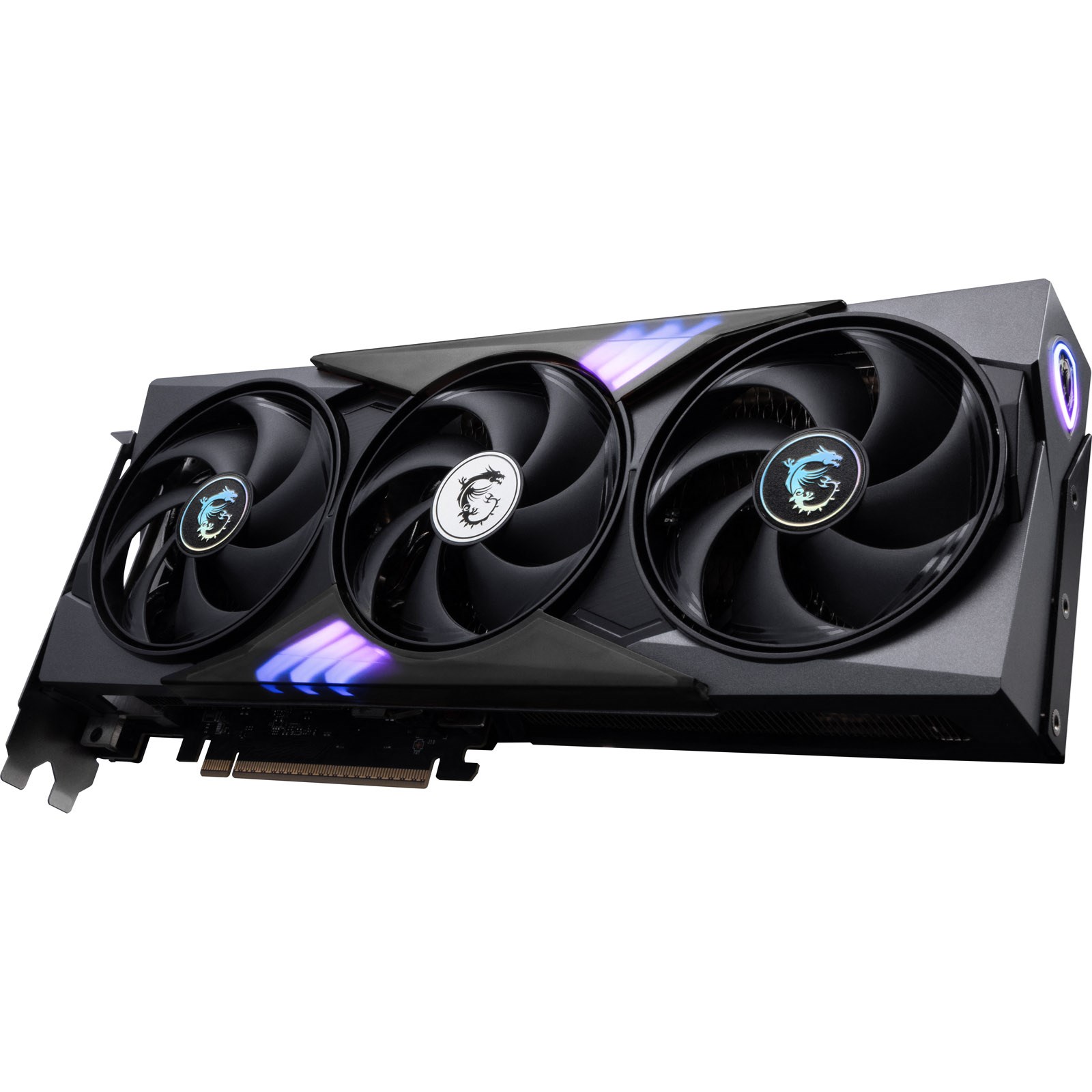

MSI GeForce RTX 5060 Ti GAMING TRIO OC 16GB GDDR7 Graphics Card

Part Number: RTX 5060 Ti 16G GAMING TRIO OC
Manufacturer: MSI
Quickfind Code: 125890

Stock: Out Stock

Contact for availability

Product Features:

Condition: New
GPU RTX 5060 Ti
Capacity 16GB
Connection PCI-E
Memory Type GDDR7
Series RTX
GPU Manufacturer Nvidia

+ Read More Information

Product Description

Fearless and bold, GAMING TRIO delivers strong performance to both gaming and content creation. It blends a fierce look with advanced cooling technologies, making it an unwavering ally on the gaming battlefield. GAMING TRIO is the ideal choice for gamers who strive to give their all.

Strength and Artistry

Building on MSI's heritage, GAMING TRIO embodies the passion of gamers with a sleek exterior that erupts with vibrant lights amidst bold lines and sharp edges. LED lighting is diffused through a frosted cover and a dragon totem that radiate energy.

TRI FROZR 4 THERMAL DESIGN

Upgraded fans, improved airflow control, and advanced thermal innovations delivering superior cooling and quieter operation that elevate the graphics card's overall performance.

Main Features

Powered by the NVIDIA Blackwell architecture and DLSS 4
SFF-Ready Enthusiast GeForce Card
TRI FROZR 4 Thermal Design: Upgraded fans, airflow control, and thermal design deliver superior cooling and quieter operation.
STORMFORCE Fan: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.
Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management.
Metal Backplate: A reinforcing metal backplate with airflow vents and thermal pads enhances cooling.
Wave Curved 4.0: Precision-engineered wave edges with a high-low fin design enhance airflow and reduce turbulence.
Air Antegrade Fin 2.0: The fins feature a V-shaped cutout and a high-low design at the airflow passthrough to optimize flow efficiency.
MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.

Technical Specification

MSI GeForce RTX 5060 Ti GAMING TRIO OC 16GB GDDR7 Graphics Card

GPU

Chipset Manufacturer	NVIDIA
Chipset Model Name	GeForce RTX
Chipset Model Number	5060 Ti
Chipset Additional Information	GAMING TRIO OC
Boost Chip Clock	2647 MHz
Graphics Core	CUDA
Number of Cores	4608

Memory

Memory Size	16384 MB
Memory Clock	28 Gbps
Memory Type	GDDR7
Memory Width	128 bit
Memory Bandwidth	448 GB/s

Interfaces/Ports

Video Card Bus Type	PCI Express
Video Card Bus Version	5.0 x8
HDMI Port	1 x HDMI 2.1b
DisplayPort	3 x DisplayPort 2.1b

Resolution

Multiple Monitor Support (Max)	Yes (4)
Maximum Resolution	7680 x 4320

System Requirements

1 x PCI Express 5.0 x16 slot

Electrical

Power Connector	1 x 12V-2x6 or 2 x 8-pin PCIe
Power Consumption	180 W

Physical

Form Factor	Graphics Card
In The Box	Graphics Card VGA Holder 1 x 12V-2x6 to 2 x 8-pin PCIe Adapter
Width	44 mm (2.2 slot)
Depth	300 mm
Height	125 mm
Weight	844 g

Warranty

3 Years

Key Features

Interface Type	PCI Express 5.0 x8
Graphics Memory Type	GDDR7
Main Colour	Black
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
Graphics Usability	Gaming
DisplayPort Connection	Yes
Direct X Support	Direct X 12
Cooler Type	Dynamic Fan Inc. 0dB Mode
Low Profile	No
NVIDIA GeForce	RTX 5060 Ti
PCIe Pin Type	12+4-Pin (16-Pin)
Cooling Technology	Dynamic Fan Inc. 0dB Mode
VR Ready	NVIDIA
GPU Length	300 mm
Card Width	2
Power Requirement (auto)	180 W
GPU Power (TDP)	180 W
Graphics card count	1
PCI Express Power Pins (female)	16
PCIe Physical Slot required	16
12VHPWR 16-pin Connector	Yes
AI Ready	Yes
12V-2x6 Rating	300W
