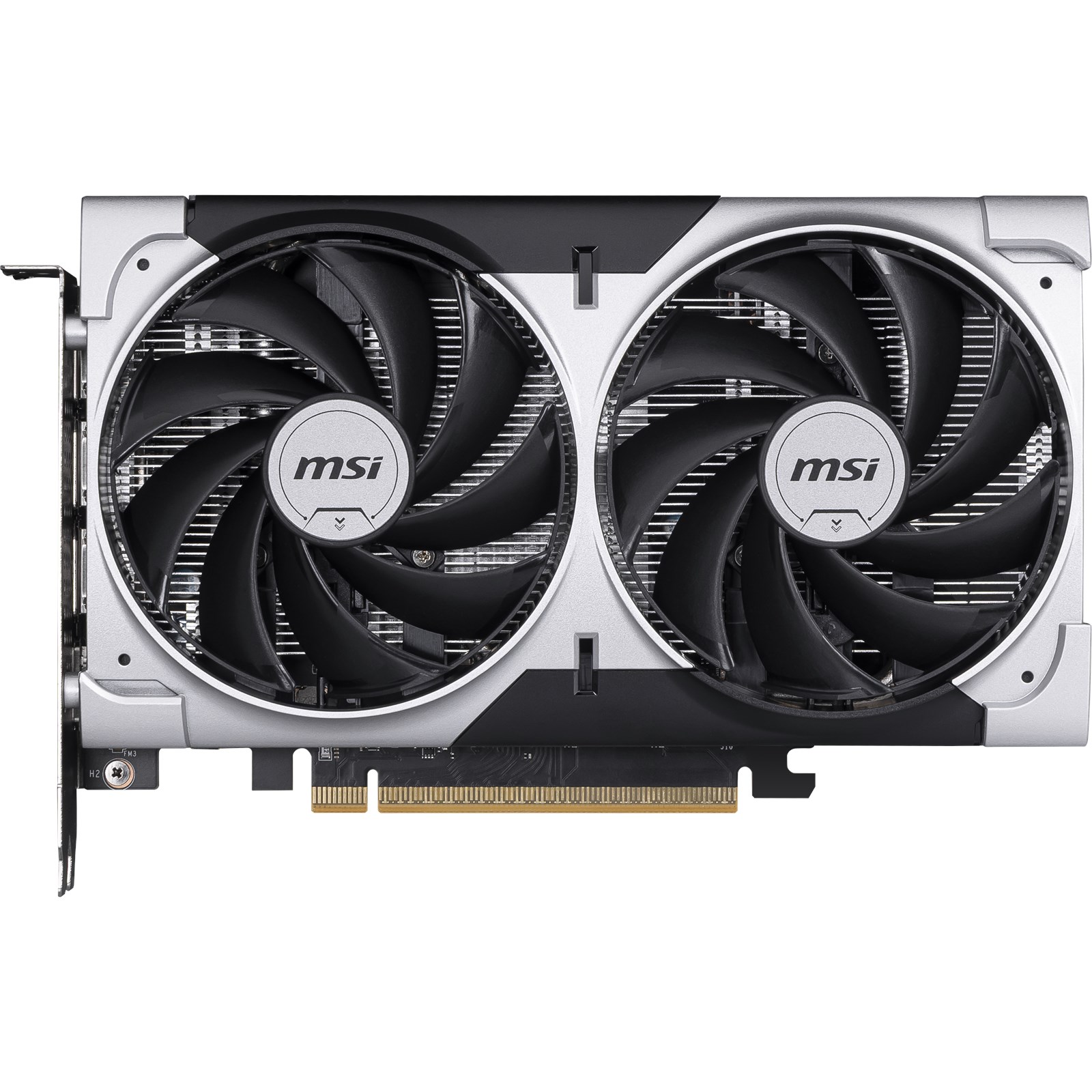

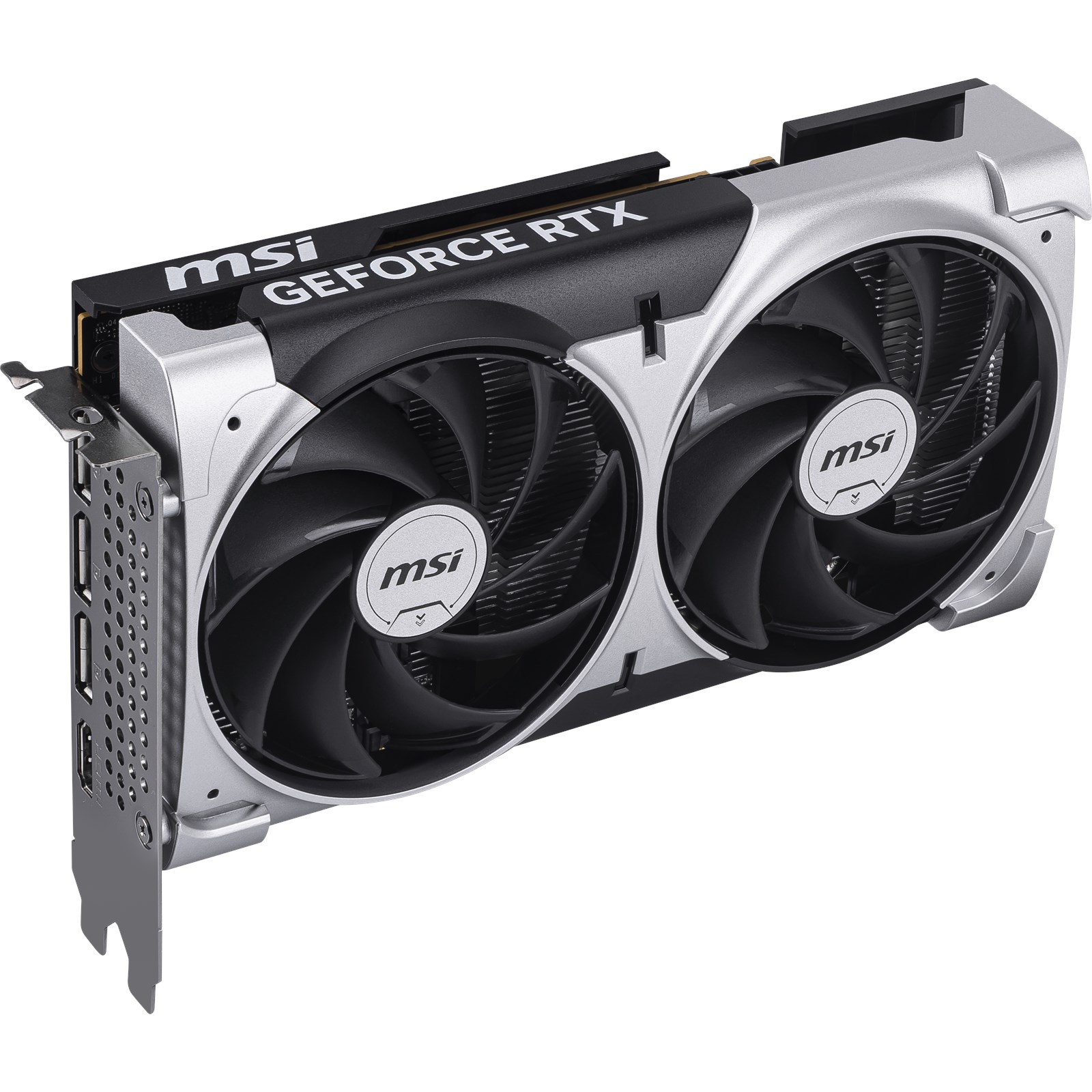

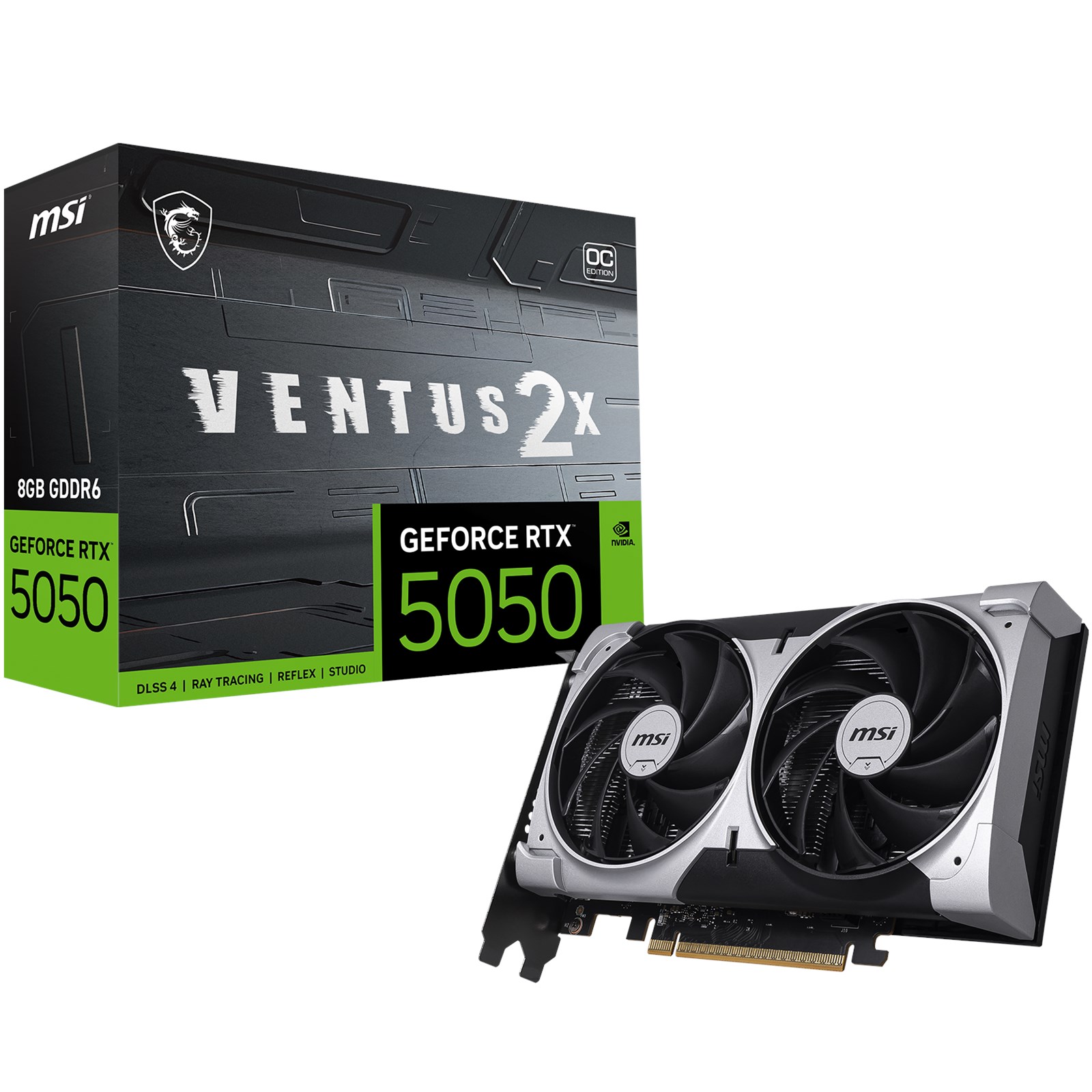

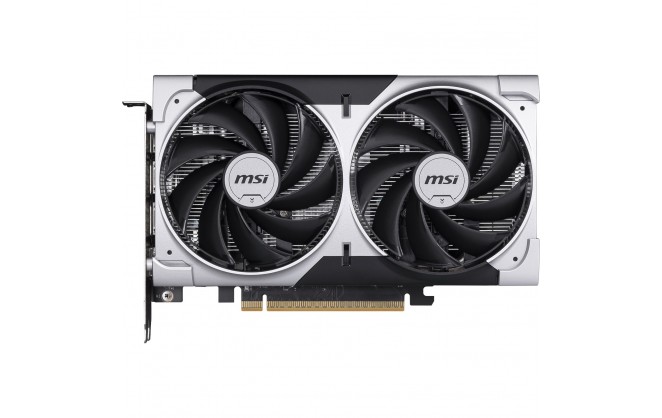

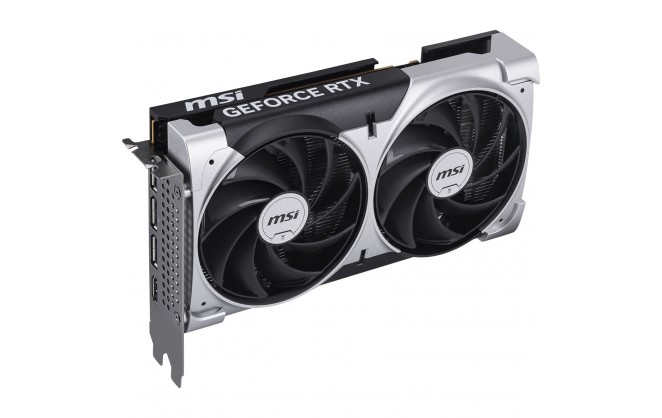

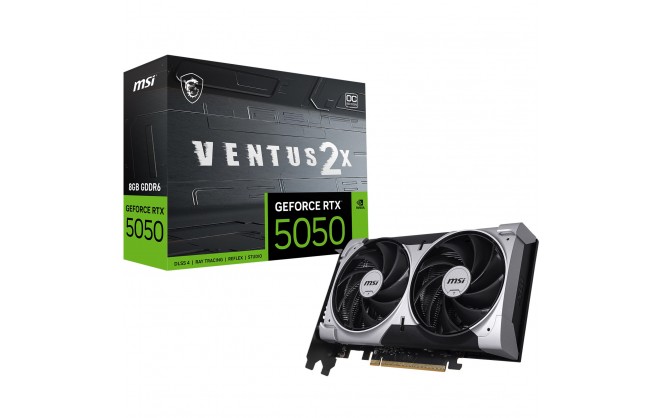

MSI GeForce RTX 5050 Ventus 2X OC 8GB GDDR6 Graphics Card

Part Number: RTX 5050 8G VENTUS 2X OC
Manufacturer: MSI
Quickfind Code: 126009

Stock: Out Stock

Contact for availability

Product Features:

Condition: New
GPU RTX 5050
Capacity 8GB
Connection PCI-E
Memory Type GDDR6
Series RTX
GPU Manufacturer Nvidia

+ Read More Information

TAKE THE ESSENTIALS

VENTUS focuses on the essentials to tackle any challenge. Its efficient thermal solution is encased in a resilient enclosure with a neutral aesthetic, allowing this sleek graphics card to integrate seamlessly into any build.

DUAL-FAN THERMAL DESIGN

Two fans on a large heatsink ensure great cooling performance with a quieter experience.

Main Features

Powered by the NVIDIA Blackwell architecture and DLSS 4
TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow.
Heat Pipe designed for efficient heat transfer, the heat pipe effectively draw thermal energy away from the GPU, improving overall cooling performance.

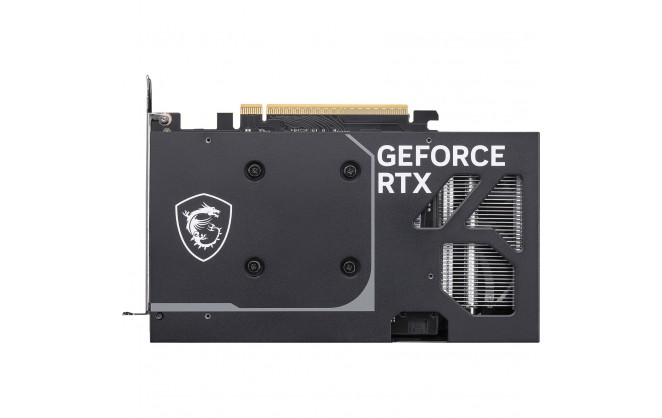

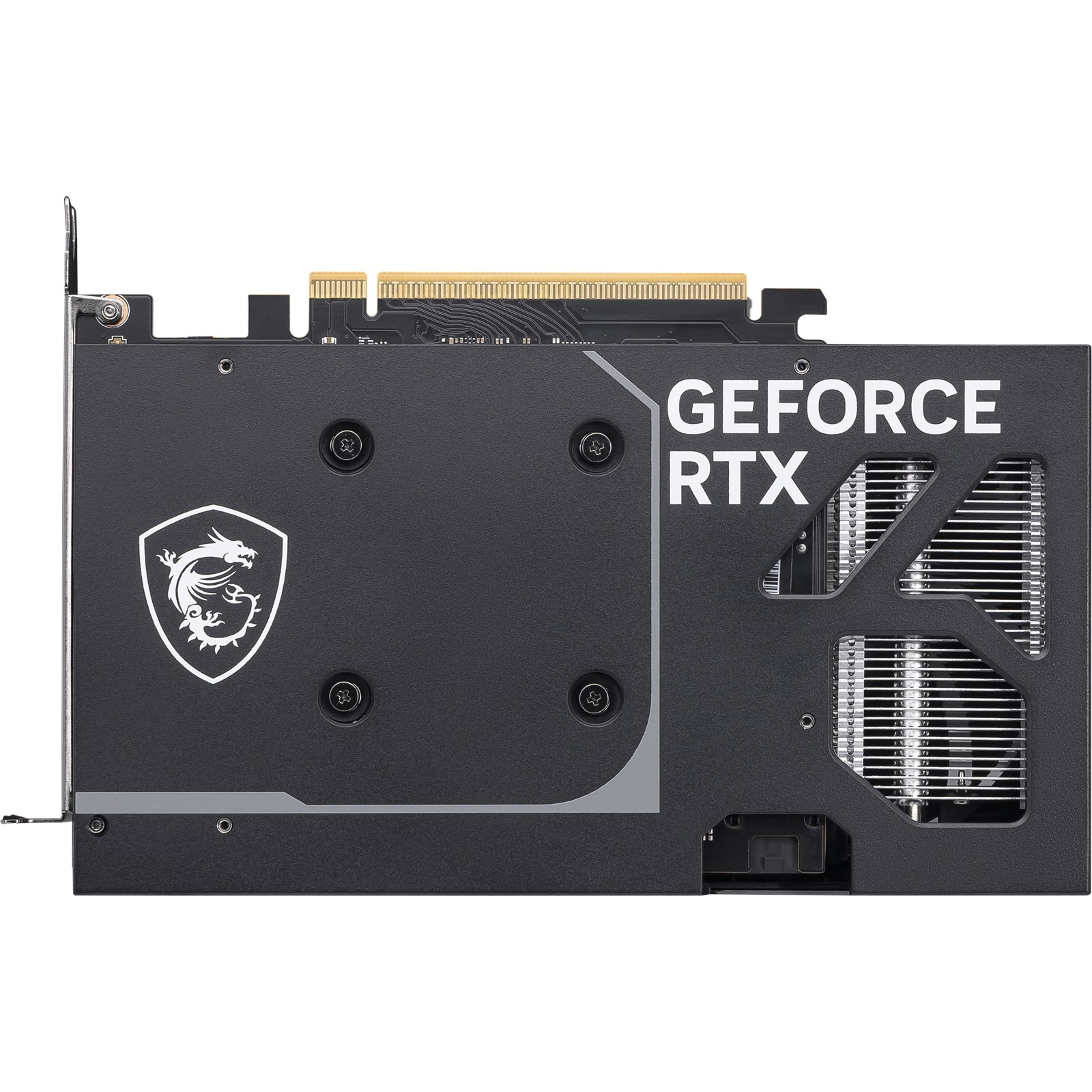

Reinforcing Backplate: The reinforcing backplate features an airflow vent that allows exhaust air to directly pass through.
MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.

Technical Specification

MSI GeForce RTX 5050 Ventus 2X OC 8GB GDDR6 Graphics Card

GPU

Chipset Manufacturer	NVIDIA
Chipset Model Name	GeForce RTX
Chipset Model Number	5050
Chipset Additional Information	VENTUS 2X OC
Boost Chip Clock	2602 MHz
Number of Cores	2560
Graphics Core	CUDA

Memory

Memory Size	8192 MB
Memory Clock	20 Gbps
Memory Type	GDDR6
Memory Width	128 bit
Memory Bandwidth	320 GB/s

Interfaces/Ports

Video Card Bus Type	PCI Express
Video Card Bus Version	5.0 x8
HDMI Port	1 x HDMI 2.1b
DisplayPort	3 x DisplayPort 2.1b

Resolution

Multiple Monitor Support (Max)	Yes (4)
Maximum Resolution	7680 x 4320

System Requirements

1 x PCI Express 5.0 x16 slot

Electrical

Power Connector	1 x 8-pin PCIe
Power Consumption	130 W
Recomended Power Supply	550 W

Physical

Form Factor	Graphics Card
In The Box	Graphics Card
Width	Dual Slot (41 mm)
Depth	197 mm
Height	120 mm
Weight	491 g

Warranty

3 Years

Key Features

Interface Type	PCI Express 5.0 x8
Config Gaming x8 (CB/CCL)	No
Graphics Memory Type	GDDR6
Main Colour	Black
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
Graphics Usability	Gaming
DisplayPort Connection	Yes
Direct X Support	Direct X 12
Cooler Type	Dynamic Fan Inc. 0dB Mode
Low Profile	No
NVIDIA GeForce	RTX 5050
PCIe Pin Type	6+2-Pin
Cooling Technology	Dynamic Fan Inc. 0dB Mode
VR Ready	NVIDIA
GPU Length	197 mm
Card Width	2
Power Requirement (auto)	130 W
GPU Power (TDP)	130 W
Graphics card count	1
PCI Express Power Pins (female)	8
PCIe Physical Slot required	16
12VHPWR 16-pin Connector	No
