Features
Boost Clock / Memory Speed
• TBD / 22.4 Gbps
• 16GB GDDR6X
• DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a)
TRI FROZR 3 Thermal Design
• TORX Fan 5.0: Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow.
• Copper Baseplate: Heat from the GPU and memory modules is captured by a copper baseplate and then rapidly transferred to Core Pipes.
• Core Pipe: A section of square-shape heat pipes make maximum contact over the GPU, then spread the heat to the heatsink.
• Airflow Control: Sections of different heatsink fins disrupt unwanted airflow harmonics and reduce noise.
Dual BIOS
• Dual BIOS gives you the choice to prioritize full performance in GAMING mode or low noise in SILENT mode.
Afterburner
• Take full control with the most recognized and widely used graphics card overclocking software in the world.
MSI Center
• The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.

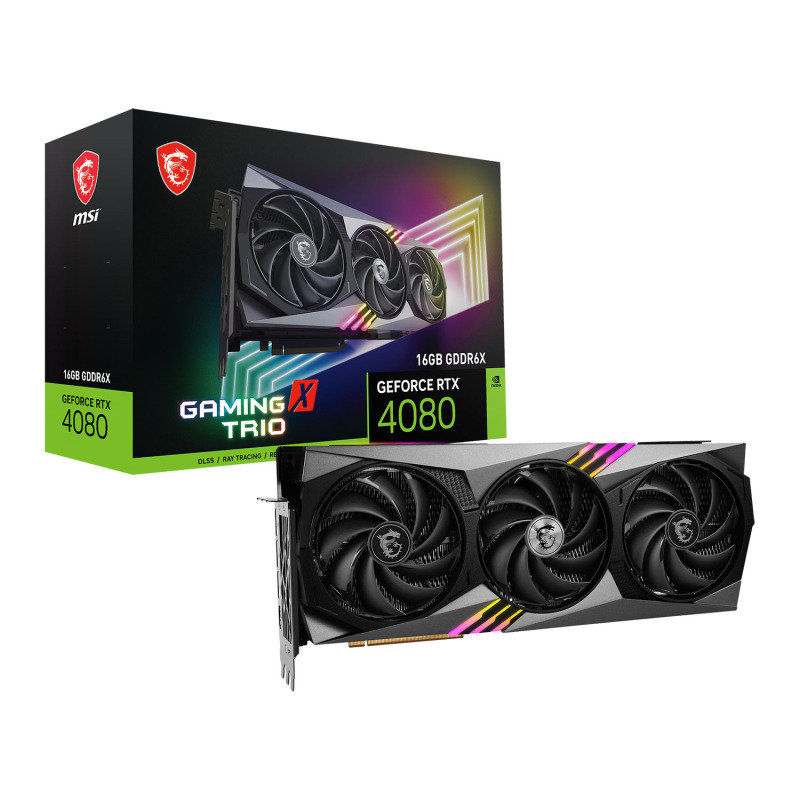

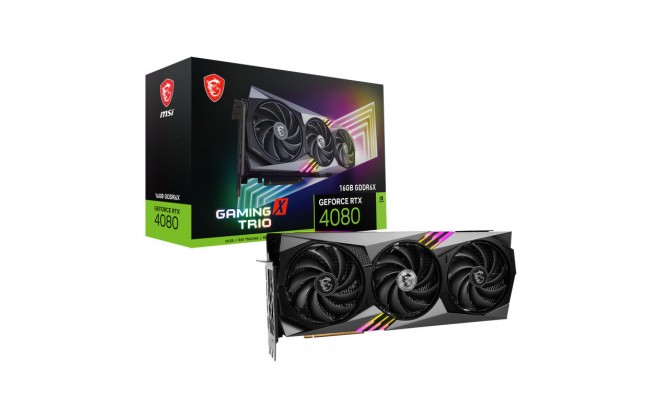

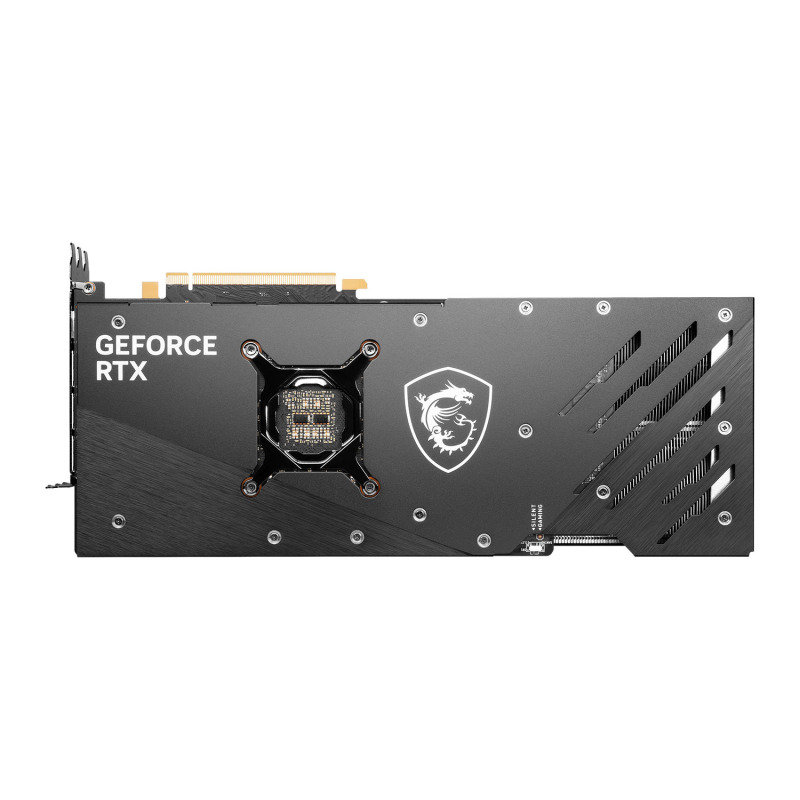

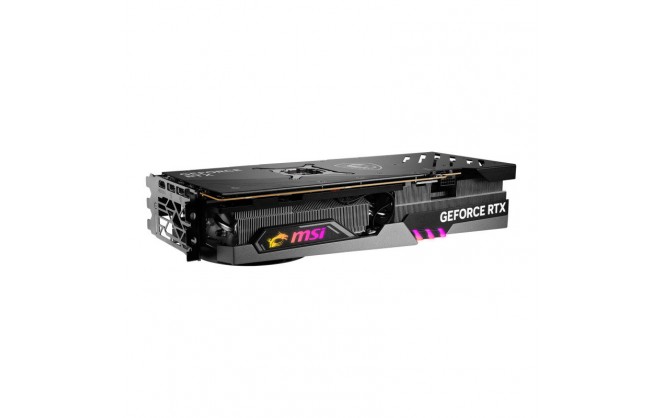

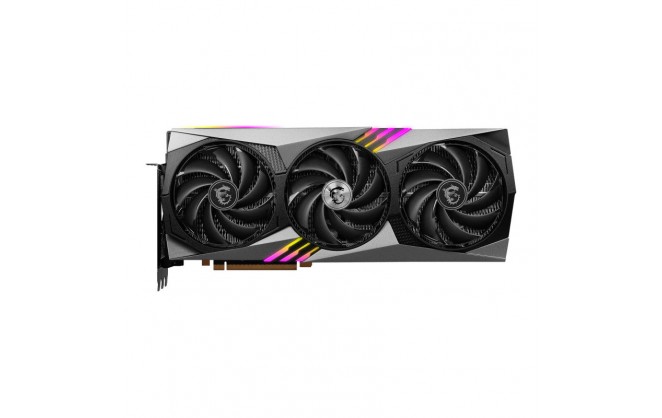

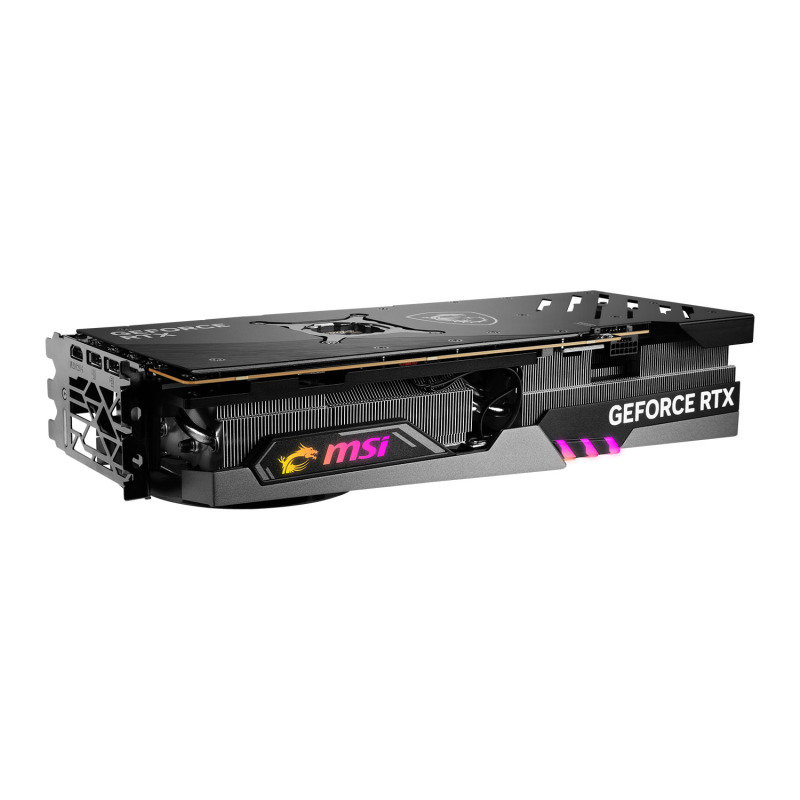

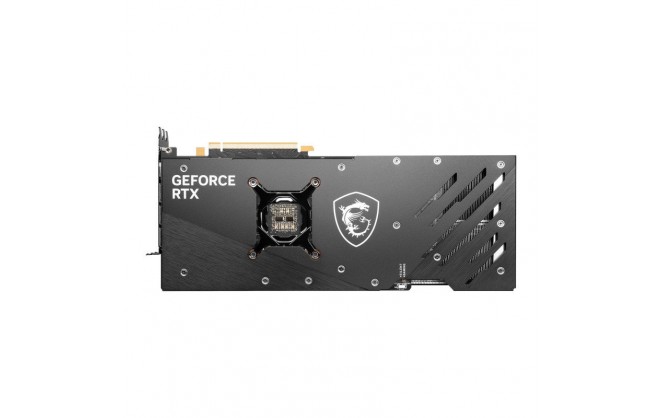

MSI GeForce RTX 4080 16GB GAMING X TRIO Graphics Card
| Key Specifications | |
|---|---|
| Chipset | GeForce RTX 4080 |
| Edition | GAMING X TRIO |
| Manufacturing process | 4 nm |
| Microarchitecture | Ada Lovelace |
| Cores & Clocks | |
|---|---|
| Cores | 9728 |
| Core Clock | |
| Boost Clock | N/A |
| Video Memory (VRAM) | |
|---|---|
| Memory Size | 16GB |
| Memory Type | GDDR6X |
| Memory Clock | 22400 MHz |
| Memory Bus | 256 Bit |
| Cooling | |
|---|---|
| Cooling Solution | Tri Fan (3) |
| Included/Fitted Backplate | Yes |
| I/O & Connectivity | |
|---|---|
| Interface | PCIe 4.0 |
| Connectivity |
|
| Visuals | |
|---|---|
| GeForce VR Ready | Yes |
| Multi-Way Graphics Support | Not Supported |
| Microsoft DirectX Support | 12 API |
| HDCP Ready | Yes |
| Max. Concurrent Displays | 4 Displays |
| Maximum Digital Resolution | 7680x4320 (8K UHD) |
| Ray-Tracing | |
|---|---|
| Real-Time Ray Tracing | Yes |
| NVIDIA RT Cores | |
| NVIDIA Tensor Cores | |
| RTX-OPS | |
| Rays Cast | |
| Power & Thermals | |
|---|---|
| Graphics Card Power Connectors | 1 x 16-pin PCIe |
| Graphics Card TDP/Power | |
| Minimum Recommended PSU | 850 W |
| Maximum GPU Temperature | 90 °C |
| Physical | |
|---|---|
| Width | 3.5 Slot |
| Low Profile Compatible | No |
| Low Profile Support | N/A |
| Dimensions | 337 x 140 x 67 mm |
| Package Type | Retail |
