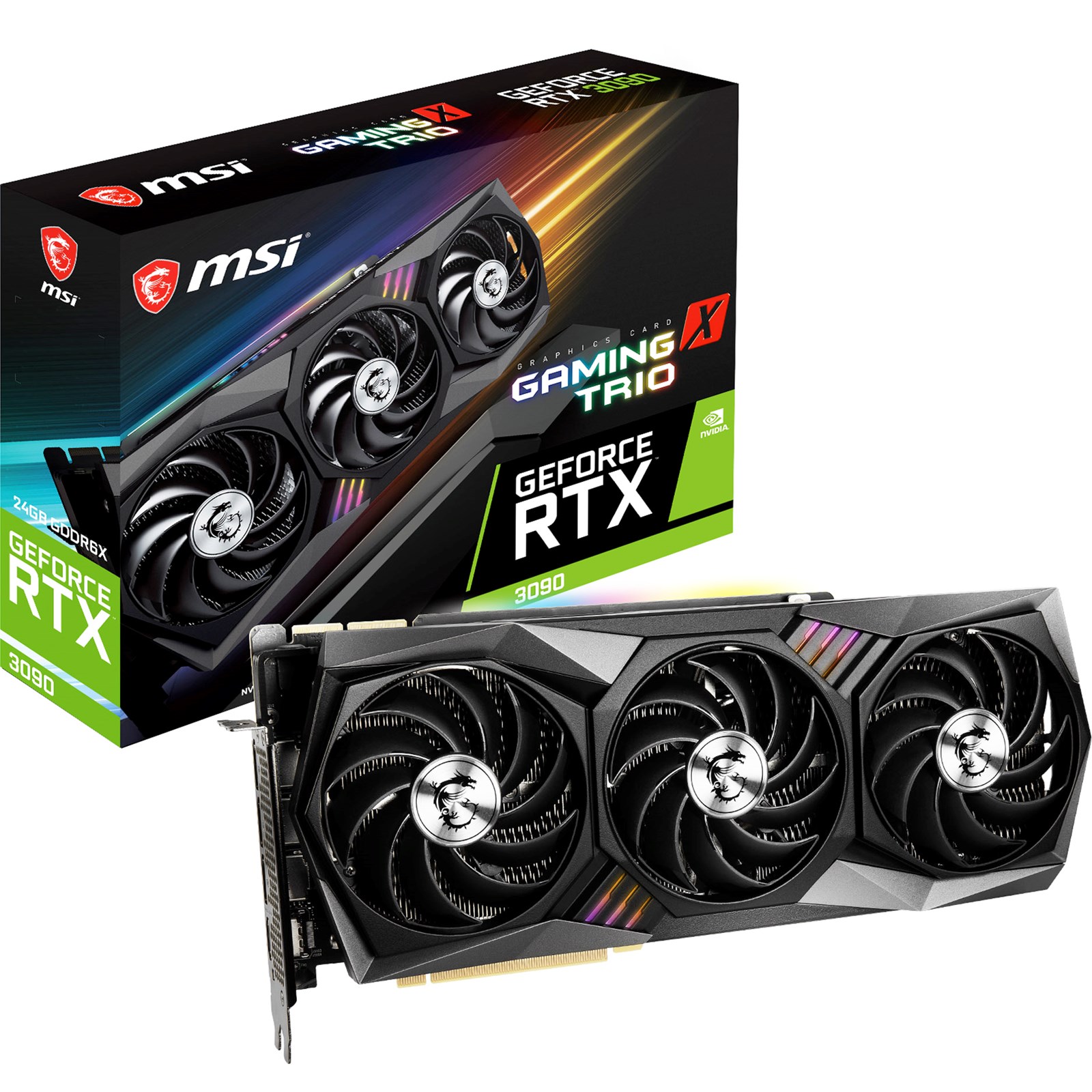

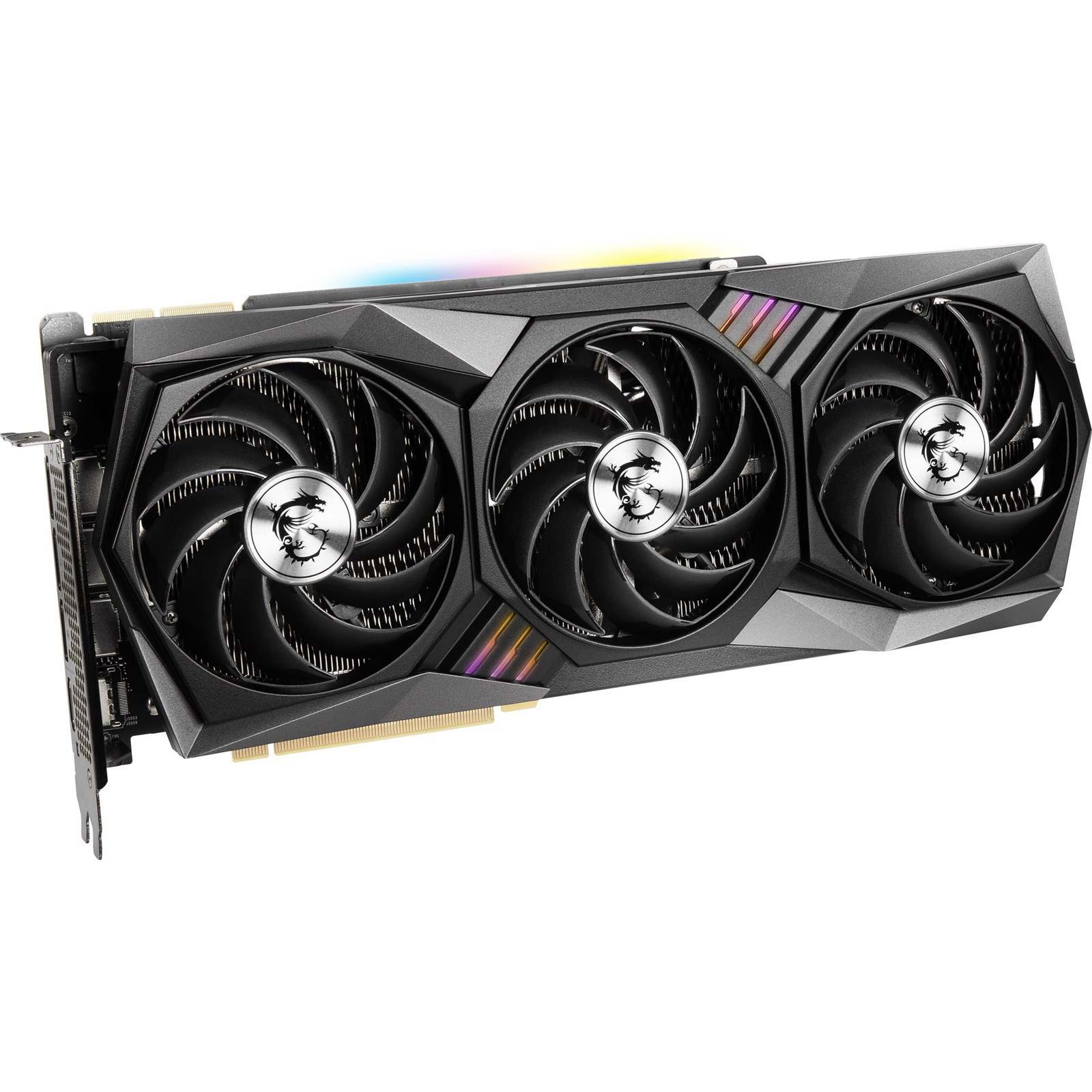

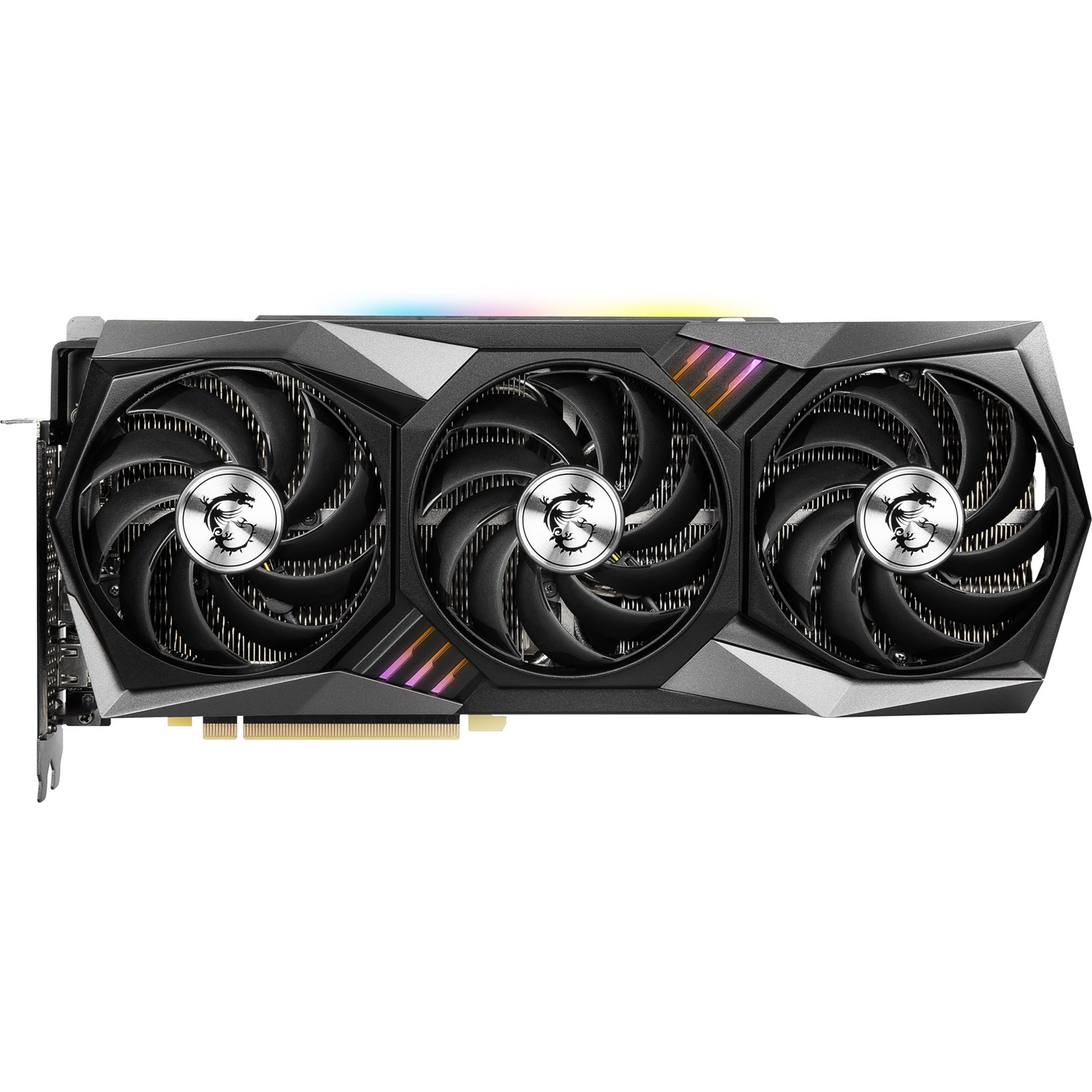

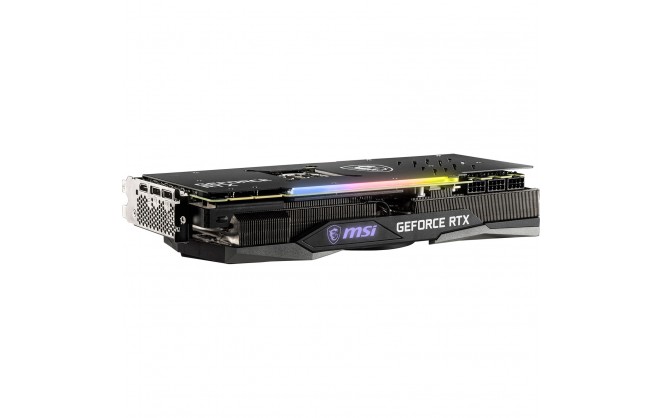

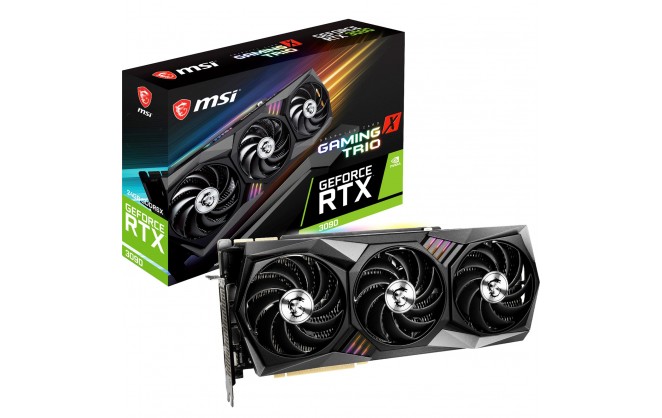

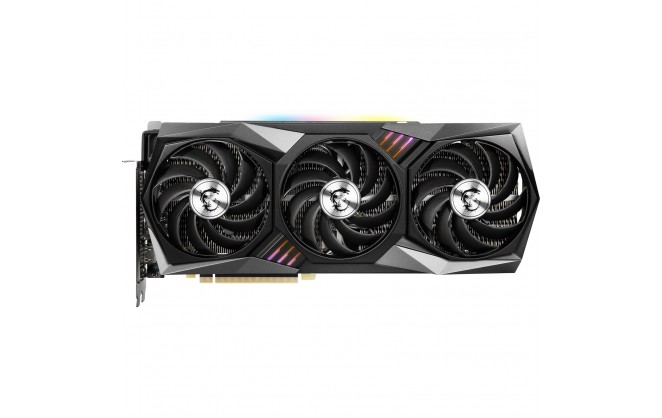

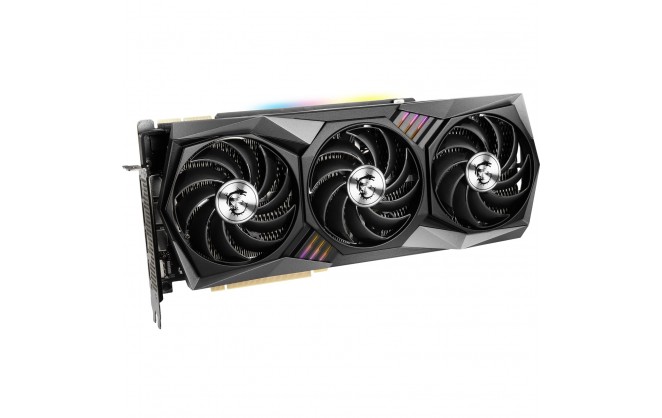

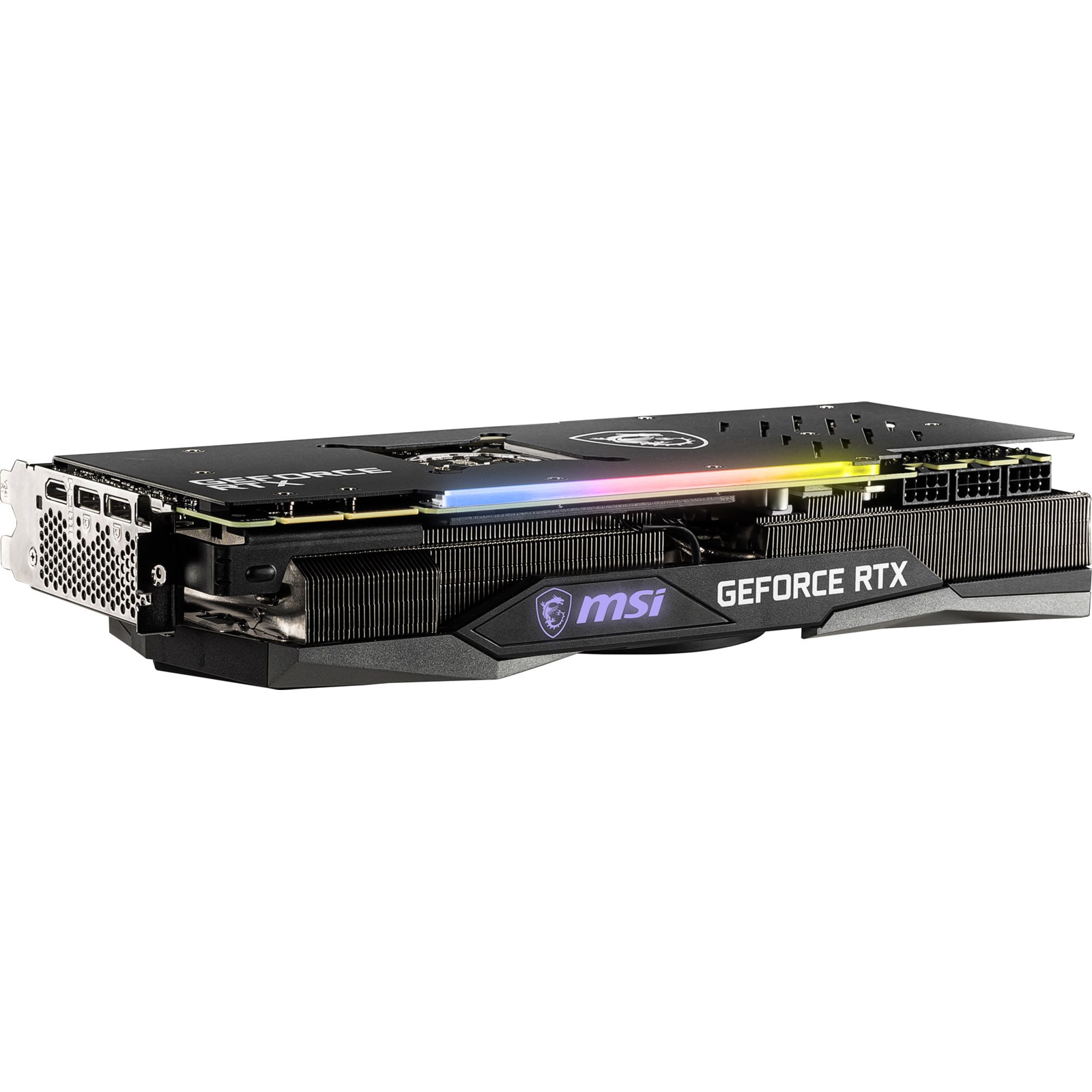

MSI GeForce RTX 3090 GAMING X TRIO 24GB OC GPU

  • Part Number: RTX 3090 GAMING X TRIO 24G
  • Manufacturer: MSI
  • Quickfind Code: 125201

  • Stock: Out Stock

Contact for availability


Product Features:
  • Condition: New
  • GPU RTX 3090
  • Capacity 24GB
  • Connection PCI-E
  • Memory Type GDDR6X
  • Series RTX
  • GPU Manufacturer Nvidia
+ Read More Information

Share:

Product Description
THE GAMING YOU KNOW & TRUST
The latest iteration of MSI’s iconic GAMING series once again brings performance, low-noise efficiency, and aesthetics that hardcore gamers have come to recognize and trust. Now you too can enjoy all your favorite games with a powerful graphics card that stays cool and silent. Just the way you like it.

LIGHT 'EM UP
It’s time to put on team colors. Synchronize lighting with other compatible devices to take the light show to another level. Going dark is as easy as turning the lights off.
2ND GENERATION
RT CORES
2X THROUGHPUT
3RD GENERATION
TENSOR CORES
UP TO 2X THROUGHPUT
NEW
SM
2X FP32 THROUGHPUT

NVIDIA AMPERE ARCHITECTURE
TRI FROZR 2

TORX FAN 4.0
TORX FAN 4.0 is built on teamwork, with pairs of fan blades bound together with a linked outer ring design that focuses airflow into the updated TRI FROZR 2 cooling system.

CORE PIPE
Core Pipes are precision-machined for maximum contact over the GPU and spread the heat along the full length of the heatsink for optimal cooling.

FIN+AIRFLOW CONTROL
Stay stealthy with Airflow Control that improves airflow dynamics. Deflectors provide additional surface area and guide air to where it’s needed for maximum cooling. Wave-curved 2.0 fin edges disrupt unwanted airflow harmonics resulting in reduced noise.

COOL 360°
Leave no space unchecked. Heatpipes beneath the sturdy matte-finish metal backplate provide additional cooling for the memory modules on the rear of the PCB.

THAT’S HOW WE ROLL
Extremely durable double-ball bearings spin your TORX FANs for years of intense and lengthy gaming sessions with zero noise.

SPLASH ON SOME COLOR
Dragon center - Mystic Light gives you complete control of the RGB lighting for both MSI devices and compatible third-party RGB products both inside and outside your system.

ONE-CLICK OVERCLOCKING
Afterburner - OC Scanner is the easiest and safest way to get more performance out of your GeForce® graphics card. Powered by an algorithm created by NVIDIA, maximum clock speeds are determined and safely applied for your graphics card.
Technical Specification

MSI GeForce RTX 3090 GAMING X TRIO 24GB OC GPU

GPU

Chipset ManufacturerNVIDIA
Chipset Model NameGeForce RTX
Chipset Model Number3090
Chipset Additional InformationGAMING X TRIO
Boost Chip Clock1785 MHz
Graphics Core10496 x CUDA

Memory

Memory Size24576 MB
Memory Clock19.5 Gbps
Memory TypeGDDR6X
Memory Width384 bit

Interfaces/Ports

Video Card Bus TypePCI Express
Video Card Bus Version4.0 x16
HDMI Port1 x HDMI 2.1
DisplayPort3 x DisplayPort 1.4a

Resolution

Multiple Monitor Support (Max)Yes (4)
Maximum Resolution7680 x 4320 pixels

System Requirements

System Requirements1 x PCI Express 4.0 x16 slot
Minimum 750W power supply with 3 x 8-pin PCIe connectors

Electrical

Power Connector3 x 8-pin PCIe
Power ConsumptionUp to 370 W
Recomended Power Supply750 W

Physical

Form FactorGraphics Card
In The BoxGraphics Card
Width56 mm (Triple Slot)
Depth335 mm
Height140 mm
Weight1.565 kg

Warranty

Warranty3 Years

Key Features

Interface TypePCI Express 4.0 x16
VGA ConnectionNo
DVI ConnectionNo
HDMI ConnectionYes
Graphics UsabilityGaming
DisplayPort ConnectionYes
Direct X SupportDirect X 12
Cooler TypeDynamic Fan
Low ProfileNo
NVIDIA GeForceRTX 3090
PCI-E Pin Type8-Pin x 3
Cooling TechnologyDynamic Fan
VR ReadyNVIDIA
GPU Length335 mm
Card WidthTriple Slot

Graphics

Graphics ChipsetGeForce RTX 3090

Graphics Device

G-SyncYes

Item Details

ManufacturerMSI
Manufacturer CodeRTX 3090 GAMING X TRIO 24G
EAN4719072762506
UPC824142229057
ConditionNew
