Features
Boost Clock / Memory Speed
• 1695 MHz / 19 Gbps
• 8GB GDDR6X
• DisplayPort x 3(v1.4a)
HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1)
Dual Fan Thermal Design
• TORX Fan 3.0: The award-winning MSI TORX Fan 3.0 design creates high static pressure and pushes the limits of thermal performance.
• Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
Afterburner Overclocking Utility
• Supports multi-GPU setups.
• OC Scanner: An automated function finds the highest stable overclock settings.
• On Screen Display: Provides real-time information of your system's performance.
• Predator: In-game video recording.
MSI Center
• The exclusive MSI Center software lets you monitor, tweak, and optimize MSI products in real-time.
VENTUS brings a performance-focused design that maintains the essentials to accomplish any task at hand. Rocking a trusted dual fan arrangement laid into a rigid industrial design lets this sharp looking graphics card fit into any build.
TAILORED PCB DESIGN
Not all circuit boards are created equal. A custom PCB Design provides greater reliability and beefed up power circuitry for pushing the card to its limits.

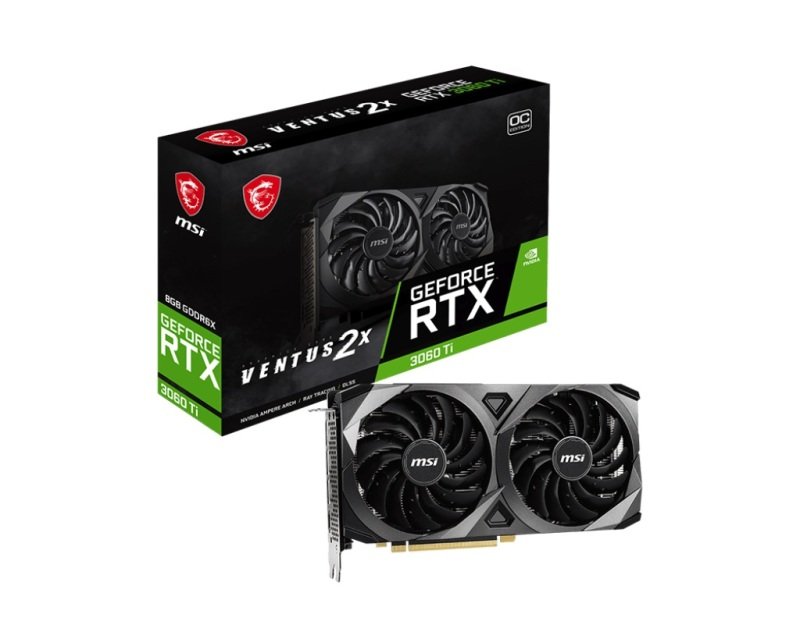

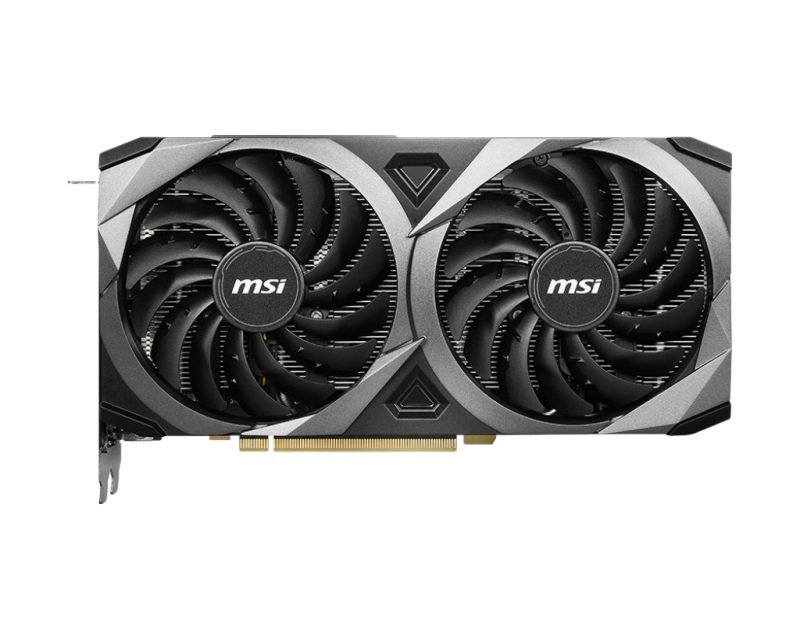

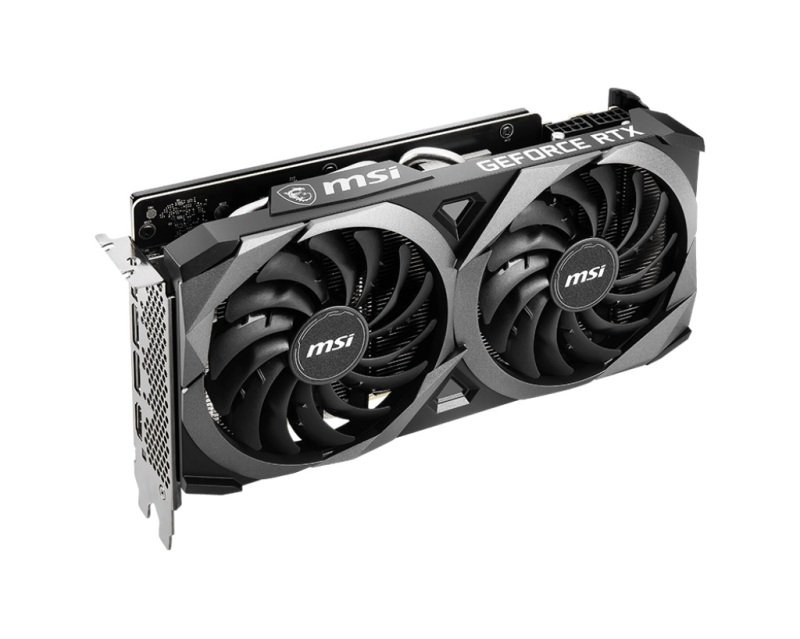

MSI GeForce RTX 3060 Ti VENTUS 2X 8GD6X OC Graphics Card
| Key Specifications | |
|---|---|
| Chipset | GeForce RTX 3060 Ti |
| Edition | VENTUS 2X 8GD6X OC |
| Manufacturing process | 8 nm |
| Microarchitecture | Ampere |
| Cores & Clocks | |
|---|---|
| Cores | 4864 |
| Core Clock | 1410 MHz |
| Boost Clock | 1695 MHz |
| Video Memory (VRAM) | |
|---|---|
| Memory Size | 8GB |
| Memory Type | GDDR6X |
| Memory Clock | 19000 MHz |
| Memory Bus | 256 Bit |
| Cooling | |
|---|---|
| Cooling Solution | Dual Fan (2) |
| Included/Fitted Backplate | Yes |
| I/O & Connectivity | |
|---|---|
| Interface | PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible] |
| Connectivity |
|
| Visuals | |
|---|---|
| GeForce VR Ready | Yes |
| Multi-Way Graphics Support | Not Supported |
| Microsoft DirectX Support | 12 API |
| HDCP Ready | Yes |
| Max. Concurrent Displays | 4 Displays |
| Maximum Digital Resolution | 7680x4320 (8K UHD) |
| Ray-Tracing | |
|---|---|
| Real-Time Ray Tracing | Yes |
| NVIDIA RT Cores | |
| NVIDIA Tensor Cores | |
| RTX-OPS | |
| Rays Cast | |
| Power & Thermals | |
|---|---|
| Graphics Card Power Connectors | 2 x 8-pin PCIe |
| Graphics Card TDP/Power | 225W |
| Minimum Recommended PSU | 600 W |
| Maximum GPU Temperature | 93 °C |
| Physical | |
|---|---|
| Width | |
| Low Profile Compatible | No |
| Low Profile Support | N/A |
| Dimensions | 232 x 124 x 52 mm |
| Package Type | Retail |
