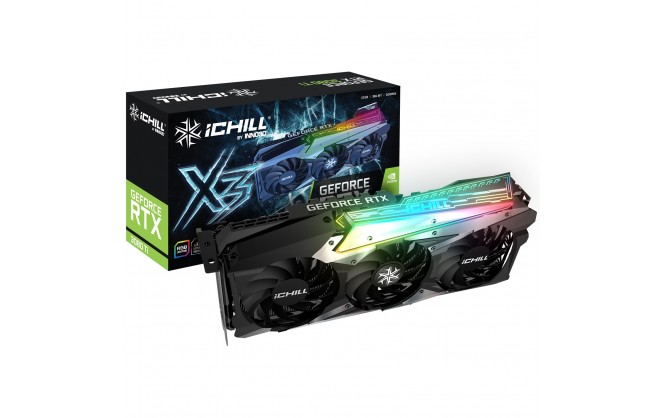

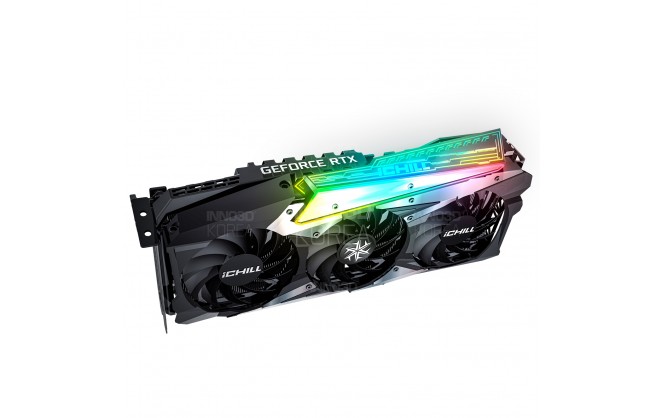

Inno3D Nvidia GeForce RTX 3080 TI ICHILL X3 Triple Fan Graphics Card LHR

  • Part Number: C308T3-126XX-1810VA37
  • Manufacturer: Inno3D
  • Quickfind Code: 125216

  • Stock: Out Stock

Contact for availability


Product Features:
  • Condition: New
  • GPU RTX 3080 Ti
  • Capacity 12GB
  • Connection PCI-E
  • Memory Type GDDR6X
  • Series RTX
  • GPU Manufacturer Nvidia
+ Read More Information

Share:

Product Description

GEFORCE RTX 3080 ICHILL X3 LHR 10GB GDDR6X PCI-EXPRESS GRAPHICS CARD

The new NVIDIA GeForce RTX 30 Series GPUs, the 2nd generation of RTX, features new RT Cores, Tensor Cores and streaming multiprocessors, bringing stunning visuals, amazingly fast frame rates, and AI acceleration to games and creative applications. Powered by the NVIDIA Ampere architecture, which delivers increases of up to 1.9X performance-per-watt over the previous generation, the RTX 30 Series effortlessly powers graphics experiences at all resolutions, even up to 8K at the top end. The GeForce RTX 3090, 3080 and 3070 represents the greatest GPU generational leap in the history of NVIDIA.

The GeForce RTX 3090 RTX 3080 and RTX 3070 iCHILL X4 and X3 was specifically designed to be an ultimate cooling solution and with factory overclock so that all you have to do is plug and play your favourite games straight from the box. Our engineers wanted to try something different for the new NVIDIA RTX 30 Series by being less conservative with design. What they came up with was a triple 9cm fan design that was asymmetrical, radical and daring while using Scythe blades to maximise airflow and optimised to operate in low fan speed condition. The X4 boasts a very unique 4.5cm side rotor fan to cool the MOSFET area adding additional cooling power to the X4. With the iCHILL X4 the cooler comes with 8 copper heat pipes whilst the X3 comes with 7 copper heat pipes giving an average 33% increase from the previous cooler. Both the iCHILL X4 and X3 also comes with RGB that is compatible with most motherboard LED lighting software control. The iCHILL X3 includes a tail fin module that can be added to the card for an increased RGB experience. It comes with two tail fins, one with logo and one blank for customization.

Technical Specification

Inno3D Nvidia GeForce RTX 3080 TI ICHILL X3 Triple Fan Graphics Card LHR

GPU Engine
CUDA Cores
10240
Boost Clock (MHz)
1710
Base Clock (MHz)
1365

Thermal and Power Spec
Minimum System Power Requirement (W)
750
Supplementary Power Connectors
8+8-pin

Memory Specs
Memory Clock
19Gbps
Standard Memory Config
12GB
Memory Interface
GDDR6X
Memory Interface Width
384-bit
Memory Bandwidth (GB/sec)
912

Feature Support
Real-Time Ray Tracing
Yes
Ray Tracing Cores
2nd Generation
Tensor Cores
3rd Generation
NVIDIA Architecture
Ampere
Microsoft DirectX
12 Ultimate
NVIDIA DLSS
Yes
PCI Express Gen 4
Yes
NVIDIA GeForce Experience
Yes
NVIDIA Ansel
Yes
NVIDIA FreeStyle
Yes
Bus Support
PCI-E 4.0 X16
NVIDIA ShadowPlay
Yes
NVIDIA Highlights
Yes
OS Certification
Windows 10, Linux, FreeBSDx86
NVIDIA G-SYNC Ready
Yes
Lighting Module
Programmable RGB: Aura Sync, Mystic Light, RGB Fusion
Game Ready Drivers
Yes
NVIDIA Studio Drivers
Yes
NVIDIA GPU Boost
Yes
Vulkan API
Yes
OpenGL
4.6
HDMI 2.1
Yes
DisplayPort 1.4a
Yes
NVIDIA Encoder
7th Generation
NVIDIA Decoder
5th Generation

Accessories
Installation Guide
Yes
Power Guide
Yes

Graphics Card Dimensions
Length
300mm
Height
135mm
Width
3-slot

Display Support
Multi-Monitor
Yes
Maximum Digital Resolution
7680 x 4320
HDCP
2.3
Standard Display Connectors
HDMI 2.1, 3x DisplayPort 1.4a
