The INNO3D GeForce RTX 50 Series promises exceptional performance from these next-gen graphics cards powered by NVIDIA’s Blackwell Architecture. The INNO3D GeForce RTX 50 Series promises exceptional performance from these next-gen graphics cards powered by Nvidia’s Blackwell architecture. The INNO3D announced its new GeForce RTX 5060 Ti 8GB and 16GB TWIN X2 OC WHITE is a compact powerhouse tailor-made for space-conscious enthusiasts, featuring a sleek dual-slot design that fits seamlessly into smaller form factor builds. The TWIN X2 OC WHITE doesn't just excel in performance; it also captivates with its contemporary white aesthetic. It features 4,608 CUDA cores, 8GB and 16GB of GDDR7 memory with a 128-bit interface, and a boost clock of up to 2,602MHz in its overclocked state. Merging next-gen AI capabilities with unparalleled gaming prowess, this graphics card redefines the balance between style, size, and raw power.

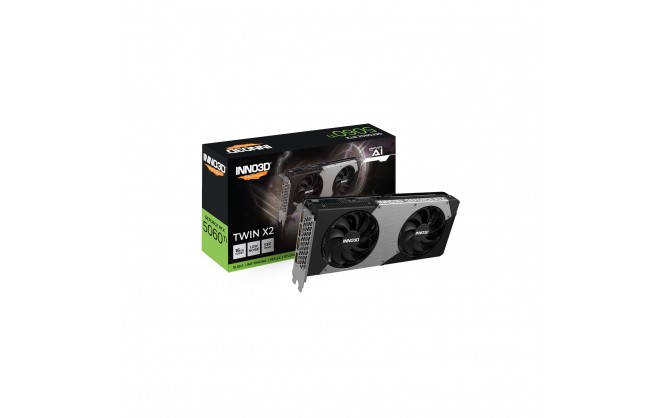

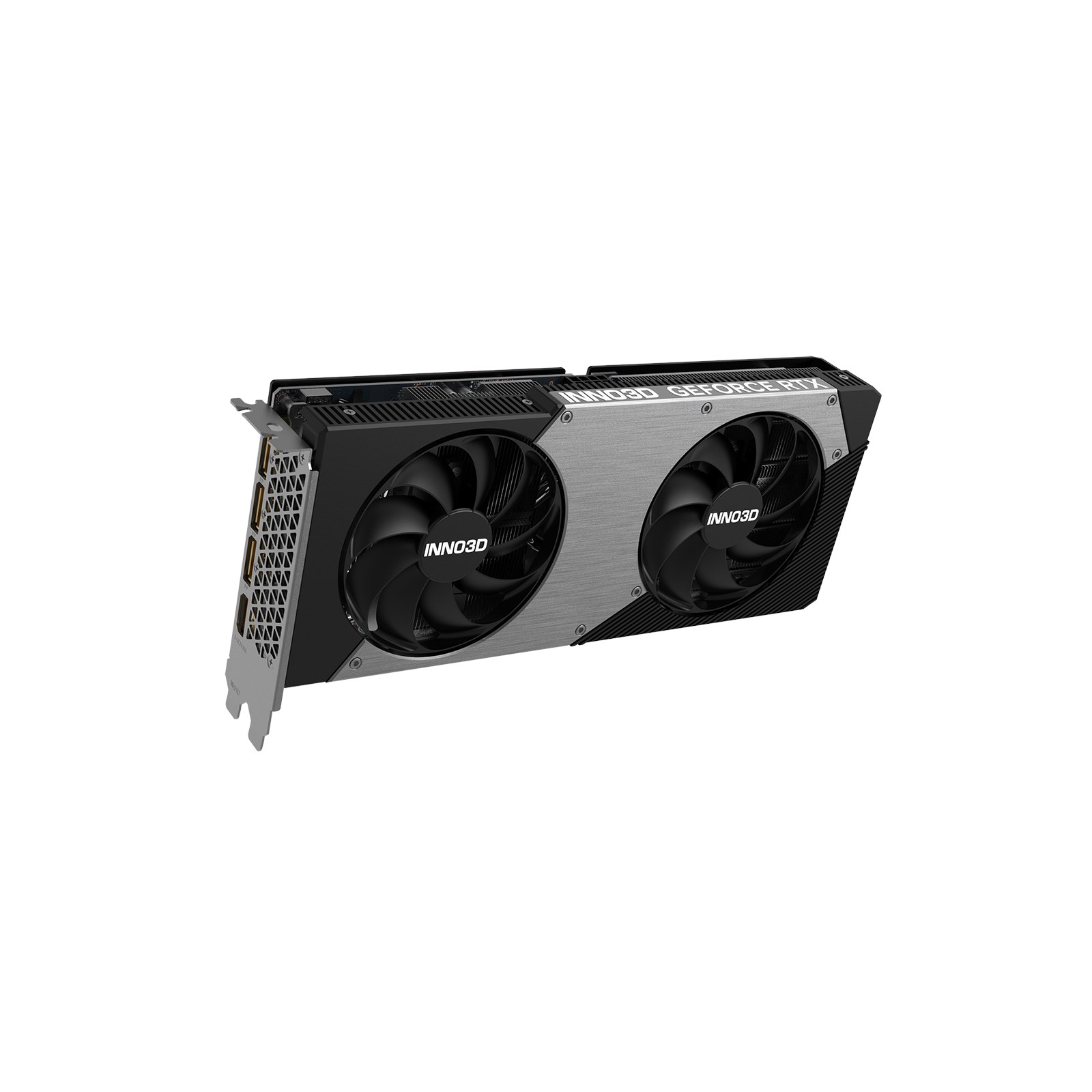

INNO3D GeForce RTX 5060 Ti Twin X2 16GB GDDR7 Graphics Card
GPU
| Chipset Manufacturer | NVIDIA |
| Chipset Model Name | GeForce RTX |
| Chipset Model Number | 5060 Ti |
| Chipset Additional Information | Twin X2 |
| Boost Chip Clock | 2602 MHz |
| Graphics Core | CUDA |
| Number of Cores | 4608 |
Memory
| Memory Size | 16384 MB |
| Memory Clock | 28 Gbps |
| Memory Type | GDDR7 |
| Memory Width | 128 bit |
| Memory Bandwidth | 448 GB/s |
Interfaces/Ports
| Video Card Bus Type | PCI Express |
| Video Card Bus Version | 5.0 x8 |
| HDMI Port | 1 x HDMI 2.1b |
| DisplayPort | 3 x DisplayPort 2.1b |
Resolution
| Multiple Monitor Support (Max) | Yes (4) |
| Maximum Resolution | 7680 x 4320 |
System Requirements
| System Requirements | 1 x PCI Express 5.0 x16 slot |
Electrical
| Power Connector | 1 x 8-pin PCIe |
| Power Consumption | 180 W |
| Recomended Power Supply | 650 W |
Physical
| Form Factor | Graphics Card |
| In The Box | Graphics Card |
| Width | 41 mm (Dual Slot) |
| Depth | 250 mm |
| Height | 116 mm |
Warranty
| Warranty | 3 Years |
Key Features
| Interface Type | PCI Express 5.0 x8 |
| Graphics Memory Type | GDDR7 |
| Main Colour | Black |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| Graphics Usability | Gaming |
| DisplayPort Connection | Yes |
| Direct X Support | Direct X 12 |
| Cooler Type | Dynamic Fan Inc. 0dB Mode |
| Low Profile | No |
| NVIDIA GeForce | RTX 5060 Ti |
| PCIe Pin Type | 6+2-Pin |
| Cooling Technology | Dynamic Fan Inc. 0dB Mode |
| VR Ready | NVIDIA |
| GPU Length | 250 mm |
| Card Width | 2 |
| Power Requirement (auto) | 180 W |
| GPU Power (TDP) | 180 W |
| Graphics card count | 1 |
| PCIe Physical Slot required | 16 |
| 12VHPWR 16-pin Connector | No |
| AI Ready | Yes |
Graphics
| Graphics Chipset | GeForce RTX 5060 Ti |
Graphics Device
| G-Sync | Yes |
Item Details
| Manufacturer | INNO3D |
| Manufacturer Code | N506T2-16D7-191073N |
| EAN | 8886307700674 |
