The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large copper plate, 3D active fans, and screen cooling.
The GAMING series draws the concept from mech warriors, blending the futuristic armor with mechanical aesthetics to deliver exceptional protection and powerful durability. It goes beyond mere appearances and functionality, offering a profound interpretation of futuristic technology.
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

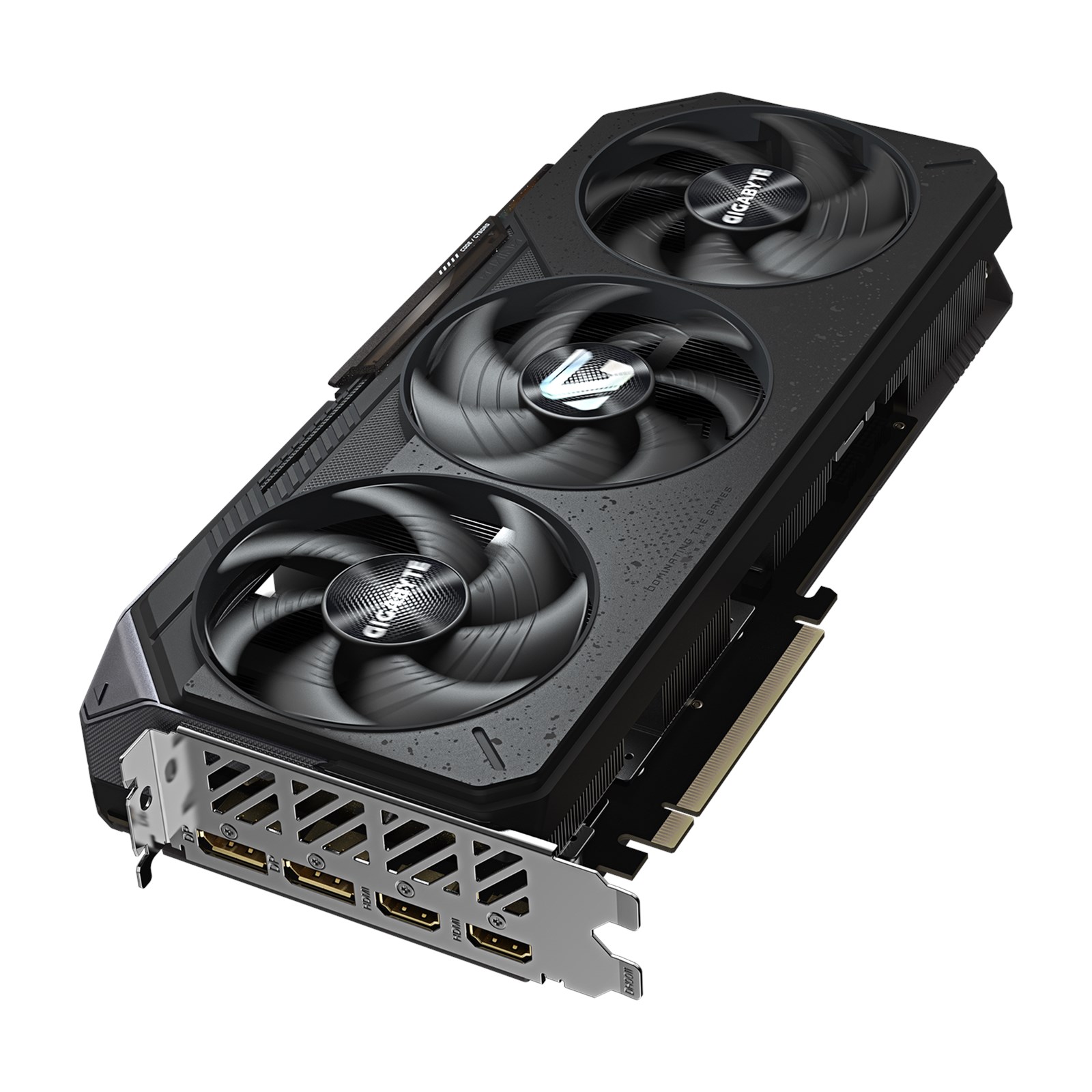

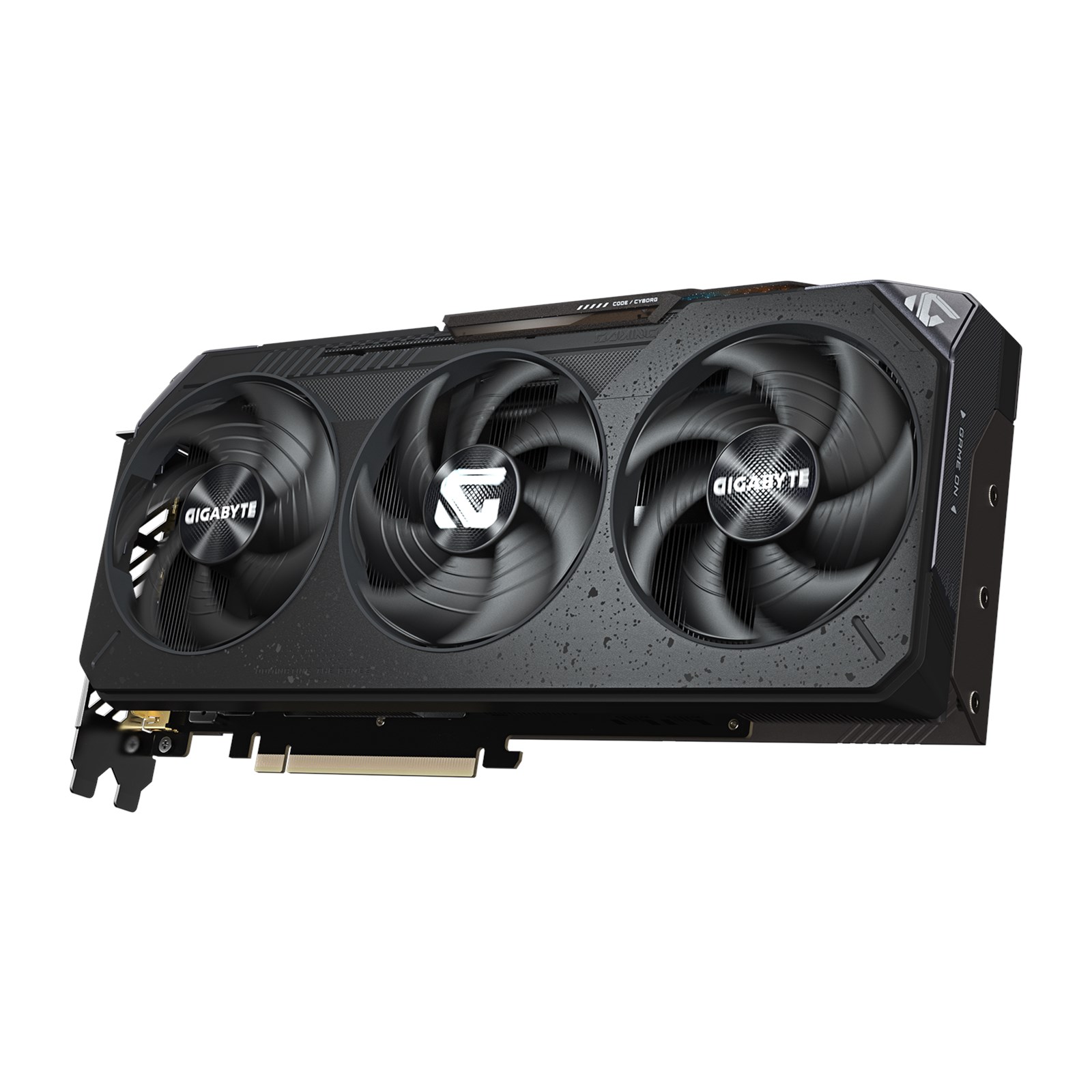

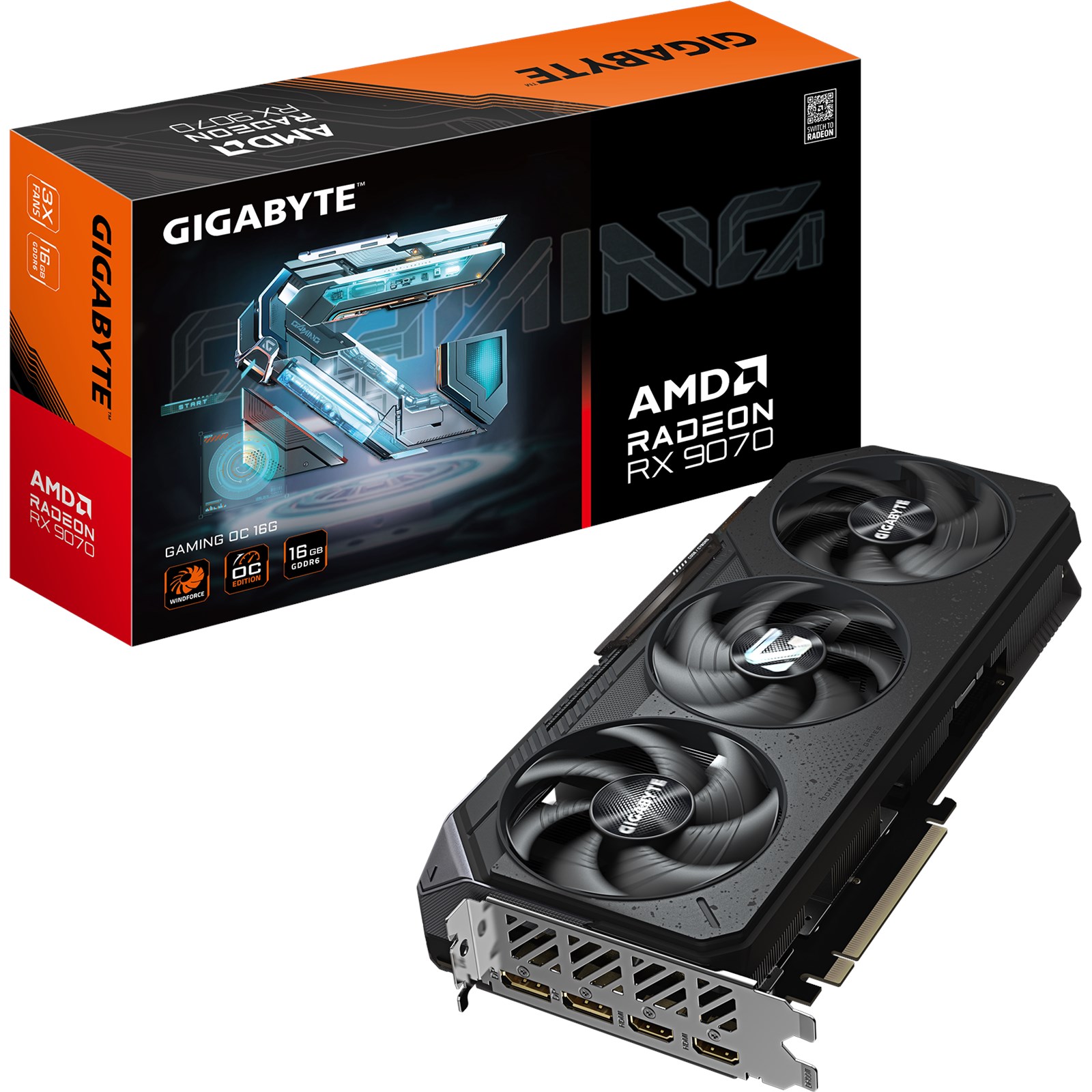

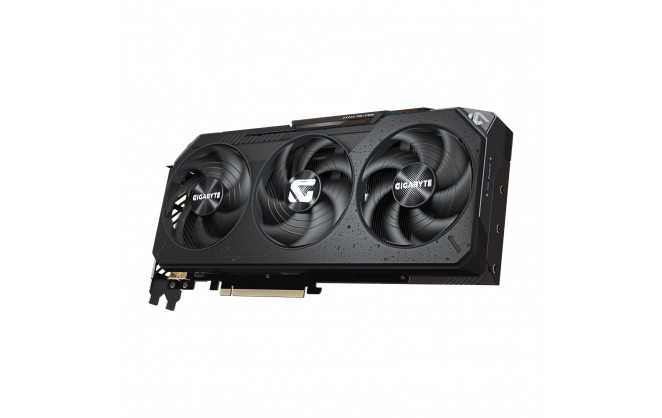

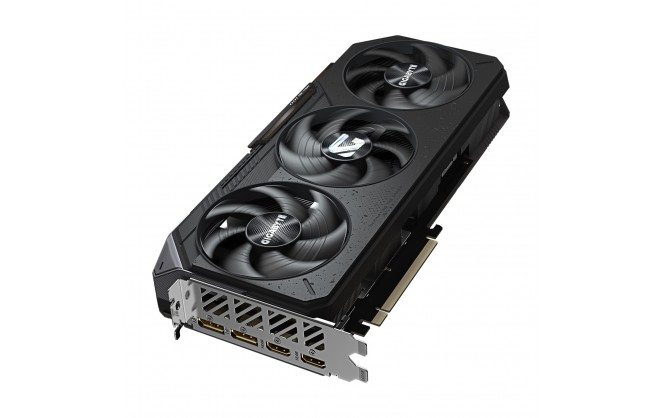

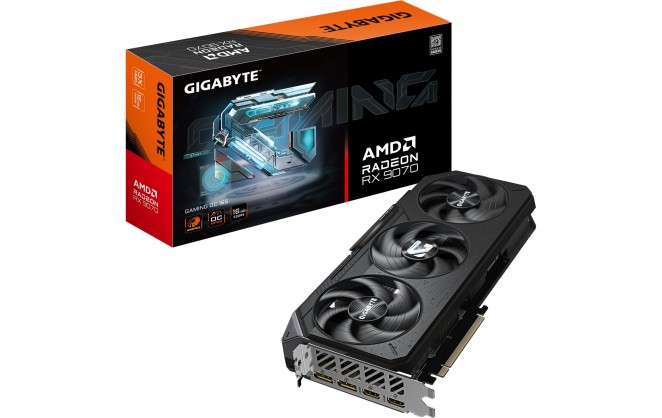

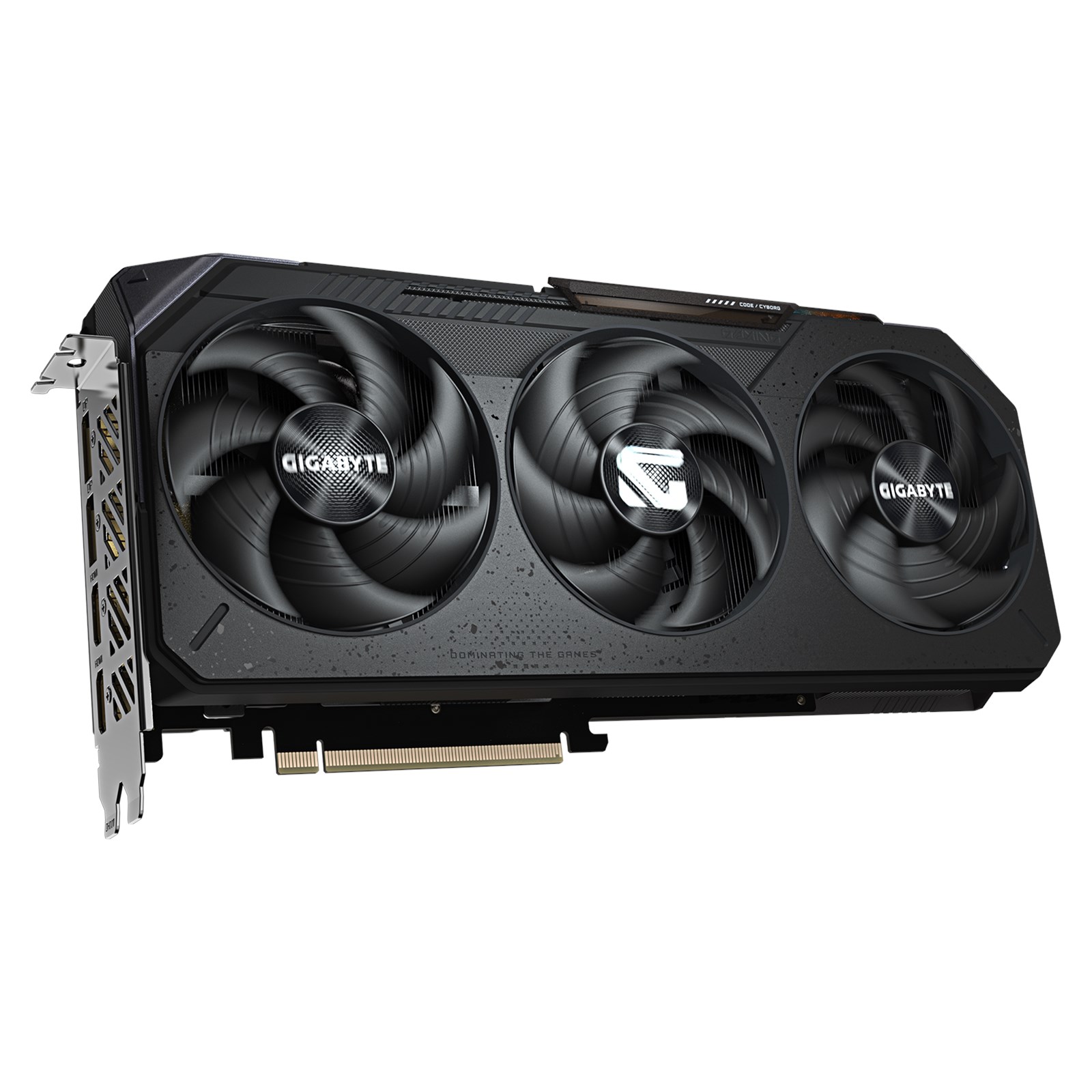

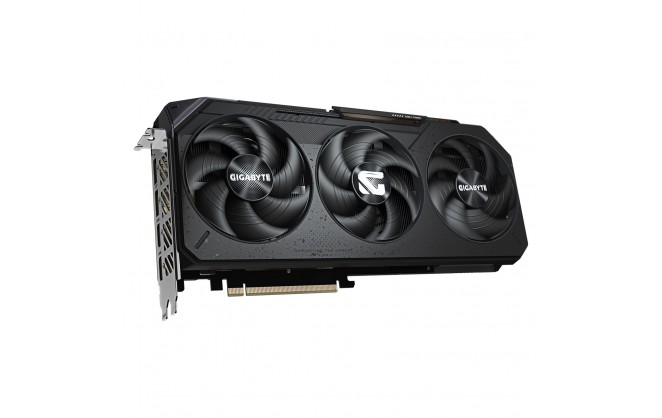

Gigabyte Radeon RX 9070 GAMING OC 16GB GDDR6 Graphics Card
GPU
| Chipset Manufacturer | AMD |
| Chipset Model Name | Radeon RX |
| Chipset Model Number | 9070 |
| Chipset Additional Information | GAMING OC |
| Base Chip Clock | 1330 MHz |
| Boost Chip Clock | Game Clock: 2210 MHz Boost Clock: Up to 2700 MHz |
| Number of Cores | 3584 |
Memory
| Memory Size | 16384 MB |
| Memory Clock | 20 Gbps |
| Memory Type | GDDR6 |
| Memory Width | 256 bit |
Interfaces/Ports
| Video Card Bus Type | PCI Express |
| Video Card Bus Version | 5.0 x16 |
| HDMI Port | 1 x HDMI 2.1b |
| DisplayPort | 3 x DisplayPort 2.1a |
Resolution
| Multiple Monitor Support (Max) | Yes (4) |
| Maximum Resolution | 7680 x 4320 |
System Requirements
| System Requirements | 1 x PCI Express 5.0 x16 slot |
Electrical
| Power Connector | 2 x 8-pin PCIe |
| Power Consumption | 220 W |
| Recomended Power Supply | 750 W |
Physical
| Form Factor | Graphics Card |
| In The Box | Graphics Card Manual |
| Width | 50 mm (2.5 slot) |
| Depth | 288 mm |
| Height | 132 mm |
Warranty
| Warranty | 3 Years |
Key Features
| Interface Type | PCI Express 5.0 x16 |
| Config Gaming x8 (CB/CCL) | No |
| Graphics Memory Type | GDDR6 |
| Main Colour | Black |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| Graphics Usability | Gaming |
| DisplayPort Connection | Yes |
| Direct X Support | Direct X 12 |
| Cooler Type | Dynamic Fan Inc. 0dB Mode |
| Low Profile | No |
| AMD Radeon | RX 9070 |
| PCIe Pin Type | 2 x 8-Pin |
| FreeSync | Yes |
| Cooling Technology | Dynamic Fan Inc. 0dB Mode |
| VR Ready | AMD |
| GPU Length | 288 mm |
| Card Width | 3 |
| Power Requirement (auto) | 220 W |
| GPU Power (TDP) | 220 W |
| Graphics card count | 1 |
| PCI Express Power Pins (female) | 16 |
| PCIe Physical Slot required | 16 |
| 12VHPWR 16-pin Connector | No |
| AI Ready | Yes |
Graphics
| Graphics Chipset | Radeon RX 9070 |
Item Details
| Manufacturer | Gigabyte |
| Manufacturer Code | GV-R9070GAMING OC-16GD |
| EAN | 4719331355531 |
