The WINDFORCE cooling system features three 100mm unique blade fans, alternate spinning, 9 composite copper heat pipes, a large vapor chamber directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
Reduce the turbulence of adjacent fans and increase airflow pressure.
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
The large vapor chamber directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
Extended heatsink allows air to pass through, providing better heat dissipation.
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.

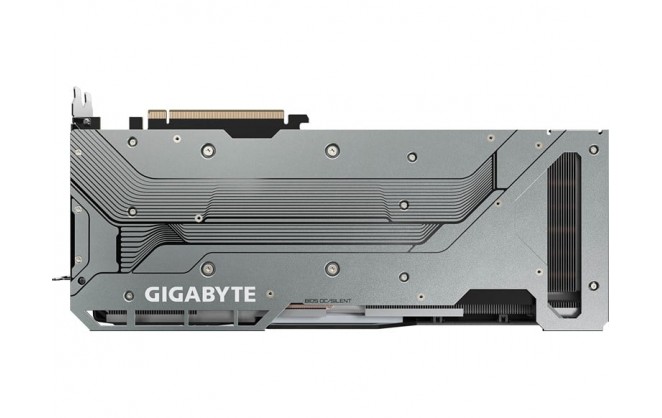

The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.
When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.
The new anti-sag bracket is tailored to each graphics card. It provides the optimized reinforcement and better overall visual appearance.
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

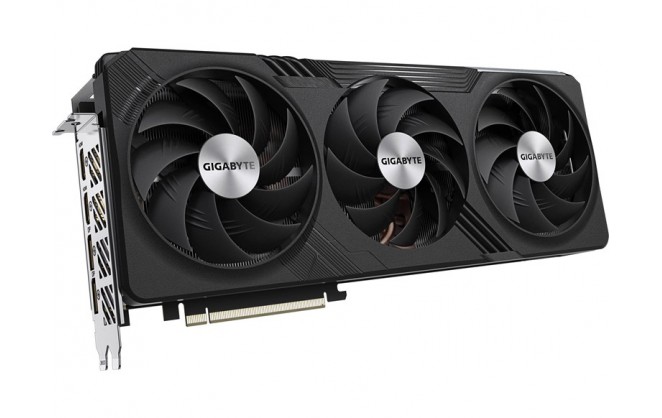

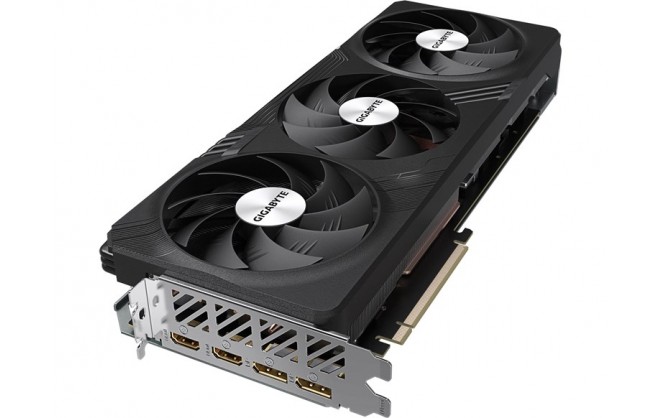

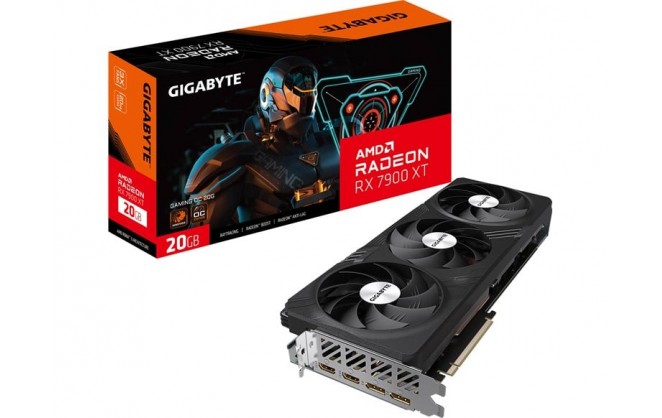

Gigabyte Radeon RX 7900 XT GAMING OC 20GB Graphics Card
GPU
| Chipset Manufacturer | AMD |
| Chipset Model Name | Radeon RX |
| Chipset Model Number | |
| Chipset Additional Information | GAMING OC |
| Boost Chip Clock | Up to 2535 MHz |
| Number of Cores | 5376 Stream Processors |
Memory
| Memory Size | 20480 MB |
| Memory Clock | 20 Gbps |
| Memory Type | GDDR6 |
| Memory Width | 320 bit |
Interfaces/Ports
| Video Card Bus Type | PCI Express |
| Video Card Bus Version | 4.0 x16 |
| HDMI Port | 2 x HDMI 2.1 |
| DisplayPort | 2 x DisplayPort 2.1 |
Resolution
| Multiple Monitor Support (Max) | Yes (4) |
| Maximum Resolution | 7680 x 4320 pixels |
System Requirements
| System Requirements | 1 x PCI Express 4.0 x16 slot Recommended 800W or greater PSU with 2 x 8-pin PCIe connectors |
Electrical
| Power Connector | 2 x 8-pin PCIe |
| Recomended Power Supply | 800 W |
Physical
| Form Factor | Graphics Card |
| In The Box | Graphics Card Quick Guide Anti-Sag Bracket Anti-Sag Bracket Installation Guide |
| Width | 50 mm (2.5 slot) |
| Depth | 331 mm |
| Height | 138 mm |
| Weight | 1.58 kg |
Warranty
| Warranty | 3 Years |
Key Features
| Interface Type | PCI Express 4.0 x16 |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| Graphics Usability | Gaming |
| DisplayPort Connection | Yes |
| Direct X Support | Direct X 12 |
| Cooler Type | Dynamic Fan |
| Low Profile | No |
| Interface Type | |
| NVIDIA GeForce | |
| AMD Radeon | RX 7900 XT |
| PCI-E Pin Type | 8-Pin + 8-Pin |
| Screen Type | |
| FreeSync | Yes |
| Cooling Technology | Dynamic Fan |
| VR Ready | AMD |
| VR Ready PC | |
| GPU Length | 331 mm |
| Card Width | 3 |
| GPU Power (TDP) | W |
| Graphics card count | 1 |
| PCIe Physical Slot required | 16 |
Graphics
| Graphics Chipset | Radeon RX 7900 XT |
Graphics Device
| G-Sync |
Compatibility
| Lite Hash Rate |
Item Details
| Manufacturer | Gigabyte |
| Manufacturer Code | GV-R79XTGAMING OC-20GD |
| EAN | 4719331312367 |
| Condition | New |
