WINDFORCE 3XCOOLING SYSTEM
The WINDFORCE 3X cooling system features 3X80mm unique blade fans, alternate spinning, 5 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.
SMOOTH AIRFLOW
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation.
LARGE COPPER PLATE & HEAT-PIPE
With direct contact to the GPU and VRAM, the large copper plate combines the composite heat pipes to efficiently transfer heat generated from the interior cores to the heat sink.
RGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.
PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
DUAL BIOS
Silent mode will provide a quieter experience. The mode switch requires a reboot to take effect. The default is OC mode.
EXTREME DURABILITY AND OVERCLOCKING
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
AORUS ENGINE
The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.

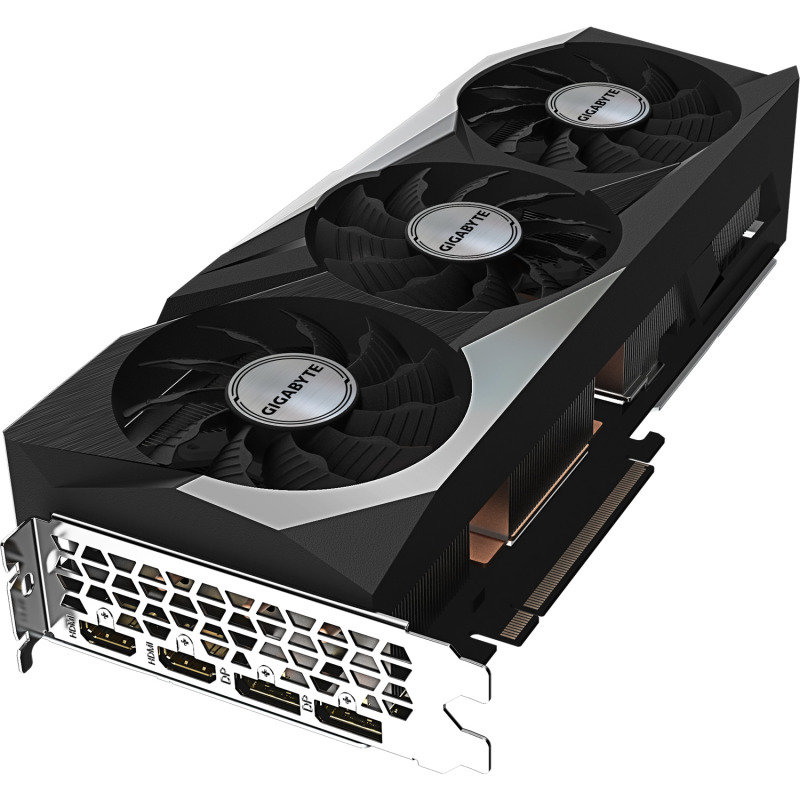

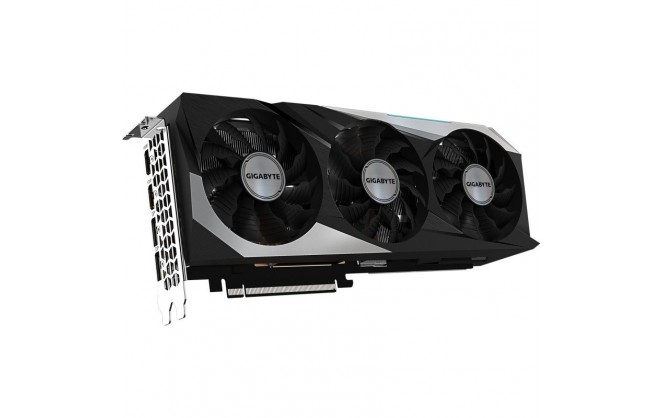

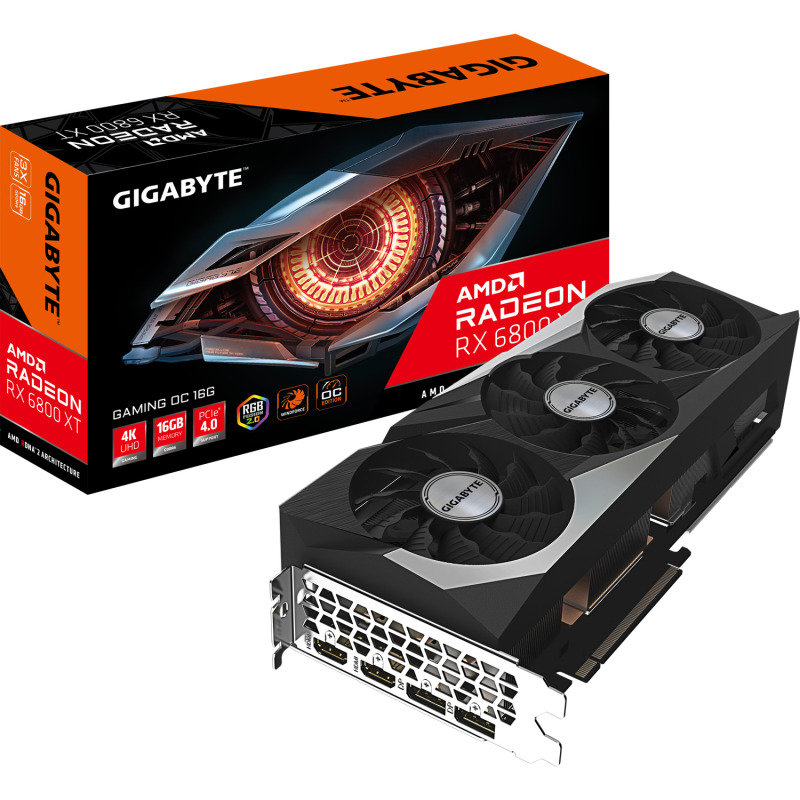

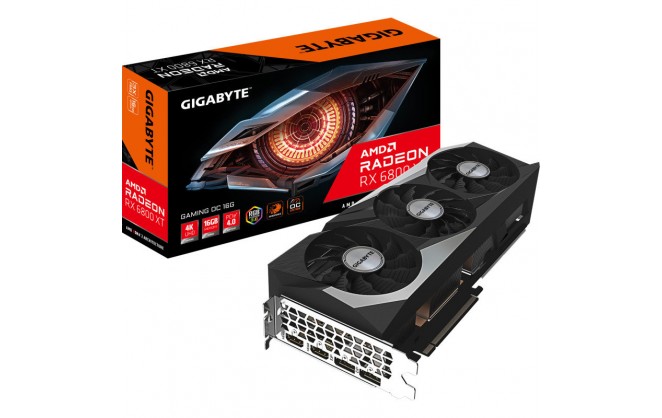

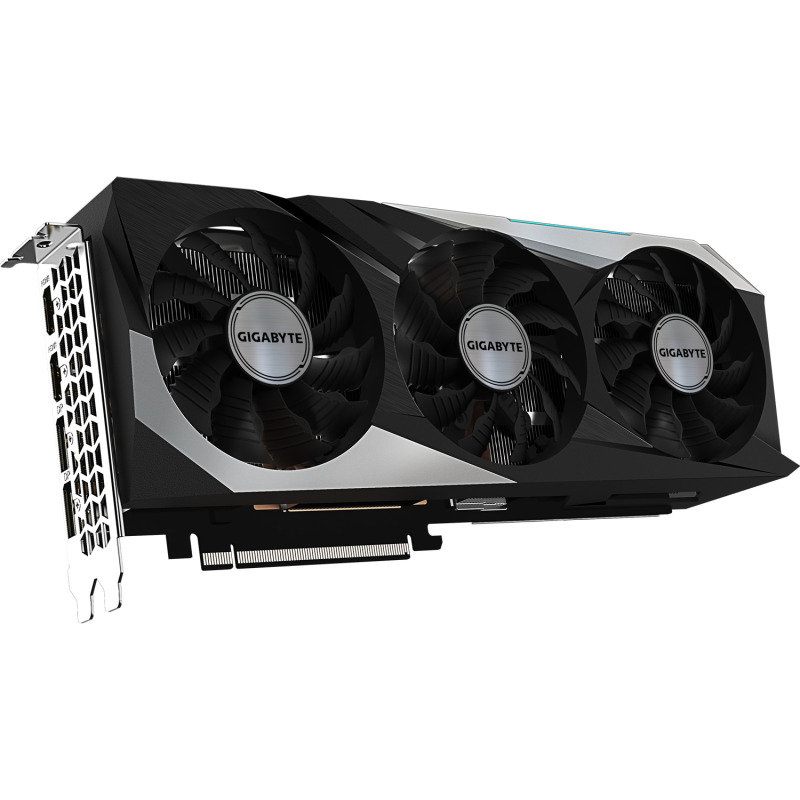

Gigabyte Radeon RX 6800 XT GAMING 16GB OC GPU
GPU
| Chipset Manufacturer | AMD |
| Chipset Model Name | Radeon RX |
| Chipset Model Number | 6800 XT |
| Chipset Additional Information | GAMING OC |
| Chip Clock | Up to 2045 MHz |
Storage
| Memory Size | 16384 MB |
Memory
| Memory Clock | 16 Gbps |
| Memory Type | GDDR6 |
| Memory Width | 256 bit |
| Memory Bandwidth | 512 GB/s |
Interfaces/Ports
| Video Card Bus Type | PCI Express |
| Video Card Bus Version | 4.0 x16 |
| HDMI Port | 2 x HDMI 2.1 |
| DisplayPort | 2 x DisplayPort 1.4a |
System Requirements
| System Requirements | 1 x PCI Express 4.0 x16 slot Minimum 750W PSU with 2 x 8-pin PCIe connectors |
Resolution
| Multiple Monitor Support (Max) | Yes (4) |
| Maximum Resolution | 7680 x 4320 pixels |
Physical
| Form Factor | Graphics Card |
| In The Box | Graphics Card Quick Guide |
| Width | 58 mm (Triple Slot) |
| Depth | 286 mm |
| Height | 118 mm |
Warranty
| Warranty | 3 Years |
Key Features
| Interface Type | PCI Express 4.0 x16 |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| Graphics Usability | Gaming |
| DisplayPort Connection | Yes |
| Direct X Support | Direct X 12 |
| Cooler Type | Dynamic Fan |
| Low Profile | No |
| AMD Radeon | RX 6800 XT |
| PCI-E Pin Type | 8-Pin + 8-Pin |
| FreeSync | Yes |
| Cooling Technology | Dynamic Fan |
| VR Ready | AMD |
| GPU Length | 286 mm |
| Card Width | Triple Slot |
Graphics
| Graphics Chipset | Radeon RX 6800 XT |
Item Details
| Manufacturer | Gigabyte |
| Manufacturer Code | GV-R68XTGAMING OC-16GD |
| EAN | 4719331307998 |
| UPC | 889523025628 |
| Condition | New |
