In the AORUS dimension, everything is constructed digitally. The lighting and patterns are mapped onto the products with an efficient, free flowing style.
Welcome to the Digital Code Era.
MAX-COVERED COOLING
The MAX-Covered cooling features 3x 100mm unique blade stack fans with wind claw design and alternate spinning, so the air pressure can completely cover the heatsink.
LCD EDGE VIEW
The LCD monitor not only display graphics card information, but also various favorite texts, pictures and GIFs. You can also adjust lighting effects via RGB FUSION 2.0 software.
RGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.
PERFORMANCE
The Radeon™ RX 6800 XT has 4608 stream processors, powerful new compute units, and the all new AMD Infinity Cache along with up to 16GB of dedicated GDDR6 memory, delivers ultra-high frame rates and serious levels of 4K resolution gaming.
EXCELLENCE
Excellent circuit design with the top-grade materials, not only maximizes the excellence of the GPU, but also maintains stable and long-life operation.

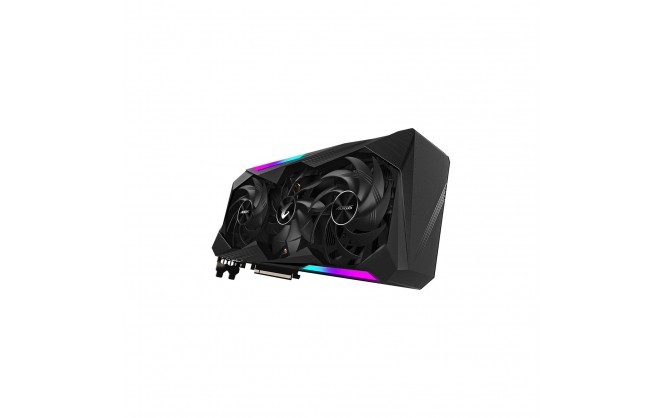

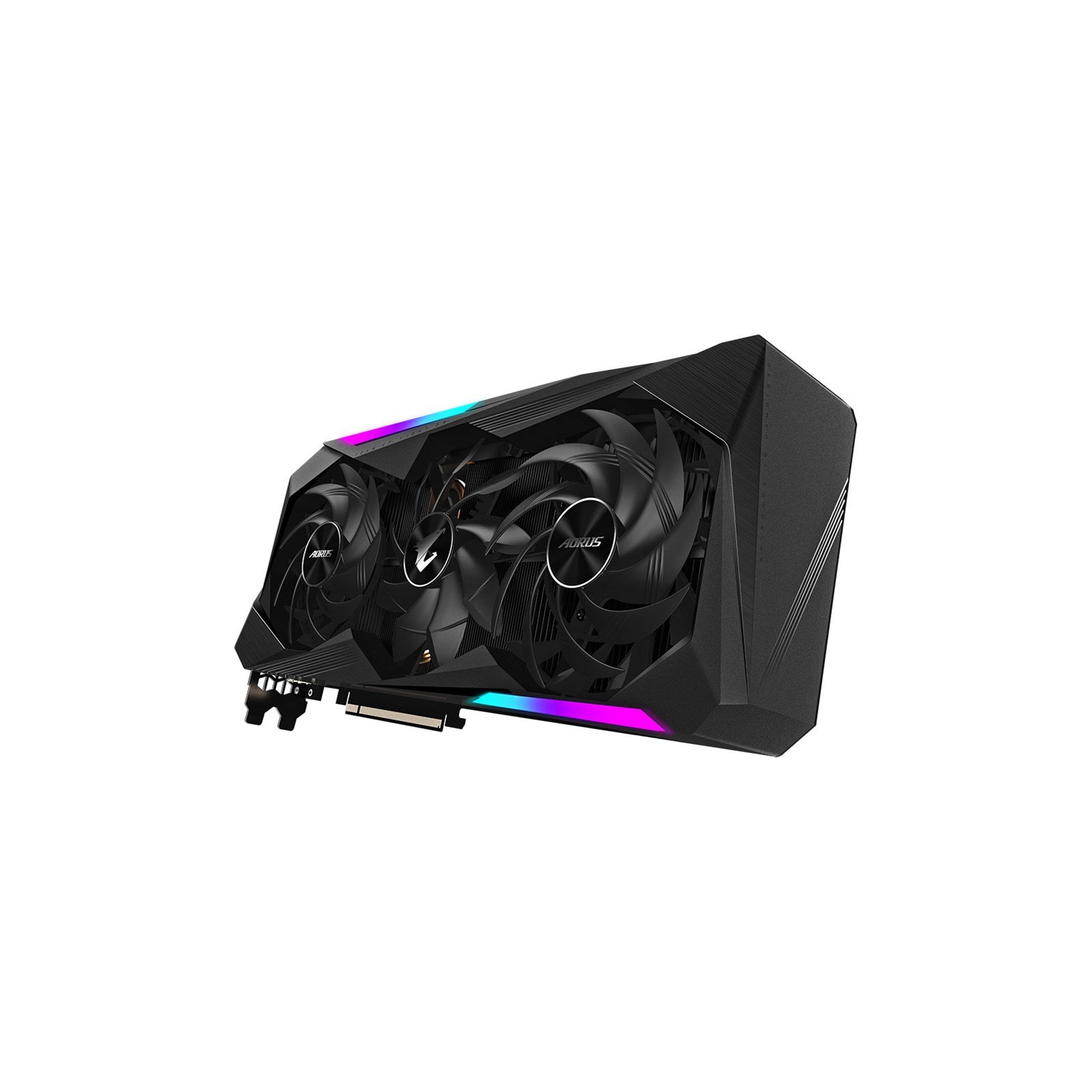

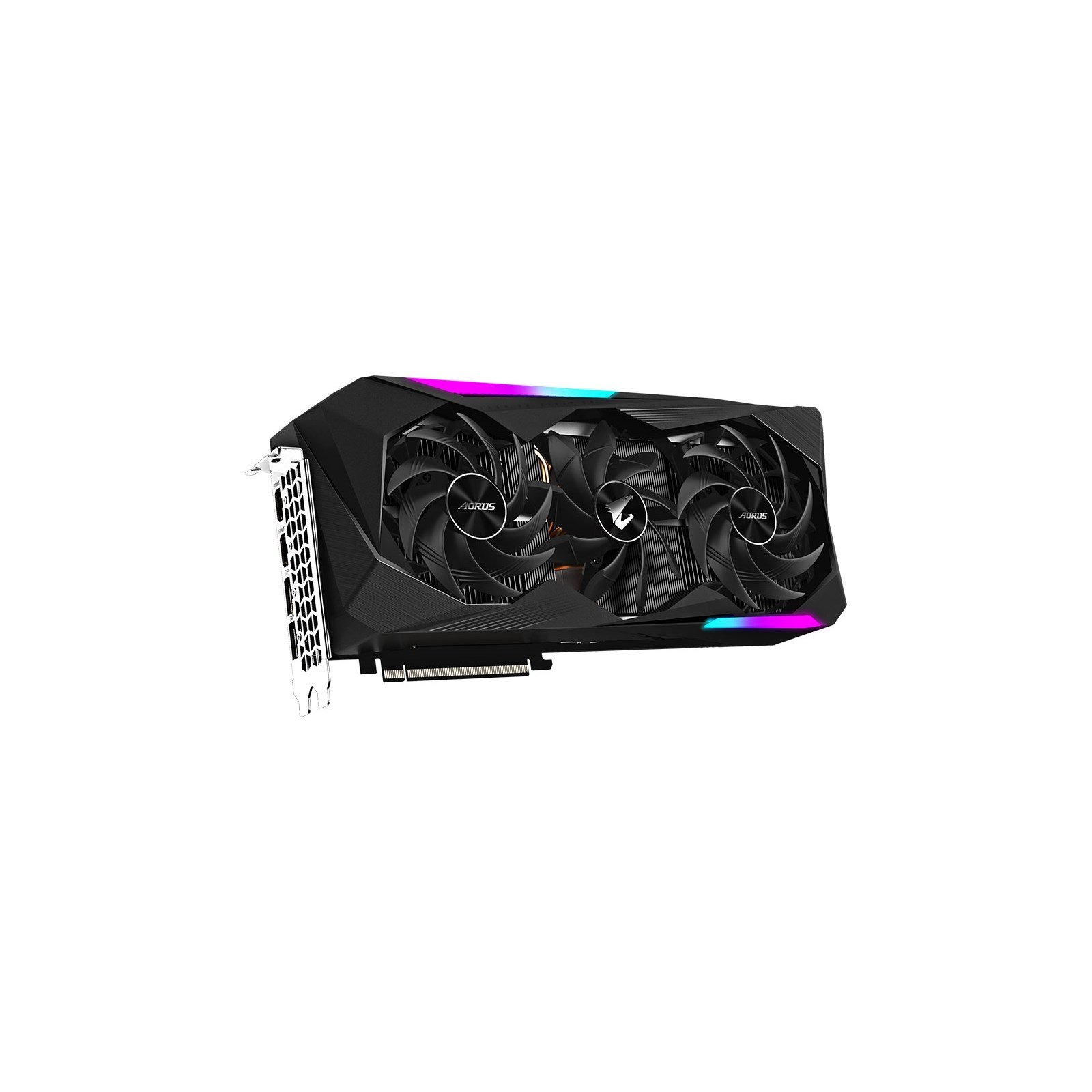

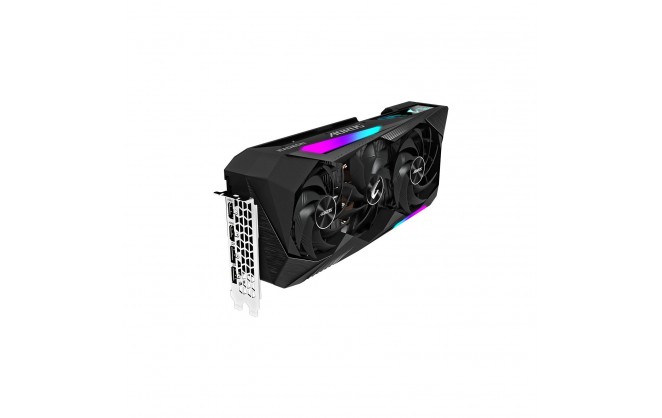

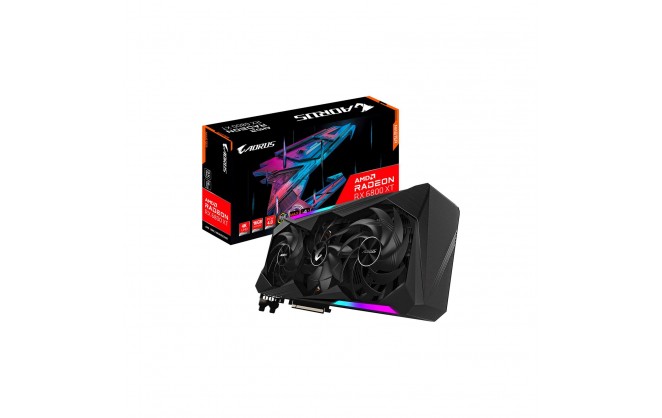

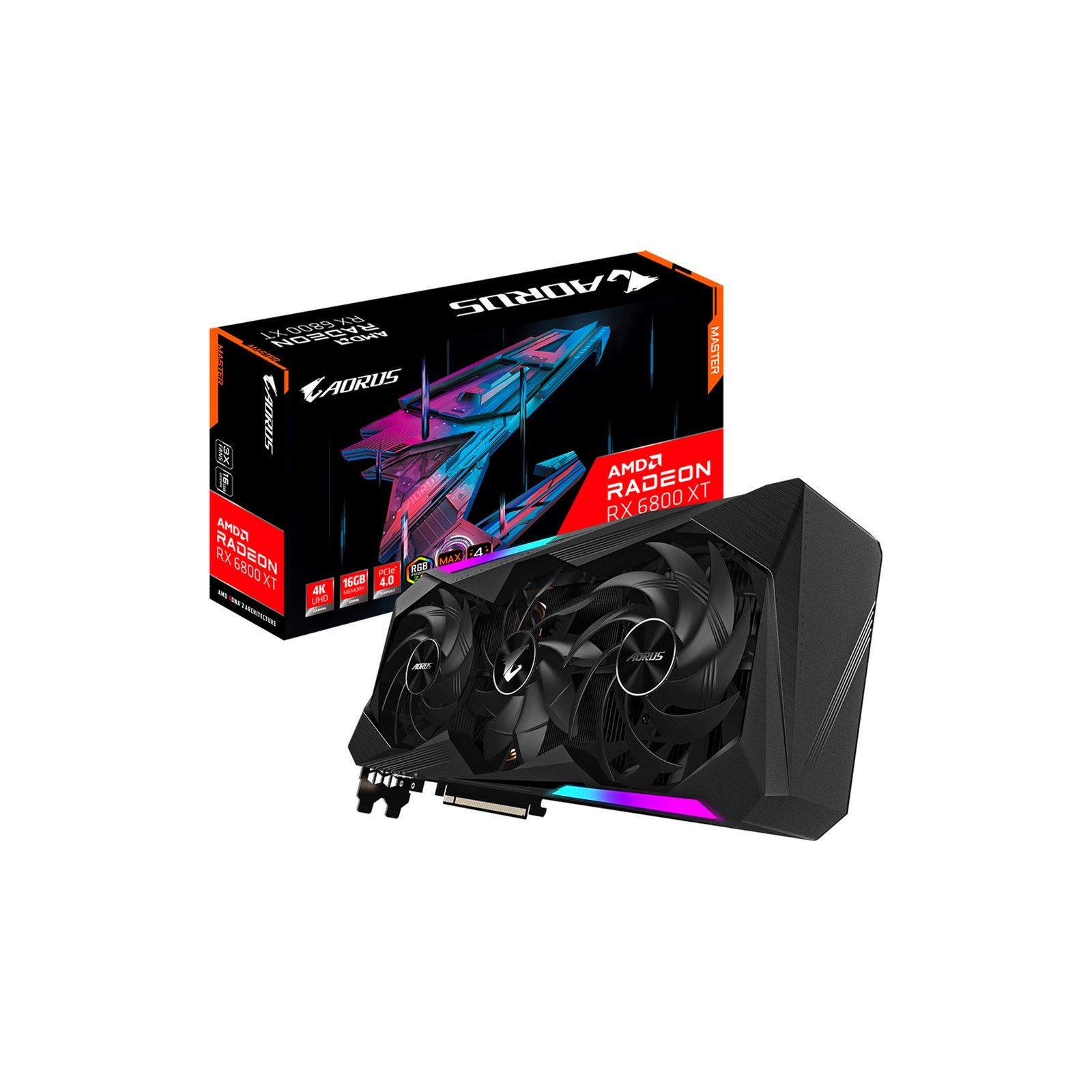

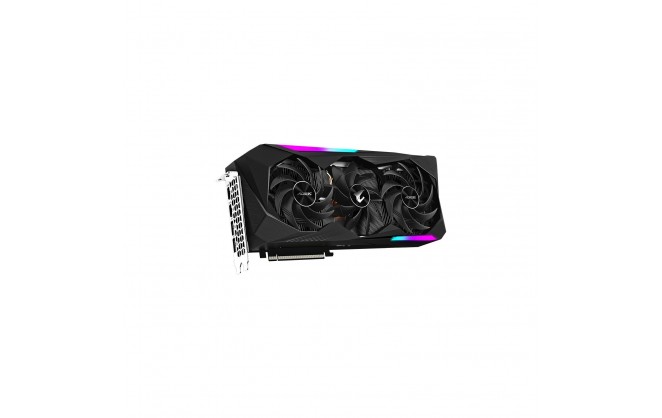

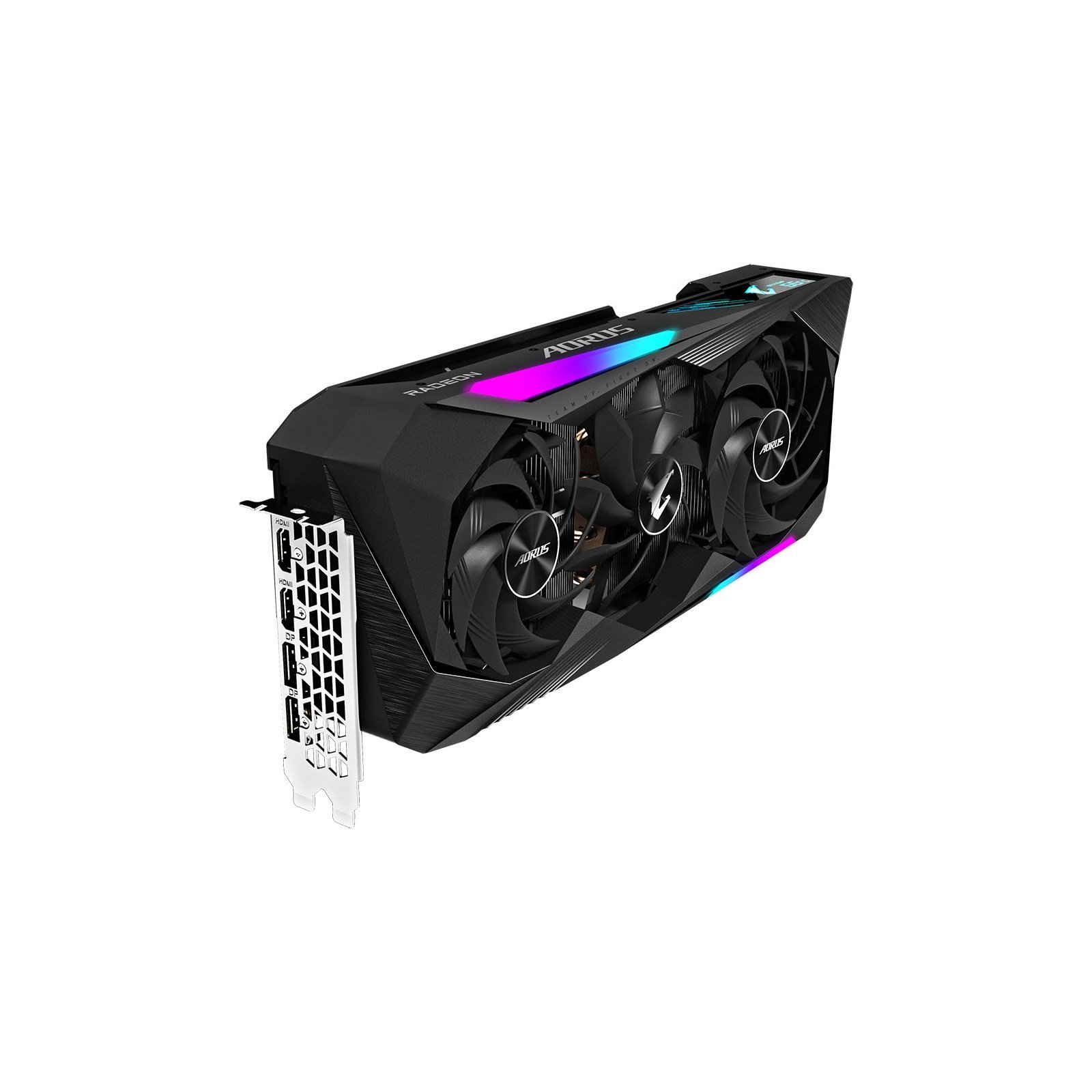

Gigabyte Radeon RX 6800 XT Aorus Master 16GB OC
Storage
| Memory Size | 16384 MB |
GPU
| Chipset Manufacturer | AMD |
| Chipset Model Name | Radeon RX |
| Chipset Model Number | 6800 XT |
| Chipset Additional Information | AORUS MASTER |
Memory
| Memory Clock | 16 Gbps |
| Memory Type | GDDR6 |
| Memory Width | 256 bit |
| Memory Bandwidth | 512 GB/s |
Interfaces/Ports
| Video Card Bus Type | PCI Express |
| Video Card Bus Version | 4.0 x16 |
| HDMI Port | 2 x HDMI 2.1 |
| DisplayPort | 2 x DisplayPort 1.4a |
System Requirements
| System Requirements | 1 x PCI Express 4.0 x16 slot Minimum 750W PSU with 2 x 8-pin PCIe connectors |
Resolution
| Multiple Monitor Support (Max) | Yes (4) |
| Maximum Resolution | 7680 x 4320 pixels |
Physical
| Form Factor | Graphics Card |
| In The Box | Graphics Card Quick Guide Metal Sticker 4-year Warranty Registration |
Warranty
| Warranty | 3 Years 4 Years with Registration |
Key Features
| Interface Type | PCI Express 4.0 x16 |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| Graphics Usability | Gaming |
| DisplayPort Connection | Yes |
| Direct X Support | Direct X 12 |
| Cooler Type | Dynamic Fan |
| Low Profile | No |
| AMD Radeon | RX 6800 XT |
| PCI-E Pin Type | 8-Pin + 8-Pin |
| FreeSync | Yes |
| Cooling Technology | Dynamic Fan |
| VR Ready | AMD |
Graphics
| Graphics Chipset | Radeon RX 6800 XT |
Item Details
| Manufacturer | Gigabyte |
| Manufacturer Code | GV-R68XTAORUS M-16GD |
| EAN | 4719331307981 |
| UPC | 889523025611 |
| Condition | New |
