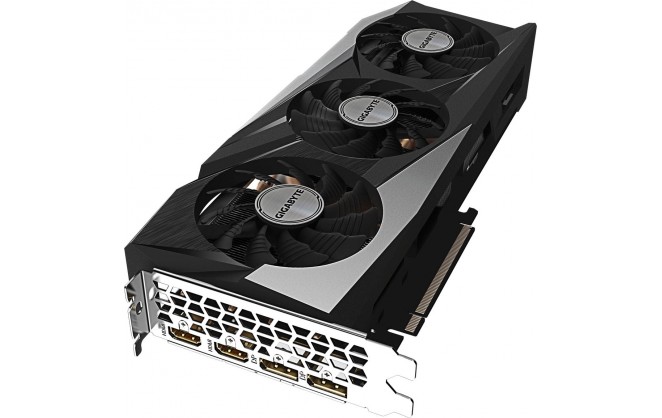

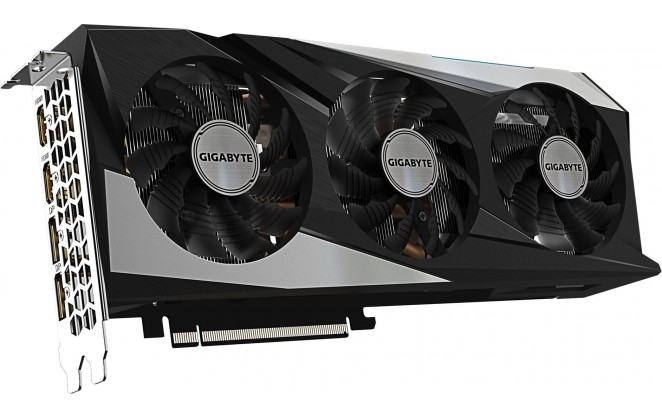

The WINDFORCE 3X cooling system features three 100mm unique blade fans, alternate spinning, 8 composite copper heat pipes, large vapor chamber directly touches the GPU and 3D active fan, which together provide high efficiency heat dissipation.
Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
Extended heatsink design allows air flow to pass through, providing better heat dissipation.
With direct contact to the GPU and VRAM, the large vapor chamber combines the composite heat pipes to efficiently transfer heat generated from the interior cores to the heat sink.
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.

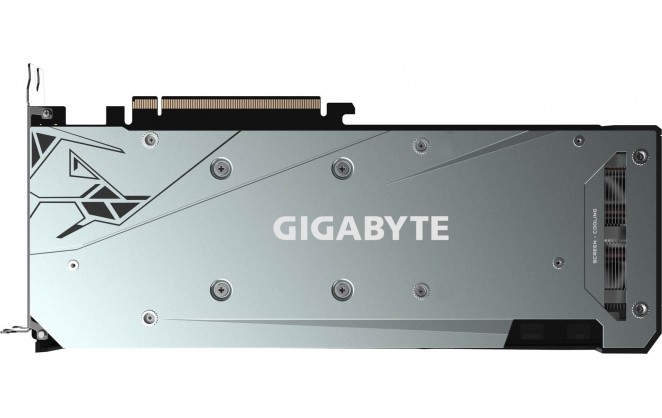

The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

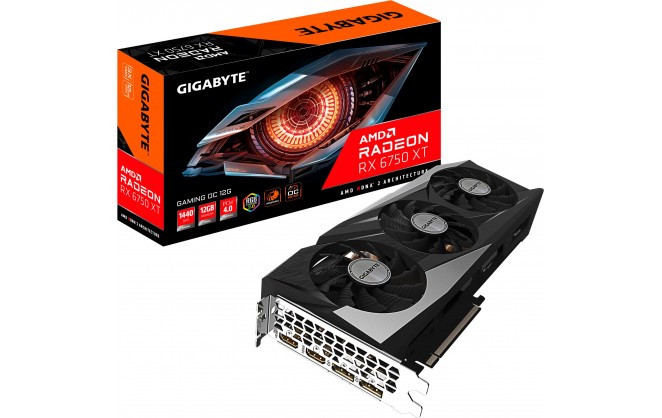

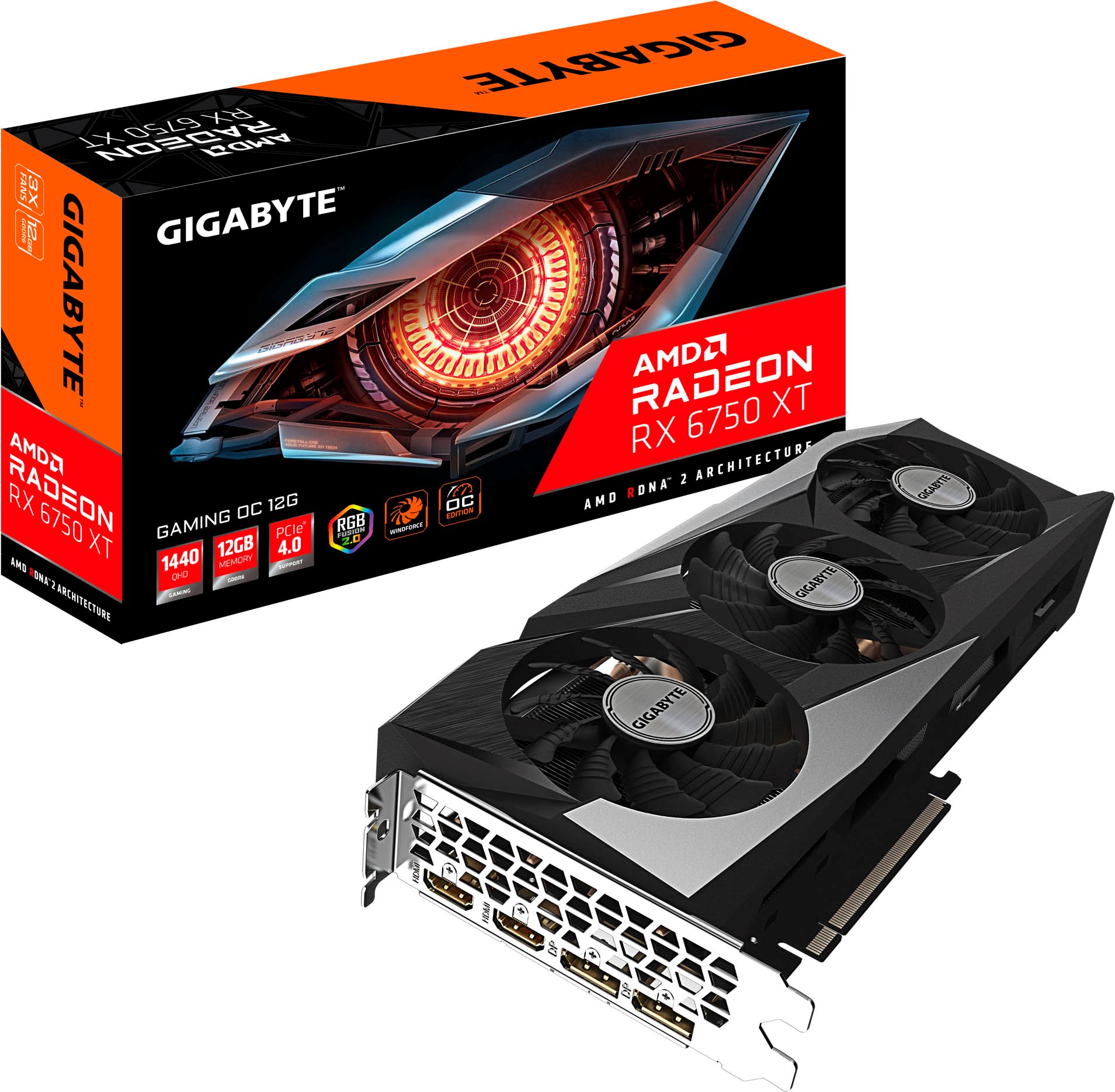

Gigabyte Radeon RX 6750 XT GAMING OC 12GB Graphics Card
GPU
| Chipset Manufacturer | AMD |
| Chipset Model Name | Radeon RX |
| Chipset Model Number | 6750 XT |
| Chipset Additional Information | GAMING OC |
| Chip Clock | Up to 2623 MHz |
Storage
| Memory Size | 12288 MB |
Memory
| Memory Clock | 18 Gbps |
| Memory Type | GDDR6 |
| Memory Width | 192 bit |
| Memory Bandwidth | 432 GB/s |
Interfaces/Ports
| Video Card Bus Type | PCI Express |
| Video Card Bus Version | 4.0 x16 |
| HDMI Port | 2 x HDMI 2.1 |
| DisplayPort | 2 x DisplayPort 1.4a |
System Requirements
| System Requirements | 1 x PCI Express 4.0 x16 slot Recommended 650W or greater PSU with 1 x 8-pin & 1 x 6-pin PCIe connectors |
Resolution
| Multiple Monitor Support (Max) | Yes (4) |
| Maximum Resolution | 7680 x 4320 pixels |
Physical
| Form Factor | Graphics Card |
| In The Box | Graphics Card Quick Guide |
| Width | 49 mm (2.5 slot) |
| Depth | 281 mm |
| Height | 115 mm |
| Weight | 0.99 kg |
Warranty
| Warranty | 3 Years |
Key Features
| Interface Type | PCI Express 4.0 x16 |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| Graphics Usability | Gaming |
| DisplayPort Connection | Yes |
| Direct X Support | Direct X 12 |
| Cooler Type | Dynamic Fan |
| Low Profile | No |
| AMD Radeon | RX 6750 XT |
| PCI-E Pin Type | 6-Pin + 6+2-Pin |
| FreeSync | Yes |
| Cooling Technology | Dynamic Fan |
| VR Ready | AMD |
| GPU Length | 281 mm |
| Card Width | 3 |
| Power Requirement (auto) | 250 W |
| GPU Power (TDP) | 250 W |
| Graphics card count | 1 |
Graphics
| Graphics Chipset | Radeon RX 6750 XT |
Item Details
| Manufacturer | Gigabyte |
| Manufacturer Code | GV-R675XTGAMING OC-12GD |
| EAN | 4719331310820 |
| UPC | 889523032558 |
| Condition | New |
