FEATURES
WINDFORCE 3X COOLING SYSTEM
The WINDFORCE 3X cooling system features 3x 80mm unique blade fans, alternate spinning, 3 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation.
HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.
RGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.
PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
EXTREME DURABILITY AND OVERCLOCKING
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
RGB FUSION - SYNC WITH ONE CLICK
There are various modes you can select from and easily achieve RGB synchronization with just one single click.
RGB FUSION - INDIVIDUAL LIGHTING CONTROL
An easy way to customize the colors and the lighting effects individually just the way you want.

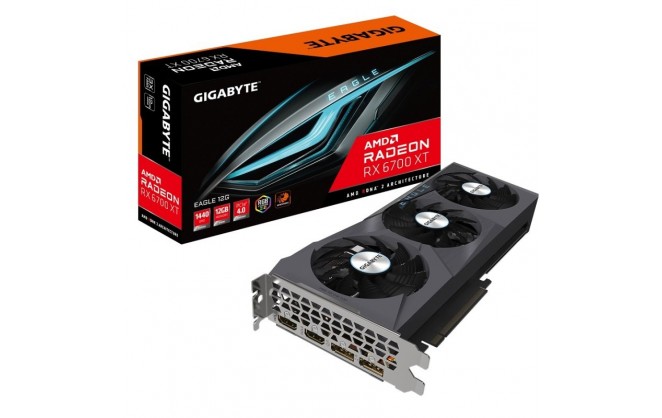

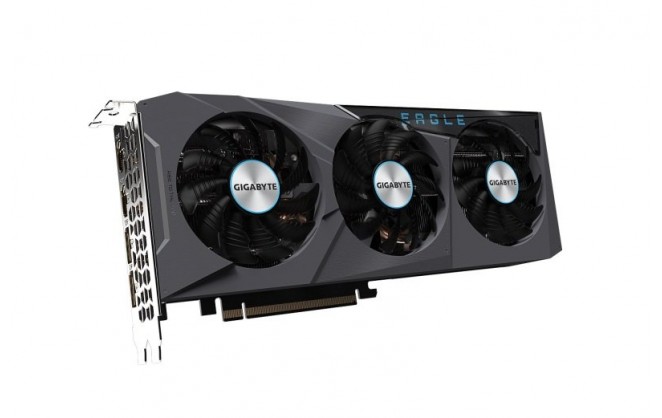

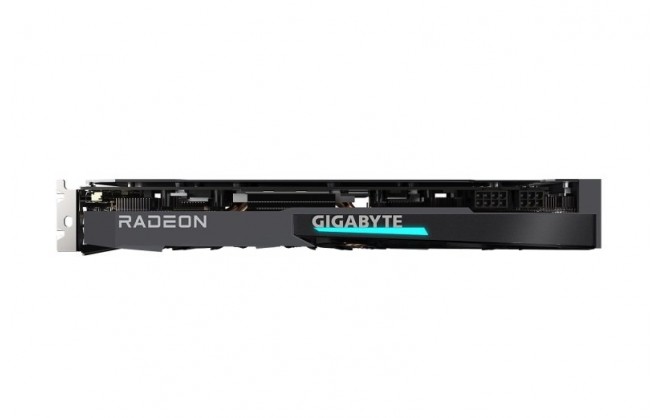

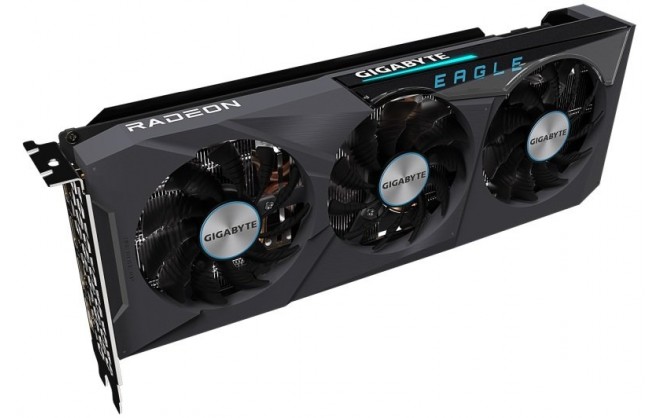

Gigabyte Radeon RX 6700 XT 12GB EAGLE Graphics Card
General | |
|---|---|
| Device Type | Graphics card |
| Bus Type | PCI Express 4.0 x16 |
| Graphics Engine | AMD Radeon RX 6700 XT |
| Boost Clock | 2581 MHz |
| Stream Processors | 2560 |
| Process Technology | 7 nm |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 4 |
| Interfaces | 2 x HDMI ¦ 2 x DisplayPort |
| API Supported | OpenGL 4.6, DirectX 12 Ultimate |
| Features | GIGABYTE WindForce 3x, Heat Pipe Direct Touch technology, metal wraparound backplate, 80mm Unique blade fan design, AORUS Graphics Engine, RGB Fusion 2.0, Gigabyte Alternate Spinning, 3D Active Fan, RDNA 2 Architecture |
Memory | |
| Size | 12 GB |
| Technology | GDDR6 SDRAM |
| Effective Clock Speed | 16000 MHz |
| Bus Width | 192-bit |
| Bandwidth | 384 GBps |
System Requirements | |
| Required Power Supply | 650 W |
| Additional Requirements | 6-pin + 8-pin PCI Express power connectors |
Miscellaneous | |
| Software Included | AORUS Engine |
| Compliant Standards | DisplayPort 1.4a |
| Width | 4 cm |
| Depth | 28.2 cm |
| Height | 11.3 cm |
