£2,059.99 ex. vat
£2,471.99 inc. vat
Share:
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features composite metal grease, server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, superconducting heat pipes, a large vapor chamber, 3D active fans, and enhanced screen cooling.
The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle's wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics
Reduce the turbulence of adjacent fans and increase airflow pressure.
The double ball bearing structure has better heat endurance and efficiency than sleeve structure.
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
To address the thermal demands of high-wattage GPU, we utilize composite metal grease that leverages the high thermal conductivity of liquid metal and the ease of application of silicon grease.
To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs.
The superconducting heat pipe utilizes differences in capillary structures, strategically placed in the different transferring zones, to effectively enhance heat transfer efficiency. Coupled with a large vapor chamber that directly contacts the GPU, both features work together to achieve optimal cooling performance.
The spacing of large heatsink fins is optimized to achieve maximum heat dissipation speed under various airflow conditions while maintaining minimal noise levels.
The angular and unequal fin height design effectively channels airflow between the fins, thereby increasing the contact surface area with the air and improving heat dissipation efficiency.
The extended heatsink allows air to pass through, effectively dissipating heat. An included additional fan further enhances cooling performance.
The AORUS series redefines next-gen aesthetics, embodying speed and power to deliver stunning visual experiences. Every detail is meticulously crafted for absolute velocity and unwavering strength.
The through-line RGB lighting outlines a spatial sense that extends seamlessly from the inside out, coupled with a long metal plate covering that integrates flawlessly with the surrounding design. This enhances visual consistency in appearance, perfectly embodying the core essence of the design.
Dynamic RGB Halo lighting is accentuated by swirling patterns and vortex-inspired designs around the fan, creating a mesmerizing interplay of light and motion. The front features layered textures with varying finishes, blending strength and elegance in perfect harmony.
The legendary three-ring lighting provides excellent visual enjoyment. You can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
The LCD monitor not only display graphics card information, but also various favorite texts, pictures and GIFs. You can also adjust lighting effects via GIGABYTE CONTROL CENTER.
The reinforced metal backplate, securely fastened to the I/O bracket and combined with a die-cast metal frame, provides exceptional structural integrity.
The factory default setting is Performance mode, which provides users with the best performance. However, switching to Silent mode will enjoy a quieter experience.
When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.
Our newly designed VGA holder offers dozens of customizable mounting options, ensuring your graphics card is securely supported and prevents sagging. Its sleek design allows for discreet installation, enhancing the overall aesthetics of your system.
The graphics card features excellent power phase design to allow the MOSFETs to operate at lower temperatures and provide a more stable voltage output. Load balancing of each MOSFET can effectively improve the overclocking performance and extend the life of the card.
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
Dust resistant - shields from dust, insects, dropped screws, drill shavings, and abrasion.
Moisture resistant - prevents unwanted conduction paths and board damage.
Corrosion resistant - protects from salt spray, humidity, and corrosion.
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
We want you to experience the best service you have ever had. This is why, on top of our standard 3-year warranty, we would like to offer you an additional 1 year of protection to your graphics card free of charge. You can enjoy a 4-year warranty by registering on the website within 30 days of purchase.

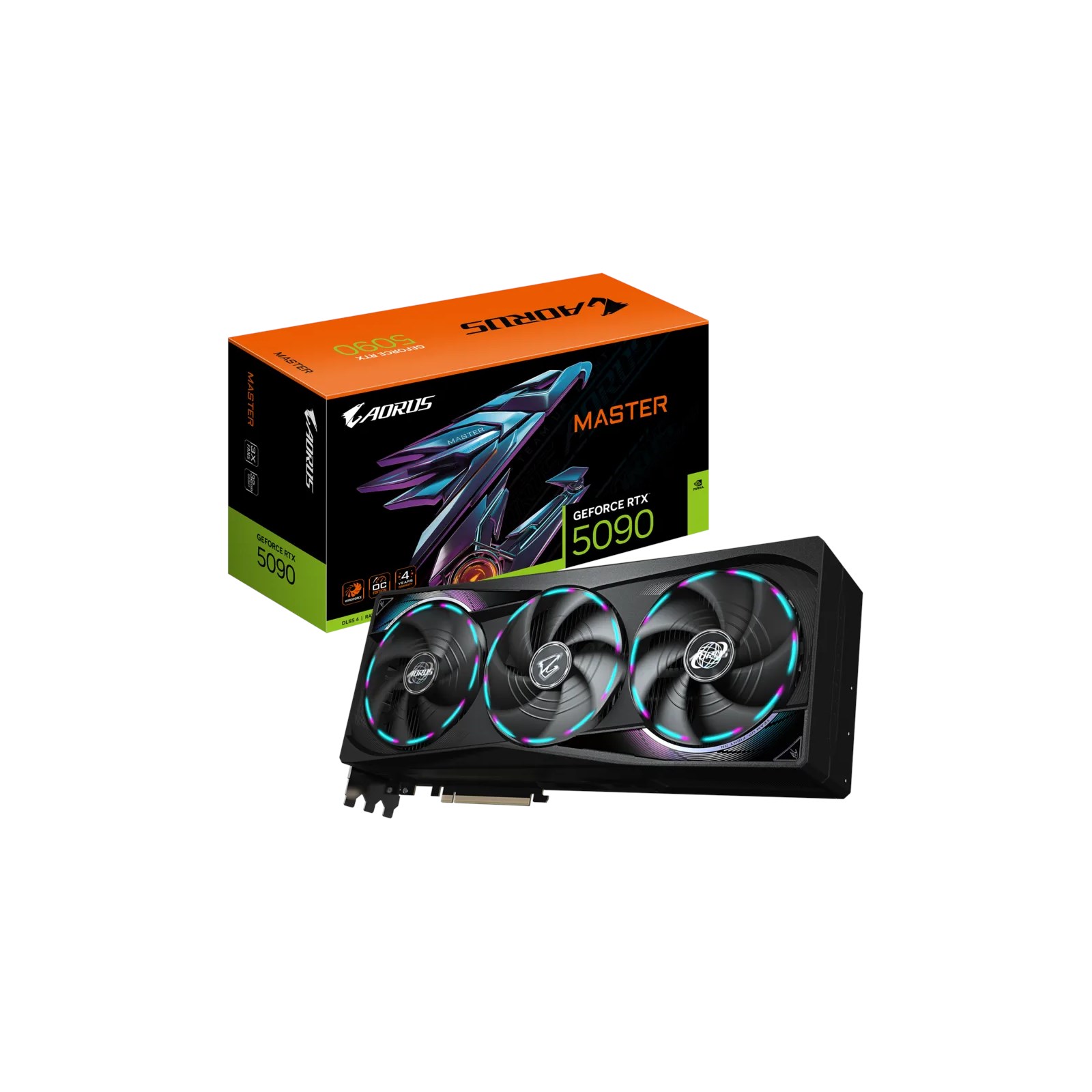

Gigabyte GeForce RTX 5090 Aorus Master 32GB GDDR7 Graphics Card
GPU
| Chipset Manufacturer | NVIDIA |
| Chipset Model Name | GeForce RTX |
| Chipset Model Number | 5090 |
| Chipset Additional Information | AORUS MASTER |
| Base Chip Clock | 2017 MHz |
| Graphics Core | CUDA |
| Number of Cores | 21760 |
Memory
| Memory Size | 32768 MB |
| Memory Clock | 28 Gbps |
| Memory Type | GDDR7 |
| Memory Width | 512 bit |
| Memory Bandwidth | 1.79 TB/s |
Interfaces/Ports
| Video Card Bus Type | PCI Express |
| Video Card Bus Version | 5.0 x16 |
| HDMI Port | 1 x HDMI 2.1b |
| DisplayPort | 3 x DisplayPort 2.1a |
Resolution
| Multiple Monitor Support (Max) | Yes (4) |
| Maximum Resolution | 7680 x 4320 |
System Requirements
| System Requirements | 1 x PCI Express 5.0 x16 slot |
Electrical
| Power Connector | 1 x 12V-2x6 or 4 x 8-pin PCIe |
| Power Consumption | 575 W |
Physical
| Form Factor | Graphics Card |
| In The Box | Graphics Card Warranty Registration 1 x 12V-2x6 to 4 x 8-pin PCIe adapter AORUS Identity Stickers AORUS Metal Sticker VGA Holder VGA Holder Manual |
| Width | 75 mm (3.8 slot) |
| Depth | 360 mm |
| Height | 150 mm |
Warranty
| Warranty | 3 Years 4 Years with online registration |
Key Features
| Interface Type | PCI Express 5.0 x16 |
| Config Gaming x8 (CB/CCL) | No |
| Graphics Memory Type | GDDR7 |
| Main Colour | Black |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| Graphics Usability | Gaming |
| DisplayPort Connection | Yes |
| Direct X Support | Direct X 12 |
| Cooler Type | Dynamic Fan Inc. 0dB Mode |
| Low Profile | No |
| NVIDIA GeForce | RTX 5090 |
| PCIe Pin Type | 12+4-Pin (16-Pin) |
| Cooling Technology | Dynamic Fan Inc. 0dB Mode |
| VR Ready | NVIDIA |
| GPU Length | 360 mm |
| Card Width | 4 |
| Power Requirement (auto) | 575 W |
| GPU Power (TDP) | 575 W |
| Graphics card count | 1 |
| PCI Express Power Pins (female) | 32 |
| PCIe Physical Slot required | 16 |
| 12VHPWR 16-pin Connector | Yes |
| AI Ready | Yes |
| 12V-2x6 Rating | 600W |
Graphics
| Graphics Chipset | GeForce RTX 5090 |
Graphics Device
| G-Sync | Yes |
Item Details
| Manufacturer | Gigabyte |
| Manufacturer Code | GV-N5090AORUS M-32GD |
| EAN | 4719331355807 |
