£976.44 ex. vat
£1,171.73 inc. vat
Share:
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large vapor chamber, 3D active fans, and screen cooling.
The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle's wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
Reduce the turbulence of adjacent fans and increase airflow pressure.
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs.
The large vapor chamber directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
Extended heatsink allows air to pass through, providing better heat dissipation.
The factory default setting is Performance mode, which provides users with the best performance. However, switching to Silent mode will enjoy a quieter experience.
Complying with NVIDIA's small form factor specification, our graphics cards pack powerful performance into a small form factor, achieving the perfect balance of size and power.

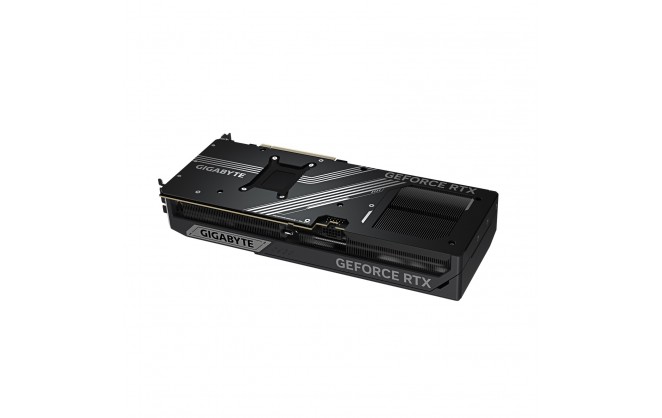

The reinforced metal backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.
Our newly designed VGA holder offers dozens of customizable mounting options, ensuring your graphics card is securely supported and prevents sagging. Its sleek design allows for discreet installation, enhancing the overall aesthetics of your system.
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

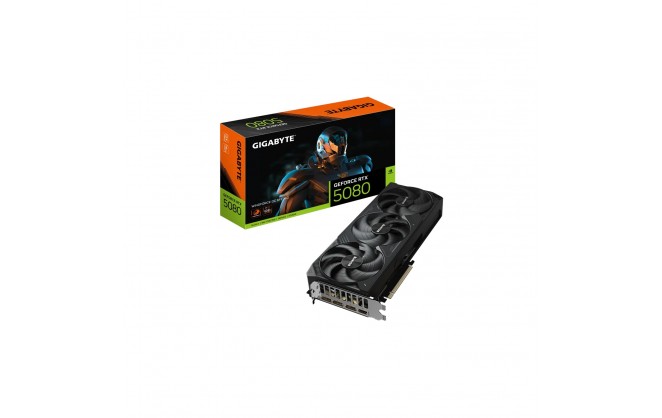

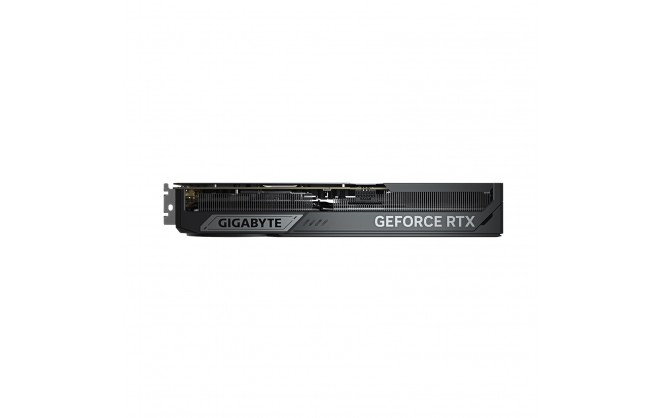

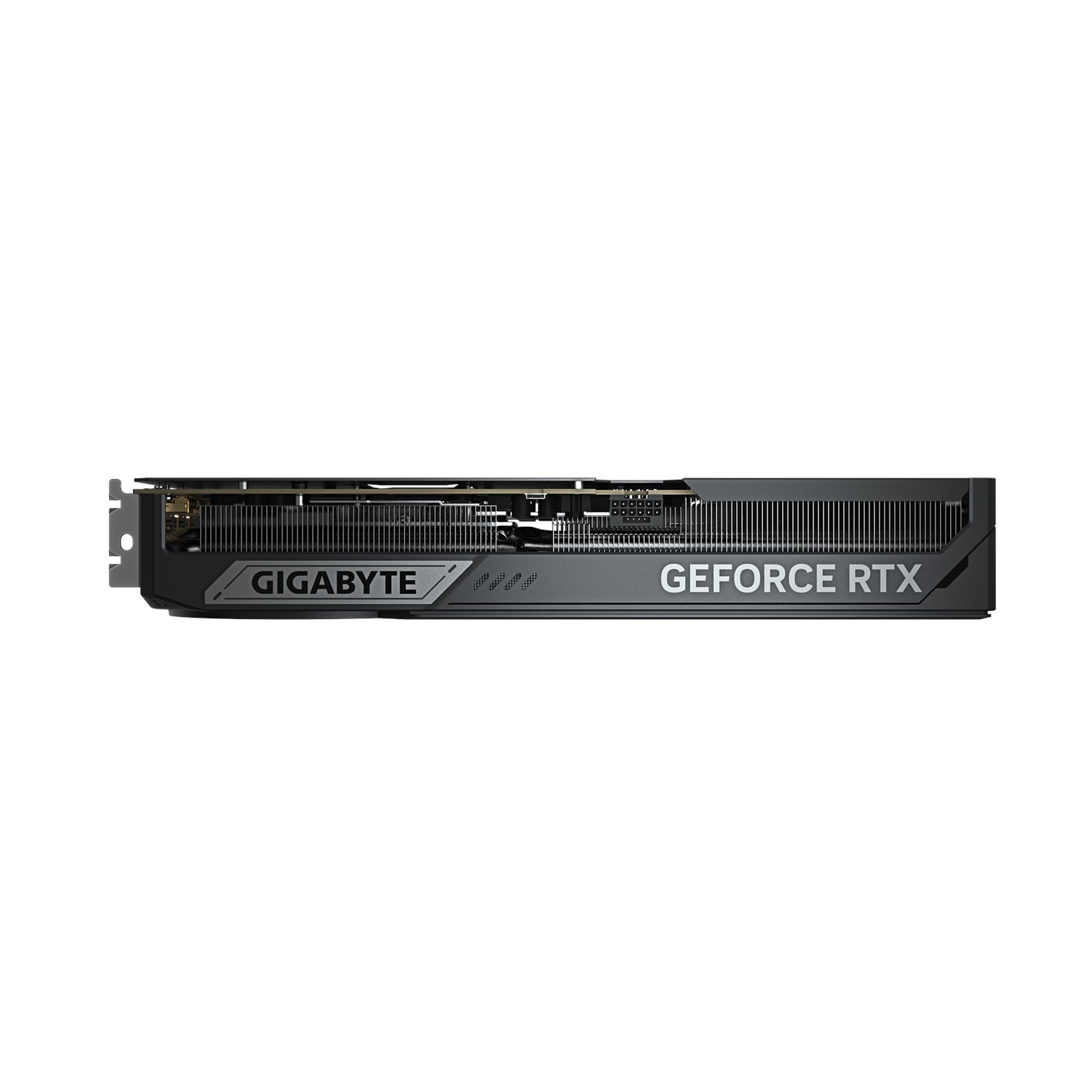

Gigabyte GeForce RTX 5080 WINDFORCE SFF OC 16GB GDDR7 Graphics Card
GPU
| Chipset Manufacturer | NVIDIA |
| Chipset Model Name | GeForce RTX |
| Chipset Model Number | 5080 |
| Chipset Additional Information | WINDFORCE SFF OC |
| Base Chip Clock | 2295 MHz |
| Graphics Core | CUDA |
| Number of Cores | 10752 |
Memory
| Memory Size | 16384 MB |
| Memory Clock | 30 Gbps |
| Memory Type | GDDR7 |
| Memory Width | 256 bit |
| Memory Bandwidth | 960 GB/s |
Interfaces/Ports
| Video Card Bus Type | PCI Express |
| Video Card Bus Version | 5.0 x16 |

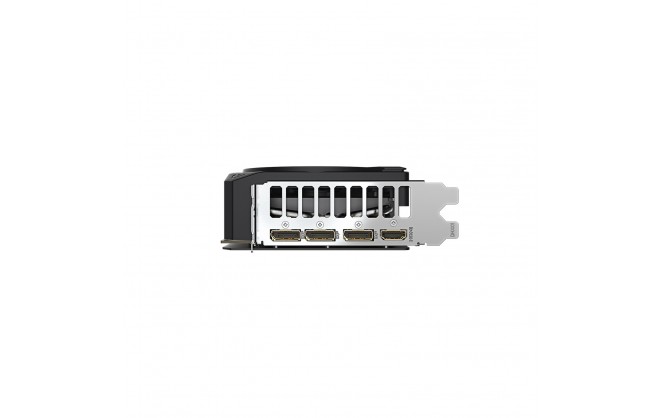

| HDMI Port | 1 x HDMI 2.1b |
| DisplayPort | 3 x DisplayPort 2.1a |
Resolution
| Multiple Monitor Support (Max) | Yes (4) |
| Maximum Resolution | 7680 x 4320 |
System Requirements
| System Requirements | 1 x PCI Express 5.0 x16 slot |
Electrical
| Power Connector | 1 x 12V-2x6 or 3 x 8-pin PCIe |
| Power Consumption | 360 W |
| Recomended Power Supply | 850 W |
Physical
| Form Factor | Graphics Card |
| In The Box | Graphics Card Manual 1 x 12V-2x6 to 3 x 8-pin PCIe Adapter VGA Holder VGA Holder Manual |
| Width | 50 mm (2.5 slot) |
| Depth | 304 mm |
| Height | 126 mm |
Warranty
| Warranty | 3 Years |
Key Features
| Interface Type | PCI Express 5.0 x16 |
| Config Gaming x8 (CB/CCL) | No |
| Graphics Memory Type | GDDR7 |
| Main Colour | Black |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| Graphics Usability | Gaming |
| DisplayPort Connection | Yes |
| Direct X Support | Direct X 12 |
| Cooler Type | Dynamic Fan Inc. 0dB Mode |
| Low Profile | No |
| NVIDIA GeForce | RTX 5080 |
| PCIe Pin Type | 12+4-Pin (16-Pin) |
| Cooling Technology | Dynamic Fan Inc. 0dB Mode |
| VR Ready | NVIDIA |
| GPU Length | 304 mm |
| Card Width | 3 |
| Power Requirement (auto) | 360 W |
| GPU Power (TDP) | 360 W |
| Graphics card count | 1 |
| PCI Express Power Pins (female) | 24 |
| PCIe Physical Slot required | 16 |
| 12VHPWR 16-pin Connector | Yes |
| AI Ready | Yes |
| 12V-2x6 Rating | 450W |
Graphics
| Graphics Chipset | GeForce RTX 5080 |
Graphics Device
| G-Sync | Yes |
Item Details
| Manufacturer | Gigabyte |
| Manufacturer Code | GV-N5080WF3OC-16GD |
| EAN | 4719331355845 |
