The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large vapor chamber, 3D active fans, and screen cooling.
The AORUS series redefines next-gen aesthetics, embodying speed and power to deliver stunning visual experiences. Every detail is meticulously crafted for absolute velocity and unwavering strength.

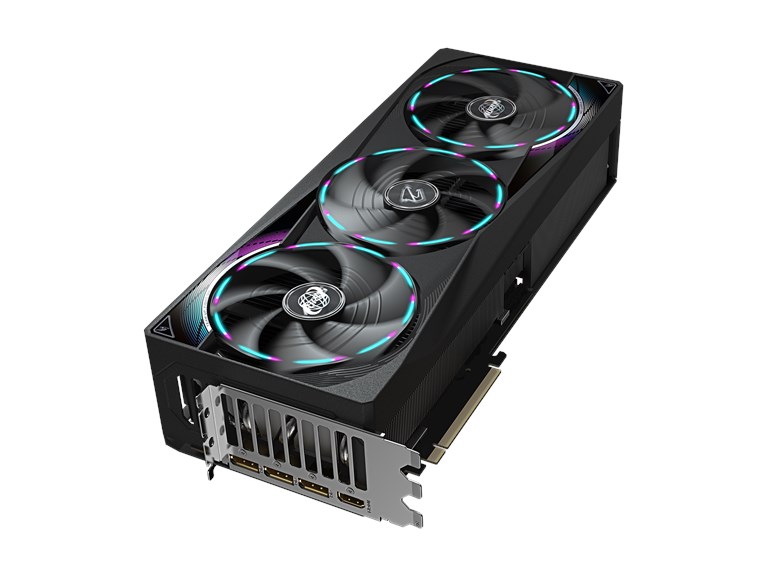

Gigabyte GeForce RTX 5070 Ti Aorus Master 16GB GDDR7 Graphics Card
GPU
| Chipset Manufacturer | NVIDIA |
| Chipset Model Name | GeForce RTX |
| Chipset Model Number | 5070 Ti |
| Chipset Additional Information | AORUS MASTER |
| Base Chip Clock | 2300 MHz |
| Graphics Core | CUDA |
| Number of Cores | 8960 |
Memory
| Memory Size | 16384 MB |
| Memory Clock | 28 Gbps |
| Memory Type | GDDR7 |
| Memory Width | 256 bit |
| Memory Bandwidth | 896 GB/s |
Interfaces/Ports
| Video Card Bus Type | PCI Express |
| Video Card Bus Version | 5.0 x16 |
| HDMI Port | 1 x HDMI 2.1b |
| DisplayPort | 3 x DisplayPort 2.1a |
Resolution
| Multiple Monitor Support (Max) | Yes (4) |
| Maximum Resolution | 7680 x 4320 |
System Requirements
| System Requirements | 1 x PCI Express 5.0 x16 slot |
Electrical
| Power Connector | 1 x 12V-2x6 or 3 x 8-pin PCIe |
| Power Consumption | 300 W |
Physical
| Form Factor | Graphics Card |
| In The Box | Graphics Card Manual Warranty notice 1 x 12V-2x6 to 3 x 8-pin PCIe adapter AORUS identity stickers VGA holder VGA holder manual |
| Width | 75 mm (3.75 slot) |
| Depth | 360 mm |
| Height | 150 mm |
Warranty
| Warranty | 3 Years 4 Years with online registration |
Key Features
| Interface Type | PCI Express 5.0 x16 |
| Config Gaming x8 (CB/CCL) | No |
| Graphics Memory Type | GDDR7 |
| Main Colour | Black |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| Graphics Usability | Gaming |
| DisplayPort Connection | Yes |
| Direct X Support | Direct X 12 |
| Cooler Type | Dynamic Fan Inc. 0dB Mode |
| Low Profile | No |
| NVIDIA GeForce | RTX 5070 Ti |
| PCIe Pin Type | 12+4-Pin (16-Pin) |
| Cooling Technology | Dynamic Fan Inc. 0dB Mode |
| VR Ready | NVIDIA |
| GPU Length | 360 mm |
| Card Width | 4 |
| Power Requirement (auto) | 300 W |
| GPU Power (TDP) | 300 W |
| Graphics card count | 1 |
| PCI Express Power Pins (female) | 24 |
| PCIe Physical Slot required | 16 |
| 12VHPWR 16-pin Connector | Yes |
| AI Ready | Yes |
| 12V-2x6 Rating | 450W |
Graphics
| Graphics Chipset | GeForce RTX 5070 Ti |
Graphics Device
| G-Sync | Yes |
Item Details
| Manufacturer | Gigabyte |
| Manufacturer Code | GV-N507TAORUS M-16GD |
| EAN | 4719331355678 |
| UPC | 889523048160 |
