The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, copper plate, 3D active fans, and screen cooling.
The design inspiration for the EAGLE series stems from the fusion of aerospace battleships and sci-fi elements. Its unique curved contours outline a streamlined appearance, complemented by segmented lines resembling disassembled deck components, evoking the intricate structure of a spaceship. This design infuses the overall aesthetic with a rich cosmic technology vibe, showcasing the futuristic aesthetics and craftsmanship in every detail.

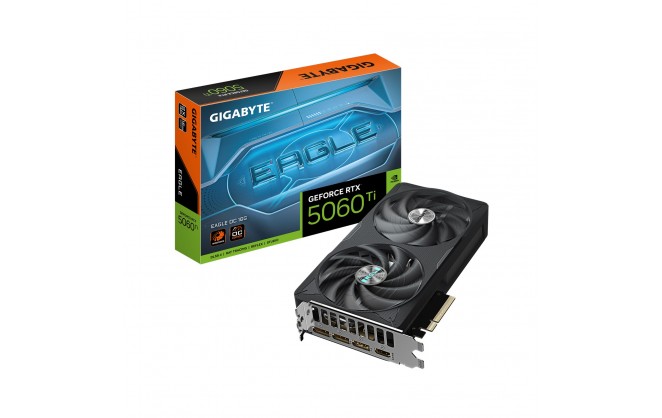

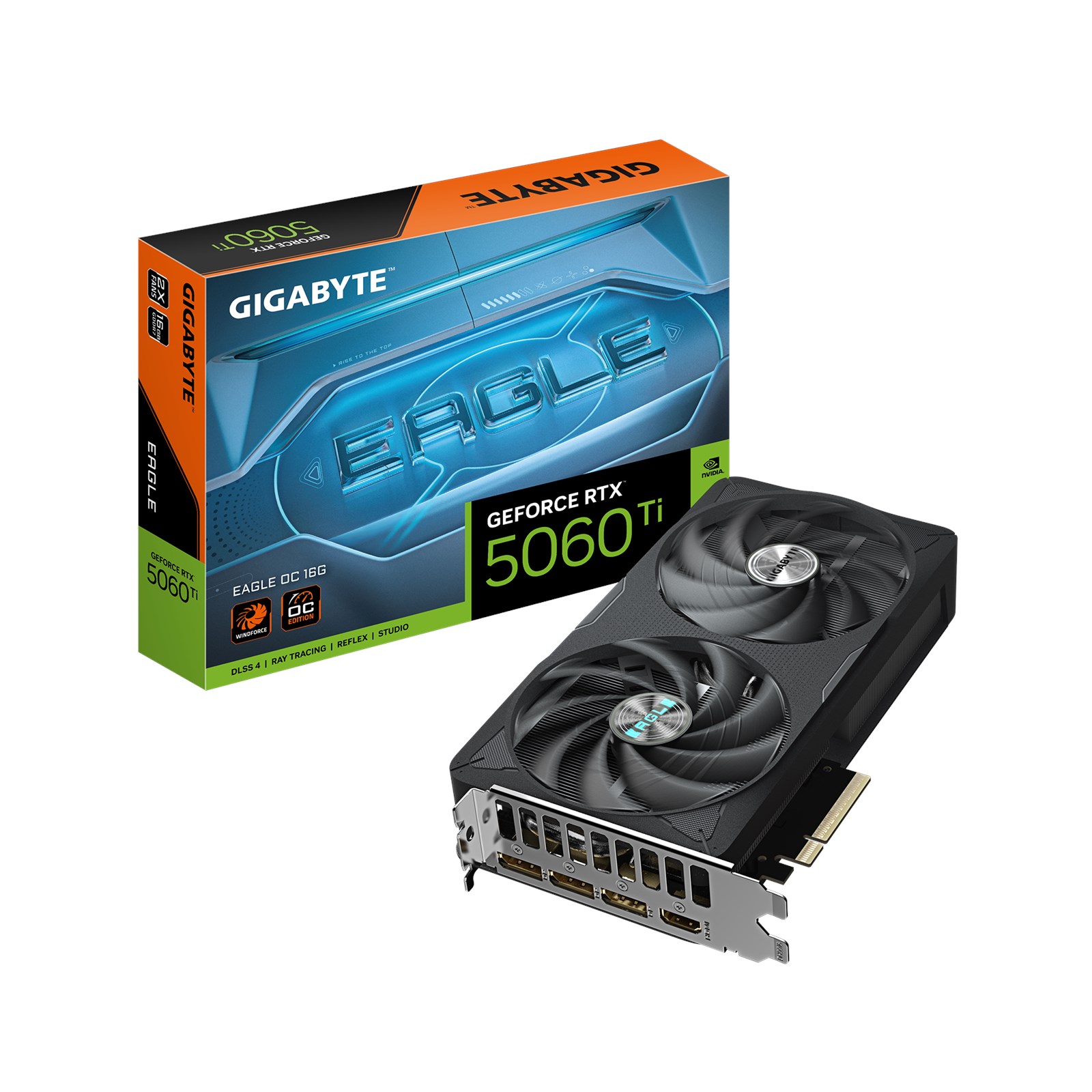

Gigabyte GeForce RTX 5060 Ti EAGLE OC 16GB GDDR7 Graphics Card
GPU
| Chipset Manufacturer | NVIDIA |
| Chipset Model Name | GeForce RTX |
| Chipset Model Number | 5060 Ti |
| Chipset Additional Information | EAGLE OC |
| Boost Chip Clock | 2617 MHz |
| Graphics Core | CUDA |
| Number of Cores | 4608 |
Memory
| Memory Size | 16384 MB |
| Memory Clock | 28 Gbps |
| Memory Type | GDDR7 |
| Memory Width | 128 bit |
| Memory Bandwidth | 448 GB/s |
Interfaces/Ports
| Video Card Bus Type | PCI Express |
| Video Card Bus Version | 5.0 x8 |
| HDMI Port | 1 x HDMI 2.1b |
| DisplayPort | 3 x DisplayPort 2.1b |
Resolution
| Multiple Monitor Support (Max) | Yes (4) |
| Maximum Resolution | 7680 x 4320 |
System Requirements
| System Requirements | 1 x PCI Express 5.0 x16 slot |
Electrical
| Power Connector | 1 x 8-pin PCIe |
| Power Consumption | 180 W |
| Recomended Power Supply | 650 W |
Physical
| Form Factor | Graphics Card |
| In The Box | Graphics Card Quick Guide |
| Width | 40 mm (Dual Slot) |
| Depth | 215 mm |
| Height | 122 mm |
Warranty
| Warranty | 3 Years |
Key Features
| Interface Type | PCI Express 5.0 x8 |
| Graphics Memory Type | GDDR7 |
| Main Colour | Black |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| Graphics Usability | Gaming |
| DisplayPort Connection | Yes |
| Direct X Support | Direct X 12 |
| Cooler Type | Dynamic Fan Inc. 0dB Mode |
| Low Profile | No |
| NVIDIA GeForce | RTX 5060 Ti |
| PCIe Pin Type | 6+2-Pin |
| Cooling Technology | Dynamic Fan Inc. 0dB Mode |
| VR Ready | NVIDIA |
| GPU Length | 215 mm |
| Card Width | 2 |
| Power Requirement (auto) | 180 W |
| GPU Power (TDP) | 180 W |
| Graphics card count | 1 |
| PCI Express Power Pins (female) | 8 |
| PCIe Physical Slot required | 16 |
| 12VHPWR 16-pin Connector | No |
| AI Ready | Yes |
Graphics
| Graphics Chipset | GeForce RTX 5060 Ti |
Graphics Device
| G-Sync | Yes |
Item Details
| Manufacturer | Gigabyte |
| Manufacturer Code | GV-N506TEAGLE OC-16GD |
